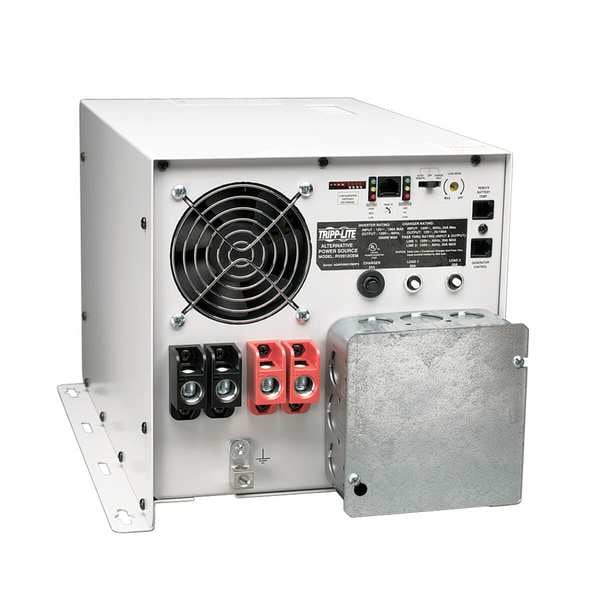

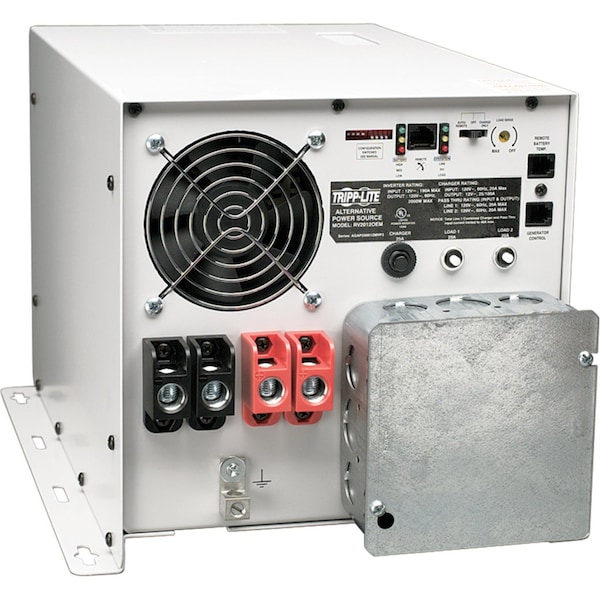

Power Inverter and Battery Charger, Pure Sine Wave, 6,000 W Peak, 3,000 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 6,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 1 |
| Inverter Width | 11-1/2 in |
| Width | 11-1/2 in |
| Automatic/Manual | Automatic |
| Charger Width | 11-1/2 in |
| Nominal Output Power | 3,000 W |
| Charger Depth | 16.8 in |
| Case Material | Steel |
| Inverter Depth | 16-3/4 in |
| Charger Output Voltage | 120V AC |
| Depth | 16-3/4 in |
| Features | Expandable Runtime; Overload Protection |
| Charger Input Voltage | 120V AC/12V DC |
| Standards | Tested to UL458 (USA) and CSA (Canada) |
| Inverter Height | 9-3/4 in |
| Charger Output Amps | 140 A |
| Charger Height | 9.8 in |
| Height | 9-3/4 in |
| Max. Input Current | Full continuous load - 282 A at 12V DC; 40 A at 120V AC with full inverter and charger load |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Charger DxWxH | 16.8 in x 11-1/2 in x 9.8 in |
| Input Voltage | 12VDC |
| Output Voltage | 120VAC |
| Charger Input Current | 140 A |
| Charger Output Current | 140 A |
| Package Contents | PowerVerter RV RV3012OEM Charger DC-to-AC Power Inverter, RV3012OEM Inverter/Charger, Instruction manual with warranty information |
| Product Line | PowerVerter |
| Product Series | RV |
| Maximum Frequency | 60 Hz |
| Product Name | PowerVerter RV RV3012OEM Charger DC-to-AC Power Inverter |
| Voltage Compatibility (VAC) | 120 |
| Load Sensing | Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts. |
| Package Includes | RV3012OEM Inverter/Charger;Instruction manual with warranty information |
| Expandable Runtime | Yes |
| AC Suppression Joule Rating | 450 |
| Switches | 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Frequency Compatibility | 60 Hz |
| Material of Construction | Steel |
| Unit Dimensions (hwd / in.) | 9.75 x 11.5 x 16.75 |
| Nominal Output Voltage(s) Supported | 120 V |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 VAC (+/-5%). |
| Voltage Compatibility (VDC) | 12 |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 282A at 12VDC. AC INPUT: 40 amps total (20A line 1 / 20A line 2) at 120VAC with full inverter and charger load (25A max charger-only from line 1 / combined input load to support charger and AC output is automatically controlled |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual) |
| Recommended Electrical Service | DC INPUT: Requires 12VDC input source capable of delivering 290A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). |
| Nominal Input Voltage(s) Supported | 120V AC |
| Overload Protection | Includes 30A input breaker dedicated to the charging system and 2 branch rated 20A output load breakers |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications) |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| LVC (Low Voltage Cut-Off) | 10VDC +/-3% |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) |
| Battery Charge | 35A / 140A (selectable) |
| Input Cord Length Details | DC INPUT: User supplies cabling. 0 gauge or larger (see manual). AC INPUT: hardwire |
| Output Receptacles | Hardwire |
| DC System Voltage (VDC) | 12 |
| Product Certifications | UL 458, CSA |
| Relative Humidity | 0%-95% Non-Condensing |
| Cooling Method | Fan |
| Package Quantity | 1 |
