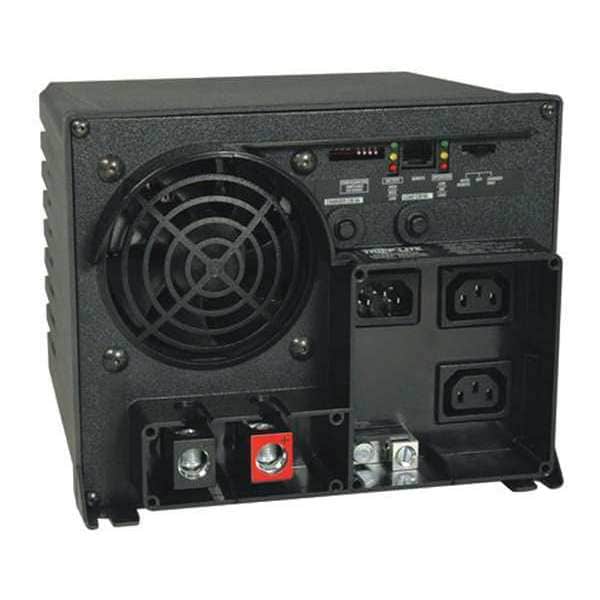

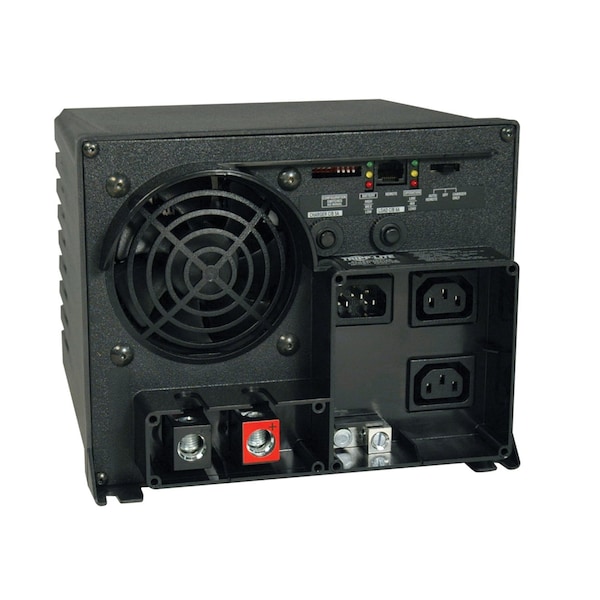

Power Inverter, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 1,500 W |
| Continuous Output Power | 750 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 230V AC |
| Inverter Output Voltage | 230V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 2 |
| Charger Output Amps | 20 A |
| Depth | 8-3/4 in |
| Case Material | Polycarbonate |
| Width | 7 in |
| Height | 9 in |
| Standards | RoHS Compliant |
| Features | Expandable Runtime; Overload Protection |
| Max. Input Current | Full continuous load - 72 A at 12V DC; 6.2 A at 230V AC with full inverter and charger load |
| Nominal Output Power | 750 W |
| Inveter Output Voltage | 230V AC |
| Output Frequency | 50 Hz |
| Input Voltage | 230 V AC, 12 V DC |
| Product Name | PowerVerter APS X APSX750 Power Inverter/Charger |
| Product Color | Black |
| Package Contents | PowerVerter APS X APSX750 Power Inverter/Charger, APSX750 Inverter/Charger, Instruction manual with warranty information |
| Product Series | APS X |
| Output Voltage | 12 V DC, 230 V AC |
| Additional Information | Frequency control for operating stability, RJ45 port allows connection of APS/PowerVerter Remote Switch, Switch allows user to select between off, auto-invert and charge-only settings, Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries, Coated internal circuit boards offer continuous operation in humid environments (0-95%, non-condensing), Configuration switches to allow the user to select the low voltage for the unit to automatically transfer from AC power to battery backup, Low voltage transfer to battery power: User configurable to 144V, 163V, 182V & 201V Overload protection: Includes 3A input breaker dedicated to the charging system and 4A output breaker for AC output loads, DC Input Voltage: 12 VDC, AC Input Voltage: 230 VAC, DC Charger Output Voltage: 12 VDC, AC Output Voltage: 230 VAC, AC Plug Type: IEC-320 C14, DC Plug Type: Set of 2 DC bolt-down terminals, Outlet/Receptacle Type: IEC-320 C13 |
| Product Line | PowerVerter |
| Maximum Frequency | 50 Hz |
| Compatibility | Compatible with marine, automotive, telecom, computer, emergency and a variety of other applications |
| Input Voltage Range | 10 DC to 15 V DC |
| Output Voltage Regulation | LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%). |
| Material of Construction | Polycarbonate |
| Overload Protection | Includes 3A input breaker dedicated to the charging system and 4A output breaker for AC output loads |
| Battery Charge | Selectable 5 / 20A with 1/2 cycle (10 ms) transfer time |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Recommended Electrical Service | DC INPUT: Requires 12VDC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 100A minimum battery system fusing is recommended. AC INPUT: 230VAC |
| Nominal Output Voltage(s) Supported | 230 V |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 72A at 12VDC. AC INPUT: 6.2A at 230VAC with full inverter and charger load (2.2A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions) |
| AC Suppression Joule Rating | 1,020 |
| Unit Dimensions (hwd / in.) | 7 x 8.75 x 9 |
| Voltage Compatibility (VAC) | 230 |
| DC System Voltage (VDC) | 12 |
| Output Receptacles | Universal outlets |
| Frequency Compatibility | 50 Hz |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual) |
| Relative Humidity | 0%-95% Non-Condensing |
| Nominal Input Voltage(s) Supported | 230V AC |
| Transfer Time (Line Power to Battery Mode) | Transfer time from line power to battery mode: 10 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications) |
| Output Frequency Regulation | 50 Hz (+/- 0.3 Hz) |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 272V |
| Expandable Runtime | Yes |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Form Factors Supported | Mounting slots enable permanent placement on any horizontal surface |
| Package Includes | APSX750 750W APS X Series 12V DC 230V AC Inverter/Charger;Owner's manual |
| Voltage Compatibility (VDC) | 12 |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Package Quantity | 1 |
