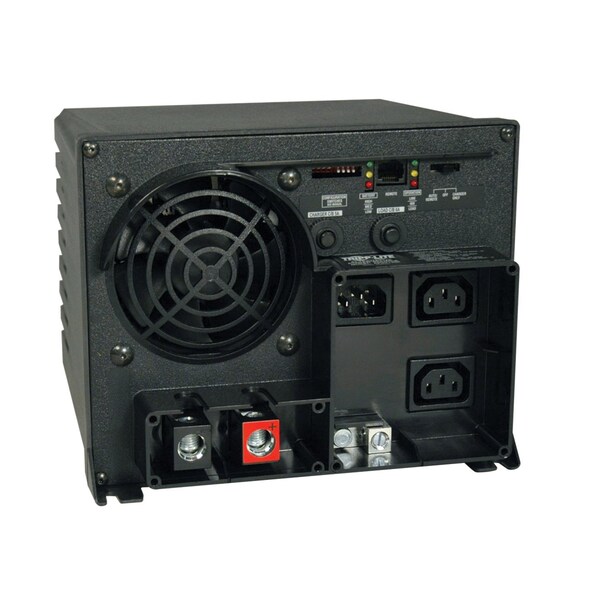

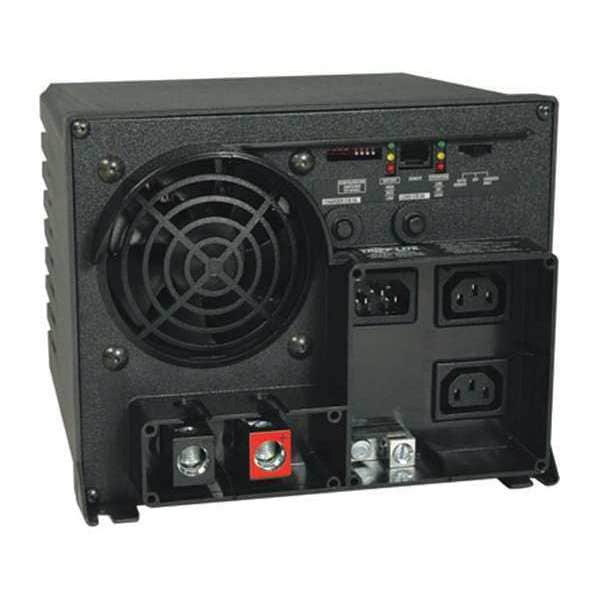

Power Inverter, Modified Sine Wave, 2,500 W Peak, 1,250 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 2,500 W |
| Continuous Output Power | 1,250 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 230V AC |
| Inverter Output Voltage | 230V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 2 |
| Width | 8-3/4 in |
| Depth | 9 in |
| Case Material | Polycarbonate |
| Standards | RoHS |
| Nominal Output Power | 1,250 W |
| Features | Expandable Runtime; Overload Protection |
| Max. Input Current | Full continuous load - 125 A at 12V DC; 9.3 A at 230V AC with full inverter and charger load |
| Height | 7 in |
| Charger Output Amps | 30 A |
| Inveter Output Voltage | 230V |
| Output Frequency | 50 Hz |
| Product Line | PowerVerter |
| Product Color | Black |
| Maximum Frequency | 50 Hz |
| Product Series | APS X |
| Input Voltage | 12 V DC |
| Product Name | PowerVerter APS X Series 1250W Charger Inverter |
| Output Voltage | 230 V AC |
| Package Contents | PowerVerter APS X Series 1250W Charger Inverter, Instruction Manual with Warranty Information |
| Material of Construction | Polycarbonate |
| Form Factors Supported | Mounting slots enable permanent placement on any horizontal surface |
| Output Receptacles | Universal outlets |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Battery Charge | Selectable 7.5 / 30A with 1/2 cycle transfer time |
| DC System Voltage (VDC) | 12 |
| Transfer Time (Line Power to Battery Mode) | 10 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications) |
| Recommended Electrical Service | DC INPUT: Requires 12VDC input source capable of delivering 125A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 225A minimum battery system fusing is recommended. AC INPUT: 230VAC |
| Output Voltage Regulation | LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%). |
| Nominal Output Voltage(s) Supported | 230 V |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 272V |
| Output Frequency Regulation | 50 Hz (+/- 0.3 Hz) |
| Relative Humidity | 0%-95% Non-Condensing |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 125A at 12VDC. AC INPUT: 9.3A at 230VAC with full inverter and charger load (3.3A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions) |
| Voltage Compatibility (VDC) | 12 |
| Voltage Compatibility (VAC) | 230 |
| Overload Protection | Includes 5A input breaker dedicated to the charging system and 6A output breaker for AC output loads |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual) |
| Package Includes | APSX1250 1250W APS X Series 12V DC 230V AC Inverter/Charger;Owner's manual |
| AC Suppression Joule Rating | 1,020 |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Nominal Input Voltage(s) Supported | 230V AC |
| Expandable Runtime | Yes |
| Unit Dimensions (hwd / in.) | 7 x 8.75 x 9 |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Frequency Compatibility | 50 Hz |
| Package Quantity | 1 |
