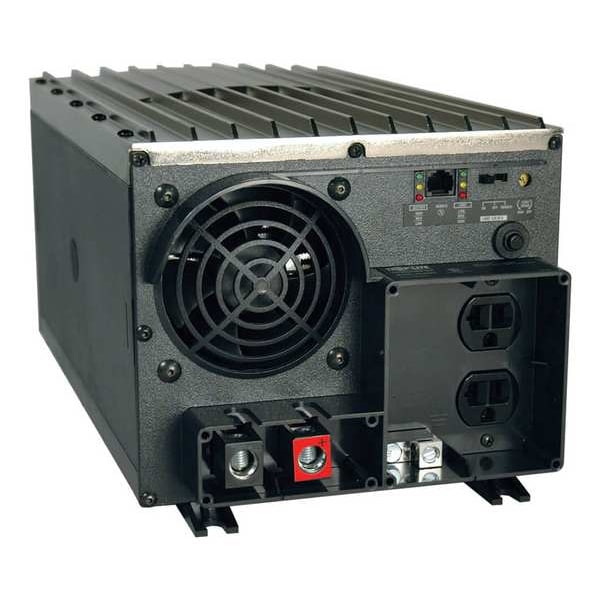

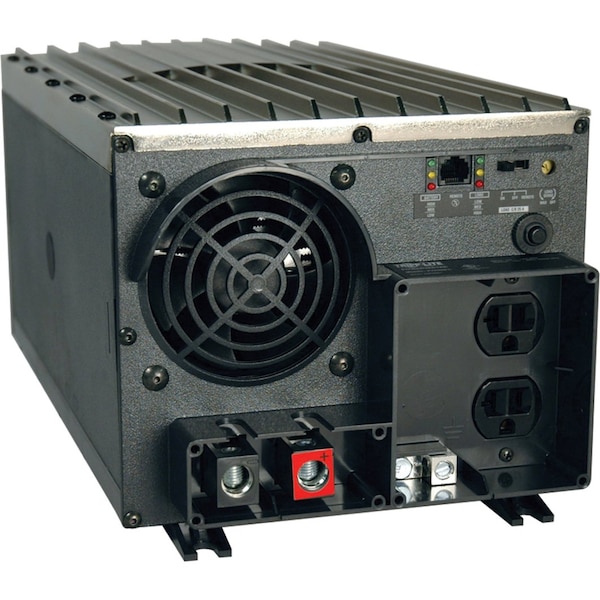

Power Inverter, Modified Sine Wave, 4,000 W Peak, 2,000 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 4,000 W |
| Continuous Output Power | 2,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Bolt Down Terminals, Input Terminals |
| Number of Outlets | 2 |
| Case Material | Polycarbonate |
| Nominal Output Power | 2,000 W |
| Width | 8-1/2 in |
| Depth | 16-1/4 in |
| Standards | RoHS Compliant, UL 458 |
| Height | 7-1/4 in |
| Includes | Set of High Current DC Input Terminals |
| Application | Motors, Power Tools, Work Trucks |
| Max. Input Current | Full continuous load - 200 A at 12V DC; No load - 2.2 A at 12V DC |
| Features | Diagnostic LED, Frequency Control for Operating Stability, High-Efficiency Operation, Load Sense Function, RJ45 Port Allows Connection of APS/PowerVerter Remote Switch (APSRM4) |
| Overall Width | 8-1/2 in |
| Overall Height | 7-1/4 in |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Fused | Yes |
| Input Connection | Bolt-Down DC Wiring Terminals |
| Efficiency | 90% |
| Output Voltage | 120 V AC |
| Output Form | Modified Sine Wave |
| Input Current | 200 A at 12V DC, 2.2 A at 12V DC |
| Type of Indicator | LED |
| Output Connection | (2) NEMA 5-15R |
| Overall Depth | 16-1/4 in |
| Inverter DxWxH | 16-1/4 in x 8-1/2 in x 7-1/4 in |
| Input Voltage | 12V DC |
| NEMA Rating | NEMA 5-20 |
| Certifications & Standards | UL458 (USA, Canada) |
| Protection Type | Overload Protection |
| Package Contents | PowerVerter Plus 2000W Industrial-Strength Inverter with 2 Outlets, Instruction Manual |
| Product Color | Black |
| Product Name | PowerVerter Plus 2000W Industrial-Strength Inverter with 2 Outlets |
| Maximum Frequency | 60 Hz |
| Product Line | PowerVerter |
| Package Includes | PV2000FC Inverter;Instruction manual |
| Output Receptacles | 5-15R |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Nominal Output Voltage(s) Supported | 120 V |
| Overload Protection | Circuit breaker |
| Front Panel LEDs | Set of 6 LEDs offers continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences |
| Switches | 3-position on/off/remote switch enables simple on/off power control plus "remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory |
| Input Cord Length Details | User supplies cabling; 2/0 gauge or larger recommended |
| Load Sensing | Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level |
| Frequency Compatibility | 60 Hz |
| DC System Voltage (VDC) | 12 |
| Voltage Compatibility (VDC) | 12 |
| Product Certifications | UL 458 |
| Material of Construction | Polycarbonate |
| Recommended Electrical Service | Requires 12V DC input source capable of delivering 200A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 400A battery system fusing is recommended |
| Maximum Input Amps / Watts | Full continuous load - 200A at 12V DC, No load - 2.2A at 12V DC |
| Output Voltage Regulation | Maintains PWM sine wave output voltage of 120 V AC (+/-5%) |
| Relative Humidity | 0%-95% Non-Condensing |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Unit Dimensions (hwd / in.) | 7.25 x 8.5 x 16.25 |
| Package Quantity | 1 |
