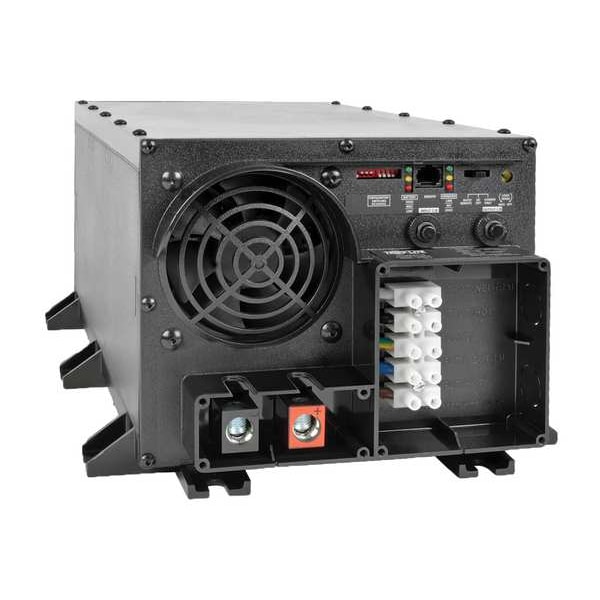

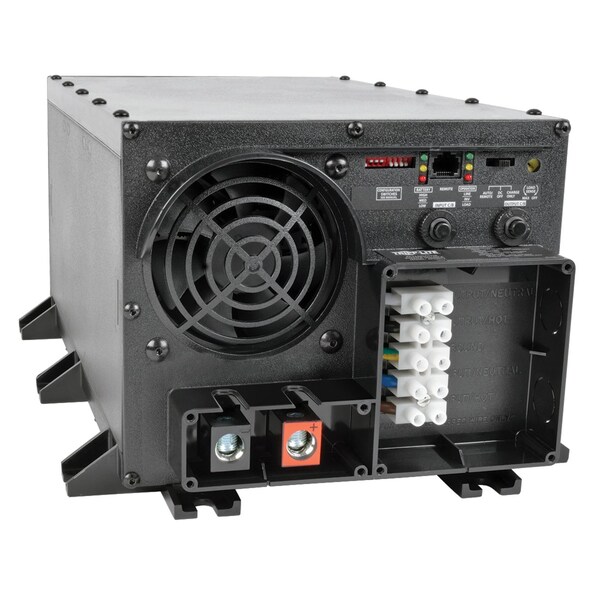

Power Inverter, Modified Sine Wave, 4,800 W Peak, 2,400 W Continuous, 1 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 4,800 W |
| Continuous Output Power | 2,400 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 24V DC; 230V AC |
| Inverter Output Voltage | 230V AC |
| Outlet Type | Hardwired |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 1 |
| Application | Vehicle Inverter; Standalone AC Power Source |
| Charger Output Amps | 30 A |
| Nominal Output Power | 2,400 W |
| Inverter Width | 8-1/2 in |
| Height | 7-1/4 in |
| Depth | 8-1/2 in |
| Width | 16-1/4 in |
| Inverter Depth | 16-1/4 in |
| Charger Output Voltage | 24V DC |
| Automatic/Manual | Automatic |
| Case Material | Polycarbonate |
| Max. Input Current | Full continuous load - 112 A at 24V DC; 17 amps at 230V AC with full inverter and charger load |
| Standards | RoHS Compliant |
| Inverter Height | 7-1/4 in |
| Features | Expandable Runtime; Overload Protection |
| Inveter Output Voltage | 230V |
| Output Frequency | 50 Hz |
| Charger Output Current | 7 A |
| Charger Input Current | 7 A |
| Output Voltage | 24 V DC, 230 V AC |
| Product Line | PowerVerter |
| Product Series | INT |
| Product Name | PowerVerter INT APSINT2424 DC-to-AC Power Inverter |
| Package Contents | PowerVerter INT APSINT2424 DC-to-AC Power Inverter, Instruction Manual with Warranty Information |
| Maximum Frequency | 50 Hz |
| Input Voltage | 24 V DC, 220 V AC |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 112A at 24VDC. AC INPUT: 17 amps at 230VAC with full inverter and charger load (7A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions) |
| Material of Construction | Polycarbonate |
| Output Voltage Regulation | LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%). |
| DC System Voltage (VDC) | 24 |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Nominal Input Voltage(s) Supported | 230V AC |
| Output Receptacles | Hardwire |
| Overload Protection | Includes 10A input breaker dedicated to the charging system and 15A output breaker for AC output loads. |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 259V (user adjustable to 264 - see manual) |
| Voltage Compatibility (VDC) | 24 |
| Package Includes | APSINT2424 2400W APS INT Series 24V DC 230V AC Inverter/Charger;Owner's manual |
| Voltage Compatibility (VAC) | 230 |
| Output Frequency Regulation | 50 Hz (+/- 0.3 Hz) |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Unit Dimensions (hwd / in.) | 7.25 x 8.5 x 16.25 |
| Recommended Electrical Service | DC INPUT: Requires 24VDC input source capable of delivering 112A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 300A minimum battery system fusing is recommended. |
| Frequency Compatibility | 50 Hz |
| Battery Charge | 30A |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Relative Humidity | 0%-95% Non-Condensing |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual) |
| Expandable Runtime | Yes |
| Nominal Output Voltage(s) Supported | 230 V |
| Transfer Time (Line Power to Battery Mode) | 20 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications) |
| Load Sensing | Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts. |
| Cooling Method | Fan |
| Package Quantity | 1 |
