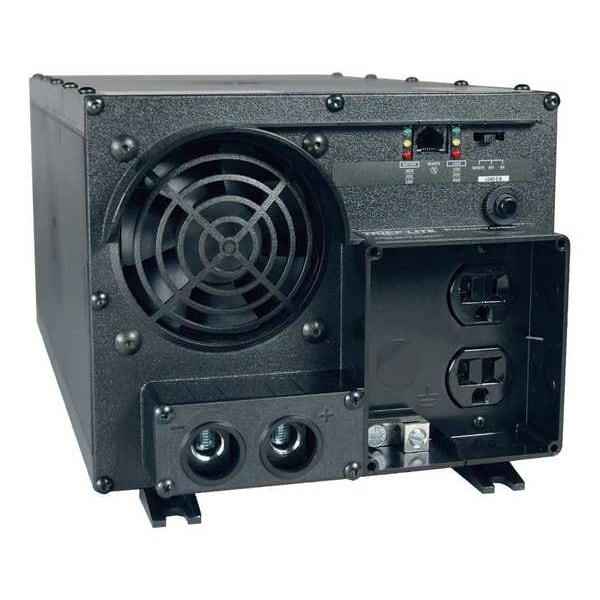

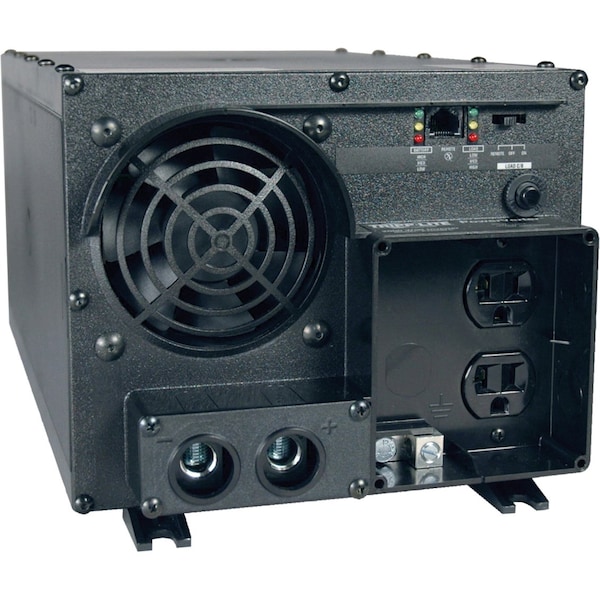

Power Inverter, Modified Sine Wave, 4,800 W Peak, 2,400 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 4,800 W |
| Continuous Output Power | 2,400 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 24V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 2 |
| Nominal Output Power | 2,400 W |
| Includes | Set of High Current DC Input Terminals |
| Depth | 16-1/4 in |
| Width | 8-1/2 in |
| Case Material | Polycarbonate |
| Height | 7-1/4 in |
| Features | Diagnostic LED, Frequency Control for Operating Stability, High-Efficiency Operation, RJ45 Port Allows Connection of APS/PowerVerter Remote Switch (APSRM4) |
| Max. Input Current | Full continuous load - 120 A at 24V DC; No load - 2.2 A at 24V DC |
| Application | Motors |
| Overall Height | 7-1/4 in |
| Overall Width | 8-1/2 in |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Fused | Yes |
| Overall Depth | 16-1/4 in |
| Input Current | 200 A at 12V DC, No Load - 2.2 A at 24V DC |
| NEMA Rating | NEMA 5-20 |
| Inverter DxWxH | 16-1/4 in x 8-1/2 in x 7-1/4 in |
| Output Connection | (2) NEMA 5-15R |
| Input Voltage | 24V DC |
| Efficiency | 90% |
| Type of Indicator | LED |
| Output Voltage | 120 V AC |
| Input Connection | Bolt-Down DC Wiring Terminals |
| Output Form | Modified Sine Wave |
| Product Line | PowerVerter |
| Package Contents | PowerVerter Plus Inverter 2400W, PV2400FC Inverter, Instruction manual |
| Input Voltage Range | 20 DC to 30 V DC |
| Product Series | Plus |
| Maximum Frequency | 60 Hz |
| Product Color | Black |
| Product Name | PowerVerter Plus PV2400FC 2400W Power Inverter |
| DC System Voltage (VDC) | 24 |
| Recommended Electrical Service | Requires 24V DC input source capable of delivering 120A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery system fusing is recommended |
| Material of Construction | Polycarbonate |
| Package Includes | PV2400FC Inverter;Instruction manual |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Voltage Compatibility (VDC) | 24 |
| Input Cord Length Details | User supplies cabling; 2/0 gauge or larger recommended |
| Output Voltage Regulation | Maintains PWM sine wave output voltage of 120 VAC (+/-5%) |
| Maximum Input Amps / Watts | Full continuous load - 120A at 24V DC; No load - 2.2A at 24V DC |
| Relative Humidity | 0%-95% Non-Condensing |
| Unit Dimensions (hwd / in.) | 7.25 x 8.5 x 16.25 |
| Overload Protection | Circuit breaker |
| Front Panel LEDs | Set of 6 LEDs provides continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences |
| Frequency Compatibility | 60 Hz |
| Nominal Output Voltage(s) Supported | 120 V |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Switches | 3-position on/off/remote switch enables simple on/off power control plus "remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory |
| Output Receptacles | 5-15R |
| Package Quantity | 1 |
