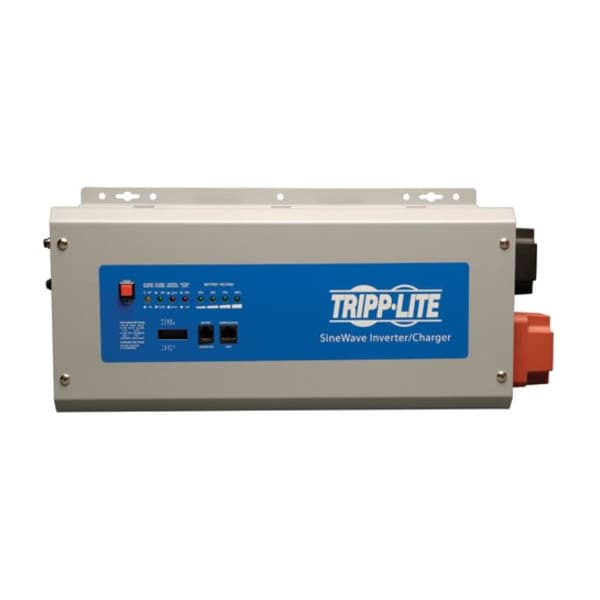

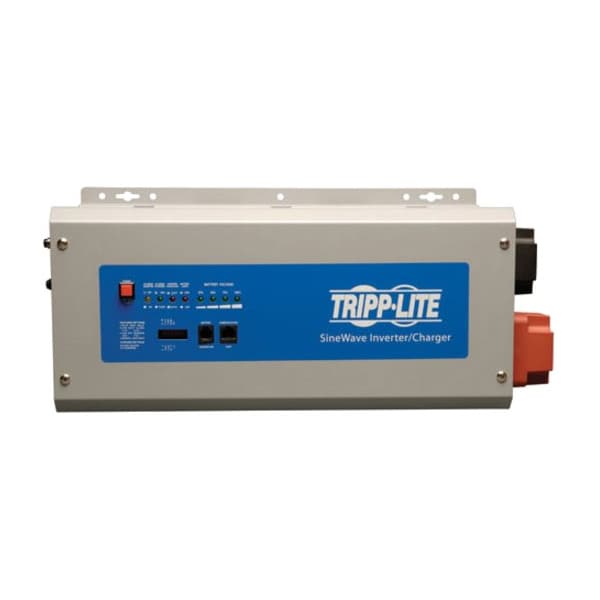

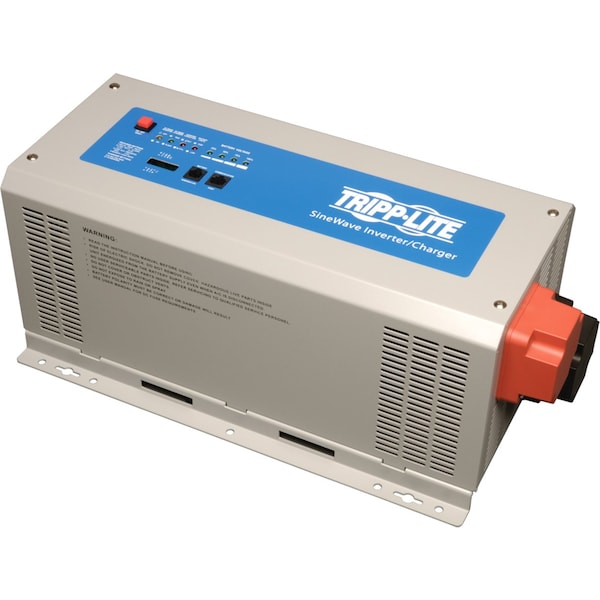

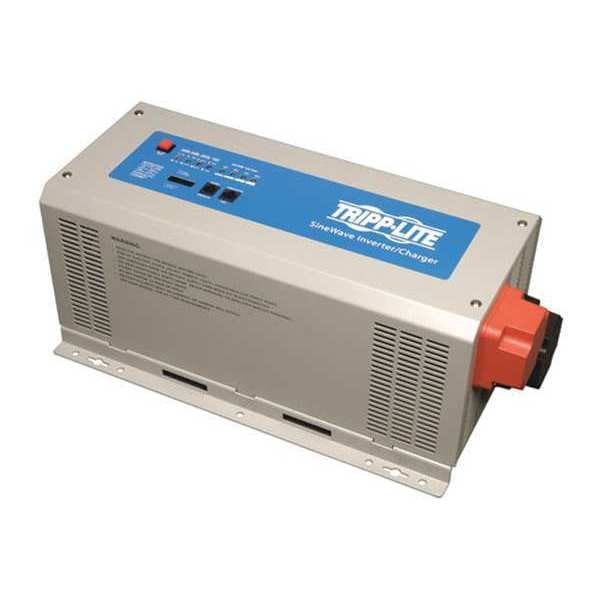

Power Inverter, Pure Sine Wave, 2,000 W Peak, 1,000 W Continuous, 1 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 2,000 W |
| Continuous Output Power | 1,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC; 220V/230V/240V AC |
| Inverter Output Voltage | 230V AC |
| Outlet Type | Hardwired |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 1 |
| Depth | 7-1/4 in |
| Charger Output Amps | 40 A |
| Standards | Tested to EN62040-1 (CE), EN62040-2 (EMC), RoHS |
| Width | 8-3/4 in |
| Height | 18 in |
| Nominal Output Power | 1,000 W |
| Features | Audible alarm to indicate 10.5V (low battery)/21V start alarm; Expandable Runtime; Overload Protection; Pure Sine Wave Output |
| Case Material | Steel |
| Max. Input Current | Full continuous load - 240 A at 12V DC; 17 A at 230V AC with full inverter and charger load |
| Inveter Output Voltage | 230V |
| Output Frequency | 50/60 Hz |
| Input Voltage | 230 V AC, 12 V DC |
| Product Color | Gray |
| Output Voltage | 230 V AC |
| Product Name | PowerVerter APSX1012SW Power Inverter |
| Package Contents | PowerVerter APSX1012SW Power Inverter, Instruction Manual with Warranty Information |
| Maximum Frequency | 50 Hz |
| Product Line | PowerVerter |
| Product Series | APS X |
| Output Receptacles | Hardwire |
| Voltage Compatibility (VAC) | 220-240 |
| Recommended Electrical Service | DC INPUT: Requires 12VDC input source capable of delivering 240A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 200A minimum battery system fusing is recommended. |
| Nominal Input Voltage Description | 170-264V +/- 3% |
| Low Voltage Transfer to Battery Power | 170 VAC (+/- 3%) DEFAULT OR 190V +/-3% (user-selectable) |
| Front Panel LEDs | Set of front panel LED's display inverter status, charger status, as well as battery voltage status |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Frequency Compatibility | 50 / 60 Hz |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 240A at 12VDC. AC INPUT: 17 amps at 230VAC with full inverter and charger load (8.7A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions) |
| Audible Alarm | Audible status indicators 10.5V (low battery)/21V start alarm |
| Transfer Time (Line Power to Battery Mode) | 16 ms. maximum |
| Unit Dimensions (hwd / in.) | 7.25 x 9 x 18 |
| Package Includes | APSX1012SW 1000W APS XSeries 12V DC 230V AC Inverter/Charger;Owner's manual |
| Switches | The inverter provides a RJ-45 port for optional APSRMSW remote control. RJ45 port operates with standard RS485 interface (APSRMSW sold separately) |
| Load Sensing | 100W |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Material of Construction | Powder-Coated Steel |
| Output Frequency Regulation | 50/60 Hz (+/- 0.5 Hz) |
| DC System Voltage (VDC) | 12 |
| Product Compliance | CE (Europe) |
| Receptacle Color | Gray |
| Expandable Runtime | Yes |
| Battery Charge | Includes selectable 4 / 40A DC charging system. |
| Nominal Input Voltage(s) Supported | 220V AC, 230V AC; 240V AC |
| Output Voltage Regulation | Nominal 230v +/- 5% |
| Voltage Compatibility (VDC) | 12 |
| Nominal Output Voltage(s) Supported | 230 V |
| Relative Humidity | 0%-95% Non-Condensing |
| High Voltage Transfer to Battery Power | 264 VAC +/- 3% |
| Overload Protection | Includes 7A input breaker dedicated to the charging system and 7A output breaker for AC output loads |
| Package Quantity | 1 |
