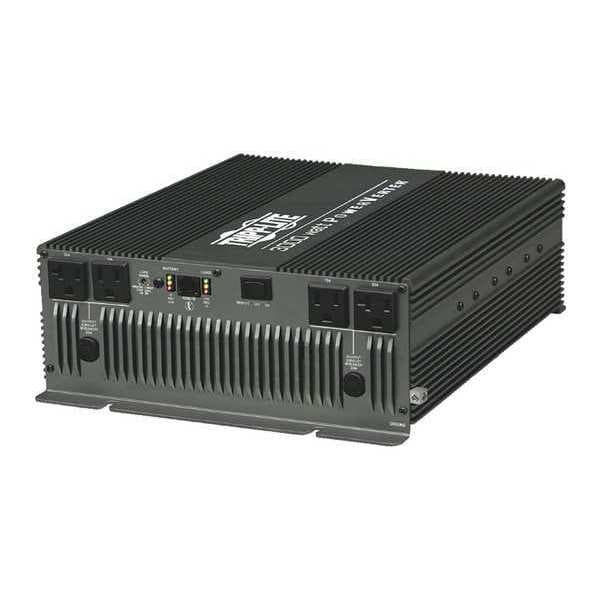

Power Inverter, Sine Wave, 6,000 W Peak, 3,000 W Continuous, 4 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 6,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Sine Wave |
| Inverter Input Voltage | 12V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 4 |
| Max. Input Current | Full continuous load - 286 A at 12V DC; No load - 2.6 A at 12V DC; Shutdown / load sense mode - less than 500 mA |
| Depth | 10-1/2 in |
| Nominal Output Power | 3,000 W |
| Height | 4 in |
| Features | Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less. |
| Width | 13-1/2 in |
| Case Material | Aluminum, Sheet Metal |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Output Voltage | 120 V AC, 115 V AC |
| Protection Type | Overload Protection, Low Voltage |
| Input Voltage Range | 10 DC to 15 V DC |
| Maximum Frequency | 60 Hz |
| Input Voltage | 12 V DC |
| Product Name | PV3000 3000 Watts Power Inverter |
| Additional Information | Output is protected by 2 built-in 20A circuit breakers (each controlling power to 2 outlets). Inverter and electrical system are further protected via set of 6 40A automotive input fuses. |
| Package Quantity | 1 |
