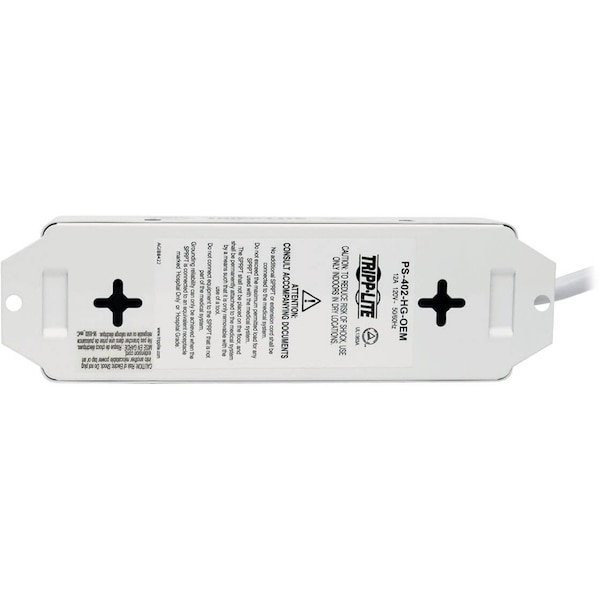

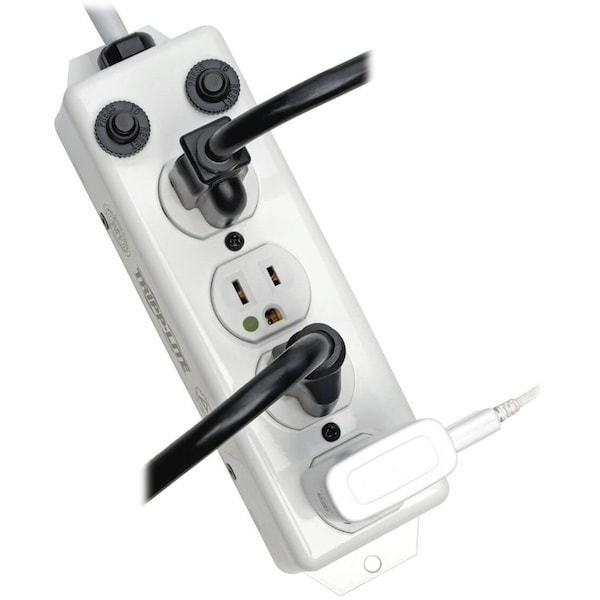

Power Strip, Hospital, 4 15A, 2ft cord
| Item | Medical-Grade Power Strip |
|---|---|
| Number of Outlets | 4 |
| Voltage | 120VAC |
| Color | White |
| Cord Length | 2 ft |
| Number of Conductors | 3 |
| Gauge/Conductor | 14 ga. |
| Max. Amps | 15 |
| Mounting Style | Keyhole |
| Power Indicator | No |
| Housing Material | Metal |
| NEMA Receptacle Configuration | NEMA 5-15R-HG |
| Wire Size | 14 AWG |
| NEMA Plug Configuration | NEMA 5-15P-HG |
| For Use With | Hospital Supplies |
| NEC Cord Designation | SJT |
| Medical Grade | Yes |
| Number of Power Switches | 0 |
| Number of Transformer Outlets | 4 |
| Gauge/Conductor - Ext. Cords and Outlet Strips | 4.6667 |
| Color - Ext. Cords and Outlet Strips | White |
| Number of Outlet Rows | 1 |
| NEMA Plug Configuration - Ext. Cords and Outlet Strips | 5-15P-HG |
| Plug Configuration - Ext. Cords and Power Strips | No Swivel, Straight |
| Number of Total Outlets - Ext. Cords and Outlet Strips | 4 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Standards | TUV tested to UL 1363A |
| Outlet Center Distance | 8-1/8 in |
| Medical Facility Use | Patient Care - Only When Permanently Mounted (UL 1363A) |
| Max. Amps - Ext. Cords and Outlet Strips | 15 |
| Circuit Breaker | 600VAC FD |
| Length | 24 in |
| Cord Length - Ext. Cords and Outlet Strips | 2 ft |
| Width | 2-1/2 in |
| Height | 1.7 in |
| Hz | 50/60 Hz |
| Depth | 8-1/2 in |
| Trade Designation | SJT |
| Plug Configuration | Hospital Grade NEMA 5-15P |
| Application | Healthcare Facility |
| Receptacle Configuration | Hospital Grade NEMA 5-15R |
| Total Number of Outlets | 4 |
| Plug Style | Straight |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 24 in |
| Features | Anti-Microbial Protected, Integrated Keyhole Mounting Slots |
| Watts | 1800W |
| Outlet Configuration | Single Row of 4 |
| Receptacles | 4 x NEMA 5-15R |
| Product Name | PS-402-HG-OEM Power Strip |
| Package Contents | PS-402-HG-OEM Power Strip, Owner's Manual, Warranty Information |
| Maximum Frequency | 60 Hz |
| Form Factor | Rack-mountable |
| Product Type | Power Strip |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Maximum Input Current | 15 A |
| Outlets Measurement (Center to Center) | Inner outlets = 1.27 in. |
| Slot or Hole Mount Measurement (Center to Center) | Distance between keyhole tabs = 127mm; Distance between end tabs = 207.45mm |
| Built-In Circuit Breaker | Yes |
| Unit Dimensions (hwd / in.) | 1.73 x 2.5 x 8.54 |
| Input Plug Features | Hospital Grade Plug |
| Circuit Breaker (amps) | 15 |
| Form Factors Supported | IV poles, mobile carts, crash carts and mobile medical workstations |
| Package Includes | PS-402-HG-OEM UL 1363A Medical-Grade Power Strip with 4 15A Hospital-Grade Outlets and 2-ft. (0.61 m) Cord;Owner's Manual with maintenance requirements |
| Right-Angle Plug | No |
| Product Compliance | NFPA 99: 10.2.3.6 |
| Output Receptacles | 5-15R-HG |
| Overload Protection | 2 x 15amp breakers (1 line, 1 neutral) |
| Input Cord Gauge Type | SJT, 14 gauge |
| Mounting Holes or Slots | Yes |
| Transformer Accommodation | Yes |
| Frequency Compatibility | 50 / 60 Hz |
| Input Cord Length (ft.) | 2 |
| Recommended Electrical Service | 15A 120V |
| Receptacle Color | White |
| Material of Construction | Metal |
| Included Mounting Accessories | Mounting tabs and flanges |
| Switches | No power switch |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Product Certifications | UL 1363A |
| Input Plug Type | NEMA 5-15P-HG |
| Mounting Details | Includes flanges |
| Voltage Compatibility (VAC) | 120 |
| Power Cord Color | White |
| Antimicrobial | Yes |
| Housing Color | White |
| Outlet Orientation | Single row of 4 |
| Package Quantity | 1 |
