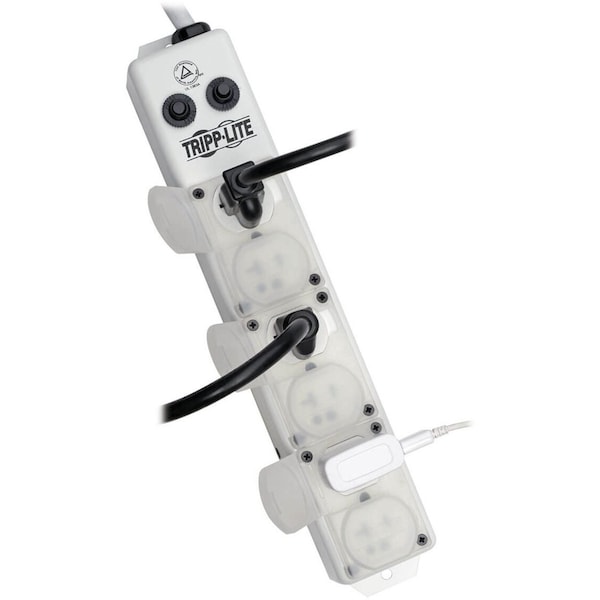

Power Strip, Hospital, 6 20A, 25ft cord
| Item | Medical-Grade Power Strip |
|---|---|
| Number of Outlets | 6 |
| Receptacle Configuration | Hospital Grade NEMA 5-20R |
| Plug Configuration | Hospital Grade NEMA 5-20P |
| Cord Length | 25 ft |
| Color | White |
| Gauge/Conductor | 12 ga. |
| Standards | TUV tested to UL 1363A |
| For Use With | Hospital Supplies |
| Number of Power Switches | 0 |
| Color - Ext. Cords and Outlet Strips | White |
| Mounting Style | Keyhole |
| Voltage | 120VAC |
| Medical Grade | Yes |
| Power Indicator | No |
| Gauge/Conductor - Ext. Cords and Outlet Strips | 4 |
| NEMA Plug Configuration - Ext. Cords and Outlet Strips | 5-20P-HG |
| Cord Length - Ext. Cords and Outlet Strips | 25 ft |
| Outlet Center Distance | 13 in |
| Height | 1-1/2 in |
| NEC Cord Designation | SJT |
| Number of Transformer Outlets | 8 |
| Length | 13-3/4 in |
| Circuit Breaker | 600VAC FD |
| Max. Amps - Ext. Cords and Outlet Strips | 20 |
| Number of Total Outlets - Ext. Cords and Outlet Strips | 6 |
| Number of Outlet Rows | 1 |
| Width | 2-1/2 in |
| NEMA Receptacle Configuration | NEMA 5-20R-HG |
| Medical Facility Use | Patient Care - Only When Permanently Mounted (UL 1363A) |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Plug Configuration - Ext. Cords and Power Strips | No Swivel, Straight |
| Max. Amps | 20 |
| Depth | 1-1/2 in |
| Housing Material | Metal |
| Hz | 60 Hz |
| Includes | PS625HG20AOEM Power Strip Owner's Manual |
| NEMA Plug Configuration | NEMA 5-20P-HG |
| Total Number of Outlets | 6 |
| Plug Style | Straight |
| Number of Conductors | 3 |
| Wire Size | 12 AWG |
| Trade Designation | SJT |
| Application | Healthcare Facility |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 13-3/4 in |
| Features | Anti-Microbial Protected, Integrated Keyhole Mounting Slots |
| Green Certification or Other Recognition | TÃœV, RoHS |
| Outlet Configuration | Single Row of 6 |
| Watts | 2400W |
| Package Contents | PS625HG20AOEM Power Strip, Owner's Manual |
| Certifications & Standards | TUV |
| Plug/Connector Type | NEMA 5-20P |
| Receptacles | 6 x NEMA 5-20R |
| Maximum Frequency | 60 Hz |
| Product Type | Power Strip |
| Product Name | PS625HG20AOEM Power Strip |
| Minimum Input Current | 20 A |
| Frequency Compatibility | 50 / 60 Hz |
| Built-In Circuit Breaker | Yes |
| Power Cord Color | White |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Input Cord Gauge Type | SJT, 12 gauge |
| Unit Dimensions (hwd / in.) | 1.5 x 13.75 x 2.5 |
| Antimicrobial | Yes |
| Slot or Hole Mount Measurement (Center to Center) | Distance between end tabs = 330.20mm |
| Product Compliance | NFPA 99: 10.2.3.6 |
| Input Plug Type | NEMA 5-20P-HG |
| Right-Angle Plug | No |
| Transformer Accommodation | Yes |
| Mounting Details | Includes flanges |
| Output Receptacles | 5-20R-HG |
| Form Factors Supported | IV poles, mobile carts, crash carts and mobile medical workstations |
| Switches | No power switch |
| Circuit Breaker (amps) | 20 |
| Receptacle Color | White |
| Mounting Holes or Slots | Yes |
| Material of Construction | Metal |
| Input Plug Features | Hospital Grade Plug |
| Housing Color | White |
| Recommended Electrical Service | 20A 120V |
| Outlet Orientation | Single row of 6 |
| Input Cord Length (ft.) | 25 |
| Outlets Measurement (Center to Center) | 1.52 in |
| Product Certifications | UL 1363A |
| Voltage Compatibility (VAC) | 120 |
| Package Includes | PS625HG20AOEM UL 1363A Medical-Grade Power Strip with 6 20A Hospital-Grade Outlets;Owner's Manual with maintenance requirements |
| Included Mounting Accessories | Mounting tabs and flanges |
| Overload Protection | 2 x 20amp breakers (1 line, 1 neutral) |
| Package Quantity | 1 |
