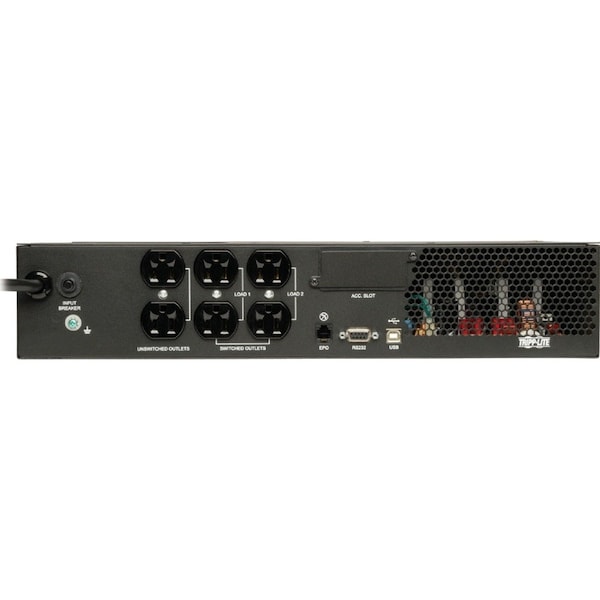

Smart UPS, 1000VA, Line Interactive, Out: 110/115/120V In: 120V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 1,000 VA |
| Mounting | Rack |
| Wattage | 800 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 20 min/8.3 min |
| Number of Outlets | 6 |
| NEMA Receptacle Configuration | 5-15R |
| Hz | 60 Hz |
| Width | 12-1/2 in |
| Housing Material | Steel |
| Transfer Time | 4 milliseconds (AC to battery mode), 2 milliseconds (Battery to AC mode) |
| NEMA Plug Configuration | 5-15P |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD, RELAYIOCARD |
| UPS AC Suppression Joule Rating | 570 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Primary Form Factor | Rackmount |
| Audible Noise | 45.5 dBA maximum, front side 1m |
| Power Factor | 0.8 |
| DC System Voltage (VDC) | 24 |
| AC Mode BTU / Hr. (Full Load) | 141 |
| Communications Cable | USB, DB9 and EPO cabling included |
| Relative Humidity | Up to 95%, non-condensing |
| Recommended Electrical Service | 15A 120V |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| UPS Certifications | Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
| Primary UPS Depth (mm) | 318 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Rated input current (Maximum Load) | 9.2A (120V) |
| UPS AC Suppression Response Time | Instantaneous |
| Output kVA Capacity (kVA) | 1 |
| Cooling Method | Fan |
| Battery Recharge Rate (Included Batteries) | 2.7 hours from 10% to 90% (typical) |
| Output Watt Capacity (Watts) | 800 |
| AC Mode Efficiency Rating (100% Load) | 0.95 |
| Undervoltage Correction | Input voltages between 83 and 107 are boosted by 12% |
| Output Volt Amp Capacity (VA) | 1,000 |
| UPS Power Module Dimensions (hwd, in.) | 3.5 x 17.35 x 12.5 |
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| EMI / RFI AC Noise Suppression | Yes |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| UPS Certification Details | UL 1778: 2014 R8.15 (5TH EDITION); CAN/CSA-C22.2 No. 107.3-14 |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Primary UPS Height (mm) | 89 |
| Low Voltage Transfer to Battery Power (Setpoint) | 83 |
| Individually Controllable Load Banks | Yes |
| Input Phase | Single-Phase |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Grounding Lug | Back panel grounding lug |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| UPS Input Cord Length (ft.) | 10 |
| Load Management Receptacles | Two switchable two-outlet load banks |
| Full Load Runtime (min.) | 8 min 18 sec |
| Overvoltage Correction | Input voltages between 127 and 147 are reduced by 12% |
| Rack Height | 2 U |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Minimum Required Rack Depth (inches) | 15.5 |
| Half Load Runtime (min.) | 20 min |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Switches | 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions |
| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) |
| Expandable Runtime | No |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 |
| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Package Quantity | 1 |
