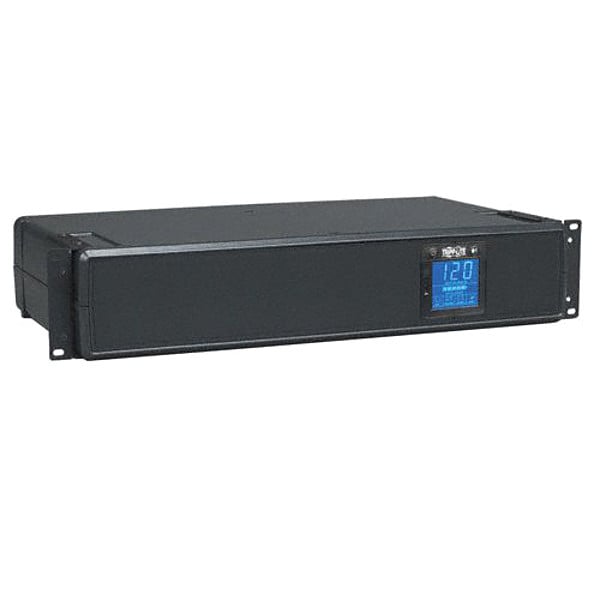

Smart UPS, 1.2kVA, Line Interactive, Out: 110/115/120V AC In: 120V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 1.2 kVA |
| Mounting | Tower, Rack |
| Wattage | 700 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 14.3 min/4 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |

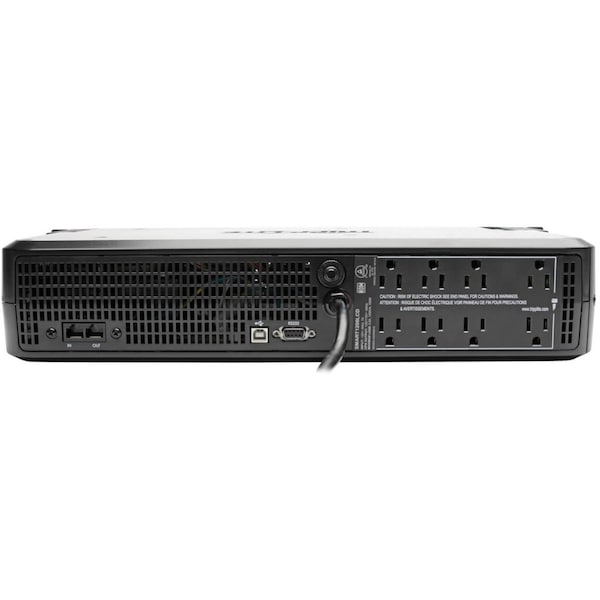

| Number of Outlets | 8 |
| Fax/Modem Line Protection | Yes |
| Cord Length | 6 ft |
| Depth | 11 in |
| Automatic Volts Regulation | Yes |
| Standards | CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778 |
| Includes | DB9 Serial Cable, Mounting Hardware, SMART1200LCD UPS, Telephone Cable, USB Cables |
| Ports | DB9 Serial, USB (HID Enabled) |
| Special Features | Battery Capacity and A Variety of Operating Conditions, Display Is Rotatable in Vertical or Horizontal Position, Hid-Compliant Sub Port Enables Integration With Built-In Power Management and Auto Shutdown Features of Windows and Mac Os X, LCD Display Indicates Input Voltage, Set of Phone/Network Protection Jacks Protects A Single Dialup/DSL Phone Line or Network Ethernet Connection, Supports Entry-Level PCs or Single VCR/DVR Components During Blackouts, Surge Suppression and Long-Lasting Battery, Voltage Regulation |
| Phase | Single |
| Hz | 60 Hz |
| Input Current | 7 A |
| NEMA Receptacle Configuration | 5-15R |
| Transfer Time | 2 to 4 msec |
| Width | 11 in |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Display Type | LCD |
| Height | 4 in |
| NEMA Plug Configuration | 5-15P |
| VA Rating - UPS Systems | 1.2 kVA |
| Overall Width | 17.33 in |
| Voltage | 120 |
| Capacity - Batteries | 1200 VA/700 W |
| Housing Color | Black |
| Operating Temp. Range | 122°F (50°C) |
| Input Connection | 6 ft Cord with NEMA 5-15P Plug |
| Housing Material | ABS |
| Battery Type | VRLA |
| Input Circuit Breakers | 10A |
| Alarm Cancel Operation | Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced, alarm will re-sound to indicate low-battery status |
| Low Voltage Transfer to Battery Power (Setpoint) | 75 |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Input Phase | Single-Phase |
| Included Mounting Accessory Description | Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Rated input current (Maximum Load) | 7 A |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| UPS AC Suppression Joule Rating | 870 |
| Primary UPS Height (mm) | 89 |
| UPS Power Module Dimensions (hwd, in.) | 3.49 x 17.33 x 10.5 |
| Communications Interface | Contact closure; DB9 Serial; USB (HID enabled) |
| EMI / RFI AC Noise Suppression | Yes |
| UPS Input Cord Length (ft.) | 6 |
| Rack Height | 2 U |
| AC Mode BTU / Hr. (Full Load) | 80 |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Minimum Required Rack Depth (inches) | 13.5 |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| Individually Controllable Load Banks | No |
| Severe Undervoltage Correction | Input voltages between 75 and 92 are boosted by 30% |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Output Voltage Regulation (Line Mode) | -18% +8% |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| Recommended Electrical Service | 15A 120V |
| Internal UPS Replacement Battery Cartridge | IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1200LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1200LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery |
| AC Mode Efficiency Rating (100% Load) | 0.97 |
| UPS Certification Details | UL1778: 2014 R8.15 5TH EDITION; CSA-C22.2 NO. 107.3-14 3RD EDITION; FCC Part 68 Certification Number 5WSWP00B001; Industry Canada Certification Number 3449-001, REN: 0.1 |
| DC System Voltage (VDC) | 24 |
| Expandable Runtime | No |
| Audible Alarm | Audible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual) |
| Output kVA Capacity (kVA) | 1.2 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Output Volt Amp Capacity (VA) | 1,200 |
| Half Load Runtime (min.) | 14 min 18 sec |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Switches | ON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel, plus selection and confirmation of on-screen configuration options |
| UPS Dataline Suppression Details | 168 joules; Compatible with POE applications |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147 |
| Communications Cable | USB and DB9 Serial cabling included |
| Primary UPS Depth (mm) | 267 |
| LED Indicators | Front panel LCD display |
| Primary Form Factor | Rackmount |
| UPS AC Suppression Response Time | Instantaneous |
| Output Watt Capacity (Watts) | 700 |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; DB9 provides contact-closure notification of AC Present (pins 1,9 connected) and AC Fail (pins 1,8 connected) |
| Undervoltage Correction | Input voltages between 92 and 107 are boosted by 14% |
| Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower |

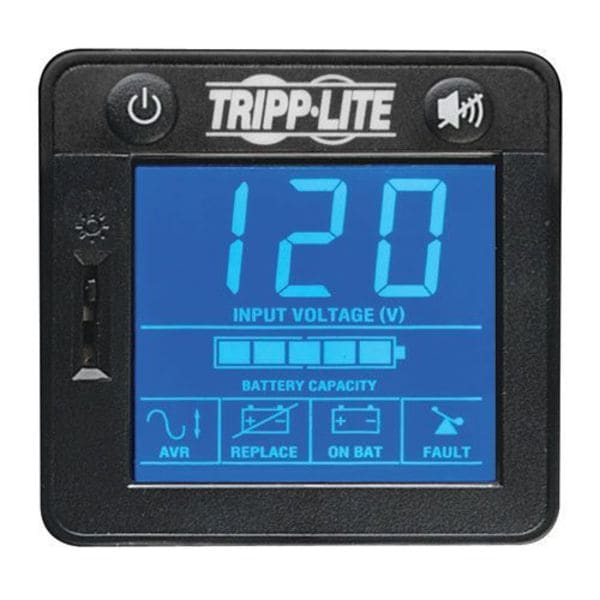

| Front Panel LCD Display | Backlighted LCD screen offers detailed UPS status information, configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage, Output Voltage, Estimated Runtime (minutes), Output Load Percentage, Output Load Wattage, Battery Charge Percentage, Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display / CONFIGURATION OPTIONS include Power Sensitivity, LCD Status Information Scrolling, Alarm Disable, LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement |
| Relative Humidity | Up to 95%, non-condensing |
| UPS Certifications | Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Full Load Runtime (min.) | 4 min |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Thermal Dissipation | 71.42 W |
| USB | Yes |
| Circuit Breaker | Yes |
| Additional Information | Switches: Includes 2 front panel switches one main on/off power switch and one dual-function "alarm cancel"/"self test" button, WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications, Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 75V or less, switches back to AC mode as line voltage increases to 79V or higher, High voltage transfer to battery power: Switches to battery mode as line voltage increases to 147V or higher, switches back to AC mode as line voltage decreases to 143V or lower, Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure, Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common, Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures, Prevents data loss, viewing interruptions, lost recordings and loss of component programming, Automatic voltage regulation (AVR) circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power, HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux, Display is rotatable for easy viewing whether UPS is in vertical or horizontal position., Cabinet adapts to tower or rackmount shelf format |
| Form Factor | Tower |
| Load Capacity | 1200 VA/700 W |
| Status Indicators | Front panel LCD screen with blue backlight offers: Continuous input line voltage data, Line power, Battery power, Battery charge level, Voltage regulation operation |
| Typical Battery Recharge Time | 8 hr |
| Package Contents | SmartPro 1200 VA Rack-mountable Tower Digital UPS, SMART1200LCD Digital UPS, USB, DB9 and phone cabling, Mounting hardware, Manual with warranty information |
| Dataline Protection | RJ-45 |
| Serial Port | Yes |
| Battery Life | 6 yr |
| Surge Energy Rating | 870 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Maximum Operating Temperature | 122°F |

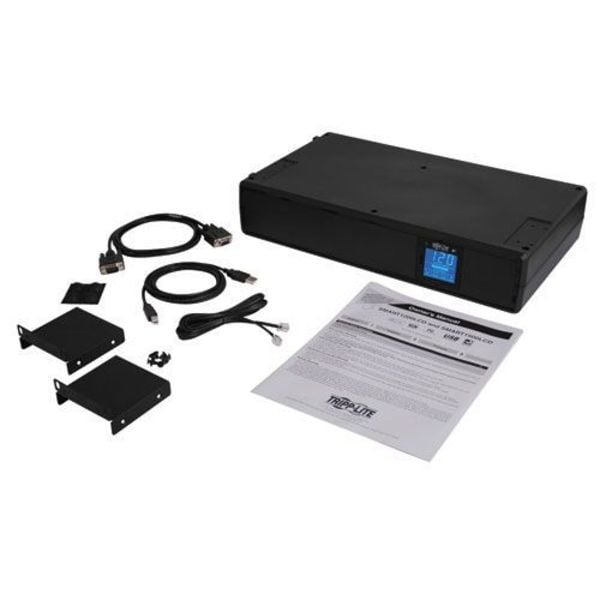

| Package Includes | SMART1200LCD UPS;USB cable;DB9 serial cable;Telephone cable;Mounting hardware;Owner's Manual |
| Power Factor | 0.6 |
| Output Capacity (Watts) | 700 |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| UPS Applications | Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |

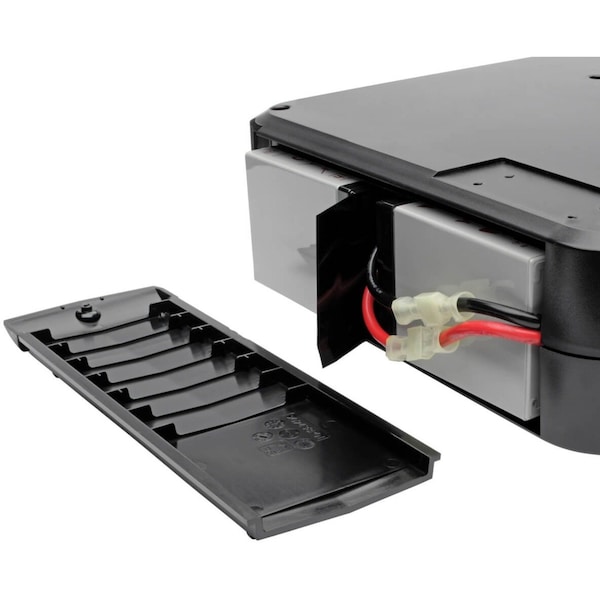

| Battery Replacement Description | IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1200LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1200LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery |
| Output Capacity (VA) | 1,200 |
| Product Compliance | FCC Part 15 Class B (USA) |
| Audible Noise | 2000 |
| Operating Elevation (ft.) | 6562 |
| High Availability UPS Features | Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Includes Battery | Battery Included |
| Battery Recharge Time | 4 hr 30 min |
| Operating Temperature - Minimum | 32 deg F |
| Power Rating - Real | 700 W |
| Manufacturer Warranty | 2 yr |
| Audible Alarm Conditions | Low Battery, Power Outage |
| Operating Temperature - Maximum | 104 deg F |
| Input Current - Maximum | 7 A |
| Data Line Protection | Includes Data Line Surge Protection |
| Output Ports Included | Contact Closure, DB9 Serial, USB |
| Power Cord Length | 6 ft |
| External Battery Compatible | Not External Battery Pack Compatible |
| Surge Suppression Rating | 870 J |
| Package Quantity | 1 |
