Smart UPS, 1.5kVA, Line Interactive, Out: 110/115/120V AC In: 110/115/120V AC
| VA Rating - UPS Systems | 1.5 kVA |
|---|---|
| Item | Smart UPS |
| UPS Type | Line Interactive |
| Power Rating | 1.5 kVA |
| Mounting | Tower, Rack |
| Wattage | 900 W |
| Input Voltage | 110/115/120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 12 min/4.18 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 8 |
| NEMA Receptacle Configuration | 5-15R |
| Depth | 11 in |
| NEMA Plug Configuration | 5-15P |
| Phase | Single |
| Height | 4 in |
| Footnotes | 3,4,6 |
| Standards | CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778 |
| Transfer Time | 3 msec from Battery to AC, 4 msec from AC to Battery |
| Automatic Volts Regulation | Yes |
| Cord Length | 6 ft |
| Ports | Contact Closure, DB9 Serial, USB (HID Enabled) |
| Hz | 60 Hz |
| Display Type | LCD |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Fax/Modem Line Protection | Yes |
| Input Current | 8.5 A |
| Includes | DB9 Serial Cable, Mounting Hardware, SMART1500LCDXL SmartProLCD 120V 1500VA/900W Line-Interactive UPS, Telephone Cable, USB Cables |
| Special Features | Automatic Voltage Regulation |
| Width | 11 in |
| Overall Height | 3-1/2 in |
| Overall Width | 17.3 in |
| Voltage | 120 |
| Capacity - Batteries | 1500 VA/900 W |
| Input Connection | 6 ft Cord with NEMA 5-15P Plug |
| Housing Material | Polycarbonate |
| Battery Type | VRLA |
| Communications Cable | USB and DB9 Serial cabling included |
| AC Mode Efficiency Rating (100% Load) | 0.97 |
| Included Mounting Accessory Description | Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement installation |
| Rack Height | 2 U |
| Input Phase | Single-Phase |
| Expandable Battery Runtime | Extended runtime supported via optional external battery pack (limit 1) |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Recommended Electrical Service | 15A 120V |
| Primary UPS Depth (mm) | 267 |
| Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions; Alarm can be permanently silenced via LCD interface |
| Undervoltage Correction | Input voltages between 93 and 107 are boosted by 14% |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| AC Mode BTU / Hr. (Full Load) | 78 |
| Output Watt Capacity (Watts) | 900 |
| Primary Form Factor | Rackmount |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Minimum Required Rack Depth with External Battery Pack (in.) | 13.5 |
| Internal UPS Replacement Battery Cartridge | See RBC Selector for replacement battery information |
| UPS Input Cord Length (ft.) | 6 |
| Communications Interface | USB (HID enabled); DB9 Serial; Contact closure |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI) |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Input Circuit Breakers | 10A |
| Nominal Input Voltage(s) Supported | 110 V AC, 115 V AC, 120 V AC |
| Relative Humidity | Up to 95%, non-condensing |
| Output kVA Capacity (kVA) | 1.5 |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| UPS Power Module Dimensions (hwd, in.) | 3.5 x 17.3 x 10.5 |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| Battery Mode BTU / Hr. (Full Load) | 721 |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| Battery Access | Battery access door enables hot-swappable, user replaceable internal battery |
| UPS AC Suppression Joule Rating | 1,038 |
| Severe Undervoltage Correction | Input voltages between 75 and 92 are boosted by 30% |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Half Load Runtime (min.) | 12 min |
| Primary UPS Height (mm) | 89 |
| Expandable Runtime | Yes |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Rated input current (Maximum Load) | 8.6A |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Low Voltage Transfer to Battery Power (Setpoint) | 75 |
| External Battery Pack Compatibility | BP24V15RT2U (limit 1) |

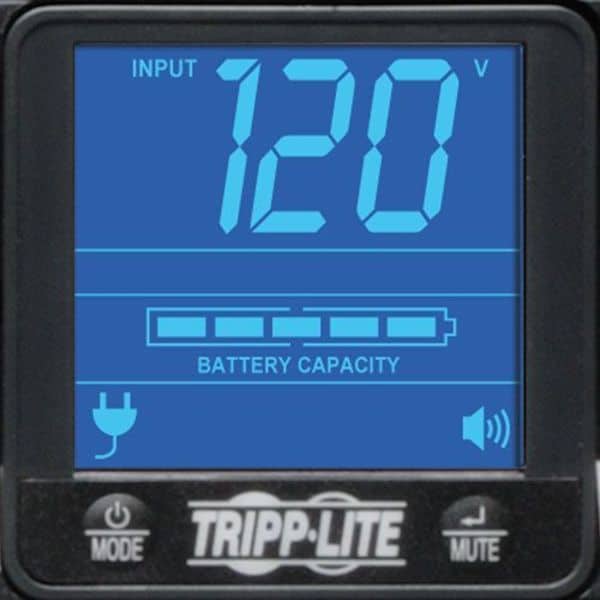

| Front Panel LCD Display | LCD interface reports Input Voltage, Output Voltage, Battery Charge Percentage, Estimated Runtime in Minutes, Load Percentage, Load Watts; Additional LCD icons report battery charge level (5 "bars"), Line Power Mode, Battery Mode, Replace Battery and Auto-Voltage Regulation / AVR status; LCD interface control options include Alarm Disable, Display Scrolling, Initiate Self-test, LCD brightness, External Battery setting and line sensitivity |
| Output kW Capacity (kW) | 0.9 |
| Individually Controllable Load Banks | No |
| Output Voltage Regulation (Line Mode) | -18% +8% |
| Minimum Required Rack Depth without External Battery Pack (in.) | 13.5 |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; DB9 port also supports contact-closure messaging for power-fail (pins 1 & 9) and power-restored (pins 1, 8) |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower |
| EMI / RFI AC Noise Suppression | Yes |
| Output Volt Amp Capacity (VA) | 1,500 |
| UPS AC Suppression Response Time | Instantaneous |
| Cooling Method | Fan |
| Full Load Runtime (min.) | 4 min |
| DC System Voltage (VDC) | 24 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Load Capacity | 1500 VA/900 W |
| Form Factor | Tower, Rack |
| Serial Port | Yes |
| USB | Yes |

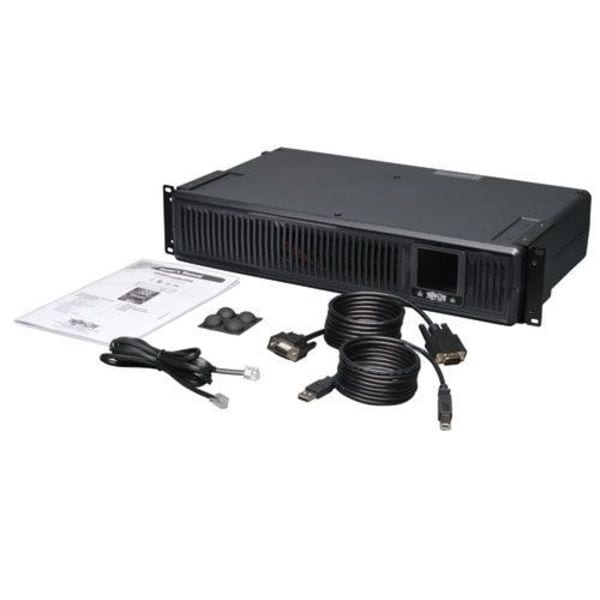

| Package Contents | Smart LCD SMART1500LCDXL 1500 VA Tower/Rack Mountable UPS, USB Cable, Serial Cable, Phone Cable, Rack/Tower Mounting Kit, Owner's Manual |
| Typical Battery Recharge Time | 4 hr 30 min |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Unit Dimensions (hwd / in.) | 3.5 x 17.25 x 10.5 |
| Operating Elevation (ft.) | 6562 |
| Power Factor | 0.6 |
| Minimum Required Rack Depth (inches) | 14 |
| High Availability UPS Features | Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection |
| UPS Applications | Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| Product Compliance | FCC Part 15 Class B (USA) |
| Output Capacity (VA) | 1,500 |
| Package Includes | SMART1500LCDXL SmartPro LCD 120V 1500VA/900W Line-Interactive UPS;USB cable;DB9 serial cable;Telephone cable;Mounting hardware;Owner's Manual |
| Output Capacity (Watts) | 900 |
| External Battery Compatible | External Battery Pack Compatible |
| Manufacturer Warranty | 2 yr |
| Input Current - Maximum | 8.6 A |
| Power Cord Length | 6 ft |
| Operating Temperature - Maximum | 104 deg F |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| External Battery Pack Part Number | BP24V15RT2U |
| Operating Temperature - Minimum | 32 deg F |
| Frequency | 60 Hz |
| Battery Chemistry | Valve Regulated Lead Acid |
| Output Ports Included | Contact Closure, DB9 Serial, USB |
| Power Rating - Real | 900 W |
| Data Line Protection | Includes Data Line Surge Protection |
| Includes Battery | Battery Included |
| Receptacle Configuration | 5-15R |
| Surge Suppression Rating | 1,038 J |
| Overall Depth | 10-1/2 in |
| Battery Recharge Time | 4 hr 30 min |
| Number of Outlets - Surge Only | 8 |
| Audible Alarm Conditions | Low Battery, Power Outage |
| Package Quantity | 1 |
