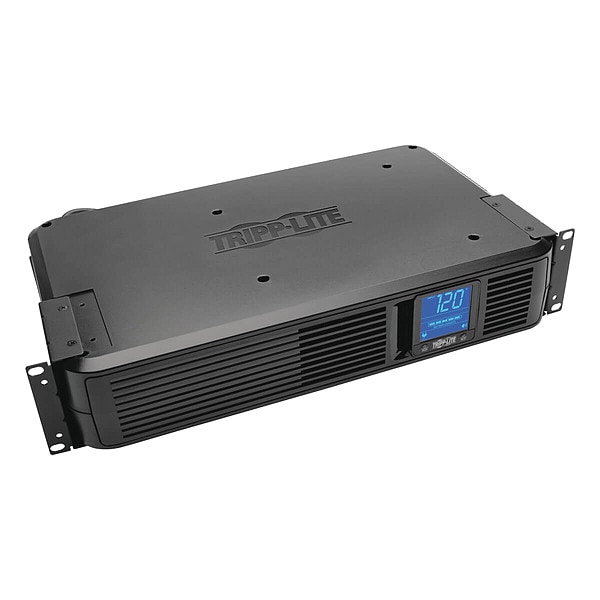

Smart UPS, 1.5kVA, Line Interactive, Out: 110/115/120V AC In: 120V AC
| Item | Smart UPS |
|---|---|
| VA Rating - UPS Systems | 1.5 kVA |
| UPS Type | Line Interactive |
| Power Rating | 1.5 kVA |
| Mounting | Tower, Rack |
| Wattage | 900 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 11.8 min/4.4 min |
| Outlet Type | (4) Surge; (4) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 8 |
| Transfer Time | 2 to 4 msec |
| Automatic Volts Regulation | Yes |
| Standards | CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Width | 11 in |
| NEMA Plug Configuration | 5-15P |
| Input Current | 8.5 A |
| NEMA Receptacle Configuration | 5-15R |
| Depth | 11 in |
| Ports | DB9 Serial, USB (HID Enabled) |
| Fax/Modem Line Protection | Yes |
| Display Type | LCD |
| Height | 17 in |
| Footnotes | 3,4,6 |
| Hz | 60 Hz |
| Special Features | LCD Display Indicates Input Voltage, Battery Capacity and A Variety Of Operating Conditions, Display is Rotatable For Horizontal or Vertical Viewing, Surge Suppression, Long-Lasting Battery Support, Regulates Brownouts and Overvoltages From 75-147V, Poweralert Software |
| Phase | Single |

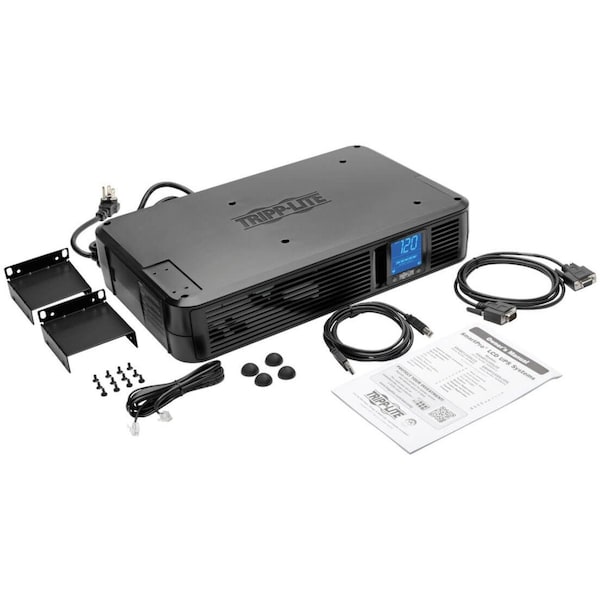

| Includes | 1500VA 900W 120V Line-Interactive UPS, DB9 Cable, Rack Mounting Hardware, Telephone Cable, USB Cables |
| Cord Length | 6 ft |
| Overall Width | 17-1/4 in |
| Voltage | 120 |
| Housing Color | Black |
| Operating Temp. Range | 122°F (50°C) |
| Capacity - Batteries | 1500 VA/900 W |
| Input Connection | 6 ft Cord with NEMA 5-15P Plug |
| Housing Material | ABS |
| Battery Type | VRLA |
| Relative Humidity | Up to 95%, non-condensing |
| Rack Height | 2 U |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| Minimum Required Rack Depth (inches) | 13.5 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Low Voltage Transfer to Battery Power (Setpoint) | 75 |
| Input Circuit Breakers | 10A |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower |
| Nominal Input Voltage(s) Supported | 120 V AC |
| UPS Input Cord Length (ft.) | 6 |
| Included Mounting Accessory Description | Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement |
| Output Voltage Regulation (Battery Mode) | 115V (+/- 5%) |
| Half Load Runtime (min.) | 11 min 48 sec |
| Audible Alarm | Audible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual) |
| Expandable Runtime | No |
| Full Load Runtime (min.) | 4 min 24 sec |
| Output kVA Capacity (kVA) | 1.5 |
| Output Watt Capacity (Watts) | 900 |
| UPS Certification Details | UL1778: 2014 R8.15 5TH EDITION; CSA-C22.2 NO. 107.3-14 3RD EDITION; FCC Part 68 Certification Number 5WSWP00B001; Industry Canada Certification Number 3449-001, REN: 0.1 |
| Rated input current (Maximum Load) | 8.6 A |
| Primary Form Factor | Rackmount |
| Cooling Method | Fan |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147 |

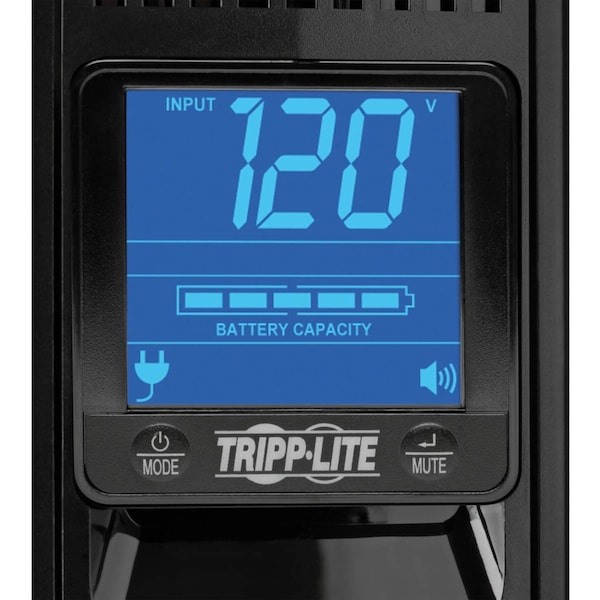

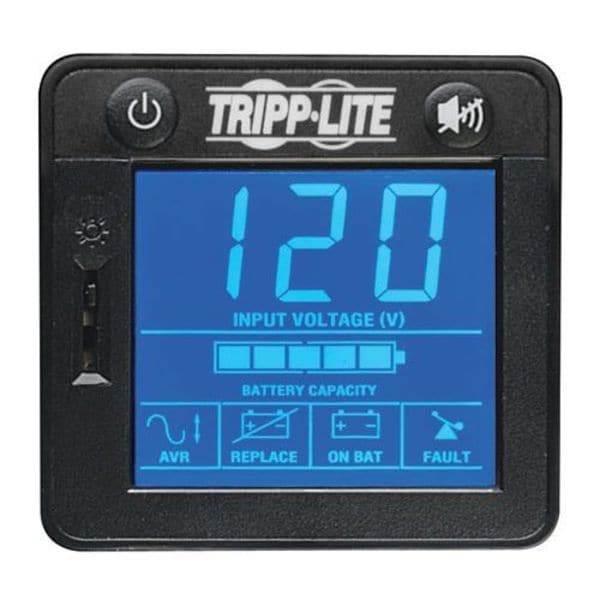

| Front Panel LCD Display | Backlighted LCD screen offers detailed UPS status information, configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage, Output Voltage, Estimated Runtime (minutes), Output Load Percentage, Output Load Wattage, Battery Charge Percentage, Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display / CONFIGURATION OPTIONS include Power Sensitivity, LCD Status Information Scrolling, Alarm Disable, LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement |
| Output Voltage Regulation (Line Mode) | -18% +8% |
| UPS AC Suppression Response Time | Instantaneous |
| Primary UPS Depth (mm) | 267 |
| Communications Interface | Contact closure; DB9 Serial; USB (HID enabled) |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| UPS Power Module Dimensions (hwd, in.) | 3.5 x 17.25 x 10.5 |
| Severe Undervoltage Correction | Input voltages between 75 and 92 are boosted by 30% |
| Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; DB9 provides contact-closure notification of AC Present (pins 1,9 connected) and AC Fail (pins 1,8 connected) |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| UPS AC Suppression Joule Rating | 870 |
| Undervoltage Correction | Input voltages between 93 and 107 are boosted by 14% |
| AC Mode BTU / Hr. (Full Load) | 78 |
| Input Phase | Single-Phase |
| Alarm Cancel Operation | Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced, alarm will re-sound to indicate low-battery status |
| Recommended Electrical Service | 15A 120V |
| Primary UPS Height (mm) | 89 |
| Individually Controllable Load Banks | No |
| AC Mode Efficiency Rating (100% Load) | 0.98 |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| DC System Voltage (VDC) | 24 |
| LED Indicators | Front panel LCD display |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Internal UPS Replacement Battery Cartridge | IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1500LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1500LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery |
| UPS Dataline Suppression Details | 168 joules; Compatible with POE applications |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Switches | ON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel, plus selection and confirmation of on-screen configuration options |
| UPS Certifications | Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| EMI / RFI AC Noise Suppression | Yes |
| Communications Cable | USB and DB9 Serial cabling included |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Output Volt Amp Capacity (VA) | 1,500 |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Maximum Operating Temperature | 122°F |
| Protection Type | Brownout, Over Voltage |
| Typical Battery Recharge Time | 8 hr |
| Additional Information | Cold Start Capable, Automatic Voltage Regulation (AVR), LCD display indicates input voltage, battery capacity and a variety of operating conditions, Switches: Two front panel switches - one main on/off power switch and one dual-function "alarm cancel"/"self test" button |

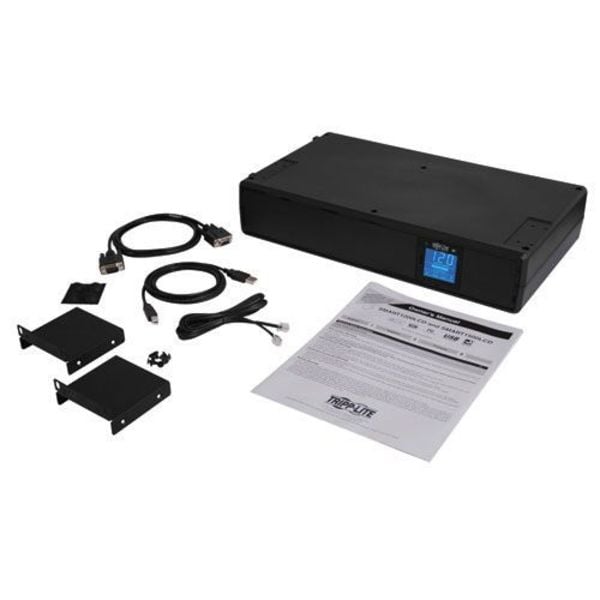

| Package Contents | SmartPro 1500 VA Rackmount/Tower Digital UPS, USB Cable, Serial Cable, Mounting Hardware, Manual with Warranty Information |
| Surge Energy Rating | 480 J |
| Form Factor | Tower, Rack |
| Assembly Required | No |
| Load Capacity | 1500 VA/900 W |
| USB | Yes |
| Serial Port | Yes |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Dataline Protection | RJ-45 |
| Surge Suppression Rating | 168 J |
| Power Rating - Real | 900 W |
| External Battery Compatible | Not External Battery Pack Compatible |
| Operating Temperature - Maximum | 104 deg F |
| Audible Alarm Conditions | Low Battery, Power Outage |
| Manufacturer Warranty | 2 yr |
| Power Cord Length | 6 ft |
| Output Ports Included | Contact Closure, DB9 Serial, USB |
| Operating Temperature - Minimum | 32 deg F |
| Includes Battery | Battery Included |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Data Line Protection | Includes Data Line Surge Protection |
| Battery Recharge Time | 4 hr 30 min |
| Input Current - Maximum | 8.6 A |
| Package Quantity | 1 |
