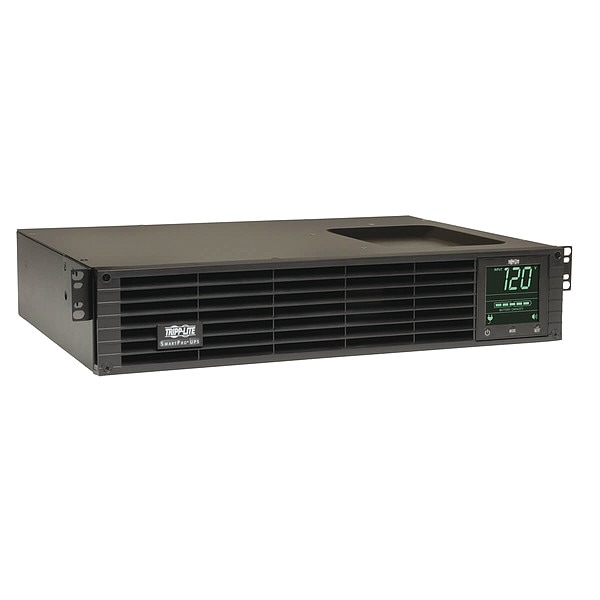

Smart UPS, 1.5kVA, Line Interactive, Out: 110/115/120V In: 120V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 1.5 kVA |
| Mounting | Tower, Rack |
| Wattage | 1,350 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 14 min/4.9 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 8 |
| Footnotes | 3,4,7,8,9 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hz | 60 Hz |
| NEMA Receptacle Configuration | 5-15R |
| Cord Length | 10 ft |
| Width | 14 in |
| Phase | Single |
| VA Rating - UPS Systems | 1.5 kVA |
| Transfer Time | 2 to 4 msec |
| Automatic Volts Regulation | Yes |
| Height | 4 in |
| Ports | DB9 Serial, EPO, SNMP/Web Slot, USB |
| Input Current | 12 A |
| Includes | DB9 Cable, EPO Cables, Mounting Hardware, SM1500RMXL2UTAA SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, USB Cables |
| Standards | CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, Trade Agreements Act (TAA), UL1778 |
| Display Type | LCD |
| NEMA Plug Configuration | 5-15P |
| Depth | 14 in |
| Fax/Modem Line Protection | No |
| Special Features | Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output, Extended Runtime w/BP36V15-2U, BP36V42-3U |
| Overall Height | 3.45 in |
| Voltage | 120 |
| Overall Width | 17.3 in |
| Capacity - Batteries | 1500 VA/1350 W |
| Input Connection | 10 ft Cord with NEMA 5-15P Plug |
| Battery Type | VRLA |
| Housing Material | Steel |
| Relative Humidity | 0 to 95%, non-condensing |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Input Circuit Breakers | 15A |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| High Availability UPS Features | Hot swappable batteries |
| Load Management Receptacles | Two switchable two-outlet 5-15R load banks |
| Undervoltage Correction | Input voltages between 95 and 108 are boosted by 12% |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); TAA Compliant |
| Battery Access | Front panel battery access door |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145 |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| AC Mode BTU / Hr. (Full Load) | 237 |
| Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
| Output Watt Capacity (Watts) | 1,350 |
| Severe Undervoltage Correction | Input voltages between 83 and 94 are boosted by 24% |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Internal UPS Replacement Battery Cartridge | RBC93-2U |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Full Load Runtime (min.) | 4 min 54 sec |
| Output Capacity Details | Output is reduced to 1200 watts maximum when used with external battery packs |
| Recommended Electrical Service | 15A 120V |
| UPS AC Suppression Joule Rating | 570 |
| Expandable Runtime | Yes |
| Low Voltage Transfer to Battery Power (Setpoint) | 83 |
| Minimum Required Rack Depth with External Battery Pack (in.) | 19.95 |
| AC Mode Efficiency Rating (100% Load) | 0.95 |
| Audible Noise | 45 dBA maximum, front side 1m |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| High Voltage Transfer to Battery Power (Setpoint) | 145 |
| EMI / RFI AC Noise Suppression | Yes |
| Output Voltage Regulation (Line Mode) | +6%, -14% |
| UPS AC Suppression Response Time | Instantaneous |
| Output kVA Capacity (kVA) | 1.5 |
| Cooling Method | Fan |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Power Factor | 0.9 |
| Rack Height | 2 U |
| Switches | 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Half Load Runtime (min.) | 14 min |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| Primary UPS Height (mm) | 88 |
| DC System Voltage (VDC) | 36 |
| Output kW Capacity (kW) | 1.35 |
| UPS Input Cord Length (ft.) | 10 |
| Output Volt Amp Capacity (VA) | 1,500 |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| External Battery Pack Compatibility | BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27 -2US (multi-pack compatible) |
| Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% |
| Rated input current (Maximum Load) | 12A |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| Input Phase | Single-Phase |
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Grounding Lug | Back panel grounding lug |

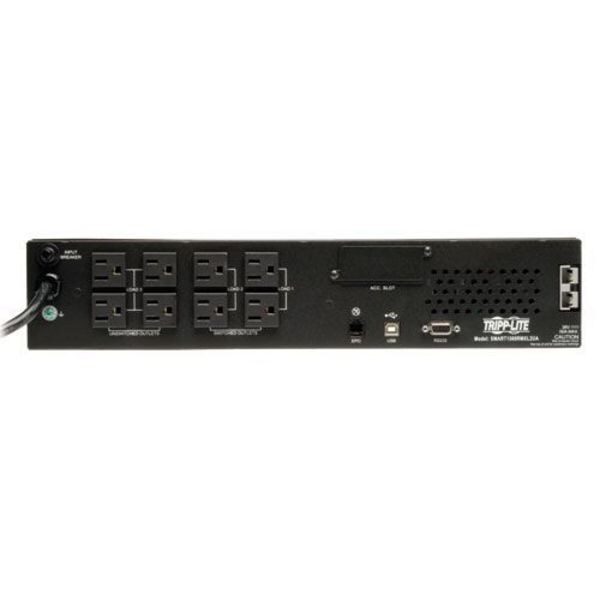

| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Communications Cable | USB and DB9 cabling included |
| Primary Form Factor | Rackmount |
| UPS Power Module Dimensions (hwd, in.) | 3.45 x 17.3 x 13.45 |

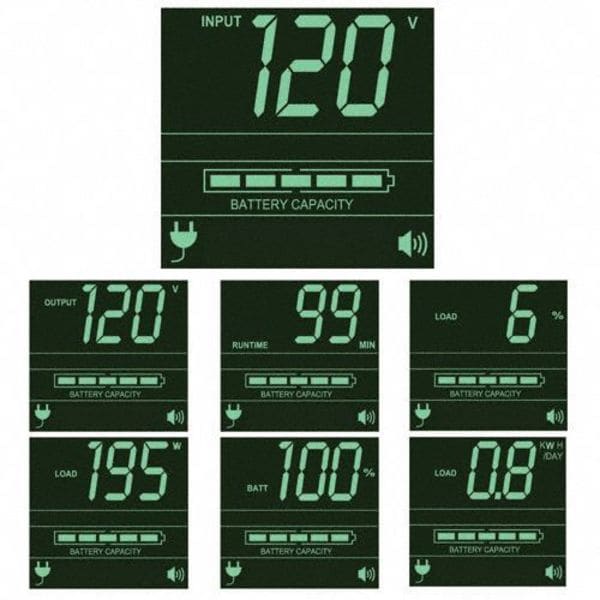

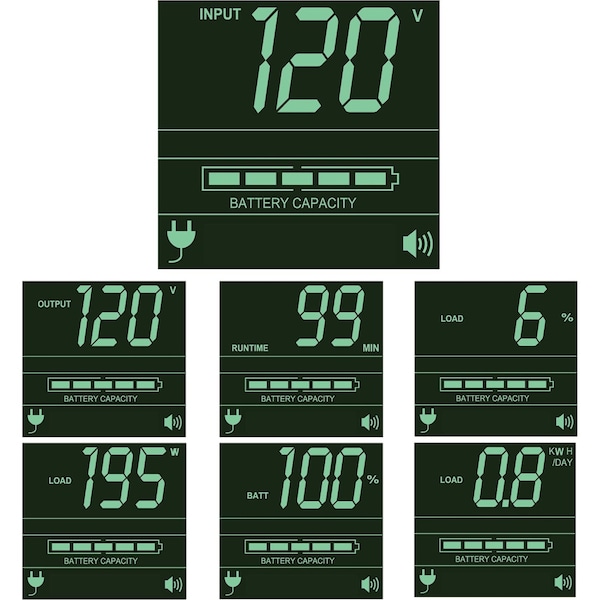

| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Primary UPS Depth (mm) | 342 |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Battery Mode BTU / Hr. (Full Load) | 751 |
| Overvoltage Correction | Input voltages between 127 and 145 are reduced by 12% |
| Minimum Required Rack Depth without External Battery Pack (in.) | 16.45 |
| Individually Controllable Load Banks | Yes |
| Hot Swappable | Yes |
| Form Factor | Tower, Rack |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| TAA Compliant | Yes |
| USB | Yes |
| Load Capacity | 1500 VA/1350 W |
| Software Included | PowerAlert Software |
| Serial Port | Yes |
| Typical Battery Recharge Time | 4 hr 30 min |

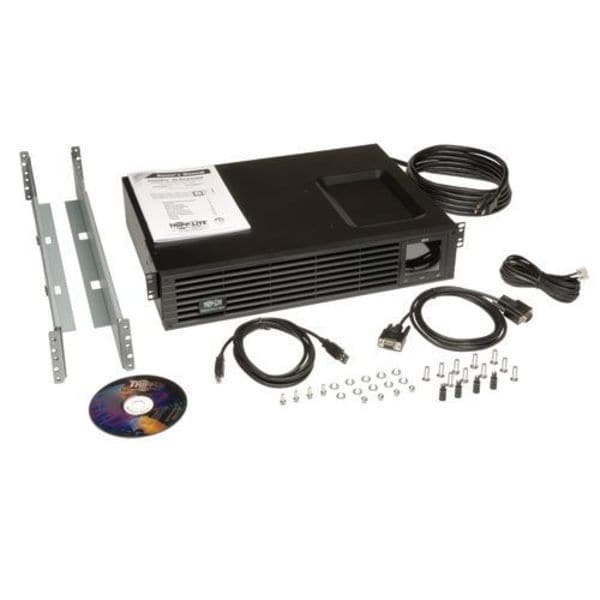

| Package Contents | SmartPro SM1500RMXL2UTAA 1500 VA Tower/Rack Mountable UPS, PowerAlert Software, USB Cable, Serial Cable, Mounting Hardware for 4 Post Rackmount Installation, Cable for Emergency Power Off Interface, Instructional Manual with Warranty Information |
| Minimum Required Rack Depth (inches) | 17 |
| Product Compliance | FCC Part 15 Class B (USA); Trade Agreements Act (TAA) |
| UPS Applications | Large Network; High-End Desktop/Small Network |
| Grounding Details | Back panel grounding lug |
| Output Capacity (VA) | 1,500 |
| Output Capacity (Watts) | 1,350 |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Package Includes | SM1500RMXL2UTAA SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS;USB cable;DB9 cable;EPO cable;Mounting hardware;Owner's manual |
| Overall Depth | 13.4 in |
| Data Line Protection | Includes Data Line Surge Protection |
| Power Rating - Real | 1.35 kW |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Power Cord Length | 10 ft |
| Surge Suppression Rating | 570 J |
| Receptacle Configuration | 5-15R |
| Number of Outlets - Surge Only | 8 |
| Output Ports Included | DB9 Serial, EPO, SNMP, USB |
| External Battery Compatible | External Battery Pack Compatible |
| Battery Chemistry | Valve Regulated Lead Acid |
| Input Current - Maximum | 12 A |
| Operating Temperature - Maximum | 104 deg F |
| Includes Battery | Battery Included |
| Frequency | 60 Hz |
| Operating Temperature - Minimum | 32 deg F |
| Battery Recharge Time | 4 hr 30 min |
| External Battery Pack Part Number | BP36V15-2U, BP36V27-2US, BP36V42-3U |
| Manufacturer Warranty | 2 yr |
| Audible Alarm Conditions | Power Outage, Low Battery, Overload |
| Package Quantity | 1 |
