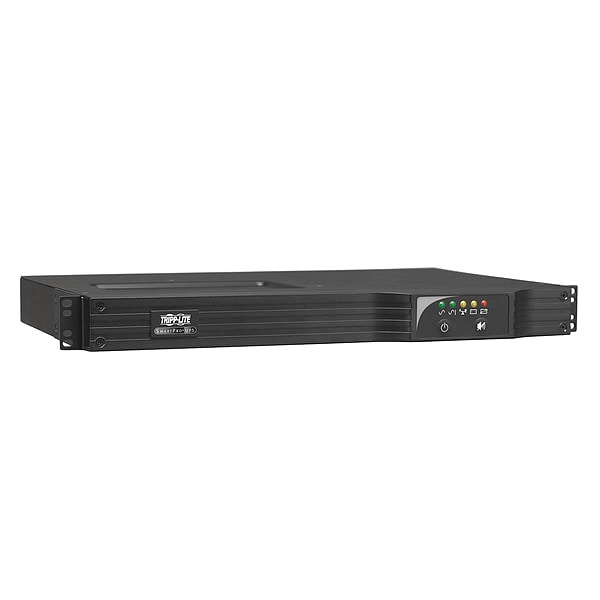

Smart UPS, 1kVA, Line Interactive, Out: 110/115/120V In: 120V AC
| VA Rating - UPS Systems | 1 kVA |
|---|---|
| Item | Smart UPS |
| UPS Type | Line Interactive |
| Power Rating | 1 kVA |
| Mounting | Rack |
| Wattage | 800 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 14 min/4 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 6 |
| Ports | DB9 Serial, EPO, SNMP/Web Slot, USB |
| Automatic Volts Regulation | Yes |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Width | 17 in |
| Cord Length | 10 ft |
| Input Current | 9.2 A |
| Height | 2 in |
| Includes | DB9 Cable, EPO Cables, Mounting Hardware, SMART1000RM1U SmartPro120V 1kVA 800W Line-Interactive Sine Wave UPS, USB Cables |
| NEMA Receptacle Configuration | 5-15R |
| Phase | Single |
| Special Features | Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output |
| Standards | CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778 |
| Footnotes | 3,4,10,12 |
| Hz | 60 Hz |
| Display Type | LED |
| NEMA Plug Configuration | 5-15P |
| Transfer Time | 2 to 4 msec |
| Depth | 17 in |
| Fax/Modem Line Protection | No |
| Voltage | 120 |
| Overall Width | 17-1/2 in |
| Capacity - Batteries | 1000 VA/800 W |
| For Use with | VoIP Phone System, Data Center, Computer |
| Input Connection | 10 ft Cord with NEMA 5-15P Plug |
| Housing Material | Steel |
| Battery Type | VRLA |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Primary UPS Height (mm) | 44 |
| Output Volt Amp Capacity (VA) | 1,000 |
| Low Voltage Transfer to Battery Power (Setpoint) | 83 |
| Cooling Method | Fan |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Minimum Required Rack Depth (inches) | 19.75 |
| AC Mode Efficiency Rating (100% Load) | 0.99 |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communications ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Input Phase | Single-Phase |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD |
| Undervoltage Correction | Input voltages between 83 and 107 are boosted by 14% |
| Expandable Runtime | No |
| Communications Interface | USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |

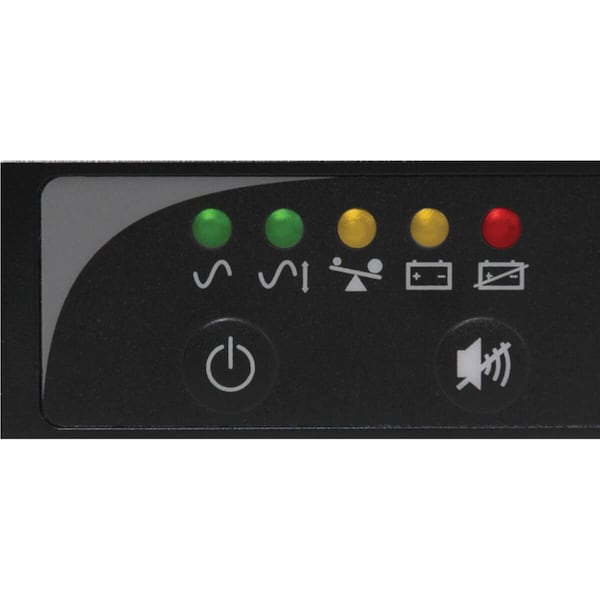

| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| DC System Voltage (VDC) | 24 |
| Battery Access | Front panel battery access door |
| Primary Form Factor | Rackmount |
| High Availability UPS Features | Hot swappable batteries |
| Output kVA Capacity (kVA) | 1 |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| UPS Certification Details | UL 1778: 2014 R8.15 (5TH Edition); CAN/CSA-C22.2 NO. 107.3-14 |
| Included Mounting Accessory Description | Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM |
| EMI / RFI AC Noise Suppression | Yes |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| Primary UPS Depth (mm) | 425 |
| Grounding Lug | Back panel grounding lug |
| Input Cord Length (ft.) | 10 |
| Battery Recharge Rate (Included Batteries) | 4.5 hours from 10% to 90% (typical, full load discharge) |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| Audible Noise | 45 dBA maximum, front side 1m |
| Output Watt Capacity (Watts) | 800 |
| Communications Cable | USB and DB9 cabling included |
| AC Suppression Response Time | Instantaneous |
| Half Load Runtime (min.) | 14 min |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Output Voltage Regulation (Line Mode) | -21%, +8% |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 4 post 19 inch rackmount |
| Full Load Runtime (min.) | 4 min |
| UPS Power Module Dimensions (hwd, in.) | 1.75 x 17.5 x 16.75 |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Individually Controllable Load Banks | Yes |
| Recommended Electrical Service | 15A 120V |
| Load Management Receptacles | Two switchable single-outlet 5-15R load banks |
| UPS Certifications | Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Relative Humidity | 0 to 95%, non-condensing |
| UPS AC Suppression Joule Rating | 450 |
| Input Circuit Breakers | 15A |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Rated input current (Maximum Load) | 9 A |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Power Factor | 0.8 |
| AC Mode BTU / Hr. (Full Load) | 39 |
| Installation Form Factors Supported with Optional Accessories | 4 post rackmount full-depth ( 4POSTRAILKIT1U ); 4 post rackmount short-depth ( 4POSTRAILKITWM ) |
| Internal UPS Replacement Battery Cartridge | RBC69-1U |
| Rack Height | 1 U |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Package Contents | SmartPro 1000RM1U UPS, SMART 1000RM1U UPS System, Mounting hardware, Cabling for USB & DB9 monitoring and EPO switching, PowerAlert unattended shutdown and UPS/Power monitoring software, Warranty information and instruction manual |
| Waveform Type | Pure Sinusoidal |
| Form Factor | Rack-mountable |
| Typical Battery Recharge Time | 4 hr 30 min |
| Application/Usage | Data Center, Computer, VoIP Phone System |
| Load Capacity | 1000 VA/800 W |
| Hot Swappable | Yes |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Product Compliance | FCC Part 15 Class A (USA) |
| Output Capacity (VA) | 1,000 |
| Package Includes | SMART1000RM1U SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS;USB cable;DB9 cable;EPO cable;Mounting hardware;Owner's manual |
| Output Capacity (Watts) | 800 |
| UPS Applications | Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| Grounding Details | Back panel grounding lug |
| Manufacturer Warranty | 2 yr |
| Audible Alarm Conditions | Low Battery, Overload, Power Outage |
| Operating Temperature - Minimum | 32 deg F |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Battery Recharge Time | 4 hr 30 min |
| Includes Battery | Battery Included |
| External Battery Compatible | Not External Battery Pack Compatible |
| Surge Suppression Rating | 450 J |
| Data Line Protection | Includes Data Line Surge Protection |
| Power Cord Length | 10 ft |
| Power Rating - Real | 800 W |
| Output Ports Included | DB9 Serial, EPO, SNMP, USB |
| Operating Temperature - Maximum | 104 deg F |
| Input Current - Maximum | 9.2 A |
| Package Quantity | 1 |
