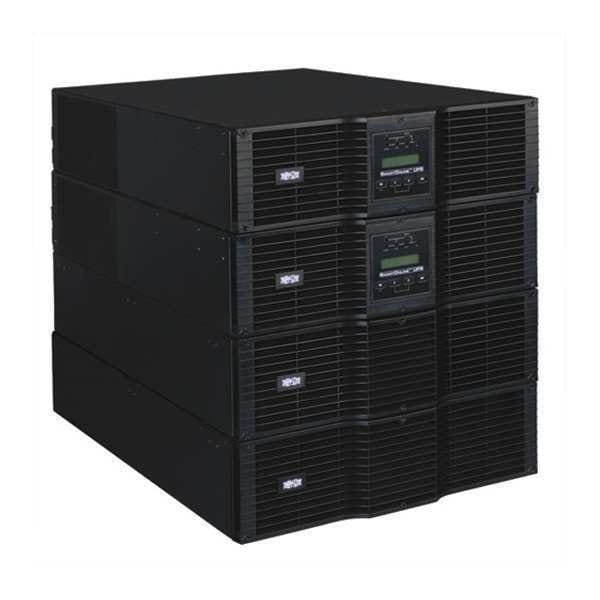

Smart UPS, 20kVA, Online, Out: 230/208/200/240/220V AC In: 220V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Online |
| Power Rating | 20 kVA |
| Mounting | Rack |
| Wattage | 18 kW |
| Input Voltage | 220V AC |
| Output Voltage | 230/208/200/240/220V AC |
| Backup Time (Half/Full Load) | 12.50 min/4.30 min |
| Outlet Type | Hardwired |
| Number of Outlets | 10 |
| Transfer Time | No transfer time (0 ms.) in online, double-conversion mode |
| Height | 5.1 in |
| NEMA Receptacle Configuration | L6-30R, C19 |
| Depth | 26 in |
| Hz | 50/60 Hz |
| Width | 26 in |
| Input Current | 112.2 A |
| Housing Material | Steel |
| Battery Type | VRLA |
| UPS Input Connection Description | 3 wire single phase input (L1, L2, G) |
| Primary UPS Depth (mm) | 656 |
| PowerAlert Software | For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Expandable Runtime | Yes |
| Relative Humidity | 0 to 95%, non-condensing |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Input Phase | Single-Phase |
| Power Factor | 0.9 |
| Undervoltage Correction | Corrects undervoltages as low as 100V |
| Network Monitoring Port Description | Applications utilizing any supported network management card option, require the installation of two of the same model network card to install one card per included UPS power module; RELAYIOMINI installation requires removal of panel containing USB ports on each included UPS power module |
| Included Mounting Accessory Description | 4 sets of adjustable 4 post rack rails included (one for each included 3U module) |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| UPS Dimensions Details | Includes 2 SU10000RT3UPM UPS/Power modules, 2 BP240V10RT3U Battery packs and SUPDMB20K parallel bypass PDU; Listed weights and dimensions for UPS/Power module and Included battery pack each refer to a single unit; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed depth with parallel bypass PDU installed |
| Front Panel LCD Display | Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH and PORTUGUESE (see manual) |
| Rack Height | 12 U |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module replacement |
| Half Load Runtime (min.) | 12 min 30 sec |
| Nominal Output Voltage(s) Supported | 200 V, 208 V, 240 V |
| Nominal Input Voltage(s) Supported | 200 V AC, 208 V AC, 240 V AC |
| Crest Factor | 0.125694444444444 |
| Battery Recharge Rate (Included Batteries) | Less than 6 hours from 10% to 90% (typical, full load discharge) |
| Operating Elevation (ft.) | 0-3000m (0 to 10,000 ft.) |
| LED Indicators | 6 LEDs indicate line power, online mode, bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options |
| Audible Alarm | Unique audible alarms for all major UPS, environmental and power conditions (see manual) |
| EMI / RFI AC Noise Suppression | Yes |
| Output Watt Capacity (Watts) | 18,000 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Output Circuit Breakers | Two built-in 30A breakers protect one L6-30R outlet each; Eight built-in 20A breakers protect one C19 outlet each |
| Output kVA Capacity (kVA) | 20 |
| High Voltage Transfer to Battery Power (Setpoint) | 300V |
| DC System Voltage (VDC) | 240 |
| Operating Elevation (m) | 0-3000 m |
| Output Volt Amp Capacity (VA) | 20,000 |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD, RELAYIOCARD, MODBUSCARD |
| Battery Mode BTU / Hr. (Full Load) | 9,185 |
| AC Mode BTU / Hr. (Full Load) | 6,830 |
| Cooling Method | Fan |
| Full Load Runtime (min.) | 4.3 minutes (18,000 watts) |
| Primary UPS Height (mm) | 131 |
| Maximum Device Depth (in.) | 32.5 |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Output Voltage Regulation (Battery Mode) | +/- 2% |
| Alarm Cancel Operation | Alarm cancel switch |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI) |
| Recommended Electrical Service | 125A @ 200V, 208V, 240V |
| High Availability UPS Features | Automatic inverter bypass; Battery Independent Restart; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| UPS AC Suppression Response Time | Instantaneous |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND) |
| Output Capacity Details | Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less |
| Low Voltage Transfer to Battery Power (Setpoint) | 100V |
| Audible Noise | 60 dBA at front side 1 meter |
| AC Mode Efficiency Rating (100% Load) | 0.9 |
| Expandable Battery Runtime | Runtime is expandable with external battery packs |
| Overvoltage Correction | Corrects overvoltages up to 300V |
| Battery Replacement Description | Hot-swappable, user replaceable external battery packs |
| External Battery Pack Compatibility | BP240V10RT3U; BP240V787C-1PH |
| Output kW Capacity (kW) | 18 |
| Voltage Regulation Description | 2% output voltage regulation in standard online, double-conversion mode |
| UPS AC Suppression Joule Rating | 2,565 |
| UPS Certification Details | IEC 61000-4-5 1995 B Surge Immunity |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Individually Controllable Load Banks | No |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| UPS Power Module Dimensions (hwd, in.) | 5.14 x 17.5 x 25.82 |
| Communications Cable | USB, DB9 serial and EPO cables included |
| Minimum Required Rack Depth (inches) | 37.5 |
| Frequency Compatibility Details | Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating) |
| Rated input current (Maximum Load) | 112.2A (200V), 108A (208V), 102A (220V), 97.6A (230V), 93.6A (240V) |
| Primary Form Factor | Rackmount |
| Expandable Runtime Description | For best results, add external batteries in multiples of two so that both included 10kVA power modules have an equal number and type of connected battery packs |
| Emergency Power OFF | Yes |
| Typical Battery Recharge Time | 8 hr |
| USB | Yes |
| Bypass Switch | Automatic, Manual |
| Load Capacity | 20 kVA |
| Network Management | SNMP Manageable |
| Output Frequency | 60 Hz |
| Additional Information | Output Receptacles: 8 x C19 |
| Package Contents | SmartOnline EZ SU20KRT 20kVA Tower/Rack Mountable UPS, 2 x Power Modules, 2 x Battery Packs, L6-30R / C19 parallel PDU with Bypass switch, PowerAlert Software CD, USB Cable, Serial Cable, EPO Cable, 4 x Sets of Adjustable 4 Post Rack Rails |
| Serial Port | Yes |
| Modular Slots | Communications Slot |
| Input Frequency | 60 Hz |
| Form Factor | Tower, Rack |
| Product Series | EZ |
| Software Included | PowerAlert Software |
| Package Includes | Two SU10000RT3UPM UPS power modules;Two BP240V10RT3U battery packs;SUPDMB20K parallel PDU with Bypass switch;4-post rackmount installation kits;USB, DB9 & EPO Cabling |
| UPS Applications | Mission Critical Applications |
| Unit Dimension Details | Includes 2 SU10000RT3UPM UPS/Power modules, 2 BP240V10RT3U Battery packs and SUPDMB20K parallel bypass PDU; Listed weights and dimensions for UPS/Power module and Included battery pack each refer to a single unit; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed depth with parallel bypass PDU installed |
| Output Capacity (Watts) | 18,000 |
| Output Capacity (VA) | 20,000 |
| Product Compliance | FCC Part 15 Class A (USA) |
| Product Certifications | IEC 61000; CSA (Canada); UL 1778 |
| Package Quantity | 1 |
