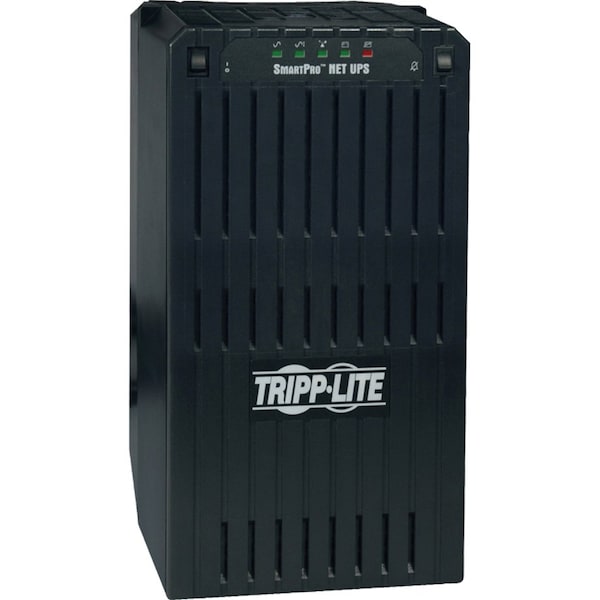

Smart UPS, 2.2kVA, Line Interactive, Out: 110/115/120V In: 120V AC
| Item | Smart UPS |
|---|---|
| VA Rating - UPS Systems | 2.2 kVA |
| UPS Type | Line Interactive |
| Power Rating | 2.2 kVA |
| Mounting | Tower |
| Wattage | 1.77 kW |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 27 min/11 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 6 |
| Height | 17 in |
| Footnotes | 1,3,10,12 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Phase | Single |
| Includes | SMART2200NET UPS System, Three 6ft Network Cables |
| Standards | CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778 |
| Fax/Modem Line Protection | No |
| Automatic Volts Regulation | Yes |
| Cord Length | 8 ft |
| Depth | 13 in |
| Hz | 60 Hz |
| Ports | Contact Closure, DB9 Serial |
| NEMA Plug Configuration | 5-15P |
| Transfer Time | 2 to 4 msec |
| NEMA Receptacle Configuration | 5-15R |
| Special Features | Diagnostic LED's Indicate 17 Performance Conditions, Large Internal Batteries, Poweralert Software |
| Input Current | 15 A |
| Width | 13 in |
| Display Type | LED |
| Voltage | 120 |
| Overall Width | 9 in |
| Battery Type | Sealed Lead Acid |
| Operating Temp. Range | 122°F (50°C) |
| Housing Color | Gray |
| Capacity - Batteries | 2200 VA/1700 W |
| Input Connection | 8 ft Cord with NEMA 5-15P Plug |
| Housing Material | Polycarbonate |
| Primary Form Factor | Tower |
| Power Factor | 0.8 |
| Rated input current (Maximum Load) | 15 A |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
| Battery Mode BTU / Hr. (Full Load) | 867 |
| AC Mode BTU / Hr. (Full Load) | 59 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Input Cord Length (ft.) | 8 |
| Primary UPS Height (mm) | 432 |
| Half Load Runtime (min.) | 27 min |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Individually Controllable Load Banks | Yes |
| Low Voltage Transfer to Battery Power (Setpoint) | 87 |
| EMI / RFI AC Noise Suppression | Yes |
| Output kW Capacity (kW) | 1.7 |
| Output Volt Amp Capacity (VA) | 2,200 |
| DC System Voltage (VDC) | 24 |
| AC Mode Efficiency Rating (100% Load) | 0.99 |
| Relative Humidity | 0 to 95%, non-condensing |
| Severe Undervoltage Correction | Input voltages between 87 and 94 are boosted by 22% |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| Input Phase | Single-Phase |
| Output Voltage Regulation (Line Mode) | -2.6 |
| Overvoltage Correction | Input voltages between 127 and 140 are reduced by 12% |
| UPS AC Suppression Response Time | Instantaneous |
| Communications Interface | DB9 Serial; Contact closure |
| Recommended Electrical Service | 20A 120V |
| UPS Power Module Dimensions (hwd, in.) | 17 x 9 x 12.5 |
| Primary UPS Depth (mm) | 318 |
| UPS AC Suppression Joule Rating | 720 |
| Undervoltage Correction | Input voltages between 95 and 105 are boosted by 10% |
| Full Load Runtime (min.) | 11 min |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total) |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Output kVA Capacity (kVA) | 2.2 |
| Battery Recharge Rate (Included Batteries) | Less than 9 hours from 10% to 90% (typical, full load discharge) |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| High Voltage Transfer to Battery Power (Setpoint) | 140 |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Communications Cable | 3 DB9 cables included |
| Expandable Runtime | Yes |
| UPS Input Cord Length (ft.) | 8 |
| Output Capacity Details | Output is reduced to 1200W maximum with 1-2 external battery packs and 800W maximum with 3 or more external battery packs |

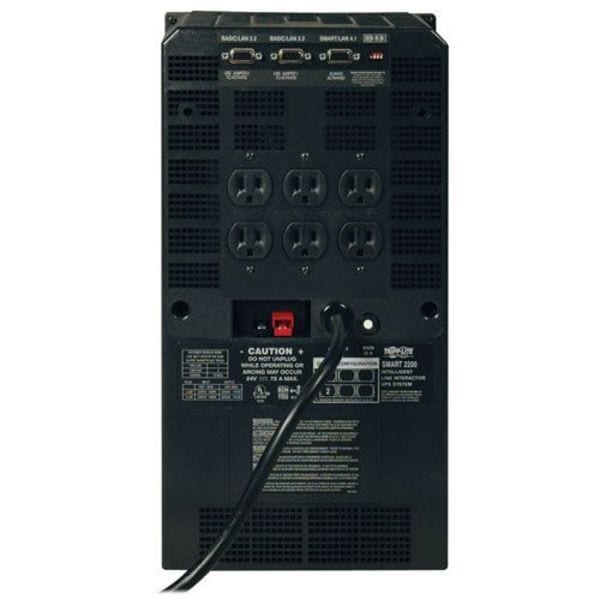

| Load Management Receptacles | Two switchable single outlet 5-15R load banks |
| UPS Certifications | Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Input Circuit Breakers | 20A |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control system enable and contact closure port inverter shutoff commands |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Output Watt Capacity (Watts) | 1,700 |
| External Battery Pack Compatibility | BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible) |
| Form Factor | Tower |
| Software Included | PowerAlert Software |
| Surge Energy Rating | 720 J |
| Assembly Required | No |
| Battery Life | 6 yr |
| Alarm | On Battery |
| Status Indicators | Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information |
| Load Capacity | 2200 VA/1700 W |
| Total Number of Expansion Slots | 3 |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Typical Battery Recharge Time | 4 hr |
| Maximum Operating Temperature | 122°F |
| Network Management | SNMP Manageable |
| Additional Information | SMART2200NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression, 2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices, Large internal batteries offer runtimes of 27 minutes at half load (1100VA / 850 watts) and 11 minutes at full load (2200VA / 1700 watts), Runtime is further expandable with optional external BP24V33 battery packs (output VA is de-rated as external battery packs are added, see specifications), Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V, Includes 6 fully protected NEMA 5-15R outlets with 2 single outlet load banks that can be individually powered off and back on again via software interface, PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user defined script commands, Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software, In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity, Supports activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment, Diagnostic LEDs (indicate 17 performance conditions), UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed, $250,000 Ultimate Lifetime Insurance (USA & Canada Only) |
| Package Contents | SMART2200NET UPS System, PowerAlert Software CD, 3 x 6-ft. network cables, Warranty information, Instruction manual |
| Input Current - Maximum | 15 A |
| Manufacturer Warranty | 2 yr |
| Audible Alarm Conditions | Low Battery |
| Surge Suppression Rating | 720 J |
| Operating Temperature - Maximum | 104 deg F |
| External Battery Pack Part Number | BP24V28-2U (Limit 1), BP24V70-3U (Multi-Pack Compatible) |
| External Battery Compatible | External Battery Pack Compatible |
| Battery Recharge Time | 9 hr |
| Data Line Protection | Includes Data Line Surge Protection |
| Operating Temperature - Minimum | 32 deg F |
| Power Cord Length | 8 ft |
| Output Ports Included | DB9 Serial |
| Power Rating - Real | 1.77 kW |
| Includes Battery | Battery Included |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Package Quantity | 1 |
