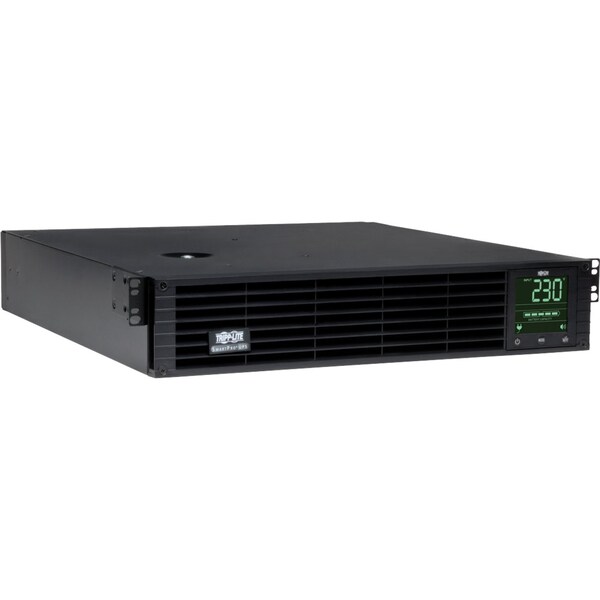

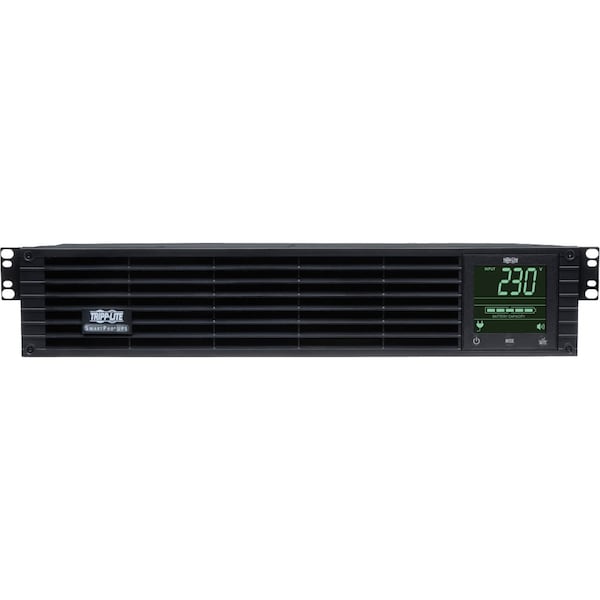

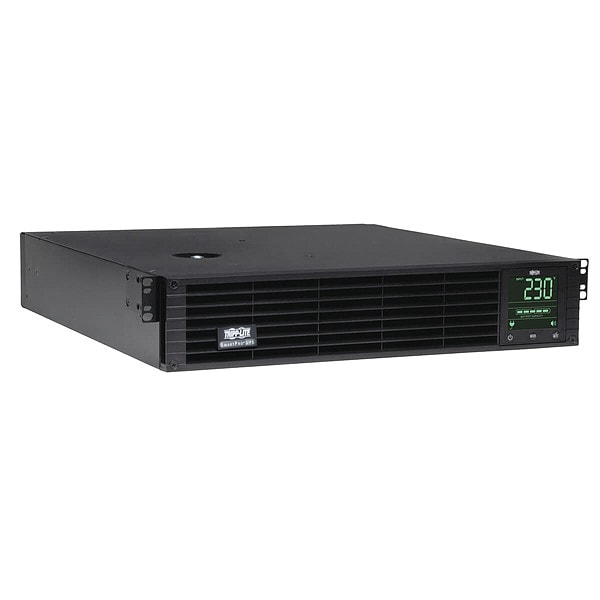

Smart UPS, 3000VA, Line Interactive, Out: 200/208/220/230/240V AC In: 200/208/220/230/240V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 3,000 VA |
| Mounting | Tower, Rack |
| Wattage | 3,000 W |
| Input Voltage | 200/208/220/230/240V AC |
| Output Voltage | 200/208/220/230/240V AC |
| Backup Time (Half/Full Load) | 9 min/3 min |
| Number of Outlets | 10 |
| NEMA Receptacle Configuration | C13, C19 |
| Depth | 19-1/2 in |
| Width | 19-1/2 in |
| Transfer Time | 6 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode) |
| Height | 3-1/2 in |
| NEMA Plug Configuration | C20 |
| Input Current | 14.1 A |
| Battery Type | Lead Acid |
| Housing Material | Steel |
| Low Voltage Transfer to Battery Power (Setpoint) | 158 |
| UPS Certifications | CE |
| Battery Access | Front panel battery access door |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD, RELAYIOCARD |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| AC Mode BTU / Hr. (Full Load) | 158 |
| Output Volt Amp Capacity (VA) | 3,000 |
| Internal UPS Replacement Battery Cartridge | RBC58-2U |
| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Rack Height | 2 U |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Half Load Runtime (min.) | 11 min 6 sec |
| Frequency Compatibility | 50 / 60 Hz |

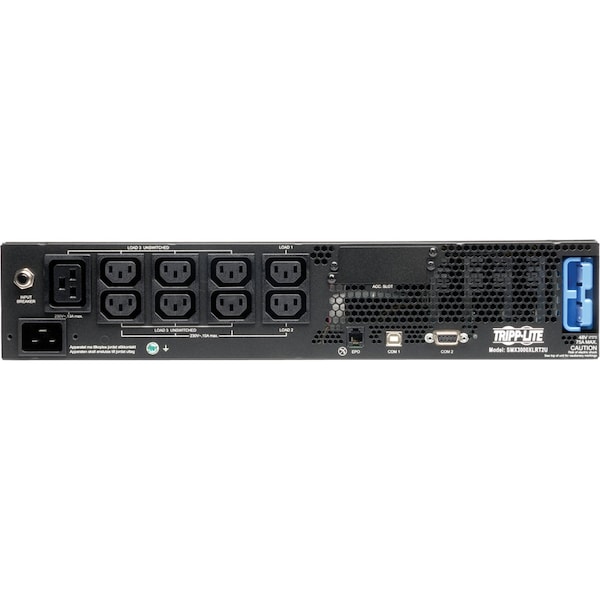

| Load Management Receptacles | Two switchable single outlet C13 load banks |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Expandable Runtime | Yes |
| UPS Input Connection Description | IEC320-C20 input connection accepts a variety of user supplied detachable C19 output cordsets to match country or site specific power sources |
| Battery Mode BTU / Hr. (Full Load) | 1,501 |
| UPS Power Module Dimensions (hwd, in.) | 3.5 x 17.5 x 19.5 |
| Communications Cable | USB, DB9 and EPO cabling included |
| Battery Recharge Rate (Included Batteries) | Less than 5 hours from 10 to 90% (typical, full load discharge) |
| Included Output Power Cables | Set of 3 C13 to C14 power cables included |
| Output kW Capacity (kW) | 2.7 |
| Output Voltage Regulation (Battery Mode) | +/-5% |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278 |
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| Undervoltage Correction | Input voltages between 206 and 183 are boosted by 12% |
| Primary UPS Depth (mm) | 495 |
| Severe Undervoltage Correction | Input voltages between 158 and 183 are boosted by 24% |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Primary UPS Height (mm) | 89 |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Power Factor | 0, 9 |
| AC Mode Efficiency Rating (100% Load) | 0.98 |

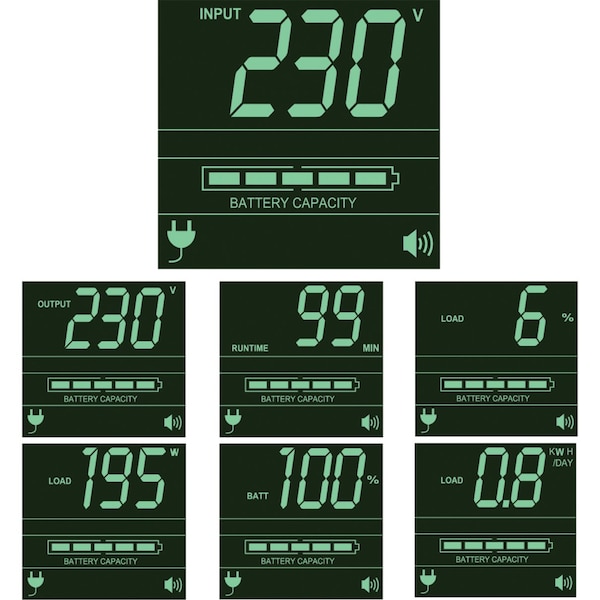

| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) |
| DC System Voltage (VDC) | 48 |
| Relative Humidity | 0 to 95%, non-condensing |
| Input Circuit Breakers | 20A |
| Nominal Input Voltage(s) Supported | 230 V AC |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| Full Load Runtime (min.) | 3 min 54 sec |
| Audible Noise | 45 dBA maximum, front side 1m |
| Frequency Compatibility Details | Automatic frequency selection |
| Overvoltage Correction | Input voltages between 244 and 278 are reduced by 12% |
| Minimum Required Rack Depth with External Battery Pack (in.) | 26.5 |
| Minimum Required Rack Depth without External Battery Pack (in.) | 23 |
| EMI / RFI AC Noise Suppression | Yes |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| High Voltage Transfer to Battery Power (Setpoint) | 278 |
| Output Watt Capacity (Watts) | 2,700 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Cooling Method | Fan |
| Individually Controllable Load Banks | Yes |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| High Availability UPS Features | Hot swappable batteries |
| AC Suppression Response Time | Instantaneous |
| External Battery Pack Compatibility | BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible) |
| Output kVA Capacity (kVA) | 3 |
| Nominal Output Voltage(s) Supported | 220 V, 230 V, 240 V |
| UPS Certification Details | IEC 62040-1, IEC 62040-2 Class A EMI, GOST |
| Rated input current (Maximum Load) | 14.1 A |
| Input Phase | Single-Phase |
| Output Voltage Regulation (Line Mode) | +6%, -15% |
| Switches | 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions |
| Battery Replacement Description | Hot-swappable, replaceable batteries |
| UPS AC Suppression Joule Rating | 350 |
| Primary Form Factor | Rackmount |
| USB | Yes |
| Typical Battery Recharge Time | 5 hr |
| Thermal Dissipation | 46.31 W |
| Hot Swappable | Yes |
| Status Indicators | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options |
| Protection Type | Brownout, EMI, RFI, Surge, Over Voltage, Black Out |

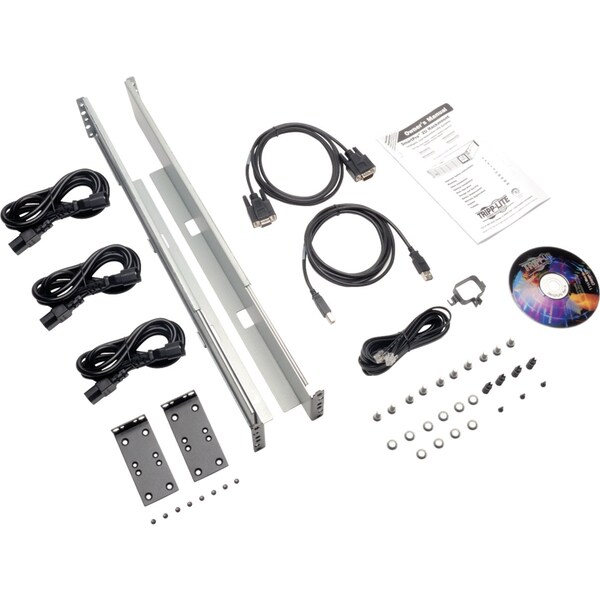

| Package Contents | SMX3000XLRT2UA UPS System, PowerAlert Software CD, 4 Post Rackmount Installation Kit, 3 x C13/C14 Power Cables, Instruction Manual, USB Cable, DB9 Cable, EPO Cable |
| Waveform Type | Sine Wave |
| Serial Port | Yes |
| Certifications & Standards | CE, IEC 62040-1, IEC 62040-2 Class A EMI, GOST |
| Form Factor | Tower, Rack |
| Surge Energy Rating | 350 J |
| Emergency Power OFF | Yes |
| Load Capacity | 3000 VA/2700 W |
| Alarm | Power Failure, Low Battery, Remote Shutdown, Overload, UPS Fault, UPS StartUp |
| Software Included | PowerAlert Monitoring Software |
| Network Management | SNMP Manageable |
| Maximum Operating Temperature | 104°F |
| Unit Dimensions (hwd / in.) | 3.5 x 17.5 x 19.5 |
| Battery Mode Heat Dissipation (BTU/Hr) @ Full Load | 1,501 |
| Output Capacity (Watts) | 2,700 |
| UPS Applications | Large Network; High-End Desktop/Small Network |
| Minimum Required Rack Depth (inches) | 23 |
| Product Compliance | CE (Europe) |
| Output Capacity (VA) | 3,000 |
| Product Certifications | GOST (Russia); IEC/EN 62040 |
| Package Includes | SMX3000XLRT2UA UPS system;USB, Serial & EPO cabling;4 post rackmount installation kit;Set of 3 C13/C14 power cables;Instruction manual |
| Package Quantity | 1 |
