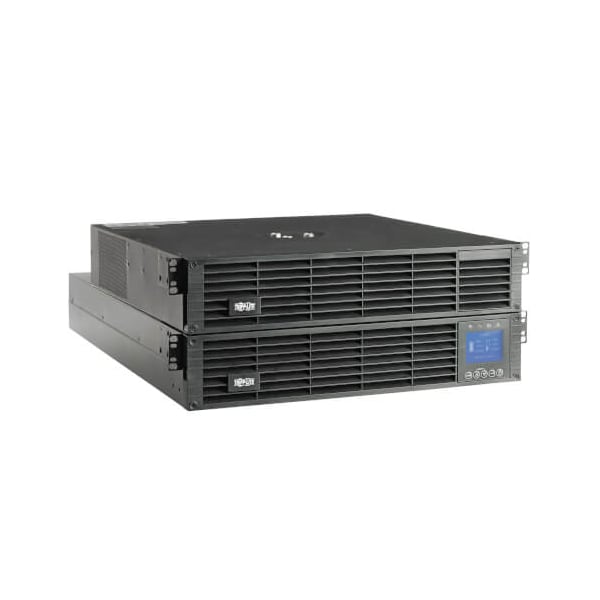

Smart UPS, 3000VA, Online, Out: 120/208V In: 208V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Online |
| Power Rating | 3,000 VA |
| Mounting | Rack |
| Wattage | 2,700 W |
| Input Voltage | 208V AC |
| Output Voltage | 120/208V |
| Backup Time (Half/Full Load) | 13.5 min/5 min |
| Number of Outlets | 20 |
| Transfer Time | No transfer time (0 ms.) in online, double-conversion mode; 4 ms. transfer time during economy mode operation |
| Hz | 60 Hz |
| Width | 24-1/4 in |
| NEMA Plug Configuration | L5-30P |
| NEMA Receptacle Configuration | L6-20R, 5-15/20R; 6-15/20R |
| Housing Material | Metal |
| UPS Certifications | Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Output Watt Capacity (Watts) | 2,700 |
| Switches | 5 front panel switches: On/Off, Up, Down and Escape |
| High Voltage Transfer to Battery Power (Setpoint) | 288V |
| Relative Humidity | 5 to 95%, non-condensing |
| Included Mounting Accessory Description | 4 post installation accessories included (2 sets) |
| Battery Mode BTU / Hr. (Full Load) | 1,399 |
| Output kVA Capacity (kVA) | 3 |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 plus assignable contact closure pin functions for On-battery, On bypass, Output-on and Low-battery conditions and remote Shutdown, Output-off, Reboot and Power-toggle operations |
| Battery Replacement Description | Hot-swappable, replaceable batteries |
| Front Panel LCD Display | Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information; LCD interface also enables a variety of advanced UPS setup and configuration options |
| Output Volt Amp Capacity (VA) | 3,000 |
| UPS Power Module Dimensions (hwd, in.) | 6.96 x 17.34 x 24.25 |
| Audible Alarm | Audible alarm indicates power failure, low battery, overload and fault |
| Rack Height | 4 U |
| Expandable Battery Runtime | Supports extended runtime with optional external battery packs |
| Communications Cable | USB and DB9 cabling included |
| Primary Form Factor | Rackmount |
| Primary UPS Height (mm) | 177 |
| Individually Controllable Load Banks | Yes |
| Undervoltage Correction | 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load) |
| External Battery Pack Compatibility | BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18 -2US (multi-pack compatible) |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Expandable Runtime | Yes |
| Primary UPS Depth (mm) | 616 |
| Recommended Electrical Service | 208V 20A |
| Cooling Method | Fan |
| Communications Interface | USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface |
| Audible Noise | <50dB at front side 1M |
| EMI / RFI AC Noise Suppression | Yes |
| UPS Certification Details | The 3kVA UPS carries agency standards IEC62040-1:2008+A1:2013, UL1778: 2014 R8.15; CAN/CSA-C22.2 No. 107.3-14; CE; EN62040-2:2006, FCC PART 15; NOM; SASO, EAC The 2U step-down transformer carries agency standards UL1778:2014 R10.17 (5TH EDITION); CAN/CSA-C22.2 NO. 107.3-14; CLASS A (emissions); NOM |
| AC Mode BTU / Hr. (Full Load) | 933 |
| AC Economy Mode Efficiency Rating (100% Load) | >95% |
| Low Voltage Transfer to Battery Power (Setpoint) | 160V (100% load), 140V (66% load), 120V (33% load) |
| High Availability UPS Features | Automatic inverter bypass; Battery Independent Restart; Hot swappable batteries |
| LED Indicators | 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red) |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); Tower ( 2-9USTAND ) |
| Full Load Runtime (min.) | 5 min |
| Voltage Regulation Description | Online, double-conversion power conditioning |
| AC Suppression Joule Rating | 570 |
| AC Suppression Response Time | Instantaneous |
| PowerAlert Software | For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| DC System Voltage (VDC) | 72 |
| Minimum Required Rack Depth with External Battery Pack (in.) | 30.25 |

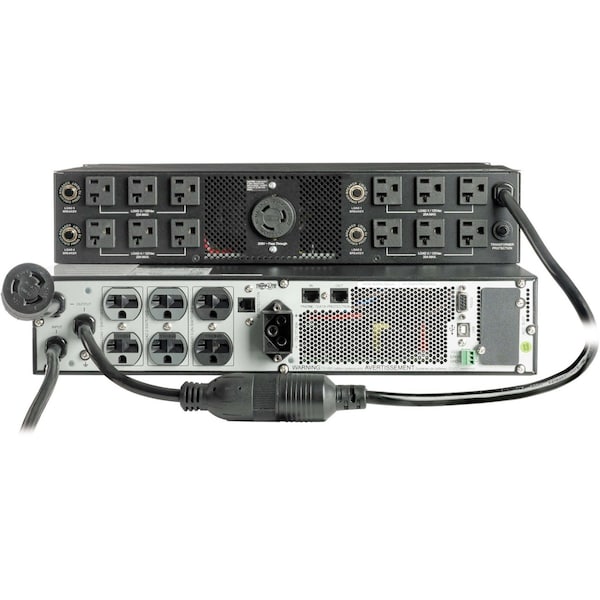

| Output Circuit Breakers | Included 2U transformer module includes four 20A 120V circuit breakers (each protects 3 NEMA 5-15/20R outlets). |
| Output Voltage Regulation (Economy Line Mode) | +/- 10% |
| Rated input current (Maximum Load) | 14.97A |
| UPS Input Cord Length (ft.) | 10 |
| Battery Access | Front panel battery access door |
| Nominal Output Voltage(s) Supported | 120 V, 208 V |
| Crest Factor | 0.125694444444444 |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Grounding Lug | Back panel grounding lug included |
| Overvoltage Correction | 2% output voltage regulation during overvoltages to 288 |
| Load Management Receptacles | Two switchable outlet load banks (2 NEMA 6-15/20R outlets per bank) |
| Internal UPS Replacement Battery Cartridge | RBC72S |
| Battery Recharge Rate (Included Batteries) | 3.0 hours from 10% to 90% (typical, full load discharge) |
| Half Load Runtime (min.) | 13 min 30 sec |
| UPS Dataline Suppression Details | Single line dialup / network dataline protection included |
| Nominal Input Voltage(s) Supported | 208 V AC |
| Frequency Compatibility Details | IMPORTANT! Please ensure the UPS is configured for 60Hz output when used with the included step-down transformer module |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Output kW Capacity (kW) | 2.7 |
| Power Factor | 0.9 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius. |
| Minimum Required Rack Depth without External Battery Pack (in.) | 29.25 |
| Input Phase | Single-Phase |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius. |
| Output Capacity Details | OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits). |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Output Voltage Regulation (Battery Mode) | +/- 2% |
| AC Economy Mode BTU / Hr. (Full Load) | 588 |
| Alarm Cancel Operation | Power-fail alarm can be silenced by following on-screen prompts |
| AC Mode Efficiency Rating (100% Load) | >90% |
| Package Quantity | 1 |
