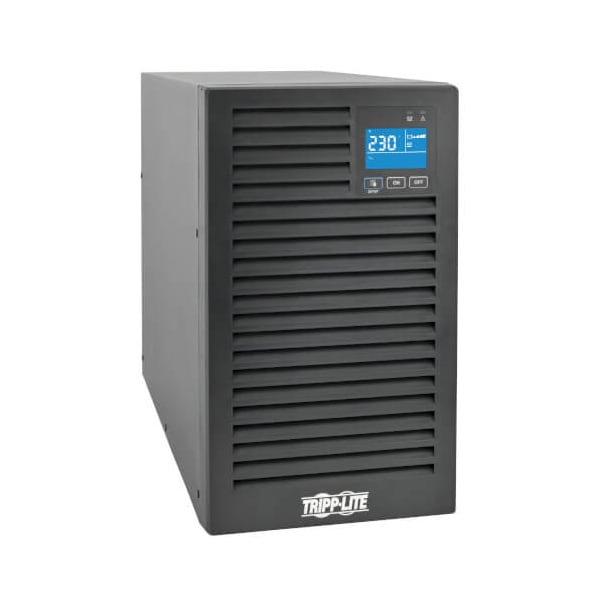

Smart UPS, 3000VA, Online/Double Conversion, Out: 220/230/240V AC In: 220/230/240V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Online, Double Conversion |
| Power Rating | 3,000 VA |
| Mounting | Tower |
| Wattage | 2,700 W |
| Input Voltage | 220/230/240V AC |
| Output Voltage | 220/230/240V AC |
| Backup Time (Half/Full Load) | 11.2 min/4.4 min |
| Number of Outlets | 7 |
| NEMA Plug Configuration | C20 |
| Housing Material | Steel |
| Width | 14.2 in |
| Transfer Time | Zero transfer time (0 ms.) |
| Hz | 50/60 Hz |
| NEMA Receptacle Configuration | C13, C19 |
| Operating Elevation (ft.) | 0-3000ft |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| Full Load Runtime (min.) | 4 min 24 sec |
| Output Voltage Regulation (Battery Mode) | +/- 3% |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Primary UPS Depth (mm) | 361 |
| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional information |
| Nominal Input Voltage Description | 230V factory default |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Output kVA Capacity (kVA) | 3 |
| Input Circuit Breakers | 20A |
| UPS Power Module Dimensions (hwd, in.) | 12.8 x 7.5 x 14.2 |
| AC Mode BTU / Hr. (Full Load) | 818 |
| Cooling Method | Fan |
| DC System Voltage (VDC) | 72 |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Output Volt Amp Capacity (VA) | 3,000 |
| AC Mode Efficiency Rating (100% Load) | 0.92 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD, RELAYIOCARD, MODBUSCARD |
| Communications Cable | USB and DB9 cabling included |
| Battery Mode BTU / Hr. (Full Load) | 1,538 |
| Included Output Power Cables | Includes three C13 to C14 power cables |
| UPS Certification Details | EN62040-2:2006; IEC 62040-1:2008+A1:2013; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4 |
| Battery Recharge Rate (Included Batteries) | Less than 6 hours from 10% to 90% (typical, full load discharge) |
| Output Watt Capacity (Watts) | 2,700 |
| High Availability UPS Features | Automatic inverter bypass; Hot swappable batteries |
| Output Voltage Regulation (Economy Line Mode) | +/- 10% |
| Voltage Regulation Description | Online, double-conversion power conditioning |
| Low Voltage Transfer to Battery Power (Setpoint) | 80V (<50% load), 175V (100% load) |
| Recommended Electrical Service | 230V |
| High Voltage Transfer to Battery Power (Setpoint) | 280 |
| Output Capacity Details | OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 1 minute; 150% load for 30 seconds; Loads greater than 150% trigger immediate switchover to BYPASS (when input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when input voltage and frequency are OUTSIDE bypass limits) |
| AC Economy Mode BTU / Hr. (Full Load) | 188 |
| Primary UPS Height (mm) | 325 |
| Relative Humidity | 0 to 95%, non-condensing |
| Expandable Runtime | Yes |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Switches | ON switch supports inverter-on, battery-test, alarm-off and enter functions; OFF switch supports inverter-off and fault-clear functions; SETUP switch enables scroll-down and enter setup-mode functions |
| Nominal Input Voltage(s) Supported | 220 V AC, 230 V AC, 240 V AC |
| Half Load Runtime (min.) | 11 min 12 sec |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| UPS AC Suppression Joule Rating | 425 |
| UPS Input Cord Length (ft.) | 10 |
| Rated input current (Maximum Load) | 14.6A 220V; 14.0A 230V; 13.4A 240V |
| Primary Form Factor | Tower |
| Audible Noise | < 52 dB at front side 1m |
| Undervoltage Correction | 2% output voltage regulation during undervoltages to 80V (50% load), 175V (100% load) |
| Communications Interface | DB9 Serial; Slot for SNMP/Web interface; USB (HID enabled) |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Expandable Runtime Description | External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details |
| Power Factor | 0.9 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| External Battery Pack Compatibility | BP72V15-2U (limit 1); BP72V18 -2US (multi-pack compatible); BP72V28RT-3U (multi-pack compatible) |
| Crest Factor | 0.125694444444444 |
| Input Phase | Single-Phase |
| EMI / RFI AC Noise Suppression | Yes |
| UPS Certifications | CE |
| Individually Controllable Load Banks | No |
| Overvoltage Correction | 2% output voltage regulation during overvoltages to 280 |
| Operating Elevation (m) | 0-1000m |
| Frequency Compatibility Details | ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz; BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal. |
| Nominal Output Voltage(s) Supported | 220 V, 230 V, 240 V |
| Output kW Capacity (kW) | 2.7 |
| AC Economy Mode Efficiency Rating (100% Load) | 0.98 |
| UPS AC Suppression Response Time | Instantaneous |
| Package Quantity | 1 |
