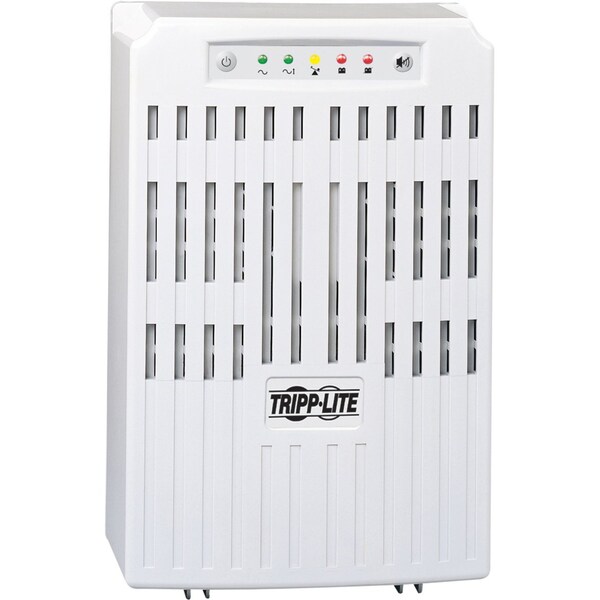

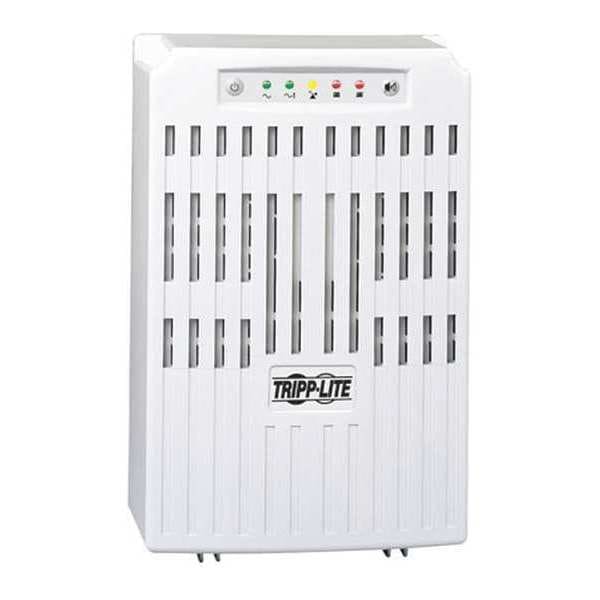

Smart UPS, 3kVA, Line Interactive, Out: 120V AC In: 120V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 3 kVA |
| Mounting | Tower |
| Wattage | 2.4 kW |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 23 min/7 min |
| Number of Outlets | 8 |
| Hz | 60 Hz |
| Transfer Time | 4 ms |
| Standards | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico) |
| Width | 12-1/2 in |
| NEMA Receptacle Configuration | 5-15R; 5-15/20R |
| NEMA Plug Configuration | L5-30P |
| Depth | 12-1/2 in |
| Height | 17 in |
| Input Current | 22 A |
| Housing Material | PVC |
| Package Contents | SmartPro SM3000NAFTA 3000VA Tower UPS, SMART3000NET UPS System, PowerAlert Software and three 6 foot network cables, Warranty information, Instruction manual |
| Serial Port | Yes |
| Typical Battery Recharge Time | 4 hr |
| Load Capacity | 3000 VA/2400 W |
| Software Included | PowerAlert UPS Monitoring Software |
| Form Factor | Tower |
| Additional Information | Line Mode: Sine wave line voltage 120V (-13% / +5%), Battery Mode: PWM sine wave output 120V +/-5% |
| Recommended Electrical Service | 30A 120V |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140 |
| Severe Undervoltage Correction | Input voltages between 87 and 94 are boosted by 22% |
| External Battery Pack Compatibility | BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible) |
| Load Management Receptacles | Three switchable single-outlet 5-15R load banks |
| UPS Power Module Dimensions (hwd, in.) | 17 x 9 x 12.5 |
| Rated input current (Maximum Load) | 22A |
| Output Capacity (VA) | 3,000 |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| Communications Cable | 3 DB9 cables included |
| Overvoltage Correction | Input voltages between 127 and 140 are reduced by 12% |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total) |
| Primary UPS Height (mm) | 432 |
| Output Circuit Breakers | 15A branch rated (x2) - each breaker protects 4 outlets |
| UPS AC Suppression Joule Rating | 480 |
| AC Mode BTU / Hr. (Full Load) | 82.4 |
| Battery Mode Heat Dissipation (BTU/Hr) @ Full Load | 1,219.3 |
| Low Voltage Transfer to Battery Power (Setpoint) | 87 |
| Relative Humidity | 0 to 95%, non-condensing |
| Nominal Output Voltage(s) Supported | 120 V |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control system enable and contact closure port inverter shutoff commands |
| Output Capacity (Watts) | 2,400 |
| Primary Form Factor | Tower |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Cooling Method | Fan |
| UPS AC Suppression Response Time | Instantaneous |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| EMI / RFI AC Noise Suppression | Yes |
| Output Voltage Regulation (Line Mode) | -13%, +5% |
| Package Includes | SMART3000NET UPS System;PowerAlert Software and three 6 foot network cables;Warranty information;Instruction manual |
| DC System Voltage (VDC) | 24 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Battery Recharge Rate (Included Batteries) | Less than 9 hours from 10% to 90% |
| Primary UPS Depth (mm) | 318 |
| UPS Input Cord Length (ft.) | 8 |
| High Voltage Transfer to Battery Power (Setpoint) | 140 |
| AC Mode Efficiency Rating (100% Load) | 0.99 |
| Communications Interface | DB9 Serial; Contact closure |
| Installation Form Factors Supported with Included Accessories | Tower |
| Power Factor | 0.8 |
| Undervoltage Correction | Input voltages between 95 and 105 are boosted by 10% |
| Package Quantity | 1 |
