Smart UPS, 500VA, Line Interactive, Out: 120V AC In: 120V AC
| Item | Smart UPS |
|---|---|
| VA Rating - UPS Systems | 500 VA |
| UPS Type | Line Interactive |
| Power Rating | 500 VA |
| Mounting | Rack |
| Wattage | 300 W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 14 min/3 min |
| Outlet Type | (1) Surge; (6) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 6 |
| Hz | 60 Hz |
| Special Features | Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output |
| Cord Length | 10 ft |
| Height | 2 in |
| Standards | CSA (Canada), ENERGY STAR Qualified, FCC Part 15 Class B (USA), ICES (Canada), NOM (Mexico), RoHS, UL1778 |
| Display Type | LED |
| Automatic Volts Regulation | Yes |
| NEMA Receptacle Configuration | 5-15R |
| Footnotes | 3,4,10,12 |
| NEMA Plug Configuration | 5-15P |
| Fax/Modem Line Protection | No |
| Input Current | 10 A |
| Ports | DB9 Serial, EPO, SNMP/Web Slot, USB (HID Enabled) |
| Phase | Single |
| Depth | 12 in |
| Transfer Time | 4 to 6 msec |
| Includes | Cables for USB and DB9 Monitoring and EPO Switching, Mounting Hardware, PowerAlert Unattended Shutdown and UPS/Power Monitoring Software |
| Width | 12 in |
| Overall Width | 17.32 in |
| Voltage | 120 |
| Capacity - Batteries | 500 VA/300 W |
| Battery Type | Sealed Lead Acid |
| Housing Color | Black |
| Operating Temp. Range | 122°F (50°C) |

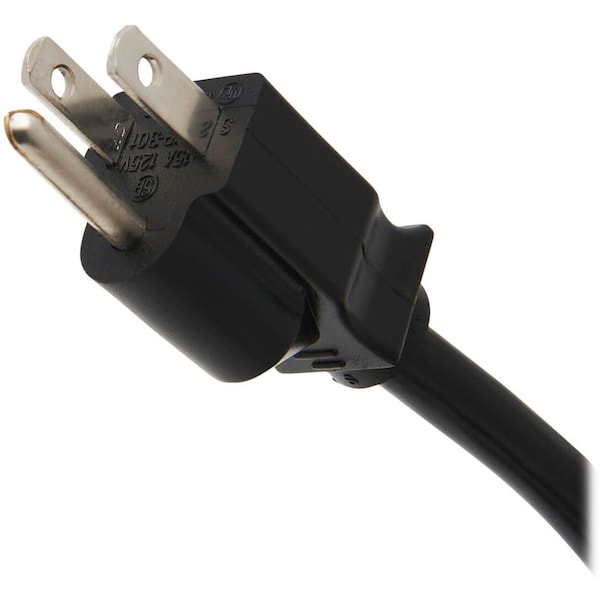

| Input Connection | 10 ft Cord with NEMA 5-15P Plug |
| Housing Material | Steel |
| AC Suppression Joule Rating | 567 |
| Half Load Runtime (min.) | 14 min 36 sec |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| AC Mode BTU / Hr. (Full Load) | 44 |
| Individually Controllable Load Banks | Yes |
| EMI / RFI AC Noise Suppression | Yes |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Grounding Lug | Back panel grounding lug |
| Input Circuit Breakers | 15A |
| Output Volt Amp Capacity (VA) | 500 |
| Input Phase | Single-Phase |

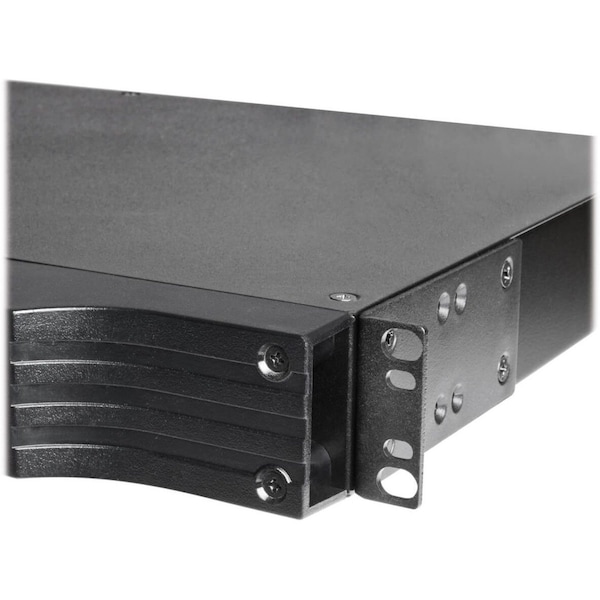

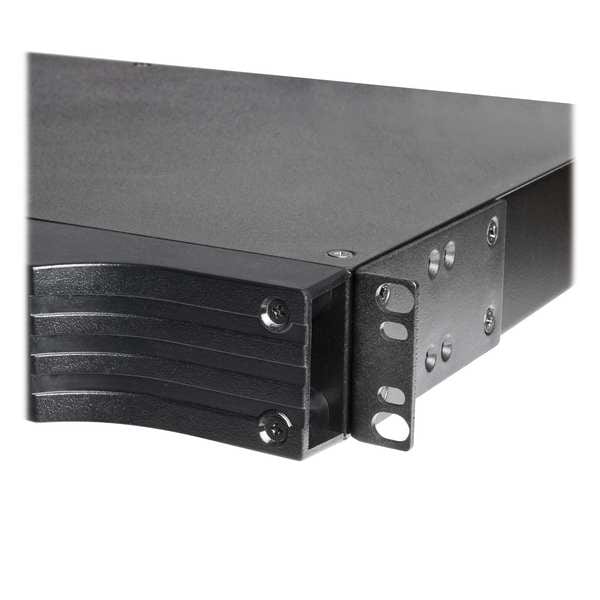

| Included Mounting Accessory Description | Included mounting brackets provide front-rail installation in 2 or 4 post racks, plus upright tower configurations |
| DC System Voltage (VDC) | 12 |
| Undervoltage Correction | Input voltages between 90 and 105 are boosted by 14% |
| Rack Height | 1 U |
| Internal UPS Replacement Battery Cartridge | RBC62-1U |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Battery Recharge Rate (Included Batteries) | Less than 16 hours from 10% to 90% (typical, full load discharge) |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| High Availability UPS Features | Hot swappable batteries |
| High Voltage Transfer to Battery Power (Setpoint) | 140 |
| Recommended Electrical Service | 15A 120V |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Audible Noise | 45 dBA maximum, front side 1m |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico) |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower |
| Low Voltage Transfer to Battery Power (Setpoint) | 90 |
| Rated input current (Maximum Load) | 12 A |
| AC Mode Efficiency Rating (100% Load) | 0.96 |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| Primary Form Factor | Rackmount |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 90 |
| Full Load Runtime (min.) | 3 min 12 sec |
| Communications Cable | USB and DB9 cabling included |
| Output Watt Capacity (Watts) | 300 |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD |
| Minimum Required Rack Depth (inches) | 14.26 |
| Expandable Runtime | No |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Network UPS Tools Compatibility | NUT compatible. See full list of compatible Tripp Lite products at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
| Battery Access | Battery access door |
| UPS Input Cord Length (ft.) | 10 |
| Relative Humidity | 0 to 95%, non-condensing |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Output Voltage Regulation (Line Mode) | -15%, +13% |
| Load Management Receptacles | One switchable single-outlet 5-15R load bank |
| AC Suppression Response Time | Instantaneous |
| Primary UPS Depth (mm) | 286 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| UPS Power Module Dimensions (hwd, in.) | 1.73 x 17.32 x 11.26 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Primary UPS Height (mm) | 44 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Serial Port | Yes |
| Emergency Power OFF | Yes |
| Surge Energy Rating | 480 J |
| USB | Yes |
| Maximum Operating Temperature | 122°F |
| Network Management | SNMP Manageable |
| Status Indicators | 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED. |
| Hot Swappable | Yes |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Typical Battery Recharge Time | 4 hr |
| Form Factor | Tower, Rack |
| Software Included | PowerAlert Software |
| Load Capacity | 500 VA/300 W |

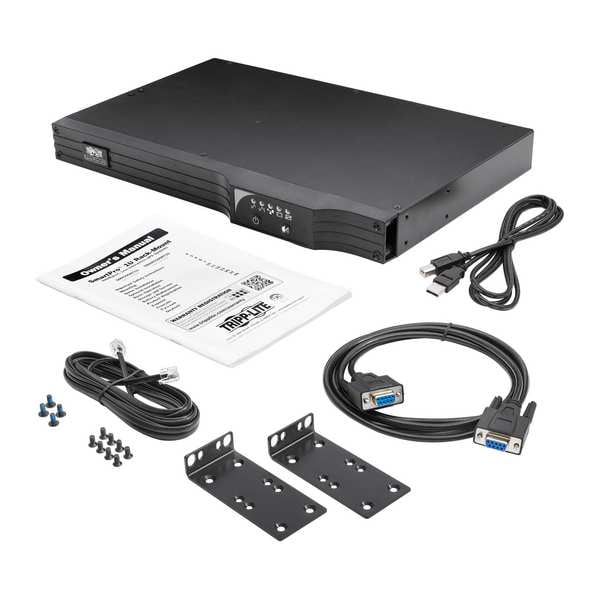

| Package Contents | SMART500RT1U UPS System, Mounting hardware, Cabling for USB & DB9 monitoring and EPO switching, PowerAlert unattended shutdown and UPS/Power monitoring software, Warranty information and instruction manual |
| Alarm | Low Battery, Overload, UPS Fault, On Battery |
| Total Number of Expansion Slots | 4 |
| UPS Applications | High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| Operating Elevation (ft.) | 6561 ft. (2000 m) above sea level |
| Frequency Compatibility Details | Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. |
| Output Capacity Details | 4.2A @ 120V. (LINE MODE) 120% @ 5 minutes; (BATTERY MODE) 120% @ 5 seconds |
| Output Capacity (Watts) | 300 |
| Package Includes | SMART500RT1U 500VA 300W 120V Line-Interactive UPS;USB cable;DB9 cable;EPO cable;Rack-mounting hardware;Owner's manual |
| AC Economy Mode Efficiency Rating (100% Load) | 0.97 |
| Product Compliance | ENERGY STAR Qualified |
| Power Factor | 0.6 |
| Grounding Details | Back panel grounding lug |
| Output Capacity (VA) | 500 |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Operating Temperature - Maximum | 104 deg F |
| Power Cord Length | 10 ft |
| Input Current - Maximum | 10 A |
| Battery Recharge Time | 12 hr |
| Output Ports Included | DB9 Serial, EPO, SNMP, USB |
| Operating Temperature - Minimum | 32 deg F |
| Manufacturer Warranty | 2 yr, 3 yr (Registration) |
| Data Line Protection | Includes Data Line Surge Protection |
| Surge Suppression Rating | 567 J |
| Power Rating - Real | 300 W |
| Includes Battery | Battery Included |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Audible Alarm Conditions | Low Battery, Power Outage |
| External Battery Compatible | Not External Battery Pack Compatible |
| Package Quantity | 1 |
