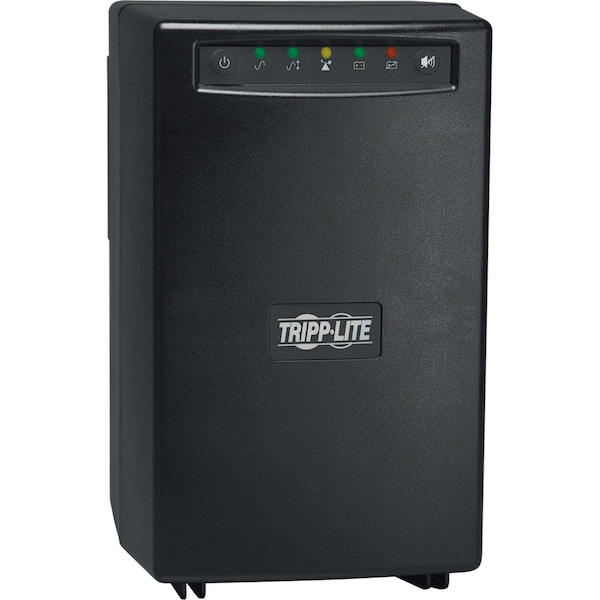

Smart UPS, 750VA, Line Interactive, Out: 110/115/120V AC In: 120V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 750 VA |
| Mounting | Tower |
| Wattage | 500 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 31.3 min/13.5 min |

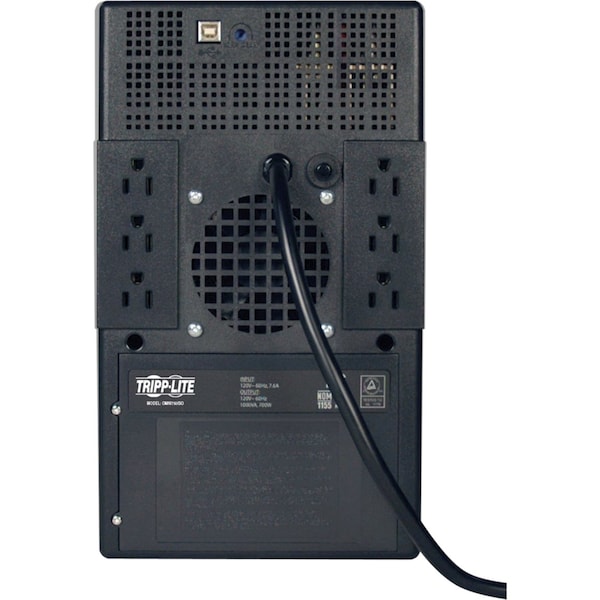

| Outlet Type | (6) 5-15R |
| Number of Outlets | 6 |
| NEMA Receptacle Configuration | 5-15R |
| Height | 12.8 in |
| Depth | 9.3 in |
| Width | 9.3 in |
| NEMA Plug Configuration | 5-15P |
| Transfer Time | 2-4 milliseconds |
| Hz | 60 Hz |
| Battery Type | VRLA |
| Housing Material | PVC |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Primary UPS Height (mm) | 325 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Overvoltage Correction | Input voltages between 128 and 143V are reduced by 9% |
| Communications Cable | USB cable included |
| Individually Controllable Load Banks | No |
| High Availability UPS Features | Hot swappable batteries |
| Cooling Method | Fan |
| Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% |
| Output Volt Amp Capacity (VA) | 750 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Surge Voltage Withstand Capability | ANSI/IEEE C62.41 Categories A & B 6KV/200/500 amp 100Khz Ringwave and category B BiWave |
| Installation Form Factors Supported with Included Accessories | Tower |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143 |
| High Voltage Transfer to Battery Power (Setpoint) | 143 |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
| Surge Voltage Attenuation | N-G 2000:1, L-G 240:1, L-N 100:1 |
| Full Load Runtime (min.) | 13 min 30 sec |
| Output Isolation Transformer | Professional grade load isolation transformer |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
| Rated input current (Maximum Load) | 5.5A |
| Recommended Electrical Service | 15A 120V |
| Expandable Runtime | No |
| Internal UPS Replacement Battery Cartridge | RBC53 |
| UPS AC Suppression Response Time | Instantaneous |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| UPS AC Suppression Joule Rating | 510 |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| EMI / RFI AC Noise Suppression | Yes |
| Hot-Swap PDU options | PDUB15 (2U / 8 5-15R outlets) |
| Severe Undervoltage Correction | Input voltages between 81 and 96V are boosted by 21% |
| Battery Access | Battery access door |
| DC System Voltage (VDC) | 36 |
| Output Voltage Regulation (Line Mode) | -18% +8% |
| Output Watt Capacity (Watts) | 500 |
| AC Mode Efficiency Rating (100% Load) | 0.91 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Primary UPS Depth (mm) | 234 |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Half Load Runtime (min.) | 31 min 18 sec |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| Installation Form Factors Supported with Optional Accessories | Wallmount (UPSWM - tower mounting kit) |
| UPS Power Module Dimensions (hwd, in.) | 12.8 x 7.5 x 9.2 |
| Insertion Loss | 65 db N-G from 10Khz to 100Khz, 45 to 60 db L-G from 10Khz to 100Khz, 18 to 54 db L-N from 50Khz to 500 Khz |
| PowerAlert Software | For local monitoring via the UPS™s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI) |
| Input Phase | Single-Phase |
| Low Voltage Transfer to Battery Power (Setpoint) | 81 |
| UPS Input Cord Length (ft.) | 6 |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Undervoltage Correction | Input voltages between 97 and 107V are boosted by 10% |
| Primary Form Factor | Tower |
| Communications Interface | USB |
| USB | Yes |
| Load Capacity | 750 VA |
| Package Contents | OmniSmart 750 VA UPS, OMNI750ISO UPS system, USB cable, User manual with warranty information |
| Package Includes | OMNI750ISO UPS system;USB cable;Instruction manual |
| Unit Dimensions (hwd / in.) | 12.75 x 7.5 x 9.25 |
| Output Capacity (Watts) | 500 |
| UPS Applications | High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| Output Capacity (VA) | 750 |
| Product Certifications | CSA (Canada); UL 1778 |
| Product Compliance | FCC Part 15 Class B (USA) |
| Package Quantity | 1 |
