Smart UPS, 750VA, Line Interactive, Out: 110/115/120V In: 120V AC
| VA Rating - UPS Systems | 750 VA |
|---|---|
| Item | Smart UPS |
| UPS Type | Line Interactive |
| Power Rating | 750 VA |
| Mounting | Rack |
| Wattage | 600 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 13.2 min/4.9 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 6 |
| Cord Length | 10 ft |
| Height | 2 in |
| NEMA Receptacle Configuration | 5-15R |
| Width | 17 in |
| Transfer Time | 2 to 4 msec |
| Special Features | Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output |
| Input Current | 7 A |
| Display Type | LED |
| Fax/Modem Line Protection | No |
| Depth | 17 in |
| Includes | Cables for USB and DB9 Monitoring and EPO Switching, Mounting Hardware, PowerAlert Unattended Shutdown and UPS/Power Monitoring Software |
| Automatic Volts Regulation | Yes |
| NEMA Plug Configuration | 5-15P |
| Hz | 60 Hz |
| Ports | DB9 Serial, EPO, SNMP/Web Slot, USB |
| Standards | CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778 |
| Phase | Single |
| Footnotes | 3,4,10,12 |
| Voltage | 120 |
| Overall Width | 17-1/2 in |
| Input Connection | 10 ft Cord with NEMA 5-15P Plug |
| Battery Type | VRLA |
| Housing Material | Steel |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Included Mounting Accessory Description | Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM |

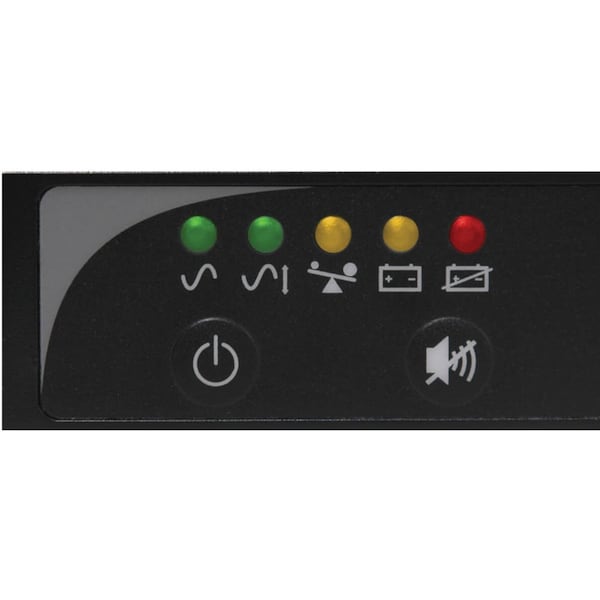

| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| Output Voltage Regulation (Line Mode) | -21%, +8% |
| Primary UPS Height (mm) | 44 |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| Grounding Lug | Back panel grounding lug |
| Output Watt Capacity (Watts) | 600 |
| Primary Form Factor | Rackmount |
| Input Cord Length (ft.) | 10 |
| Internal UPS Replacement Battery Cartridge | RBC64-1U |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 4 post 19 inch rackmount |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Input Phase | Single-Phase |
| Primary UPS Depth (mm) | 425 |
| UPS Power Module Dimensions (hwd, in.) | 1.75 x 17.5 x 16.75 |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| EMI / RFI AC Noise Suppression | Yes |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| UPS AC Suppression Response Time | Instantaneous |
| Rack Height | 1 U |
| Rated input current (Maximum Load) | 7 A |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Communications Cable | USB and DB9 cabling included |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| High Availability UPS Features | Hot swappable batteries |
| AC Mode BTU / Hr. (Full Load) | 38 |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Communications Interface | USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| UPS AC Suppression Joule Rating | 450 |
| Recommended Electrical Service | 15A 120V |
| AC Mode Efficiency Rating (100% Load) | 0.98 |
| Battery Recharge Rate (Included Batteries) | Less than 4 hours from 10% to 90% (typical, full load discharge) |
| Battery Mode BTU / Hr. (Full Load) | 545 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Input Circuit Breakers | 15A |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Relative Humidity | 0 to 95%, non-condensing |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| DC System Voltage (VDC) | 24 |
| Output Volt Amp Capacity (VA) | 750 |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Power Factor | 0.8 |
| Audible Noise | 45 dBA maximum, front side 1m |
| Undervoltage Correction | Input voltages between 83 and 107 are boosted by 14% |
| Expandable Runtime | No |
| Full Load Runtime (min.) | 4 min 54 sec |
| Half Load Runtime (min.) | 13 min 12 sec |
| Individually Controllable Load Banks | Yes |
| Low Voltage Transfer to Battery Power (Setpoint) | 83 |
| Installation Form Factors Supported with Optional Accessories | 4 post rackmount full-depth ( 4POSTRAILKIT1U ); 4 post rackmount short-depth ( 4POSTRAILKITWM ) |
| Load Management Receptacles | Two switchable single-outlet 5-15R load banks |
| Battery Access | Front panel battery access door |
| Minimum Required Rack Depth (inches) | 19.75 |
| Cooling Method | Fan |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD |
| Hot Swappable | Yes |
| TAA Compliant | Yes |
| Status Indicators | 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED. |
| Total Number of Expansion Slots | 1 |
| USB | Yes |
| Load Capacity | 750 VA/600 W |
| Package Contents | SMART750RM1U UPS System, Mounting hardware, Cabling for USB & DB9 monitoring and EPO switching, PowerAlert unattended shutdown and UPS/Power monitoring software, Warranty information and instruction manual |
| Typical Battery Recharge Time | 4 hr |
| Network Management | SNMP Manageable |
| Alarm | Overload, On Battery, Low Battery |
| Maximum Operating Temperature | 104°F |
| Battery Life | 6 yr |
| Emergency Power OFF | Yes |
| Waveform Type | Sine Wave |
| Battery Recharge Time | 4 hr |
| Manufacturer Warranty | 2 yr, 3 yr (Registration) |
| Power Cord Length | 10 ft |
| External Battery Compatible | Not External Battery Pack Compatible |
| Operating Temperature - Minimum | 32 deg F |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Operating Temperature - Maximum | 104 deg F |
| Includes Battery | Battery Included |
| Power Rating - Real | 450 W |
| Output Ports Included | DB9 Serial, EPO, SNMP, USB |
| Surge Suppression Rating | 450 J |
| Input Current - Maximum | 7 A |
| Audible Alarm Conditions | Low Battery, Overload, Power Outage |
| Data Line Protection | Includes Data Line Surge Protection |
| Package Quantity | 1 |
