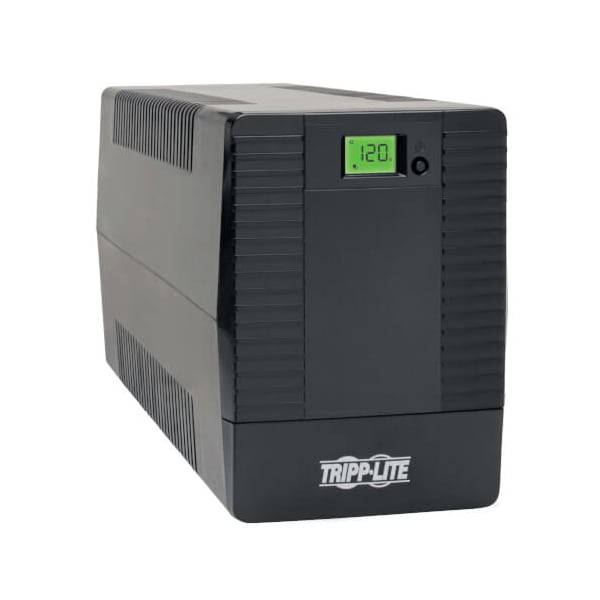

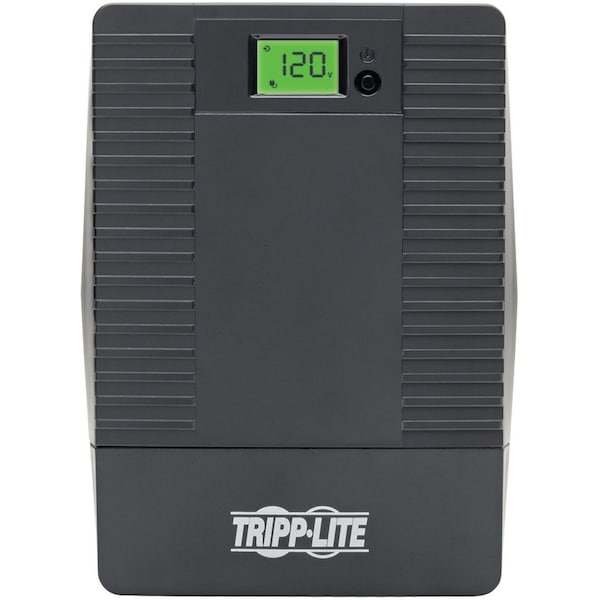

Smart UPS, 750VA, Line Interactive, Out: 110/115/120V In: 120V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 750 VA |
| Mounting | Tower |
| Wattage | 600 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 13 min/4 min |
| Outlet Type | (2) Surge; (6) UPS/Surge |
| Number of Outlets | 8 |
| NEMA Plug Configuration | 5-15P |
| Housing Material | ABS |
| Width | 15 in |
| Transfer Time | 6 milliseconds typical (10 milliseconds max) |
| NEMA Receptacle Configuration | 5-15R |
| Hz | 50/60 Hz |
| Primary UPS Depth (mm) | 381 |
| Undervoltage Correction | Input voltages between 89 and 108 are boosted by 18% |
| Output Voltage Regulation (Battery Mode) | 120V (±10%) |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Output Volt Amp Capacity (VA) | 750 |
| Communications Interface | USB (HID enabled) |
| Output Voltage Regulation (Line Mode) | 120V |
| UPS Certifications | Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Audible Alarm | UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions |
| DC System Voltage (VDC) | 12 |
| AC Mode Efficiency Rating (100% Load) | >95% |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Overvoltage Correction | Input voltages between 128 and 149 are reduced by 15% |
| Recommended Electrical Service | 15A 120V |
| Full Load Runtime (min.) | 4 min |
| Input Phase | Single-Phase |
| UPS Input Cord Length (ft.) | 5 |
| Output Watt Capacity (Watts) | 600 |
| Battery Replacement Description | Replaceable internal batteries (see manual) |
| Relative Humidity | 0 to 90%, non-condensing |
| Communications Cable | USB interface cable included |
| UPS Power Module Dimensions (hwd, in.) | 7.5 x 5.5 x 15 |
| PowerAlert Software | For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| UPS AC Suppression Joule Rating | 316 |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145 |
| Rated input current (Maximum Load) | 10A |
| Primary Form Factor | Desktop |
| Expandable Runtime | No |
| Battery Access | Battery access door |
| Power Factor | 0.8 |
| Primary UPS Height (mm) | 191 |
| UPS Input Connection Description | 10A |
| Low Voltage Transfer to Battery Power (Setpoint) | 89 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Battery Recharge Rate (Included Batteries) | 8 hours (10% to 90%) |
| Half Load Runtime (min.) | 13 min |
| Front Panel LCD Display | Touchscreen LCD reports input voltage, output voltage, load percentage, battery charge percentage and overload status |
| Nominal Input Voltage(s) Supported | 120 V AC |
| UPS AC Suppression Response Time | Instantaneous |
| UPS Certification Details | UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; RETIE (Colombia) |
| Individually Controllable Load Banks | No |
| EMI / RFI AC Noise Suppression | Yes |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Storage Temperature Range | to +45 degrees Celsius |
| High Voltage Transfer to Battery Power (Setpoint) | 145 |
| Installation Form Factors Supported with Included Accessories | Tower |
| AC Mode BTU / Hr. (Full Load) | 145 |
| Hot-Swap PDU options | PDUB15 (2U / 8 5-15R outlets) |
| Switches | Power off/on switch |
| High Availability UPS Features | Battery Independent Restart |
| Package Quantity | 1 |
