Surge, 12 Outlet, 8ft cord, 2160J, Modem
| Item | Surge Protector |
|---|---|
| Number of Outlets | 12 |
| Cord Length | 2.44 m |
| Color | Black |
| Gauge/Conductor | 14 ga. |
| Standards | IEEE 587, UL1363, UL1449, UL497A |
| NEC Cord Designation | 14 ga., SJT |
| Noise Attenuation | Up to 40 dB |
| Hz | 50/60 Hz |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Height | 1-1/2 in |
| Coax Surge Protection | No |
| Housing Material | Plastic |
| Telephone/Fax Surge Protection | Yes |
| Voltage | 120VAC |
| Circuit Breaker | Yes |
| Width | 2.7 in |
| Number of Transformer Outlets | 8 |
| Power Indicator | Yes |
| NEMA Plug Configuration | NEMA 5-15P |
| Max. Amps | 15 |
| Outlet Surge Protection | Yes |
| Communication Port | FCC Part 68 |
| Number of Outlet Rows | 2 |
| Rated Joules | 2160 J |
| Mounting Style | Keyhole |
| Outlet Center Distance | 25.4 mm, 57 mm |
| Depth | 10.3 in |
| Frequency | 50/60 Hz |
| Features | Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots |
| Outlet Configuration | Two Rows of Outlets, Including 4 Widely Spaced For Transformers, Right-Angle Plug |
| Watts | 1800W |
| Power Cord/Cable Length | 8 ft |
| Input Voltage | 120 V AC |
| Receptacles | 12 x NEMA 5-15R |
| Product Line | Protect It! |
| Dataline Protection | Phone/Fax/Modem/DSL |
| Compatibility | TV, VCR, DVD Player, Computer |
| Plug/Connector Type | NEMA 5-15P |
| Product Color | Black |
| Maximum Line Current | 15 A |
| Surge Energy Rating | 2160 J |
| Assembly Required | No |
| Power Handling | 1,875 VA |
| Package Contents | Protect It! TLP1208TEL 12-Outlets Surge Suppressor, 6-ft. RJ11 Telephone Cord, Instruction Manual with Warranty Information |
| Additional Information | AC suppression response time: 1 ns, Format: Corded multi-outlet strip with 4 transformer-spaced outlet, Suppression AC: 150V RMS Clamping/2160 joules/330V L-G, 400V L-N, 400V N-G UL1449 3rd Edition |
| Product Name | TLP1208TEL 12-outlet Surge Suppresor |
| Telephone/DSL Protection Details | 1 line |
| Input Cord Gauge (AWG) | 14 |
| Output Capacity (Watts) | 1,875 |
| Network (Ethernet) Protection | No |
| Product Compliance | FCC Part 68 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Unit Dimensions (hwd / in.) | 1.54 x 2.72 x 10.3 |
| Input Cord Details | SJT |

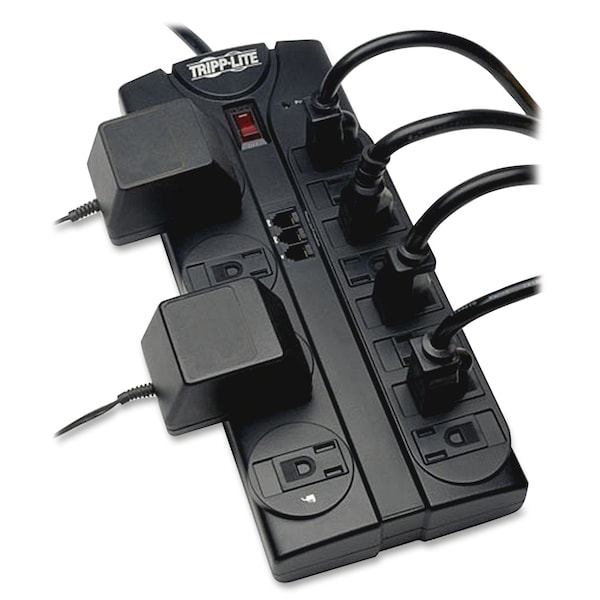

| Outlet Orientation | Two rows of outlets, including 4 widely spaced for transformers |
| Input Cord Length (ft.) | 8 |
| Slot or Hole Mount Measurement (Center to Center) | Distance between horizontal tabs = 152 mm; Distance between vertical tabs = 73.5 mm |
| Automatic Shut-Off | Yes |
| Mounting Holes or Slots | Yes |
| Telephone/DSL Protection | Yes |
| Input Plug Type | NEMA 5-15P |
| Recommended Electrical Service | 120V (110-125V) |
| AC Suppression Response Time | < 1 ns |
| Maximum Surge Amps | 144,000 |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Outlets Measurement (Center to Center) | Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm |
| Output Capacity (VA) | 15 |
| Housing Color | Black |
| Right-Angle Plug | Yes |
| EMI / RFI Filtering | Up to 40 dB |

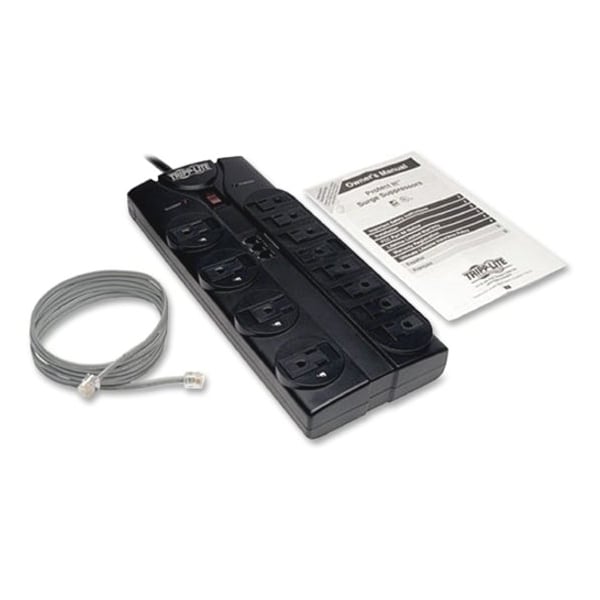

| Package Includes | TLP1208TEL surge suppressor;6-ft. (1.83 m) RJ11 telephone cord;Instruction manual with warranty information |
| Output Receptacles | 5-15R |
| Frequency Compatibility | 50 / 60 Hz |
| Input Cord Gauge Type | SJT, 14 gauge |
| AC Suppression Joule Rating | 2,160 |
| Diagnostic LED(s) | Yes |
| Transformer Accommodation | Yes |
| Receptacle Color | Black |
| Diagnostic LED Details | Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status |
| Material of Construction | Plastic |
| Voltage Compatibility (VAC) | 120 |
| Product Certifications | CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed |
| Input Cord Color | Black |
| Power Cord Color | Black |

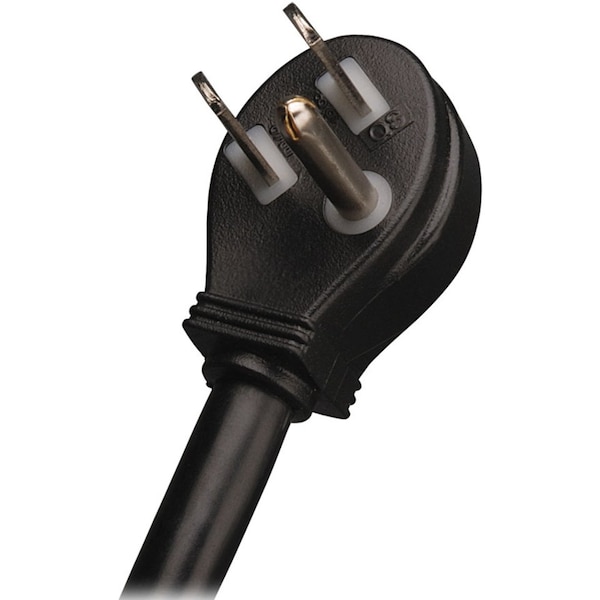

| Input Plug Features | Right Angle (36D) |
| Switches | Two-position on/off power switch |
| Overload Protection | 15A resettable circuit breaker |
| Package Quantity | 1 |
