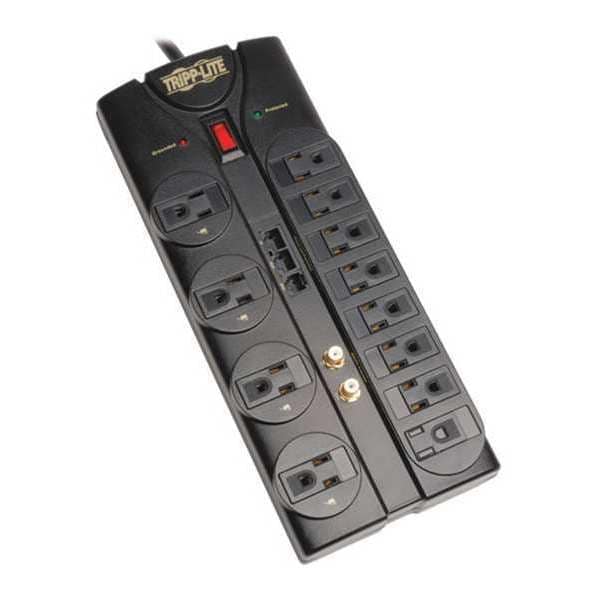

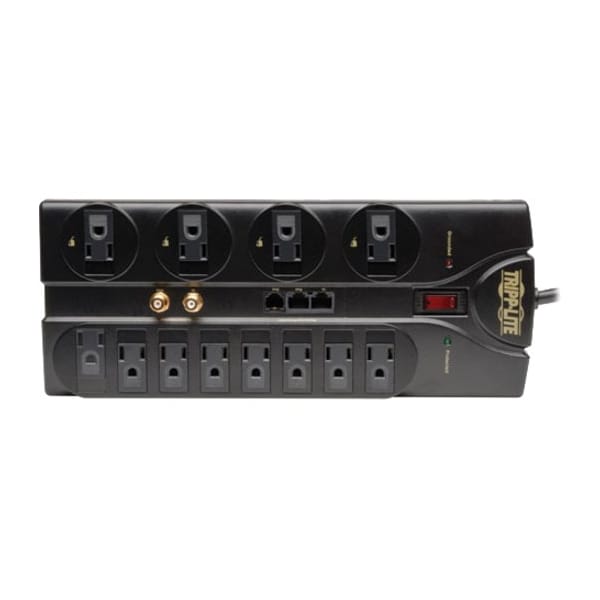

Surge, 12 Outlet, 8ft cord, 2880J, Modem
| Item | Surge Protector |
|---|---|
| Number of Outlets | 12 |
| Receptacle Configuration | NEMA 5-15R |
| Plug Configuration | NEMA 5-15P |
| Cord Length | 8 ft |
| Color | Black |
| Gauge/Conductor | 14 ga. |
| Standards | FFC Part 68, UL 1449 |
| Power Indicator | Yes |
| Circuit Breaker | 1 |
| Depth | 10.3 in |
| Hz | 50/60 Hz |
| Outlet Center Distance | 2-1/4 in |
| Special Features | Audible Alarm, Diagnostic LED |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Telephone/Fax Surge Protection | Yes |
| Number of Outlet Rows | 2 |
| Housing Material | Plastic |
| Mounting Style | Keyhole |
| Length | 10-1/4 in |
| Max. Amps | 15 |
| Outlet Surge Protection | Yes |
| Rated Joules | 2,880 |
| Coax Surge Protection | Yes |
| NEC Cord Designation | 14 ga., SJT |
| For Use With | Theater Systems |
| Medical Facility Use | Not Allowed |
| Includes | (1) 6 ft Coax Cable, (1) 6 ft Network Cable, (1) 6 ft Telephone Cord |
| Height | 1-1/4 in |
| Number of Transformer Outlets | 4 |
| Width | 2-3/4 in |
| NEMA Plug Configuration | NEMA 5-15P |
| Max. Surge Current | 216 kA |
| Voltage | 120VAC |
| Noise Attenuation | 40dB |
| Communication Port | Coaxial, RJ45 Network |

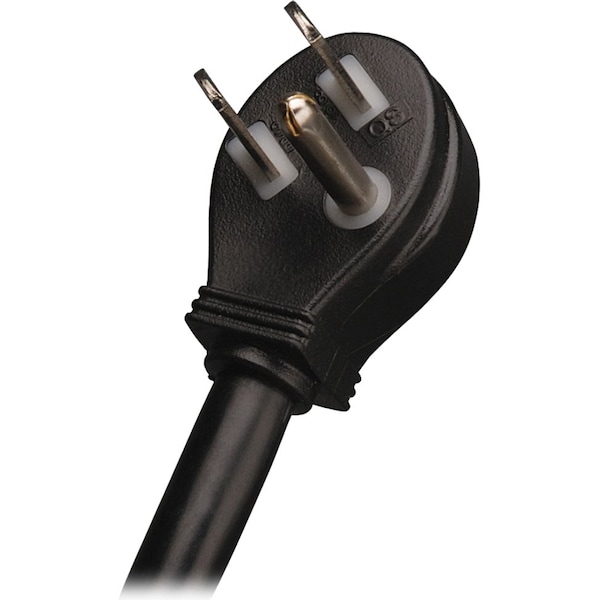

| Plug Style | Right Angle |
| Surge Protection Indicator | Yes |
| Application | Home and Office |
| USB Charging Port | 0 |
| Total Number of Outlets | 12 |
| Trade Designation | SJT |
| Number of Conductors | 3 |
| Wire Size | 14 AWG |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 10-1/4 in |
| Features | Audible Alarm, Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots |

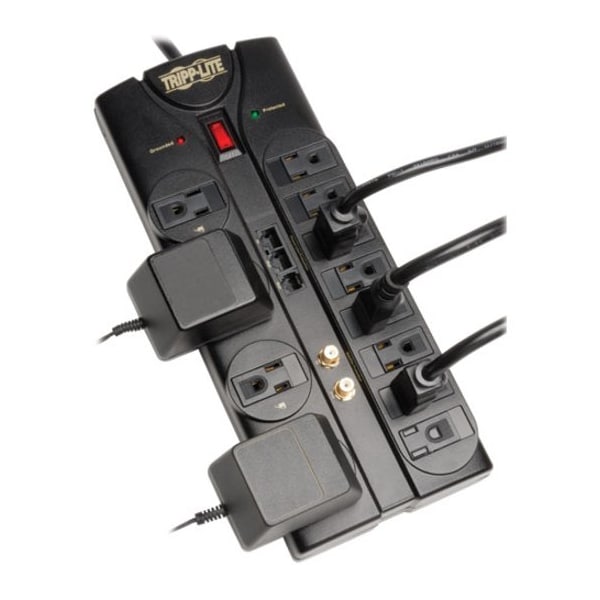

| Outlet Configuration | Single Row of 8, Plus A Second Row of 4 For Transformer Accommodation, Right-Angle Plug |
| Watts | 1800W |
| Maximum Surge Current | 216 kA |
| Certifications & Standards | UL Listed Certification |
| Dataline Protection | Telecommunication, Cable Modem/DSL/Fax/Phone, Ethernet, Coaxial Cable Line |
| Maximum Line Current | 15 A |
| Plug/Connector Type | NEMA 5-15P |
| Product Name | Protect It! Surge Suppressor |
| Power Handling | 1,800 VA |
| Protection Type | Surge, Noise |
| Surge Energy Rating | 2880 J |
| Power Cord/Cable Length | 8 ft |
| Receptacles | 12 x NEMA 5-15R |
| Assembly Required | No |
| Additional Information | Built-in gold, Type F coax jacks prevent surges from damaging your cable/satellite equipment; digital broadband quality accommodates 2.2GHz, Can accommodate up to 4 transformers without blocking remaining outlets, Diagnostic LEDs indicate protection present & ground present, Audible alarm notifies user when the unit is damaged and needs to be replaced, Keyhole supports for wall mounting, Lighted power switch |

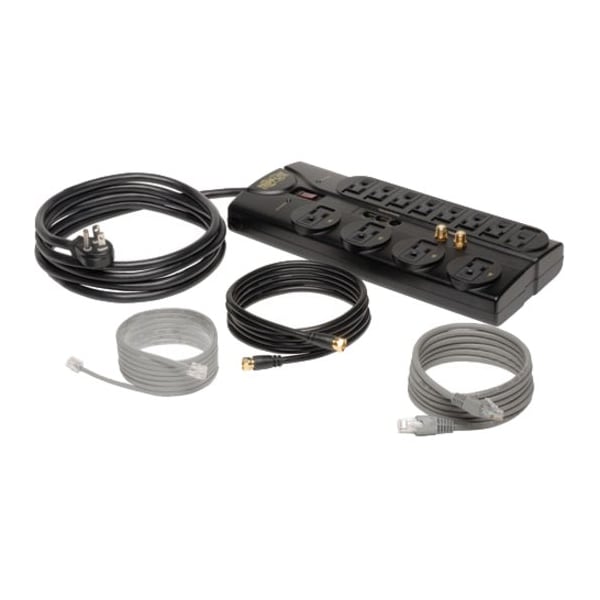

| Package Contents | Protect It! TLP1208SAT 12 Outlets Surge Suppressor, 6-ft. Telephone Cord, 6-ft. Network Cable, 6-ft. Coax Cable, Instruction Manual with Warranty Information |
| Input Voltage | 120 V AC |
| Product Line | Protect It! |
| Outlet Safety Covers Detail | Includes built-in sliding outlet safety covers |
| EMI / RFI Filtering | Up to 40 dB |
| Diagnostic LED Details | Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status |
| Telephone/DSL Protection | Yes |
| Cable (Coax) Protection | Yes |
| Circuit Breaker (amps) | 15 |
| Right-Angle Plug | Yes |
| Input Cord Details | SJT |
| Outlets Measurement (Center to Center) | Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm |
| Input Cord Length (ft.) | 8 |
| AC Suppression Joule Rating | 2,880 |
| Automatic Shut-Off | Yes |
| Package Includes | TLP1208SAT;6-ft. (1.83 m) telephone cord;6-ft. (1.83 m) network cable;6-ft. (1.83 m) coax cable;Instruction manual with warranty information |
| Housing Color | Black |
| Material of Construction | Plastic |
| Power Cord Color | Black |
| Outlet Orientation | Single row of 8, plus a second row of 4 for transformer accommodation |
| Frequency Compatibility | 50 / 60 Hz |
| Slot or Hole Mount Measurement (Center to Center) | Distance between horizontal tabs = 152 mm; Distance between vertical tabs = 41.6 mm |
| Mounting Holes or Slots | Yes |
| Switches | Combination AC circuit breaker and 2-position red illuminated on/off power switch |
| Unit Dimensions (hwd / in.) | 1.51 x 4.86 x 12.04 |
| Product Compliance | FCC Part 68 |
| Network Compatibility | 100 Mbps (Fast Ethernet) |
| Cable (Coax) Protection Details | 1 line |
| Network (Ethernet) Protection | Yes |
| Input Cord Gauge (AWG) | 14 |
| Output Receptacles | 5-15R |
| Receptacle Color | Black |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Diagnostic LED(s) | Yes |
| Input Plug Type | NEMA 5-15P |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Transformer Accommodation | Yes |
| Audible Alarm | Audible alarm sounds to indicate damage to suppression components |
| Input Plug Features | Right Angle (36D) |
| Recommended Electrical Service | 120V (110-125V) |
| Input Cord Gauge Type | SJT, 14 gauge |
| Maximum Surge Amps | 216,000 |
| AC Suppression Response Time | < 1 ns |
| Product Certifications | CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed |
| Voltage Compatibility (VAC) | 120 |
| Telephone/DSL Protection Details | 1 line |
| Input Cord Color | Black |
| Package Quantity | 1 |
