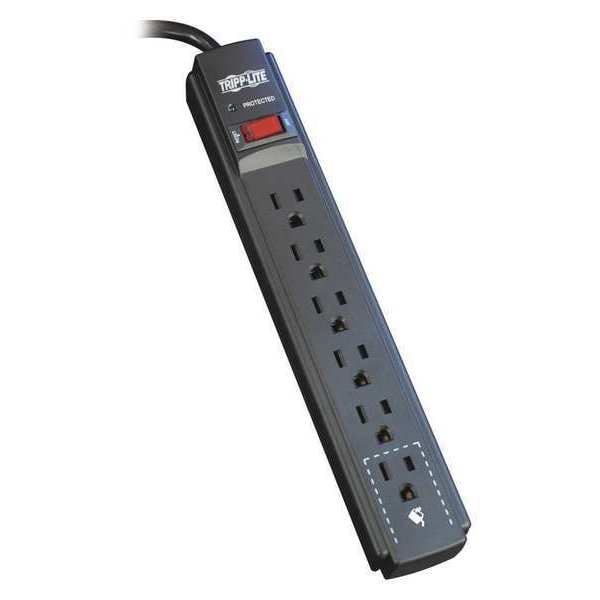

Surge, 6 Outlet, 15ft cord, 790J, Black
| Item | Surge Protector |
|---|---|
| Number of Outlets | 6 |
| Cord Length | 4.57 m |
| Color | Black |
| Standards | IEEE 587, UL1363, UL1449 |
| Outlet Surge Protection | Yes |
| Hz | 60 Hz |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Outlet Center Distance | 28.5 mm |
| Max. Amps | 15 |
| Mounting Style | Keyhole |
| Power Indicator | Yes |
| Number of Transformer Outlets | 2 |
| Rated Joules | 790 J |
| Circuit Breaker | Yes |
| Voltage | 120VAC |
| Housing Material | Plastic |
| Number of Outlet Rows | 1 |
| Noise Attenuation | Up to 20 dB |
| Height | 10.8 in |
| NEMA Plug Configuration | NEMA 5-15P |
| Coax Surge Protection | No |
| Width | 1.9 in |
| NEC Cord Designation | 14 ga., SJT |
| Telephone/Fax Surge Protection | No |
| Depth | 1.2 in |
| Frequency | 60 Hz |
| Features | Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots |
| Watts | 1800W |
| Outlet Configuration | Single Row of 6 Outlets |

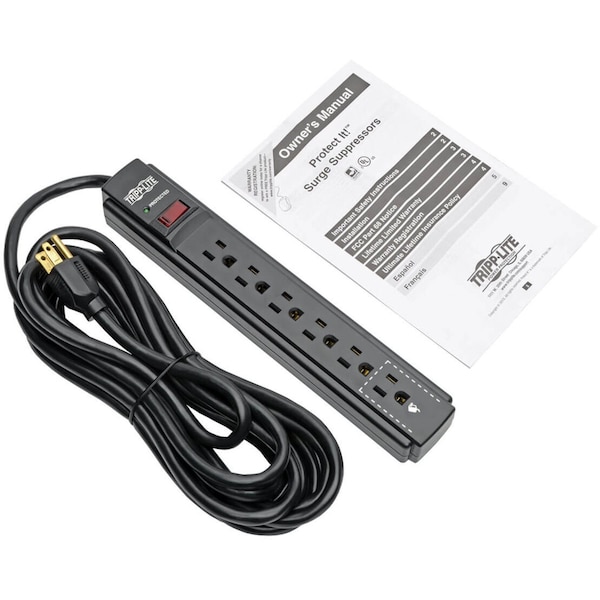

| Package Contents | Protect It! 6-Outlet Surge Protector, 15 ft. Cord, 790 Joules, Black Housing, Owner's Manual |
| Receptacles | 6 x NEMA 5-15R |
| Product Line | Protect It! |
| Product Name | Protect It! 6-Outlet Surge Protector, 15 ft. Cord, 790 Joules, Black Housing |
| Input Voltage | 120 V AC |
| Power Cord/Cable Length | 15 ft |
| Surge Energy Rating | 790 J |
| Power Handling | 1,875 VA |
| Product Color | Black |
| Right-Angle Plug | No |
| Package Includes | TLP615B Protect It! 6-Outlet Surge Protector, Black Housing;Owner's manual |
| Maximum Surge Amps | 35,500 |
| Input Cord Gauge Type | SJT, 14 gauge |
| Diagnostic LED(s) | Yes |
| Input Cord Length (ft.) | 15 |
| Overload Protection | 15A resettable illuminated combo switch / circuit breaker |
| AC Suppression Joule Rating | 790 |
| Unit Dimensions (hwd / in.) | 10.8 x 1.85 x 1.23 |
| Product Certifications | CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; UL 1449; UL 1363; UL Listed |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Input Plug Type | NEMA 5-15P |
| Input Cord Gauge (AWG) | 14 |
| Diagnostic LED Details | Built-in LED confirms suppressor "protection present" (green) status |
| Outlets Measurement (Center to Center) | 28.5 mm |
| Voltage Compatibility (VAC) | 120 |
| EMI / RFI Filtering | Up to 20 dB |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Receptacle Color | Black |
| Slot or Hole Mount Measurement (Center to Center) | Distance between slots = 101 mm; Distance between slot height = 28 mm |
| Power Cord Color | Black |
| Recommended Electrical Service | 120V (110-125V) |
| Circuit Breaker (amps) | 15 |

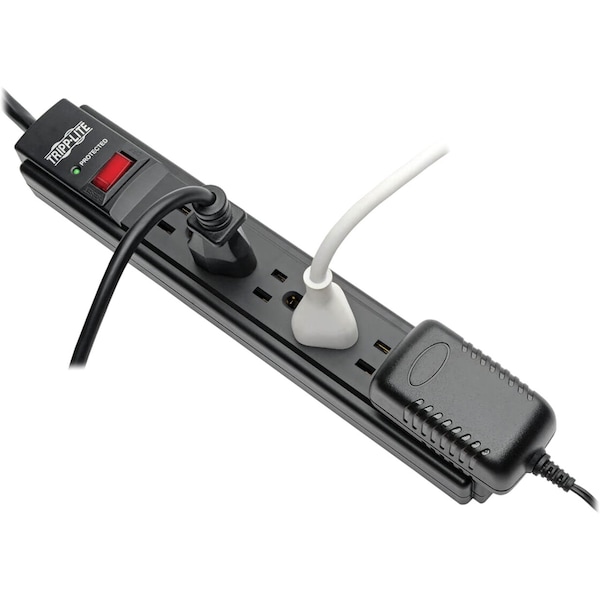

| Transformer Accommodation | Yes |
| Switches | Combination AC circuit breaker and 2 position red illuminated on/off power switch |
| Housing Color | Black |
| Material of Construction | Plastic |
| AC Suppression Response Time | < 1 ns |
| Mounting Holes or Slots | Yes |
| Automatic Shut-Off | Yes |
| Frequency Compatibility | 60 Hz |
| Outlet Orientation | Single row of 6 outlets |
| Output Receptacles | 5-15R |
| Input Cord Details | SJT |
| Network (Ethernet) Protection | No |
| Package Quantity | 1 |
