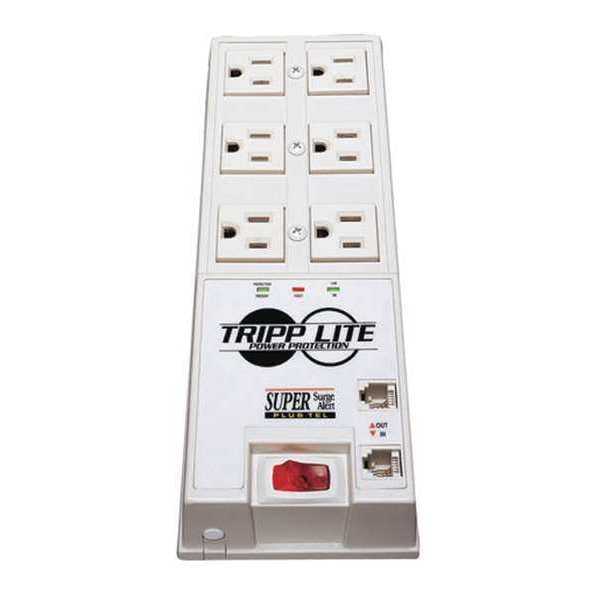

Surge, 6 Outlet, 6ft cord, 3040J, Modem
| Item | Super Surge Alert Protector |
|---|---|
| Number of Outlets | 6 |
| Cord Length | 1.83 m |
| Color | Light Gray |
| Standards | IEE 587 / ANSI C62.41, UL1449, UL497A |
| Height | 1.8 in |
| Telephone/Fax Surge Protection | Yes |
| Circuit Breaker | Yes |
| Max. Amps | 15 |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Depth | 9-1/2 in |
| Voltage | 120VAC |
| Mounting Style | Keyhole |
| Hz | 50/60 Hz |
| Housing Material | Plastic |
| Power Indicator | Yes |
| Max. Surge Current | 78.5 kA |
| Number of Transformer Outlets | 2 |
| Outlet Center Distance | 44.2 mm, 39 mm |
| Communication Port | FCC Part 68 |
| Outlet Surge Protection | Yes |
| NEMA Plug Configuration | NEMA 5-15P |
| Width | 3-1/2 in |
| Rated Joules | 3040 J |
| Coax Surge Protection | No |
| Frequency | 50/60 Hz |
| Features | Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots |

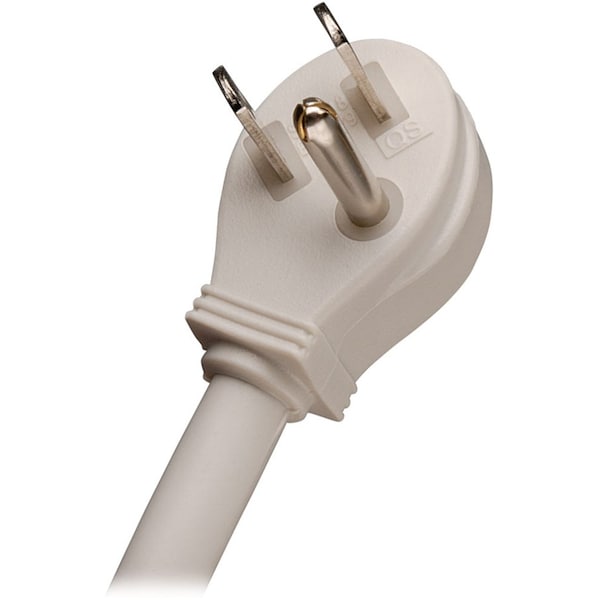

| Outlet Configuration | Right-Angle Plug |
| Watts | 1800W |
| Compatibility | Personal computers, CAD/CAM/CAE workstations, network nodes, fileservers, phone systems, point-of-sale terminals and audio/visual devices |
| Product Name | TR-6FM 6 Outlets 120V Surge Suppressor |
| Power Cord/Cable Length | 6 ft |
| Plug/Connector Type | NEMA 5-15P |
| Status Indicators | Protection Present, Line Fault, Line OK |
| Input Voltage | 120 V AC |
| Certifications & Standards | UL1449 (Let through rating 330V), IEEE 587 category A and B specifications, FCC Part 68, ANSI C62.41, cUL, UL1363, UL497A |
| Output Voltage | 120 V AC |
| Maximum Line Current | 15 A |
| Protection Type | Surge |
| Power Handling | 1,800 VA |
| Additional Information | Space-saving right-angle plug, Logical outlet spacing accommodates transformers without blocking remaining outlets, Keyhole supports for wall mounting |
| Maximum Surge Current | 78.5 kA |
| Dataline Protection | Fax/Modem/Phone |
| Surge Energy Rating | 3040 J |
| Receptacles | 6 x NEMA 5-15R |
| Package Contents | TR-6FM 6 Outlets 120V Surge Suppressor, TR-6FM Surge Suppressor, 6 ft. Telephone cord, Child Safety Covers, Color-coded cord identifiers, Warranty information with instruction manual |
| Housing Color | Light Gray |
| Output Receptacles | 5-15R |
| AC Suppression Response Time | < 1 ns |
| Input Plug Type | NEMA 5-15P |
| Product Certifications | UL 1449; UL 497A |
| Recommended Electrical Service | 120V (110-125V) |
| Switches | Two position red illuminated on/off power switch |
| Right-Angle Plug | Yes |
| Material of Construction | Plastic |
| Telephone/DSL Protection | Yes |
| AC Suppression Surge Current Rating | 78,500 A |
| Diagnostic LED(s) | Yes |
| Input Cord Length (ft.) | 6 |
| Frequency Compatibility | 50 / 60 Hz |
| Network (Ethernet) Protection | No |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Mounting Holes or Slots | Yes |
| Outlets Measurement (Center to Center) | Distance between horizontal outlets = 44.20mm; Distance between vertical outlets = 39mm |
| Unit Dimensions (hwd / in.) | 1.75 x 3.5 x 9.5 |
| Power Cord Color | Gray |
| Immunity | Conforms to IEE 587 / ANSI C62.41 |
| Input Cord Gauge (AWG) | 14 |
| Package Includes | TR-6FM Surge Suppressor;6-ft. (1.83 m) Telephone cord;Child Safety Covers;Color-coded cord identifiers;Warranty information with instruction manual |
| Receptacle Color | gray |
| Slot or Hole Mount Measurement (Center to Center) | 88.8 mm |
| Nominal Input Voltage(s) Supported | 120 V AC |
| EMI / RFI Filtering | Yes |
| Circuit Breaker (amps) | 15 |
| Input Cord Details | SJT |
| Voltage Compatibility (VAC) | 120 |
| Automatic Shut-Off | Yes |
| Diagnostic LED Details | PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green) |
| AC Suppression Joule Rating | 3,040 |
| Transformer Accommodation | Yes |
| Telephone/DSL Protection Details | 1 line |
| Product Compliance | FCC Part 68 |
| Maximum Surge Amps | 105,000 |
| Package Quantity | 1 |
