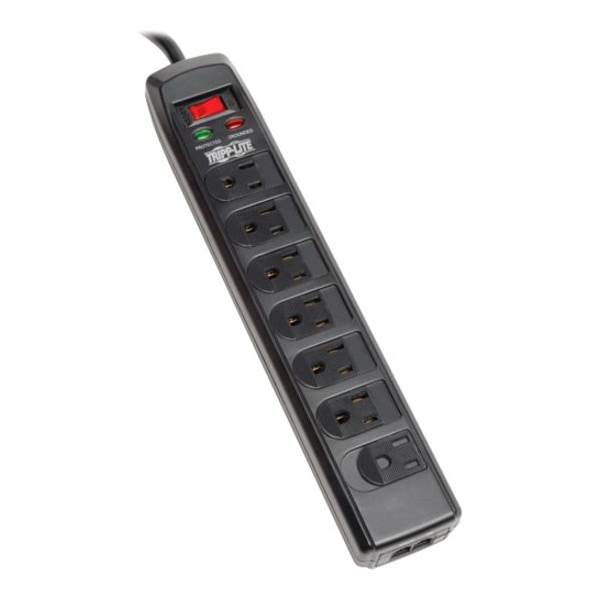

Surge, 7 Outlet, 6ft cord, 1440J, Modem
| Item | Surge Protector |
|---|---|
| Number of Outlets | 7 |
| Cord Length | 1.83 m |
| Color | Black |
| Gauge/Conductor | 14 ga. |
| Standards | IEEE 587, UL1363, UL1449, UL497A |
| Power Indicator | Yes |
| Max. Amps | 15 |
| Voltage | 120VAC |
| Telephone/Fax Surge Protection | Yes |
| NEC Cord Designation | 14 ga., SJT |
| Width | 2.2 in |
| NEMA Plug Configuration | NEMA 5-15P |
| Housing Material | Plastic |
| Communication Port | FCC Part 68 |
| Outlet Surge Protection | Yes |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Number of Transformer Outlets | 4 |
| Noise Attenuation | Up to 20 dB |
| Height | 1.4 in |
| Number of Outlet Rows | 1 |
| Hz | 50/60 Hz |
| Depth | 11.7 in |
| Mounting Style | Keyhole |
| Coax Surge Protection | No |
| Circuit Breaker | Yes |
| Rated Joules | 1440 J |
| Outlet Center Distance | 28.5 mm |
| Frequency | 50/60 Hz |
| Features | Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots |
| Outlet Configuration | Single Row of 7, Right-Angle Plug |
| Watts | 1800W |
| Power Handling | 1,800 VA |
| Product Line | Protect It! |
| Surge Energy Rating | 1440 J |
| Protection Type | Surge, Noise |
| Input Voltage | 120 V AC |
| Maximum Line Current | 15 A |
| Power Cord/Cable Length | 6 ft |
| Dataline Protection | Cable Modem/DSL/Fax/Phone |
| Receptacles | 7 x NEMA 5-15R |
| Package Contents | Protect It! TLP706TELC 7 Outlets Surge Suppressor, 6-ft. Telephone Cord, Instruction Manual with Warranty Information |
| Additional Information | 6 foot cord with space-saving right-angle plug, Built-in power switch and 15 amp circuit breaker offers power control and overload protection over all outlets, Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition, Diagnostic LEDs confirm outlet grounding and surge suppression status, Black housing with matching black covers suppressor housing with keyhole mounting tabs allow versatile placement options, UL1449 3rd Edition Rated (400V all modes), UL1363 (Power Tap), UL497A (Communications), Meets FCC part 68 rules, cUL (Canada), Exceeds IEEE 587 category A & B surge suppression specifications |
| Plug/Connector Type | NEMA 5-15P |
| Product Name | Protect It! TLP706TELC 7 Outlets Surge Suppressor |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Product Compliance | FCC Part 68 |
| EMI / RFI Filtering | Up to 20 dB |
| Outlets Measurement (Center to Center) | Between Standard Outlets = 28.5mm |
| Recommended Electrical Service | 120V (110-125V) |
| Input Cord Gauge Type | SJT, 14 gauge |
| Input Plug Features | Right Angle (90D) |
| Voltage Compatibility (VAC) | 120 |
| Input Cord Details | SJT |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Outlet Orientation | Single row of 7 |
| Switches | Two position on/off power switch |
| Input Cord Gauge (AWG) | 14 |
| Diagnostic LED Details | Built-in LED confirms suppressor "protection present" (green) status |
| Material of Construction | Plastic |
| Product Certifications | CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed |
| Slot or Hole Mount Measurement (Center to Center) | Distance between slots = 207 mm |
| Circuit Breaker (amps) | 15 |
| Input Cord Length (ft.) | 6 |
| Unit Dimensions (hwd / in.) | 1.38 x 2.16 x 11.69 |
| Frequency Compatibility | 50 / 60 Hz |
| Right-Angle Plug | Yes |
| Housing Color | Black |
| Network (Ethernet) Protection | No |
| Automatic Shut-Off | Yes |
| Receptacle Color | Black |
| AC Suppression Response Time | < 1 ns |
| Diagnostic LED(s) | Yes |
| Power Cord Color | Black |
| Mounting Holes or Slots | No |
| Telephone/DSL Protection Details | 1 line |
| Telephone/DSL Protection | Yes |
| AC Suppression Joule Rating | 1,440 |
| Input Plug Type | NEMA 5-15P |
| Input Cord Color | Black |
| Transformer Accommodation | Yes |
| Package Includes | TLP706TELC Surge Suppressor;6-ft. (1.83 m) telephone cord;Instruciton manual with warranty information |
| Output Receptacles | 5-15R |
| Package Quantity | 1 |
