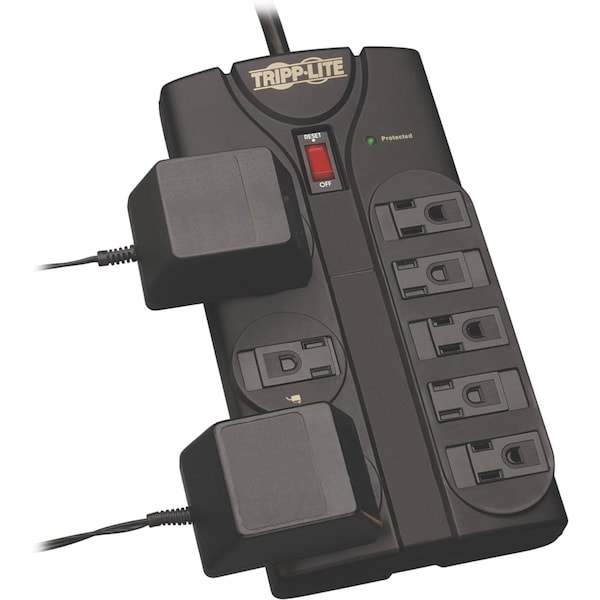

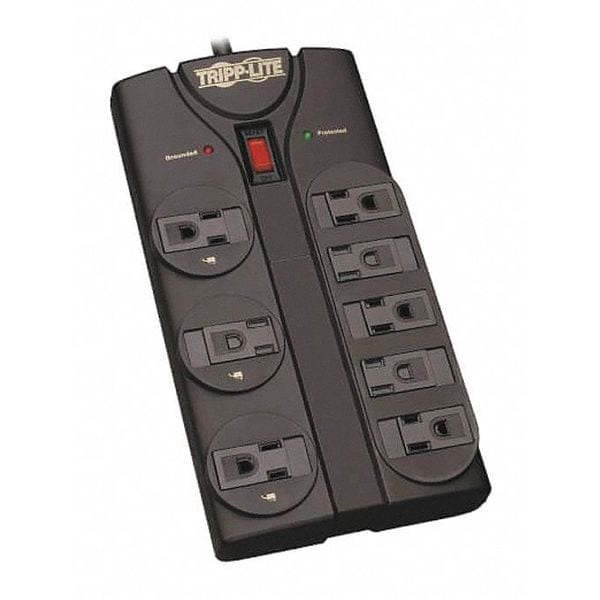

Surge, 8 Outlet, 8ft cord, 1440J, Black
| Item | Surge Protector |
|---|---|
| Number of Outlets | 8 |
| Cord Length | 2.44 m |
| Color | Black |
| Gauge/Conductor | 14 ga. |
| Standards | IEEE 587, UL1363, UL1449 |
| Outlet Surge Protection | Yes |
| Mounting Style | Keyhole |
| Hz | 50/60 Hz |
| Width | 9.6 in |
| Outlet Center Distance | 28.5 mm, 57 mm |
| Telephone/Fax Surge Protection | No |
| Voltage | 120VAC |
| NEMA Plug Configuration | NEMA 5-15P |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Noise Attenuation | Up to 40 dB |
| Coax Surge Protection | No |
| Number of Transformer Outlets | 6 |
| Depth | 1-1/2 in |
| NEC Cord Designation | 14 ga., SJT |
| Max. Amps | 15 |
| Circuit Breaker | Yes |
| Power Indicator | Yes |
| Housing Material | Plastic |
| Height | 4.9 in |
| Number of Outlet Rows | 2 |
| Rated Joules | 1440 J |
| Frequency | 50/60 Hz |
| Features | Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots |
| Watts | 1800W |
| Outlet Configuration | Single Row of 5, Second Row of 3 For Transformer Accommodation, Right-Angle Plug |
| Power Handling | 1,800 VA |
| Product Name | Protect It! 8-Outlet Surge Protector, 8 ft. Cord, 1440 Joules, Black Housing |
| Power Cord/Cable Length | 8 ft |
| Input Voltage | 120 V AC |
| Product Color | Black |
| Product Line | Protect It! |
| Receptacles | 8 x NEMA 5-15R |
| Package Contents | Protect It! 8-Outlet Surge Protector, 8 ft. Cord, 1440 Joules, Black Housing, Owner's Manual |
| Surge Energy Rating | 1440 J |
| AC Suppression Response Time | < 1 ns |
| Power Cord Color | Black |
| Circuit Breaker (amps) | 15 |
| Input Cord Details | SJT |
| Outlets Measurement (Center to Center) | Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm |
| Outlet Orientation | Single row of 5, plus a second row of 3 for transformer accommodation |
| Automatic Shut-Off | Yes |
| Input Cord Gauge Type | SJT, 14 gauge |
| EMI / RFI Filtering | Up to 40 dB |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Diagnostic LED Details | Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status |
| Frequency Compatibility | 50 / 60 Hz |
| Unit Dimensions (hwd / in.) | 4.86 x 9.55 x 1.51 |
| Slot or Hole Mount Measurement (Center to Center) | Distance between horizontal slots = 75 mm |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Package Includes | TLP808B Protect It! 8-Outlet Surge Protector, Black Housing;Owner's manual |
| AC Suppression Joule Rating | 1,440 |
| Input Plug Features | Right Angle (36D) |
| Input Cord Color | Black |
| Voltage Compatibility (VAC) | 120 |
| Input Plug Type | NEMA 5-15P |
| Output Receptacles | 5-15R |
| Diagnostic LED(s) | Yes |
| Outlet Safety Covers Detail | Includes built-in sliding outlet safety covers |
| Input Cord Gauge (AWG) | 14 |
| Material of Construction | Plastic |
| Maximum Surge Amps | 84,000 |
| Network (Ethernet) Protection | No |
| Transformer Accommodation | Yes |
| Product Certifications | CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed |
| Input Cord Length (ft.) | 8 |
| Recommended Electrical Service | 120V (110-125V) |
| Housing Color | Black |
| Receptacle Color | Black |
| Right-Angle Plug | Yes |
| Mounting Holes or Slots | Yes |
| Switches | Combination AC circuit breaker and 2 position red illuminated on/off power switch |
| Package Quantity | 1 |
