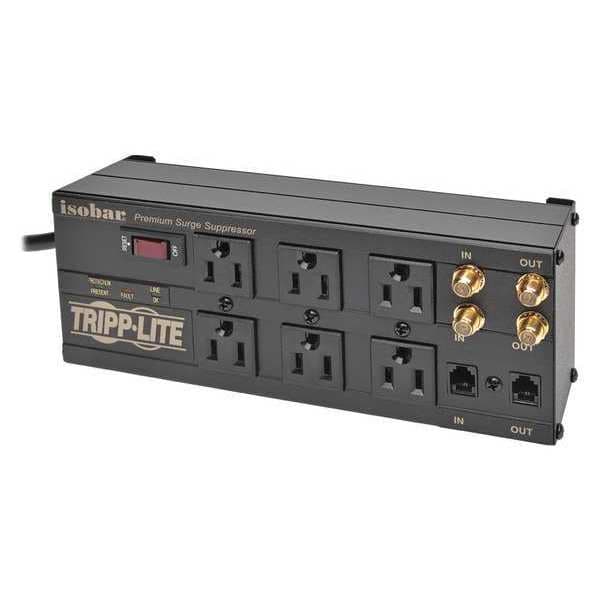

Surge, Isobar, 6 Outlet, 6ft cord, 2850J, Tel
| Item | Isobar Surge Protector |
|---|---|
| Number of Outlets | 6 |
| Cord Length | 1.83 m |
| Color | Black |
| Standards | IEEE 587, UL1363, UL1449, UL497A |
| Coax Surge Protection | Yes |
| Noise Attenuation | 40 to 80 dB |
| Hz | 50/60 Hz |
| Housing Material | Metal |
| NEMA Plug Configuration | NEMA 5-15P |
| Power Indicator | Yes |
| Max. Amps | 12 |
| Outlet Surge Protection | Yes |
| Telephone/Fax Surge Protection | Yes |
| Outlet Center Distance | 39.45 mm, 39.3 mm |
| Mounting Style | Keyhole |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Rated Joules | 3330 J |
| Circuit Breaker | Yes |
| Communication Port | FCC PFCC Part 68 |
| Voltage | 120VAC |
| NEC Cord Designation | 14 ga., SJT |
| Width | 9 in |
| Height | 2-1/2 in |
| Number of Transformer Outlets | 3 |
| Depth | 3-1/2 in |
| Plug Style | Right-Angle Plug |
| Frequency | 50/60 Hz |
| Features | Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots |
| Outlet Configuration | Right-Angle Plug |
| Watts | 1440W |
| Output Voltage | 120 V AC |
| Power Cord/Cable Length | 6 ft |
| Product Name | ISOBAR6DBS |
| Status Indicators | 1 x Line OK, 1 x Line fault, 1 x Protection present |
| Surge Energy Rating | 3330 J |
| Input Voltage | 120 V AC |
| Compatibility | TYPICAL APPLICATIONS: Ideal for premium protection of satellite, home theater, computer, Web TV, cable modem, TV / VCR and DVD systems from surges on AC, coax signal lines and dialup phone connections. |
| Product Type | Protector, Surge Suppressor |
| Certifications & Standards | UL1449, UL1283, UL1363, UL497A, FCC Part 68, cUL, Industry Canada, Exceeds IEEE 587 category A&B specifications |
| Package Contents | ISOBAR6DBS premium surge suppressor, RJ11 telephone cable, Set of 4 outlet safety covers, Instruction manual with warranty information |
| Receptacles | 6 x NEMA 5-15R |
| Additional Information | Tripp Lite's ISOBAR is the world's #1 selling premium suppressor series with more than 14 million satisfied customers and a safety-tested history of 20+ years, Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and reducing 6,000V test surges to harmless levels less than 35 volts, Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment, 6 outlets arranged in three filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on, Network grade surge suppression rated at 2850 joules / 92,000 amps, 2 Sets Type F Coax jacks protects two satellite, cable TV, cable modem or broadcast antennas signal lines, Single phone line surge suppression protects pay-per-view connections and dialup modems (2 wire, single line, RJ11 jacks), Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets, 3 LED indicators confirm suppressor operation and site wiring status, plus warning of suppressor or electrical fault conditions, Lighted power switch confirms power on/off status, 6 foot AC line cord with space-saving angled input plug, Keyhole mounting tabs allow permanent installation, Set of 4 outlet covers safely seal off unused outlets, 120V AC, 50/60Hz electrical compatibility, $50,000 Ultimate Lifetime Insurance (USA & Canada Only), Lifetime product warranty, UL1449 listed - surge suppression (330V let-through), UL1283 listed - EMI protection, UL1363 listed - power tap, UL497A listed - communications suppression, cUL approved to Canadian standards |
| Protection Type | Surge |
| Plug/Connector Type | NEMA 5-15P |

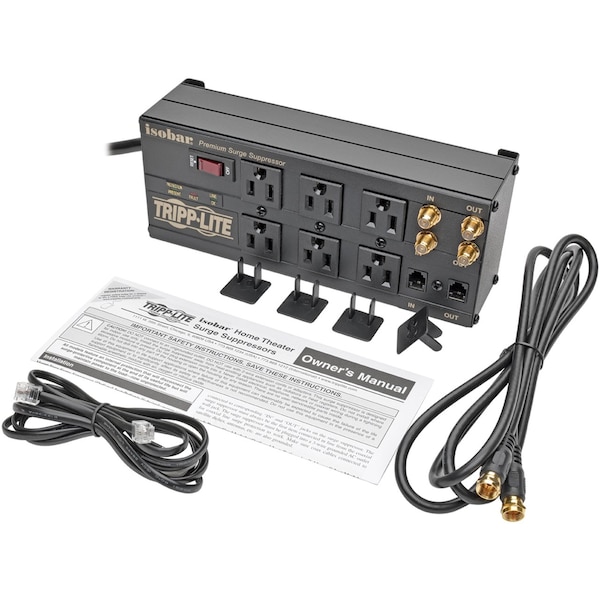

| Package Includes | ISOBAR6DBS Isobar 6-Outlet Surge Protector, Tel/Coax/Modem, Metal Housing;Gold coaxial cable, 6-ft. (1.83 m);RJ11 telephone cable, 6-ft. (1.83 m);(4) Outlet safety covers;Owner's manual |
| Product Certifications | CAN/CSA-C22.2 No. 269.3 (Canada); cUL Listed; UL 1449; UL 497A; UL 1363; UL Listed |
| Input Cord Details | SJT |
| Switches | Combination AC circuit breaker and two position red illuminated on/off power switch |
| Input Cord Gauge (AWG) | 14 |
| Network (Ethernet) Protection | No |
| Recommended Electrical Service | 120V (110-125V) |
| Material of Construction | Metal |
| Input Cord Length (ft.) | 6 |
| AC Suppression Response Time | NM = 0 ns. CM = <1 ns |
| Voltage Compatibility (VAC) | 120 |
| Product Compliance | FCC Part 68 |
| Unit Dimensions (hwd / in.) | 2.5 x 9 x 3.5 |

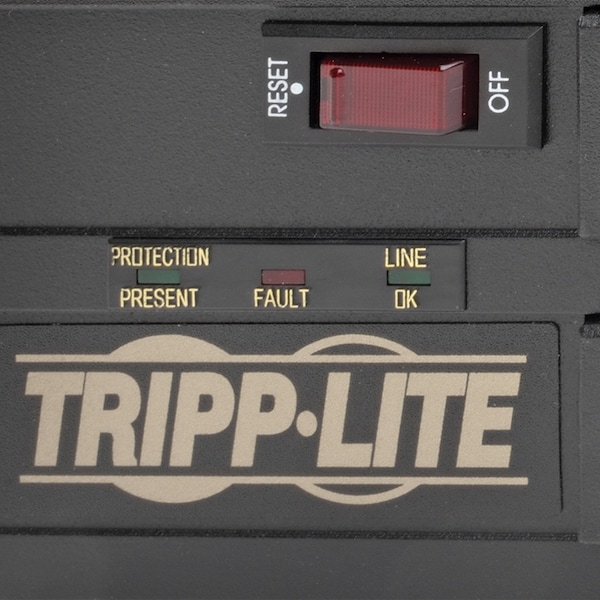

| Diagnostic LED Details | PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green) |
| Mounting Holes or Slots | Yes |
| Input Cord Gauge Type | SJT, 14 gauge |
| EMI / RFI Filtering | 40-80 dB |
| Housing Color | Black |
| Input Plug Type | NEMA 5-15P |
| Power Cord Color | Black |
| Diagnostic LED(s) | Yes |
| Cable (Coax) Protection Details | 2 line |
| Slot or Hole Mount Measurement (Center to Center) | Distance between horizontal tabs = 210.79 mm; Distance between vertical tabs = 58.17 mm |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Isolated Filter Banks | Yes |
| Receptacle Color | Black |
| Output Receptacles | 5-15R |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Circuit Breaker (amps) | 12 |
| Maximum Surge Amps | 135,000 |
| AC Suppression Joule Rating | 3,330 |
| Cable (Coax) Protection | Yes |
| Transformer Accommodation | Yes |
| Frequency Compatibility | 50 / 60 Hz |
| Automatic Shut-Off | Yes |
| Outlets Measurement (Center to Center) | Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm |
| Telephone/DSL Protection Details | 1 line |
| Right-Angle Plug | Yes |
| Telephone/DSL Protection | Yes |
| Package Quantity | 1 |
