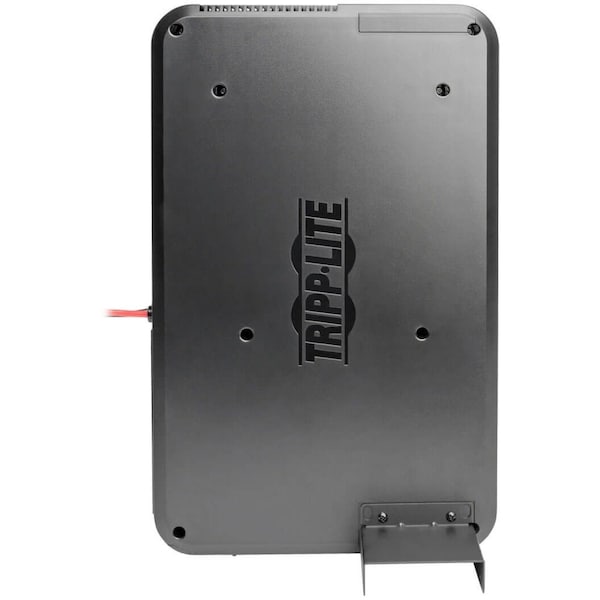

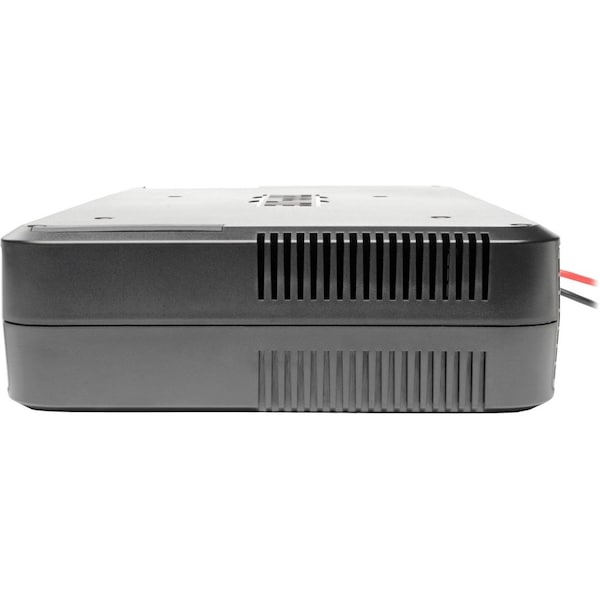

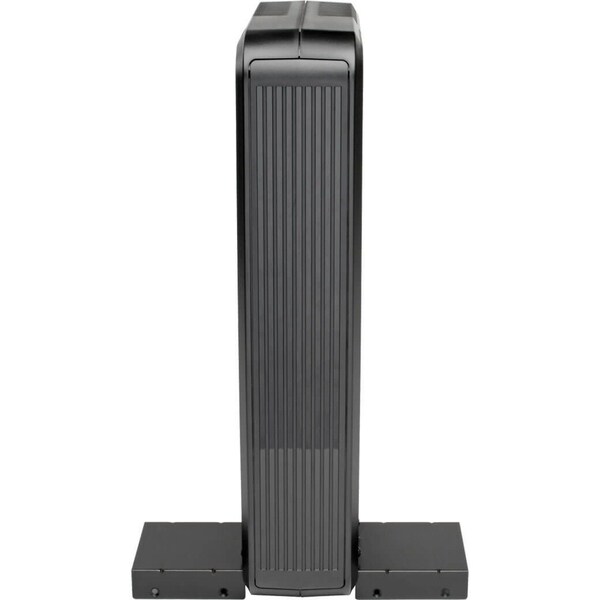

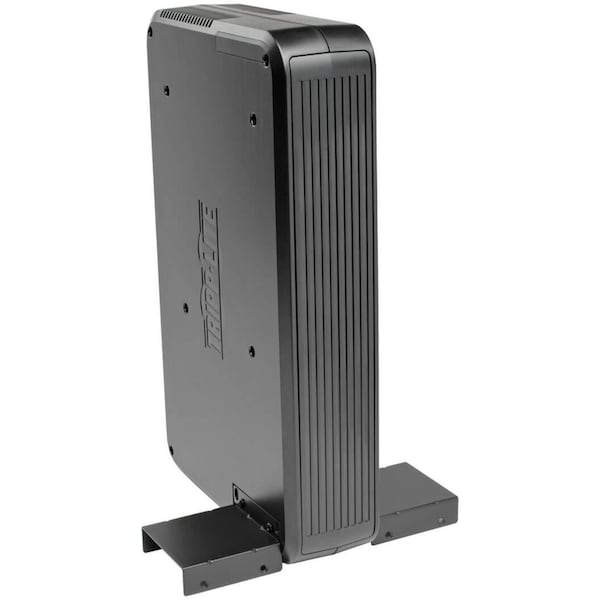

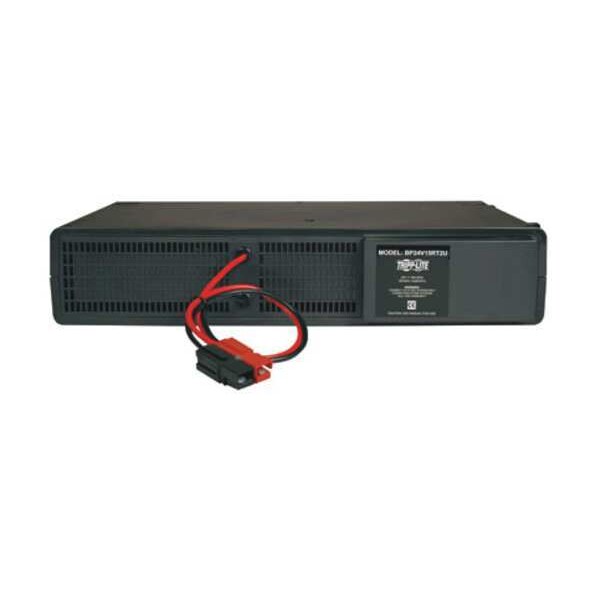

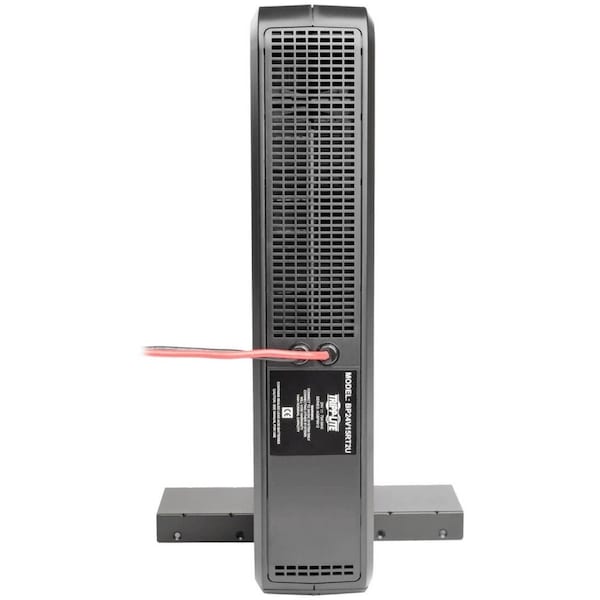

UPS Battery, 2 Rack Spaces, Tripp Lite UPS Systems, 24V DC, 14 Ah, Attached Cable
| Item | UPS Battery |
|---|---|
| For Use With | 2 Rack Spaces, Tripp Lite UPS Systems |
| Voltage - Batteries | 24 V DC |
| Capacity - Batteries | 14 Ah |
| Battery Connection | Cable |
| Item - UPS Battery | Extension UPS Battery |
| Height | 7-1/2 in |
| Depth - Batteries | 15 in |
| Battery Connection - UPS Batteries | Attached Cable |
| Width | 21-1/2 in |
| Height - Batteries | 7-1/2 in |
| Width - Batteries | 21-1/2 in |
| Depth | 15 in |
| Includes | Rack Mount/Tower Installation Brackets |
| Voltage | 24 V DC |
| Overall Width | 17-5/16 in |
| Overall Height | 3-1/2 in |
| Minimum Required Rack Depth (inches) | 13.5 |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount; 2 post 19 inch rackmount; Tower |
| Certifications | CE |
| Input Phase | Single-Phase |
| Installation Form Factors Supported with Optional Accessories | Wallmount (2POSTRMKITWM) |

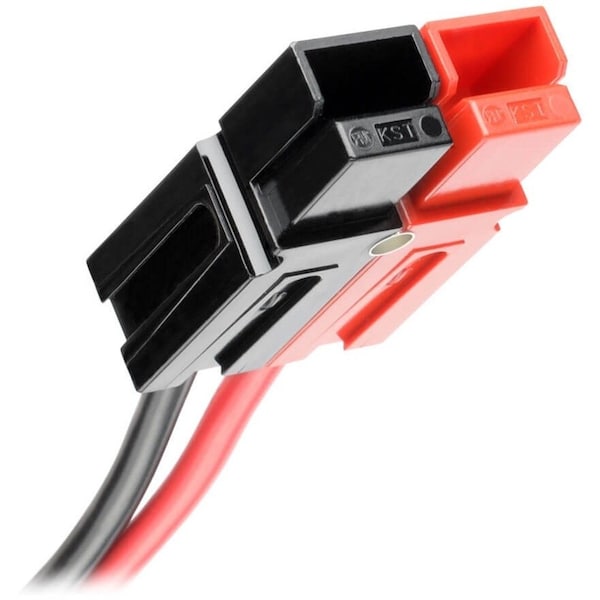

| UPS Connection | Attached 24VDC 75amp connector |
| External Battery Pack Form Factor | Rack, Tower |
| Optional Coverage | Extended warranty options available |
| Optional Mounting Accessory Notes | 2POSTRMKITWM enables wall-mount installation |
| DC System Voltage (VDC) | 24 |
| Form Factor | Rack-mountable |
| Battery Chemistry | Lead Acid |
| Minimum Battery Life | 4 yr |
| Output Voltage | 24 V DC |
| Compatibility | Tripp Lite UPS: OMNIVS1500XL, OMNIVSINT1500XL, SU750XL, SU750RTXL2U, SU1000XLa, SU1000RTXL2Ua, SUINT1000RTXL2Ua, SMART750RMXL2U |
| Product Name | BP24V15RT2U UPS External Battery Pack |
| Package Contents | BP24V15RT2U UPS External Battery Pack, Rack/tower Brackets, Owner's Manual with Warranty Information |
| TAA Compliant | Yes |
| Maximum Battery Life | 6 yr |
| Rack Height | 2 U |
| Product Type | External Battery Pack |
| Unit Dimensions (hwd / in.) | 3.5 x 17.33 x 10.68 |
| Package Includes | BP24V15RT2U external battery pack with attached DC cabling;2- and 4-post rack-mount/tower installation brackets;Owner's manual |
| Product Compliance | CE Act, Trade Agreements |
| Compatible with Manufacturer Model Number | OMNIVS1500XL, OMNIVSINT1500XL, SMART1500LCDXL, SMART750RMXL2U, SMART750XLA, SU1000RTXL2UA, SU1000RTXLCD2U, SU1000XLA, SU750RTXL2U, SU750XL, SUINT1000RTXL2UA |
| UPS Battery Type | Extender |
| Overall Depth | 10-11/16 in |
| Manufacturer Warranty | 1 yr (Limited) |
| Battery Capacity | 14 Ah |
| Compatible with Mfr. Model No. | OMNIVS1500XL, OMNIVSINT1500XL, SMART1500LCDXL, SMART750RMXL2U, SMART750XLA, SU1000RTXL2UA, SU1000RTXLCD2U, SU1000XLA, SU750RTXL2U, SU750XL, SUINT1000RTXL2UA |
| For Use with Mfr Model Number | OMNIVS1500XL, OMNIVSINT1500XL, SMART1500LCDXL, SMART750RMXL2U, SMART750XLA, SU1000RTXL2UA, SU1000RTXLCD2U, SU1000XLA, SU750RTXL2U, SU750XL, SUINT1000RTXL2UA |
| Package Quantity | 1 |
