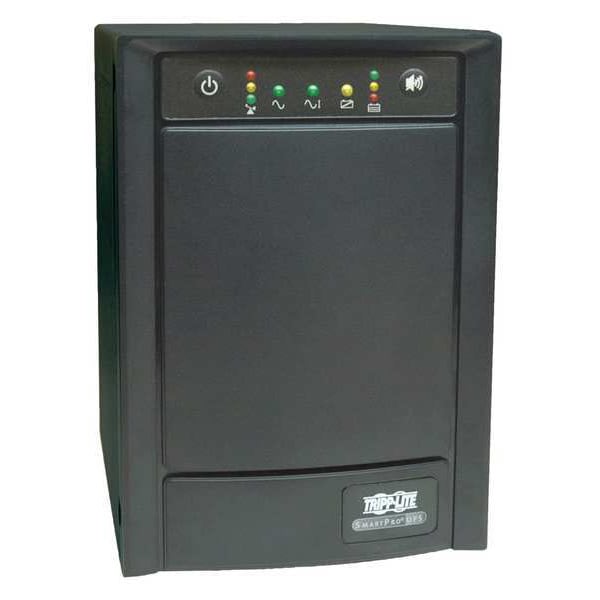

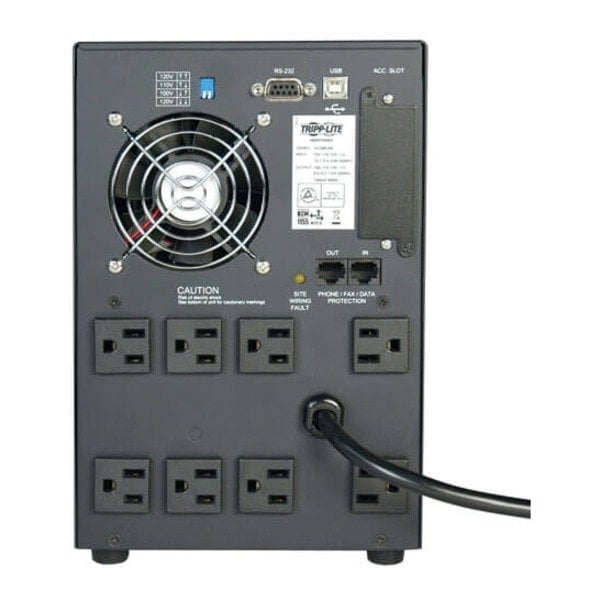

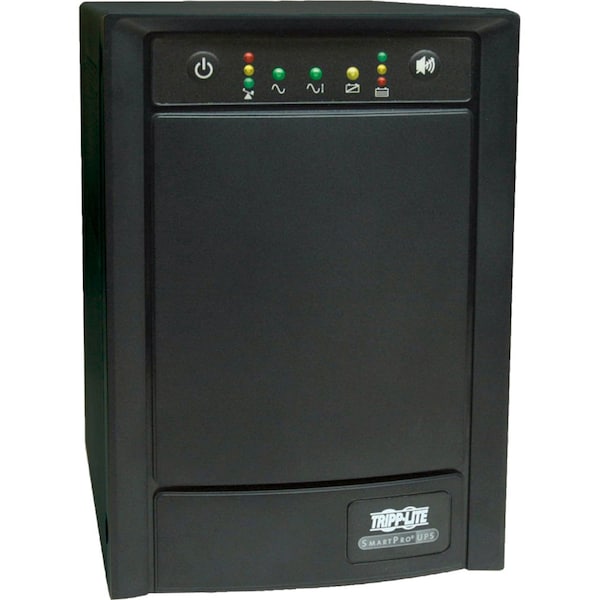

UPS System, 1.05kVA, Line Interactive, Out: 100/110/120V AC In: 100/110/120V AC
| VA Rating - UPS Systems | 1.05 kVA |
|---|---|
| Item | UPS System |
| UPS Type | Line Interactive |
| Power Rating | 1.05 kVA |
| Mounting | Tower, Desktop |
| Wattage | 650 W |
| Input Voltage | 100/110/120V AC |
| Output Voltage | 100/110/120V AC |
| Backup Time (Half/Full Load) | 19 min/7 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 8 |
| Transfer Time | 4 to 6 msec |
| Cord Length | 6 ft |
| NEMA Receptacle Configuration | 5-15R |
| Footnotes | Slot for SNMPWEBCARD |
| Input Current | 6.1 A |
| Width | 13 in |
| Ports | RS232, Slot for SNMPWEBCARD, TEL/DSL, USB |
| Automatic Volts Regulation | Yes |
| Depth | 13 in |
| Includes | DB9 Cable, SMART1050SLT SmartPro120V 1.05kVA 650W Line-Interactive Sine Wave UPS, USB Cables |
| NEMA Plug Configuration | 5-15P |
| Fax/Modem Line Protection | Yes |
| Hz | 50/60 Hz |
| Phase | Single |
| Height | 10 in |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Special Features | Hot Swappable Batteries |
| Display Type | LED |
| Standards | CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778 |
| Overall Width | 6.8 in |
| Capacity - Batteries | 1050 VA/650 W |
| Operating Temp. Range | 104°F (40°C) |
| Battery Type | Sealed Lead Acid |
| Input Connection | NEMA 5-15P Plug |
| Housing Material | Steel |
| Communications Interface | USB (HID enabled); DB9 Serial; Slot for SNMP/Web interface |
| Frequency Compatibility Details | Automatic frequency selection |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 95 to 145 (120v), 87 to 133 (110v), 83 to 121 (100v) |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI) |
| Battery Mode BTU / Hr. (Full Load) | 455 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius. |
| UPS Input Cord Length (ft.) | 6 |
| Battery Access | Battery access door |
| UPS AC Suppression Response Time | Instantaneous |
| Nominal Output Voltage(s) Supported | 100 V, 110 V, 120 V |
| Half Load Runtime (min.) | 19 min |
| LED Indicators | Status LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for load and battery charge level |
| Input Phase | Single-Phase |
| Site Wiring Fault Indication | Rear panel site wiring fault LED |
| High Voltage Transfer to Battery Power (Setpoint) | 145V (120V), 133V (110V), 121V (100V) |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Relative Humidity | 0 to 95%, non-condensing |
| Output Voltage Regulation (Line Mode) | +, -13% 15% |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications. |
| Primary Form Factor | Tower |
| Full Load Runtime (min.) | 7 min |
| Low Voltage Transfer to Battery Power (Setpoint) | 95V (120V), 87V (110V), 83V (100V) |
| Nominal Input Voltage(s) Supported | 100 V AC, 110 V AC, 120 V AC |
| DC System Voltage (VDC) | 24 |
| Internal UPS Replacement Battery Cartridge | RBC24-SLT |
| Rated input current (Maximum Load) | 6.1A (120V), 6.6A (110V), 7.2A (100V) |
| EMI / RFI AC Noise Suppression | Yes |
| Output Volt Amp Capacity (VA) | 1,050 |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Battery Recharge Rate (Included Batteries) | Less than 6 hours from 10% to 90% (typical, full load discharge) |
| Individually Controllable Load Banks | No |
| Cooling Method | Fan |
| UPS AC Suppression Joule Rating | 690 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Expandable Runtime | No |
| Recommended Electrical Service | 15A 120V |
| AC Mode BTU / Hr. (Full Load) | 107 |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch |
| Primary UPS Depth (mm) | 335 |
| Audible Alarm | Audible alarm indicates power failure and overload conditions |
| Overvoltage Correction | Voltage reduction of 12% applies when input is 127 to 145 (120v), 116 to 133 (110v), 111 to 121 (100v) |
| AC Mode Efficiency Rating (100% Load) | 0.95 |
| Audible Noise | Audible Noise < 50 dBA at Front Side 1 Meter |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius. |
| Undervoltage Correction | Voltage boost of 14% applies when input is 95 to 108 (120v), 87 to 99 (110v), 83 to 90 (100v) |
| Output kVA Capacity (kVA) | 1.05 |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, RELAYIOCARD |
| UPS Power Module Dimensions (hwd, in.) | 10.2 x 6.8 x 13.2 |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Communications Cable | USB and DB9 cabling included |
| High Availability UPS Features | Hot swappable batteries |
| Primary UPS Height (mm) | 259 |
| Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
| Output Watt Capacity (Watts) | 650 |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Typical Battery Recharge Time | 4 hr |
| Status Indicators | Includes 14 front panel LEDs to indicate line / battery power status, over / under voltage correction, battery charge level (4 LEDs), load percentage (4 LEDs), overload and replace battery. Also includes 1 rear panel site wiring fault indicator. |
| USB | Yes |
| Hot Swappable | Yes |
| Load Capacity | 1050 VA/650 W |
| Battery Life | 6 yr |
| Form Factor | Tower |
| Waveform Type | Sine Wave |
| Maximum Operating Temperature | 104°F |
| Total Number of Expansion Slots | 1 |
| Network Management | SNMP Manageable |
| Package Contents | SMART1050SLT SmartPro 120V 1.05kVA 650W Line-Interactive Sine Wave UPS, USB cable, DB9 cable, PowerAlert software, Owner's manual |
| Alarm | On Battery, Overload |
| UPS Applications | Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| Operating Elevation (ft.) | 6561 ft. (2000 m) above sea level |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Output Capacity Details | 5.4A @ 120V (default), 5.9A @ 110V, 6.5A @ 100V. 125% @ 10 minutes 110% +/- 10% @ 5 seconds |
| Total Harmonic Distortion | 0.03 |
| Output Capacity (VA) | 1,050 |
| Package Includes | SMART1050SLT SmartPro 120V 1.05kVA 650W Line-Interactive Sine Wave UPS;USB cable;DB9 cable;Owner's manual |
| Installation Form Factors Supported with Included Accessories | Tower |
| Output Capacity (Watts) | 650 |
| Power Factor | 0.62 |
| Product Compliance | FCC Part 15 Class B (USA) |
| External Battery Compatible | Not External Battery Pack Compatible |
| Data Line Protection | Includes Data Line Surge Protection |
| Output Ports Included | DB9 Serial, SNMP, USB |
| Input Current - Maximum | 6.1 A |
| Power Cord Length | 6 ft |
| Power Rating - Real | 650 W |
| Operating Temperature - Maximum | 104 deg F |
| Manufacturer Warranty | 2 yr |
| Surge Suppression Rating | 690 J |
| Includes Battery | Battery Included |
| Battery Recharge Time | 6 hr |
| Audible Alarm Conditions | Overload |
| Operating Temperature - Minimum | 32 deg F |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Package Quantity | 1 |
