UPS System, 1.5kVA, Line Interactive, Out: 110/115/120V AC In: 120V AC
| VA Rating - UPS Systems | 1.5 kVA |
|---|---|
| Item | UPS System |
| UPS Type | Line Interactive |
| Power Rating | 1.5 kVA |
| Mounting | Tower |
| Wattage | 810 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 7.5 min/1.8 min |

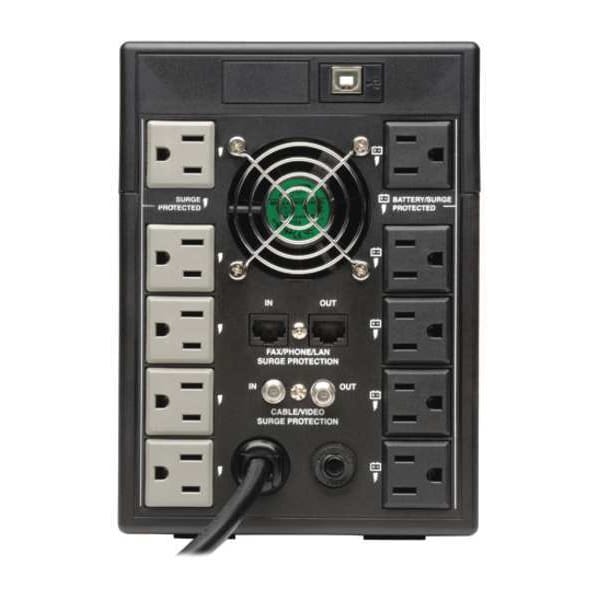

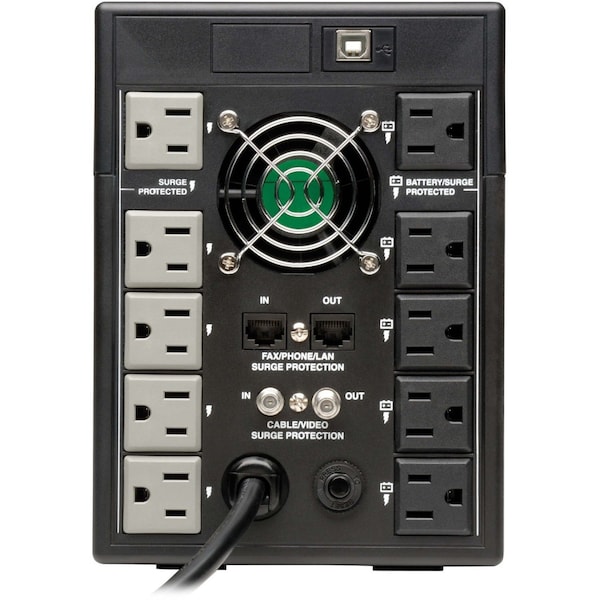

| Outlet Type | (5) Surge; (5) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 10 |
| Includes | USB Cables |
| Height | 8 in |
| Footnotes | 4,6 |
| Cord Length | 6 ft |
| Fax/Modem Line Protection | Yes |
| Automatic Volts Regulation | Yes |
| Input Current | 12 A |
| Ports | USB |
| Transfer Time | 2 to 6 msec |
| Special Features | Built-In Audible Alarm |
| Display Type | LCD |
| NEMA Plug Configuration | 5-15P |
| Depth | 15 in |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Standards | CSA, FCC Part 15 Class B, NOM, RoHS, UL1778 |
| NEMA Receptacle Configuration | 5-15R |
| Hz | 50/60 Hz |
| Width | 15 in |
| Phase | Single |
| Overall Width | 5-3/4 in |
| Input Connection | NEMA 5-15P Plug |
| Battery Type | VRLA |
| Housing Material | PVC |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Low Voltage Transfer to Battery Power (Setpoint) | 92 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Undervoltage Correction | Input voltages between 92 and 108 are boosted by 18% |
| Half Load Runtime (min.) | 7 min 30 sec |
| Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
| Communications Interface | USB (HID enabled) |
| Primary UPS Depth (mm) | 396 |
| Input Phase | Single-Phase |
| Output Watt Capacity (Watts) | 810 |
| AC Mode Efficiency Rating (100% Load) | 0.95 |
| Frequency Compatibility Details | Automatic frequency selection |
| Cooling Method | Fan |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Recommended Electrical Service | 15A 120V |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150 |
| Output Volt Amp Capacity (VA) | 1,500 |
| Communications Cable | USB cabling included |
| Battery Recharge Rate (Included Batteries) | Less than 8 hours from 10% to 90% |
| Relative Humidity | 5 to 95%, non-condensing |

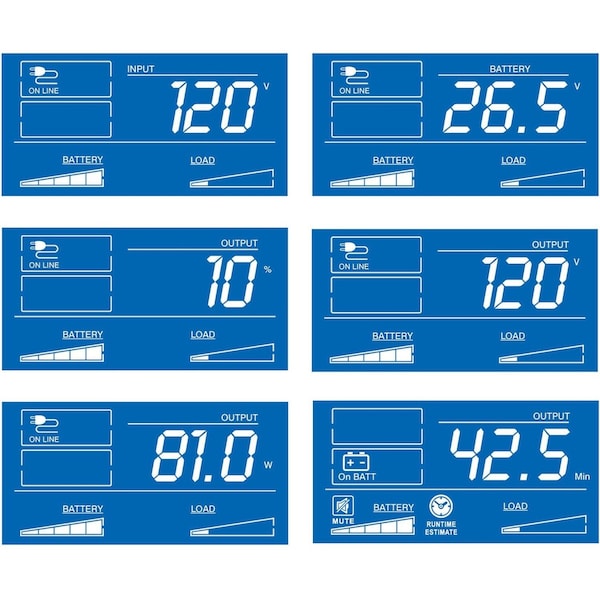

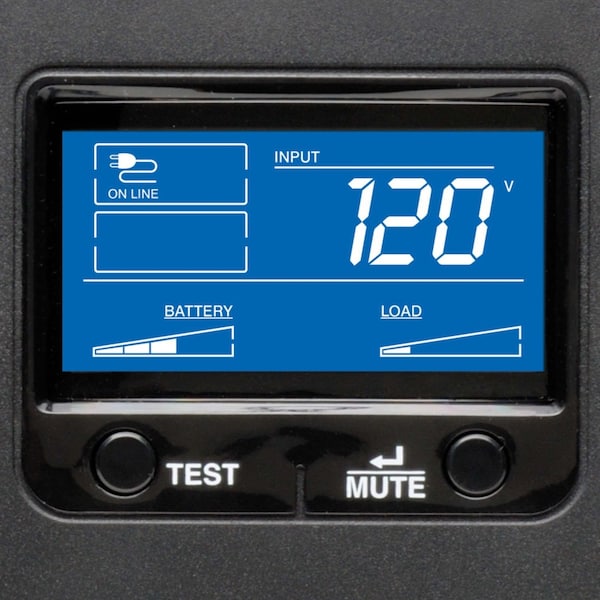

| Front Panel LCD Display | LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| UPS AC Suppression Joule Rating | 650 |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| DC System Voltage (VDC) | 24 |
| Switches | Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test |
| Battery Mode BTU / Hr. (Full Load) | 826 |
| Overvoltage Correction | Input voltages between 129 and 147 are reduced by 15% |
| UPS AC Suppression Response Time | Instantaneous |
| UPS Power Module Dimensions (hwd, in.) | 8 x 5.75 x 15.6 |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
| Input Circuit Breakers | 15A |
| Installation Form Factors Supported with Included Accessories | Tower |
| Rated input current (Maximum Load) | 12 A |
| AC Mode BTU / Hr. (Full Load) | 98 |
| Internal UPS Replacement Battery Cartridge | RBC51 (requires 2) |
| Primary Form Factor | Tower |
| Nominal Input Voltage(s) Supported | 120 V AC |
| High Availability UPS Features | Hot swappable batteries |
| UPS Certification Details | ENERGY STAR Version 2.0 Qualified |
| Hot-Swap PDU options | PDUB15 (2U / 8 5-15R outlets) |
| Output Voltage Regulation (Economy Line Mode) | 120V (±10%) |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set) |
| Expandable Runtime | No |
| High Voltage Transfer to Battery Power (Setpoint) | 150 |
| Primary UPS Height (mm) | 203 |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch |
| UPS Certifications | ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| EMI / RFI AC Noise Suppression | Yes |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Output kVA Capacity (kVA) | 1.5 |
| UPS Input Cord Length (ft.) | 6 |
| Output Voltage Regulation (Line Mode) | 120V |
| Individually Controllable Load Banks | No |
| Package Contents | OmniSmart OMNI1500LCDT 1500VA Tower UPS, USB Cabling, Manual with Warranty Information |
| USB | Yes |
| Load Capacity | 1500 VA/810 W |
| Typical Battery Recharge Time | 8 hr |
| Form Factor | Tower |
| Product Compliance | ENERGY STAR Qualified; FCC Part 15 Class B (USA) |
| Output Capacity (Watts) | 810 |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Output Capacity (VA) | 1,500 |
| Package Includes | 1500VA 810W 120V Line-Interactive UPS;USB cable;Owner's manual |
| UPS Applications | Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| Unit Dimensions (hwd / in.) | 8 x 5.75 x 15.6 |
| Battery Recharge Time | 8 hr |
| Power Cord Length | 5 ft |
| Manufacturer Warranty | 3 yr (Limited) |
| Data Line Protection | Includes Data Line Surge Protection |
| Power Rating - Real | 810 W |
| Visible Indicator Light Conditions | Battery Low |
| Operating Temperature - Minimum | 32 deg F |
| Operating Temperature - Maximum | 104 deg F |
| Output Ports Included | USB |
| Replacement Battery Part Number | RBC51 |
| External Battery Compatible | Not External Battery Pack Compatible |
| Audible Alarm Conditions | Low Battery |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Input Current - Maximum | 12 A |
| Includes Battery | Battery Included |
| Package Quantity | 1 |
