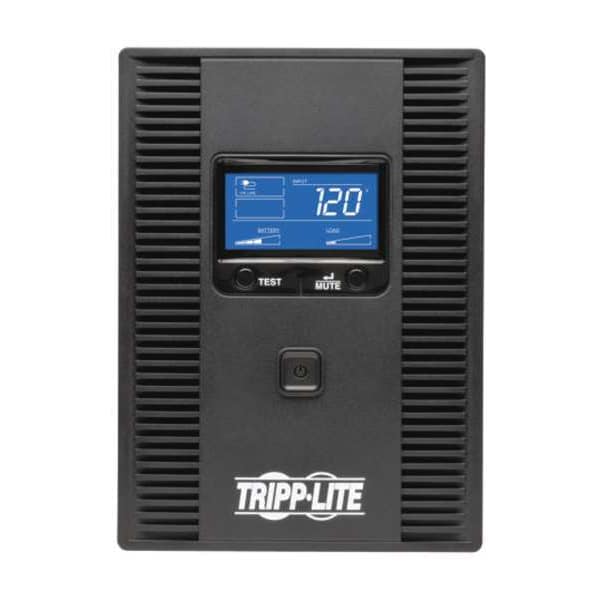

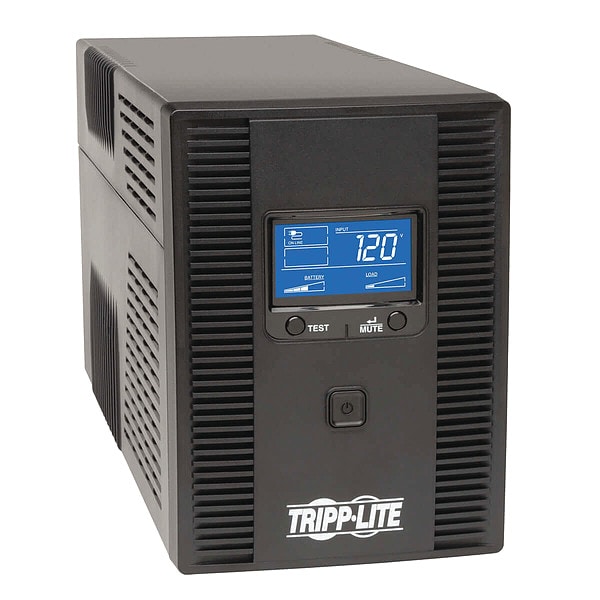

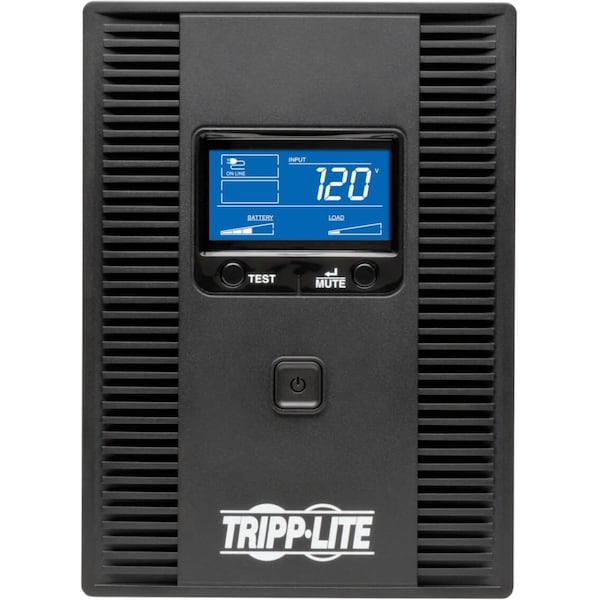

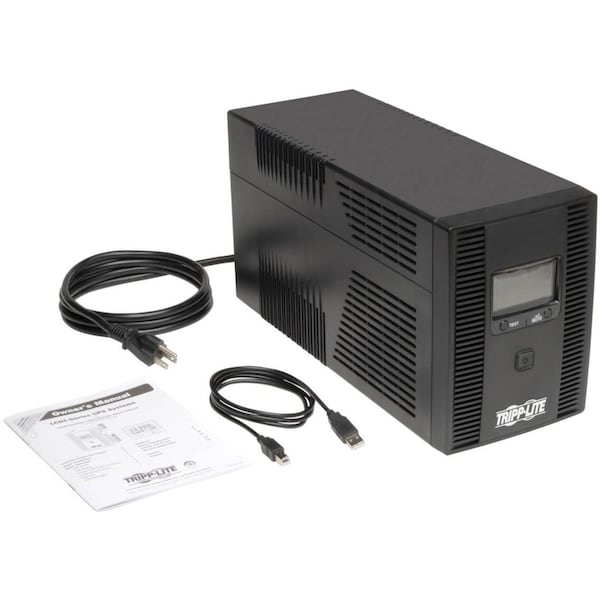

UPS System, 1.5kVA, Line Interactive, Out: 110/115/120V In: 120V AC
| VA Rating - UPS Systems | 1.5 kVA |
|---|---|
| Item | UPS System |
| UPS Type | Line Interactive |
| Power Rating | 1.5 kVA |
| Mounting | Tower |
| Wattage | 900 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 10 min/2.3 min |

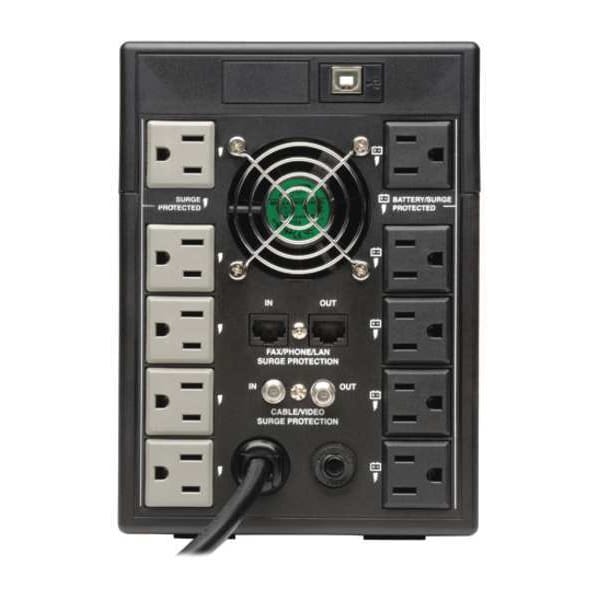

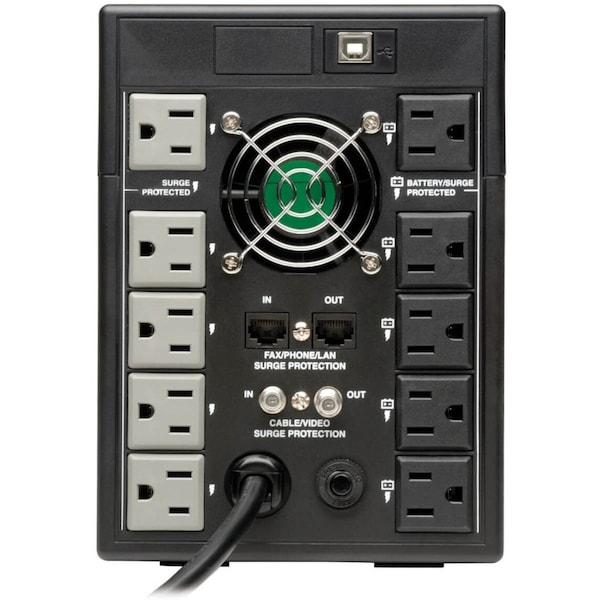

| Outlet Type | (5) Surge; (5) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 10 |
| Automatic Volts Regulation | Yes |
| Hz | 50/60 Hz |
| Special Features | Hot Swappable Batteries, Individually Controllable Load Banks |
| Fax/Modem Line Protection | Yes |
| Display Type | LCD |
| NEMA Receptacle Configuration | 5-15R |
| Includes | 1500VA 900W 120V Line-Interactive UPS, USB Cables |
| Input Current | 12 A |
| Ports | USB |
| Depth | 15 in |
| Cord Length | 6 ft |
| Transfer Time | 2 msec |
| Phase | Single |
| Standards | CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Height | 8 in |
| NEMA Plug Configuration | 5-15P |
| Width | 15 in |
| Overall Width | 5-3/4 in |
| Housing Color | Black |
| Operating Temp. Range | 122°F (50°C) |
| Capacity - Batteries | 1500 VA/900 W |

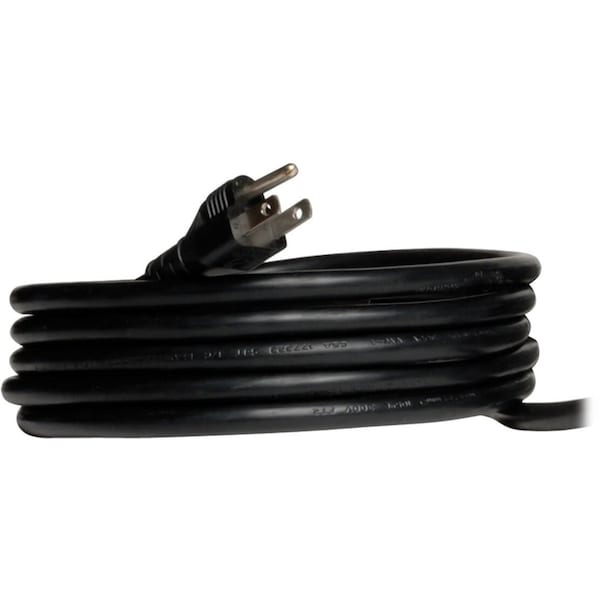

| Input Connection | NEMA 5-15P Plug |
| Housing Material | ABS |
| Battery Type | VRLA |
| Primary UPS Depth (mm) | 391 |
| Frequency Compatibility Details | Automatic frequency selection |
| Overvoltage Correction | Input voltages between 129 and 147 are reduced by 15% |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Cooling Method | Fan |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
| Rated input current (Maximum Load) | 12 A |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set) |
| AC Mode Efficiency Rating (100% Load) | 0.95 |
| UPS Input Cord Length (ft.) | 6 |
| Recommended Electrical Service | 15A 120V |
| Primary Form Factor | Tower |
| Undervoltage Correction | Input voltages between 92 and 108 are boosted by 18% |
| Relative Humidity | 0 to 95%, non-condensing |
| Communications Interface | USB (HID enabled) |
| DC System Voltage (VDC) | 24 |

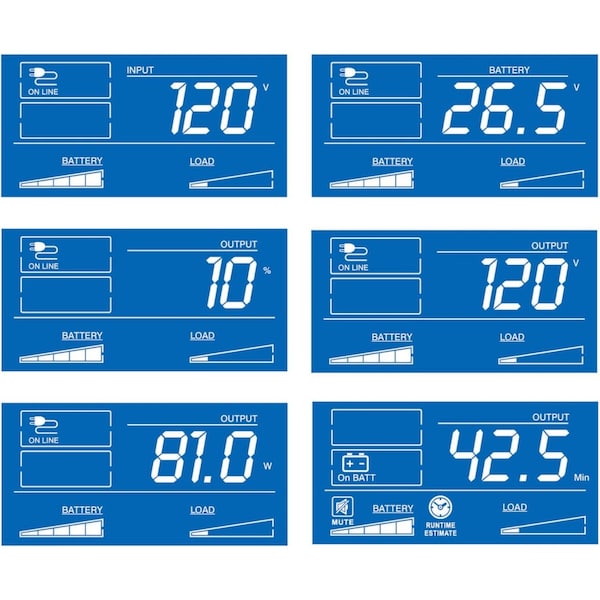

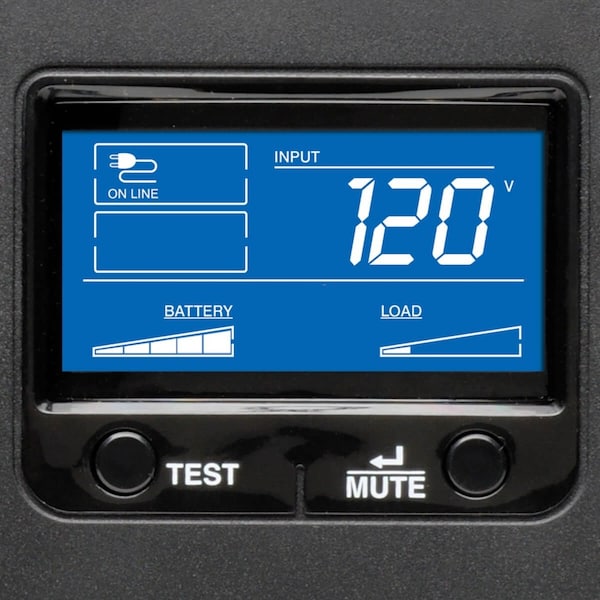

| Front Panel LCD Display | LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes |
| AC Mode BTU / Hr. (Full Load) | 119 |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150 |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) |
| Communications Cable | USB and cabling included |
| EMI / RFI AC Noise Suppression | Yes |
| Input Phase | Single-Phase |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Output kVA Capacity (kVA) | 1.5 |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Battery Recharge Rate (Included Batteries) | Less than 8 hours from 10% to 90% |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch |
| Output Voltage Regulation (Line Mode) | 120V |
| Half Load Runtime (min.) | 10 minutes (450 watts) |
| UPS Power Module Dimensions (hwd, in.) | 8 x 5.75 x 15.4 |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| UPS AC Suppression Response Time | Instantaneous |
| UPS AC Suppression Joule Rating | 650 |
| Input Circuit Breakers | 20A |
| Primary UPS Height (mm) | 203 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| High Availability UPS Features | Hot swappable batteries |
| Individually Controllable Load Banks | No |
| Low Voltage Transfer to Battery Power (Setpoint) | 92 |
| Internal UPS Replacement Battery Cartridge | RBC51 (requires 2) |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Battery Mode BTU / Hr. (Full Load) | 867 |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| High Voltage Transfer to Battery Power (Setpoint) | 150 |
| Output Watt Capacity (Watts) | 900 |
| Switches | Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test |
| Output Volt Amp Capacity (VA) | 1,500 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Expandable Runtime | No |
| Output Voltage Regulation (Battery Mode) | 120V (±10%) |
| Load Capacity | 1500 VA/900 W |
| Maximum Operating Temperature | 122°F |
| Package Contents | SMART1500LCDT UPS, USB Cable, Manual with Warranty Information |
| USB | Yes |
| Form Factor | Tower |
| Protection Type | Brownout, Over Voltage |
| Typical Battery Recharge Time | 8 hr |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 480 J |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Output Capacity (VA) | 1,500 |
| Installation Form Factors Supported with Included Accessories | Tower |
| Product Compliance | FCC Part 15 Class A (USA) |
| Audible Noise | Less than 36 dB, front side 1m |
| Output Capacity (Watts) | 900 |
| Package Includes | 1500VA 900W 120V Line-Interactive UPS;USB cable;Owner's manual |
| UPS Applications | Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| Unit Dimensions (hwd / in.) | 8 x 5.75 x 15.6 |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Operating Temperature - Minimum | 32 deg F |
| Power Rating - Real | 900 W |
| Audible Alarm Conditions | Low Battery, Power Outage |
| Battery Recharge Time | 8 hr |
| Data Line Protection | Includes Data Line Surge Protection |
| Manufacturer Warranty | 2 yr |
| Power Cord Length | 6 ft |
| Input Current - Maximum | 12 A |
| External Battery Compatible | Not External Battery Pack Compatible |
| Output Ports Included | USB |
| Operating Temperature - Maximum | 104 deg F |
| Surge Suppression Rating | 650 J |
| Includes Battery | Battery Included |
| Package Quantity | 1 |
