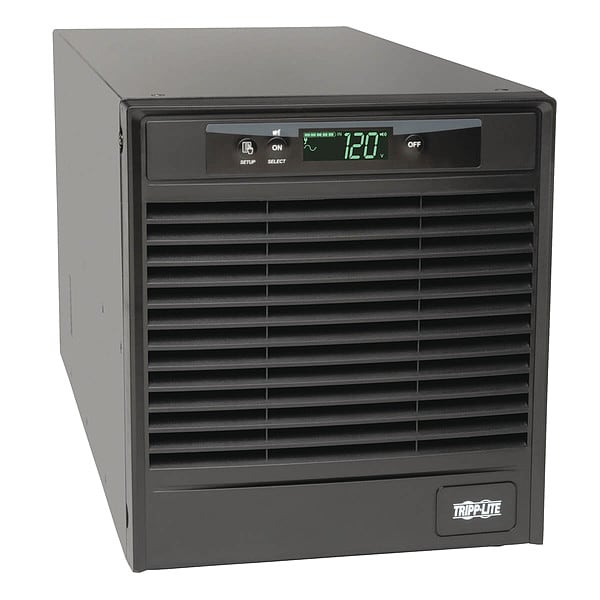

UPS System, 1.96kVA, Online/Double Conversion, Out: 100/110/120/127V AC In: 100/115/120/127V AC
| Item | UPS System |
|---|---|
| UPS Type | Online, Double Conversion |
| Power Rating | 1.96 kVA |
| Mounting | Tower |
| Wattage | 1.77 kW |
| Input Voltage | 100/115/120/127V AC |
| Output Voltage | 100/110/120/127V AC |
| Backup Time (Half/Full Load) | 26.2 min/10.4 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 7 |
| Ports | DB9 Serial, EPO, USB |
| Transfer Time | 0 msec |
| Depth | 20 in |
| Height | 10 in |
| Display Type | LCD |

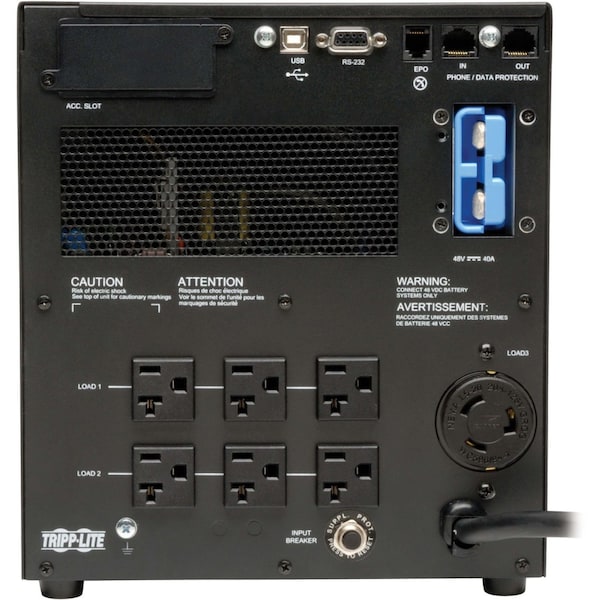

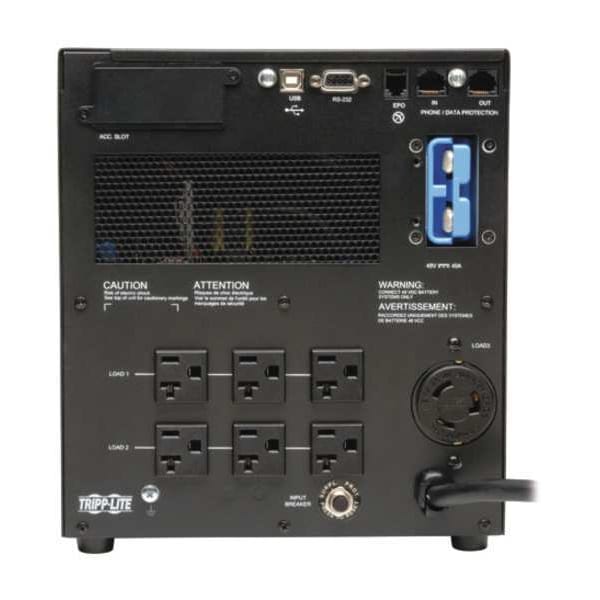

| NEMA Receptacle Configuration | L5-20R, 5-15/20R |
| Fax/Modem Line Protection | Yes |
| Cord Length | 10 ft |
| Includes | DB9 Cable, USB Cables |
| VA Rating - UPS Systems | 2.2 kVA |
| Input Current | 16 A |
| Phase | Single |
| Automatic Volts Regulation | Yes |

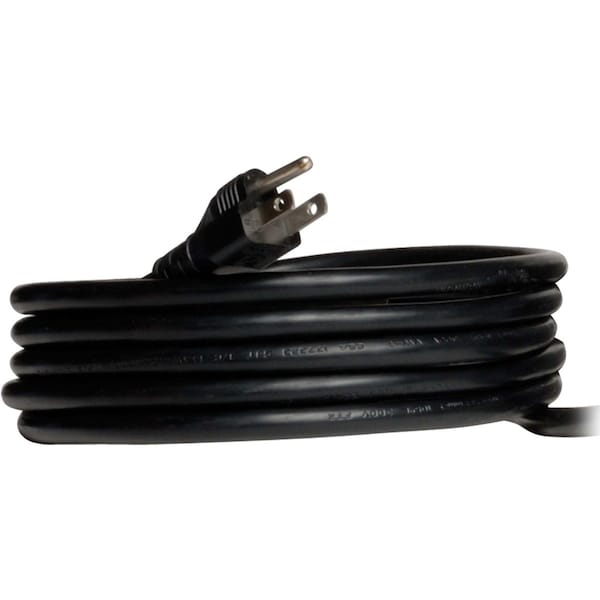

| NEMA Plug Configuration | 5-20P |
| Width | 20 in |
| Special Features | Hot-Swappable Batteries |
| Standards | CE (Europe), cUL, FCC (USA), REACH, RoHS |
| Hz | 50/60 Hz |
| Overall Width | 8.43 in |
| Capacity - Batteries | 2200 VA/1800 W |
| Input Connection | NEMA 5-20P Plug |
| Battery Type | VRLA |
| Housing Material | Steel |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| Internal UPS Replacement Battery Cartridge | RBC48-SUTWR |
| Battery Mode BTU / Hr. (Full Load) | 1,087 |
| Battery Access | Battery access door |
| AC Economy Mode Efficiency Rating (100% Load) | 0.97 |
| Output Voltage Regulation (Economy Line Mode) | +/- 10% |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications |
| Output kVA Capacity (kVA) | 2.2 |
| Half Load Runtime (min.) | 13 min |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| Primary UPS Height (mm) | 259 |
| Audible Noise | < 50.5 dB at front side 1m |
| Recommended Electrical Service | 20A 120V |
| Output kW Capacity (kW) | 1.8 |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Nominal Input Voltage Description | 120V factory default |
| Voltage Regulation Description | Online, double-conversion power conditioning |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Rated input current (Maximum Load) | 16 A |
| Nominal Input Voltage(s) Supported | 100 V AC, 110 V AC, 120 V AC, 127 V AC |
| UPS AC Suppression Response Time | Instantaneous |
| Communications Cable | USB and DB9 cabling included |
| Cooling Method | Fan |
| Output Volt Amp Capacity (VA) | 2,200 |
| Expandable Runtime | Yes |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| External Battery Pack Compatibility | BP48V27-2US (multi-pack compatible); BP48V60RT-3U (multi-pack compatible) |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD, RELAYIOCARD, MODBUSCARD |
| Full Load Runtime (min.) | 4 min 30 sec |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Power Factor | 0.82 |
| Individually Controllable Load Banks | Yes |
| Frequency Compatibility Details | ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency when input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal. |

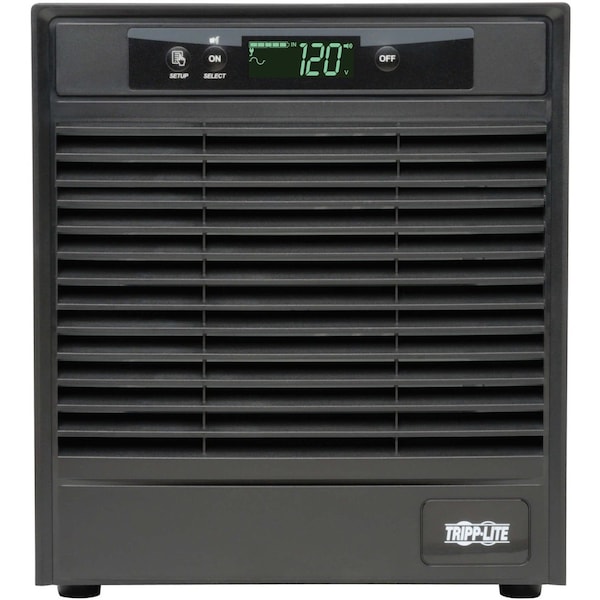

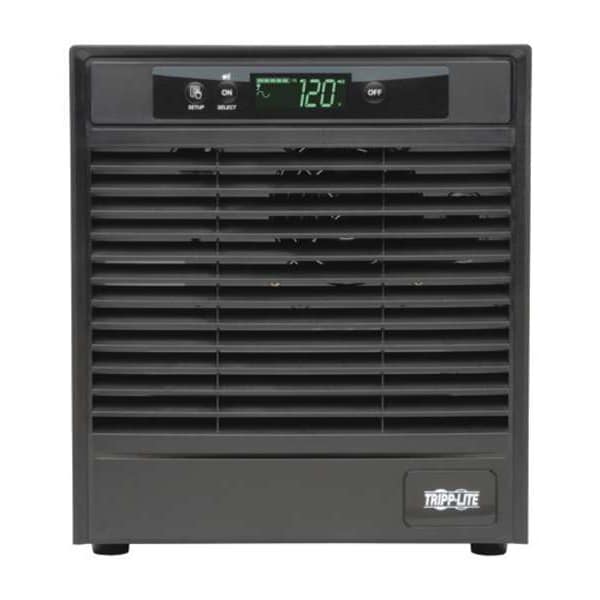

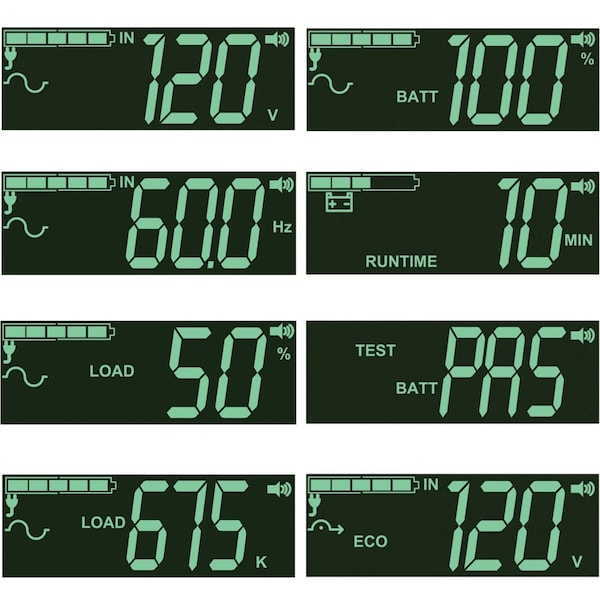

| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options |
| Overvoltage Correction | 2% output voltage regulation during overvoltages to 150 |
| Output Voltage Regulation (Battery Mode) | +/- 3% |
| DC System Voltage (VDC) | 48 |
| UPS Power Module Dimensions (hwd, in.) | 10.2 x 9 x 19.5 |
| Primary UPS Depth (mm) | 495 |
| AC Mode BTU / Hr. (Full Load) | 684 |
| Input Circuit Breakers | 30A |
| Primary Form Factor | Tower |
| Nominal Output Voltage(s) Supported | 100 V, 110 V, 115 V, 120 V, 127 V |
| Relative Humidity | 0 to 95%, non-condensing |
| Battery Recharge Rate (Included Batteries) | Less than 3 hours from 10% to 90% |
| AC Mode Efficiency Rating (100% Load) | 0.92 |
| High Availability UPS Features | Automatic inverter bypass; Hot swappable batteries |
| Communications Interface | USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface |
| Low Voltage Transfer to Battery Power (Setpoint) | 55V (33% load), 70V (70% load), 100V (100% load) |
| Operating Elevation (m) | Up to 3000m |
| EMI / RFI AC Noise Suppression | Yes |
| Output Capacity Details | ON LINE MODE: Maximum output capacity rating is reduced to 1620W (115V), 1530W (110V) and 1440W (100V); FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 1260 watts, 115V 1134 watts, 110V 1071 watts, 100V 1008 watts) OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits) |
| AC Economy Mode BTU / Hr. (Full Load) | 190 |
| UPS AC Suppression Joule Rating | 570 |
| Load Management Receptacles | Two switchable three-outlet load banks |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) |
| Input Phase | Single-Phase |
| Undervoltage Correction | 2% output voltage regulation during undervoltages to 55V (33% load), 70V (70% load), 100V (100% load) |
| UPS Input Cord Length (ft.) | 10 |
| Crest Factor | 0.125694444444444 |
| Output Watt Capacity (Watts) | 1,800 |
| High Voltage Transfer to Battery Power (Setpoint) | 150 |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Expandable Runtime Description | External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details |
| Emergency Power OFF | Yes |
| USB | Yes |
| Hot Swappable | Yes |
| Software Included | PowerAlert Software |
| Load Capacity | 2200 VA/1800 W |
| Package Contents | SmartOnline SU2200XLCD 2200VA Tower UPS, PowerAlert Software CD, USB and DB9 Cabling, Owner's Manual with Warranty Information, EPO (Emergency Power Off) Cabling |
| Typical Battery Recharge Time | 3 hr |
| Serial Port | Yes |
| Bypass Switch | Automatic |
| Form Factor | Tower |
| Network Management | SNMP Manageable |
| Input Cord Length (ft.) | 8 |
| Installation Form Factors Supported with Included Accessories | Tower |
| Product Compliance | CE (Europe); FCC (USA) |
| AC Suppression Response Time | Instantaneous |
| Power Factor (Input) | 0.99 |
| Online Mode Heat Dissipation (BTU/Hr) @ Full Load | 682 |
| Unit Dimensions (hwd / in.) | 13.63 x 8.43 x 16.23 |
| Output Capacity (VA) | 1,960 |
| Product Certifications | cUL Listed |
| Output Capacity (Watts) | 1,770 |
| UPS Applications | Mission Critical Applications |
| Package Includes | 1960VA 1770W 120V Double-Conversion UPS;USB cable;DB9 cable;Quick Start Guide |
| External Battery Pack Part Number | BP96V |
| Output Ports Included | DB9 Serial, USB |
| Operating Temperature - Minimum | 32 deg F |
| External Battery Compatible | External Battery Pack Compatible |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Power Rating - Real | 1.77 kW |
| Power Cord Length | 10 ft |
| Manufacturer Warranty | 2 yr |
| Operating Temperature - Maximum | 104 deg F |
| Replacement Battery Part Number | 744-A4313 |
| Audible Alarm Conditions | Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup |
| Input Current - Maximum | 16 A |
| Surge Suppression Rating | 190 J |
| Package Quantity | 1 |
