UPS System, 1kVA, Line Interactive, Out: 110/115/120V In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 1 kVA |
| Mounting | Rack |
| Wattage | 800 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 15 min/5.3 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 6 |
| Automatic Volts Regulation | Yes |
| Ports | EPO, RS232, Slot for SNMPWEBCARD, USB |
| Hz | 60 Hz |
| NEMA Plug Configuration | 5-15P |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Footnotes | Slot for SNMPWEBCARD |
| Includes | DB9 Cable, EPO Cables, Mounting Hardware, SMART1000RM2U SmartPro120V 1kVA 800W Line-Interactive Sine Wave UPS, USB Cables |
| NEMA Receptacle Configuration | 5-15R |
| Depth | 13 in |
| Display Type | LCD |
| Height | 3 in |
| Transfer Time | 2 to 4 msec |
| Input Current | 9.2 A |
| Special Features | Hot Swappable Batteries |
| VA Rating - UPS Systems | 1 kVA |
| Standards | CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778 |
| Phase | Single |
| Cord Length | 10 ft |
| Width | 13 in |
| Fax/Modem Line Protection | No |
| Overall Width | 17.35 in |
| Input Connection | NEMA 5-15P Plug |
| Battery Type | VRLA |
| Housing Material | Steel |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Audible Noise | 45 dBA maximum, front side 1m |
| UPS Power Module Dimensions (hwd, in.) | 3.45 x 17.35 x 12.5 |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Minimum Required Rack Depth (inches) | 15.5 |
| Grounding Lug | Back panel grounding lug |
| Rated input current (Maximum Load) | 9.2 A |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| AC Mode BTU / Hr. (Full Load) | 134 |

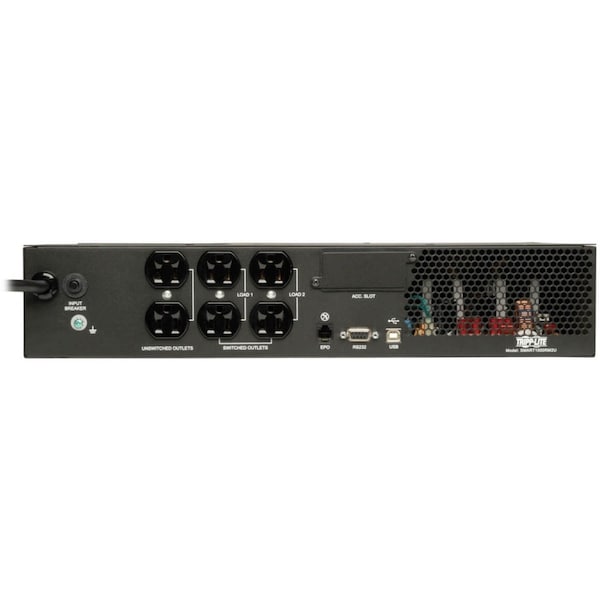

| Load Management Receptacles | Two switchable two-outlet 5-15R load banks |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD |
| Battery Recharge Rate (Included Batteries) | Less than 4 hours from 10% to 90% (typical, full load discharge) |
| Expandable Runtime | No |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| Output Watt Capacity (Watts) | 800 |
| Power Factor | 0.8 |
| Rack Height | 2 U |
| Low Voltage Transfer to Battery Power (Setpoint) | 83 |
| Output Voltage Regulation (Line Mode) | -21%, +8% |
| Individually Controllable Load Banks | Yes |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Battery Mode BTU / Hr. (Full Load) | 600 |
| Switches | 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions |
| Half Load Runtime (min.) | 15 min |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| Output kVA Capacity (kVA) | 1 |
| Relative Humidity | 0 to 95%, non-condensing |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Input Phase | Single-Phase |
| Communications Interface | USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Internal UPS Replacement Battery Cartridge | Current version uses RBC24V-LCD ; Prior versions used RBC92-2U ; Check the label inside the battery door to verify the appropriate replacement battery part number |
| Primary UPS Depth (mm) | 318 |
| Output Volt Amp Capacity (VA) | 1,000 |
| UPS Input Cord Length (ft.) | 10 |
| Recommended Electrical Service | 15A 120V |
| UPS AC Suppression Joule Rating | 570 |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| EMI / RFI AC Noise Suppression | Yes |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI) |
| High Availability UPS Features | Hot swappable batteries |
| Full Load Runtime (min.) | 5 min 18 sec |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Input Circuit Breakers | 15A |
| Primary Form Factor | Rackmount |
| Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Cooling Method | Fan |

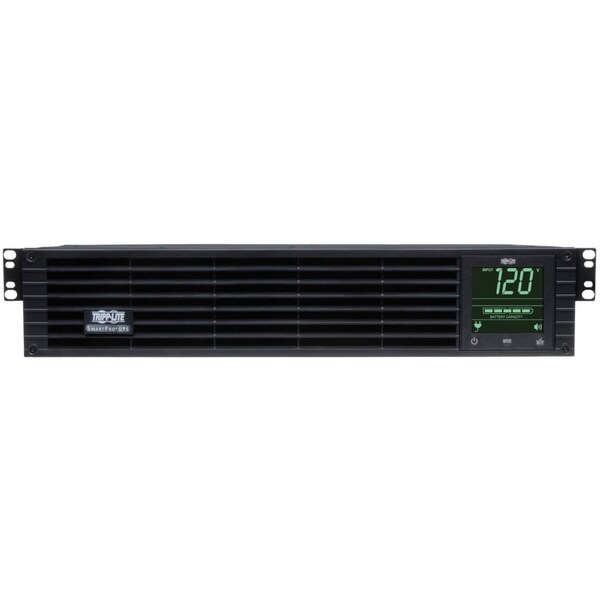

| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) |
| Undervoltage Correction | Input voltages between 83 and 107 are boosted by 14% |
| Battery Access | Front panel battery access door |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| AC Mode Efficiency Rating (100% Load) | 0.95 |
| Communications Cable | USB and DB9 cabling included |
| Nominal Input Voltage(s) Supported | 120 V AC |
| DC System Voltage (VDC) | 24 |
| Primary UPS Height (mm) | 88 |
| UPS AC Suppression Response Time | Instantaneous |
| Waveform Type | Sine Wave |
| Network Management | SNMP Manageable |
| Typical Battery Recharge Time | 4 hr |
| Total Number of Expansion Slots | 1 |
| Load Capacity | 1000 VA/800 W |
| Software Included | PowerAlert Software |
| USB | Yes |
| Emergency Power OFF | Yes |
| Hot Swappable | Yes |
| Alarm | Low Battery, Overload, On Battery |
| Maximum Operating Temperature | 104°F |

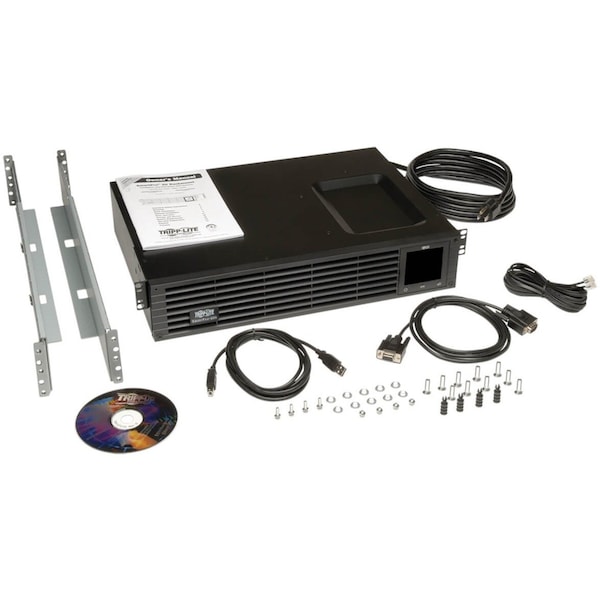

| Package Contents | SMART1000RM2U UPS System, PowerAlert Software CD, Serial & EPO Cabling, 4 x Post Rackmount Installation Kit, Instruction Manual |
| UPS Applications | Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
| Output Capacity (Watts) | 800 |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Package Includes | SMART1000RM2U SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS;USB cable;DB9 cable;EPO cable;Mounting hardware;Owner's manual |
| Grounding Details | Back panel grounding lug |
| Output Capacity (VA) | 1,000 |
| Product Compliance | FCC Part 15 Class B (USA) |
| Includes Battery | Battery Included |
| Power Rating - Real | 800 W |
| Manufacturer Warranty | 2 yr |
| Data Line Protection | Includes Data Line Surge Protection |
| Operating Temperature - Maximum | 104 deg F |
| Operating Temperature - Minimum | 32 deg F |
| Surge Suppression Rating | 570 J |
| Output Ports Included | DB9 Serial, EPO, SNMP, USB |
| Battery Recharge Time | 4 hr |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Audible Alarm Conditions | Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup |
| Power Cord Length | 10 ft |
| External Battery Compatible | Not External Battery Pack Compatible |
| Input Current - Maximum | 9.2 A |
| Package Quantity | 1 |
