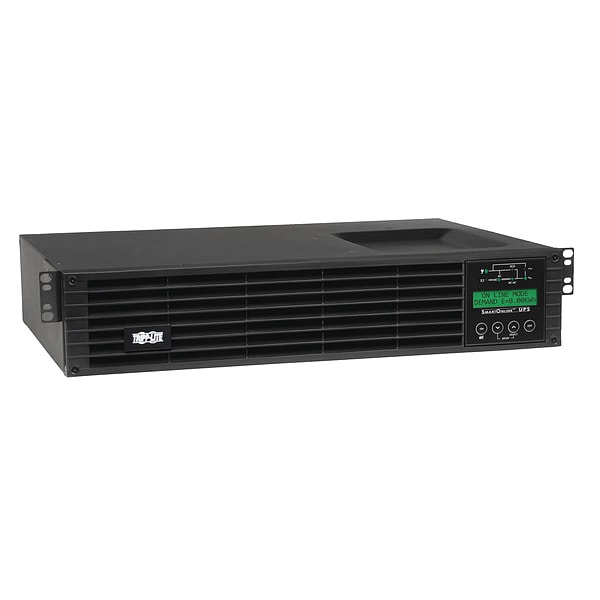

UPS System, 1kVA, Online/Double Conversion, Out: 100/110/115/120/127V AC In: 100/115/120/127V AC
| Item | UPS System |
|---|---|
| VA Rating - UPS Systems | 1 kVA |
| UPS Type | Online, Double Conversion |
| Power Rating | 1 kVA |
| Mounting | Rack |
| Wattage | 900 W |
| Input Voltage | 100/115/120/127V AC |
| Output Voltage | 100/110/115/120/127V AC |
| Backup Time (Half/Full Load) | 18.2 min/6.3 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 6 |
| Cord Length | No Cord |
| Depth | 13 in |
| Hz | 50/60 Hz |
| Fax/Modem Line Protection | Yes |
| Phase | Single |
| Automatic Volts Regulation | Yes |
| Special Features | Hot-Swappable Batteries |
| Standards | CSA (Canada), ENERGY STAR Qualified, FCC Part 15 Class B (USA), RoHS, UL1778, , WEEE |
| Transfer Time | 0 msec |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Plug Configuration | 5-15P |
| Includes | (4) Post Rack Mounting Hardware, EPO Cables, RS-232 Cable, USB Cables |
| Ports | DB9 Serial, EPO, USB |
| Height | 4 in |
| Display Type | LCD |
| Width | 13 in |
| Input Current | 8.6 A |
| Overall Height | 3.41 in |
| Overall Width | 17.33 in |
| Capacity - Batteries | 1000 VA/900 W |
| Input Connection | NEMA 5-15P Plug |
| Housing Material | Steel |
| Battery Type | VRLA |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Power Factor | 0.9 |
| Input Circuit Breakers | 15A |
| Undervoltage Correction | Corrects undervoltages to 100V at full load (90V at 100V nominal) |
| External Battery Pack Compatibility | BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible); BP24V36-2US (multi-pack compatible) |
| Overvoltage Correction | Corrects overvoltages to 150V (0-100% load) |
| AC Economy Mode BTU / Hr. (Full Load) | 231 |
| Cooling Method | Fan |
| Primary UPS Height (mm) | 89 |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| AC Economy Mode Efficiency Rating (100% Load) | 0.93 |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| UPS AC Suppression Response Time | Instantaneous |
| Recommended Electrical Service | 15A 120V |
| Battery Access | Front panel battery access |
| Minimum Required Rack Depth without External Battery Pack (in.) | 15.5 |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| UPS Certifications | ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to UL1778 (USA) |
| AC Mode BTU / Hr. (Full Load) | 341 |
| Minimum Required Rack Depth with External Battery Pack (in.) | 15.5 |
| Battery Mode BTU / Hr. (Full Load) | 585 |
| Primary UPS Depth (mm) | 318 |
| Output Voltage Regulation (Battery Mode) | +/- 3% |
| Full Load Runtime (min.) | 4 min 48 sec |
| Nominal Input Voltage Description | 120V factory default |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| UPS Power Module Dimensions (hwd, in.) | 3.5 x 17.5 x 12.5 |
| Output Watt Capacity (Watts) | 900 |
| UPS AC Suppression Joule Rating | 570 |
| Individually Controllable Load Banks | No |
| Communications Interface | USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface |
| Load Management Receptacles | Two switchable single-outlet 5-15R load banks |
| Low Voltage Transfer to Battery Power (Setpoint) | 100V at full load (90V full load at 100V nominal setting); 70V at 70% load; 55V at 33% load |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Battery Recharge Rate (Included Batteries) | Less than 3 hours recharge to 90% (typical, full load discharge) |
| Relative Humidity | 0 to 95%, non-condensing |
| High Availability UPS Features | Automatic inverter bypass; Battery Independent Restart; Hot swappable batteries |
| Half Load Runtime (min.) | 14 min |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Nominal Input Voltage(s) Supported | 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC |
| Rack Height | 2 U |
| Output Capacity Details | ON LINE MODE: Maximum output capacity is reduced to 608 watts at 100V nominal; FREQUENCY / REGULATION CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120/115/110V 630 watts / 100V 567 watts). OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits) |
| Voltage Regulation Description | Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and overvoltages |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| Primary Form Factor | Rackmount |
| Expandable Runtime | Yes |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD, RELAYIOCARD, MODBUSCARD |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Output kVA Capacity (kVA) | 1 |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Rated input current (Maximum Load) | 8.6A |
| Output kW Capacity (kW) | 0.9 |
| EMI / RFI AC Noise Suppression | Yes |
| Switches | 2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select options enable LCD status viewing and configuration options |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| LED Indicators | 7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation and AC output status |
| DC System Voltage (VDC) | 24 |
| Nominal Output Voltage(s) Supported | 100 V, 110 V, 115 V, 120 V, 127 V |
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Input Phase | Single-Phase |
| High Voltage Transfer to Battery Power (Setpoint) | 150 |
| Frequency Compatibility Details | ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz. |
| Expandable Runtime Description | Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details |
| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options |
| Output Volt Amp Capacity (VA) | 1,000 |
| Internal UPS Replacement Battery Cartridge | RBC24V-LCD |
| Audible Noise | 45 dBA at 1m front side |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Crest Factor | 0.125694444444444 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Output Voltage Regulation (Economy Line Mode) | +/- 10% |
| Operating Elevation (m) | Up to 3000m |
| Communications Cable | USB and DB9 cabling included |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| Severe Undervoltage Correction | Corrects brownouts to 70V (70% load) & 55V (33% load) |
| UPS Input Cord Length (ft.) | 10 |
| Form Factor | Tower, Rack |
| Bypass Switch | Automatic |
| Load Capacity | 1000 VA/900 W |

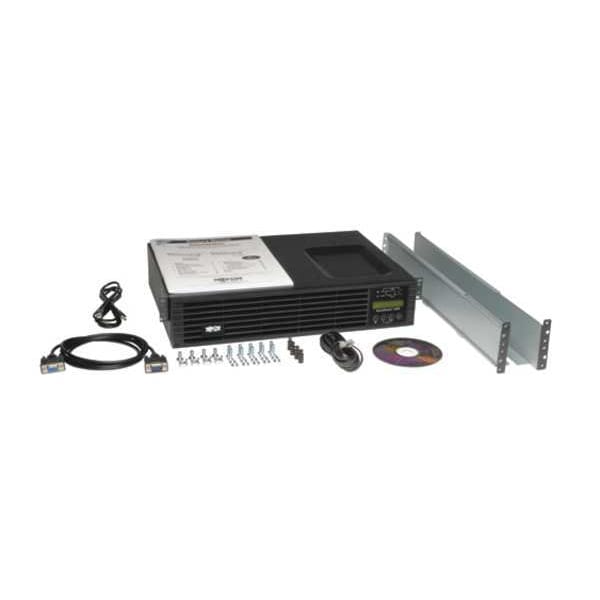

| Package Contents | SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS, PowerAlert UPS Monitoring Software CD, USB Cable, Serial Cable, EPO Cable, 4 Post Rackmount Installation Kit, Instruction Manual |
| Emergency Power OFF | Yes |
| Software Included | PowerAlert UPS Monitoring Software |
| Serial Port | Yes |
| Typical Battery Recharge Time | 3 hr |
| Hot Swappable | Yes |
| USB | Yes |
| Network Management | SNMP Manageable |
| Overall Depth | 17.72 in |
| Audible Alarm Conditions | Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup |
| External Battery Compatible | External Battery Pack Compatible |
| Power Rating - Real | 900 W |
| Number of Outlets - Surge Only | 6 |
| Receptacle Configuration | 5-15R |
| Operating Temperature - Maximum | 104 deg F |
| Frequency | 50/60 Hz |
| Input Current - Maximum | 8.6 A |
| Includes Battery | Battery Included |
| External Battery Pack Part Number | BP24V15RT2U, BP24V28-2U, BP24V36-2US, BP24V70-3U |
| Battery Recharge Time | 3 hr |
| Replacement Battery Part Number | RBC24V-LCD |
| Power Cord Length | Not Applicable |
| Operating Temperature - Minimum | 32 deg F |
| Manufacturer Warranty | 2 yr |
| Output Ports Included | DB9 Serial, EPO, USB |
| Surge Suppression Rating | 570 J |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Battery Chemistry | Valve Regulated Lead Acid |
| Package Quantity | 1 |
