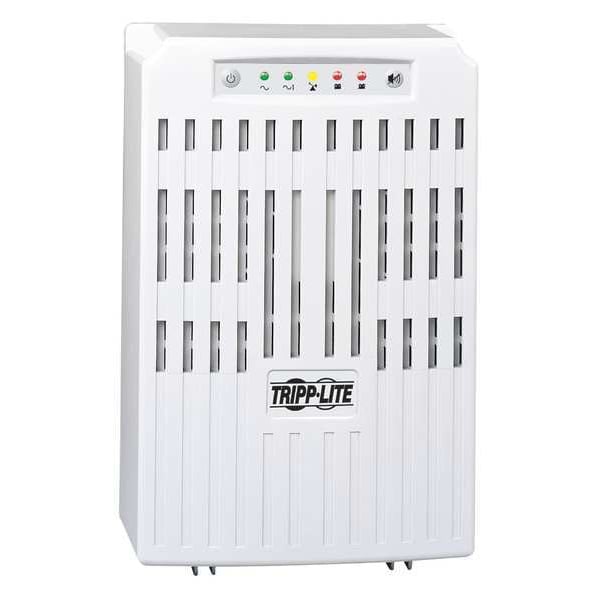

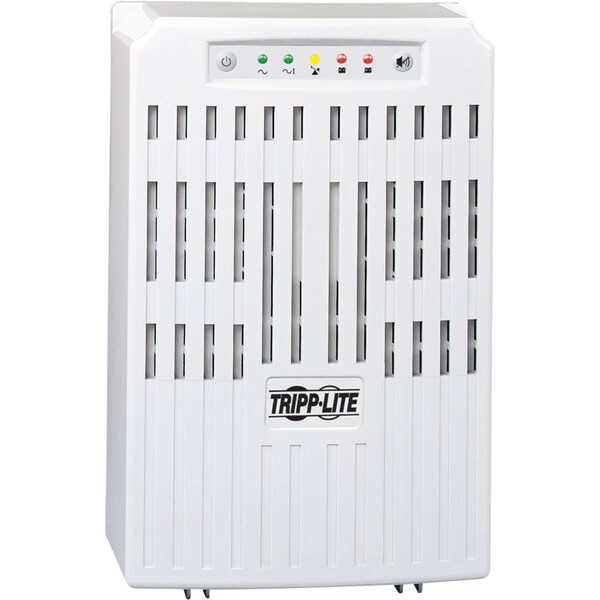

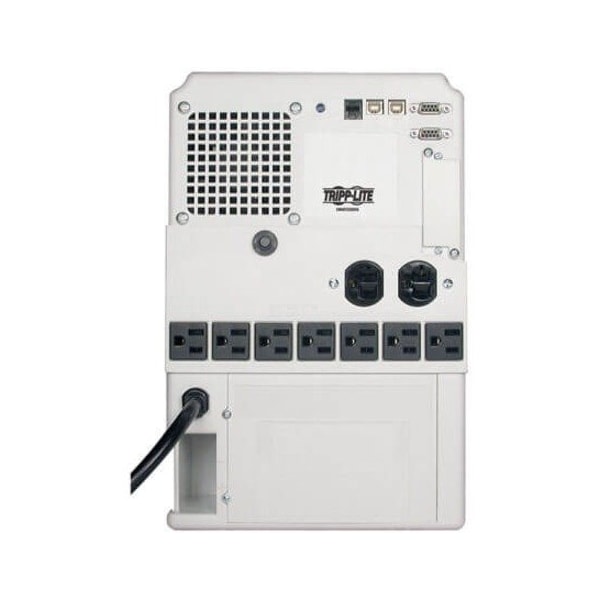

UPS System, 2.2kVA, Line Interactive, Out: 110/115/120V In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 2.2 kVA |
| Mounting | Tower |
| Wattage | 1.6 kW |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 19 min/7 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 9 |
| Fax/Modem Line Protection | No |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Width | 12 in |
| Cord Length | 8 ft |
| Hz | 60 Hz |
| Standards | CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778 |
| Phase | Single |
| Display Type | LED |
| Includes | PowerAlert Software and Cables |
| Special Features | Cold Start Operation Supported, Hot Swappable Batteries, Individually Controllable Load Banks |
| VA Rating - UPS Systems | 2.2 kVA |
| NEMA Plug Configuration | 5-15P |
| Input Current | 16 A |
| Transfer Time | 2 to 4 msec |
| Height | 14 in |
| NEMA Receptacle Configuration | 5-15R; 5-15/20R |
| Depth | 12 in |
| Ports | EPO, RS232, Slot for SNMPWEBCARD, USB |
| Footnotes | Slot for SNMPWEBCARD |
| Automatic Volts Regulation | Yes |
| Overall Height | 14.2 in |
| Overall Width | 9.2 in |
| Capacity - Batteries | 2200 VA/1600 W |
| Operating Temp. Range | 104°F (40°C) |
| Battery Type | Sealed Lead Acid |
| Input Connection | NEMA 5-15P Plug |
| Housing Material | Polycarbonate |
| UPS Input Cord Length (ft.) | 8 |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| Primary UPS Height (mm) | 361 |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| EMI / RFI AC Noise Suppression | Yes |
| Rated input current (Maximum Load) | 16A |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total) |
| Low Voltage Transfer to Battery Power (Setpoint) | 79 |
| AC Mode Efficiency Rating (100% Load) | 0.94 |
| Undervoltage Correction | Input voltages between 95 and 104 are boosted by 12% |
| Output Volt Amp Capacity (VA) | 2,200 |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) |
| Output kW Capacity (kW) | 1.6 |
| Output Voltage Regulation (Line Mode) | -2.25 |
| Communications Cable | 2 USB and 2 DB9 cables included |
| Communications Interface | Contact closure; DB9 Serial; Slot for SNMP/Web interface; USB |
| Expandable Runtime | No |
| Severe Undervoltage Correction | Input voltages between 79 and 94 are boosted by 24% |
| Audible Noise | Audible Noise < 47dBA At Front Side 1 Meter |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Primary UPS Depth (mm) | 305 |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Cooling Method | Fan |
| Full Load Runtime (min.) | 7 min |
| UPS Power Module Dimensions (hwd, in.) | 14.2 x 9.2 x 12 |
| Input Phase | Single-Phase |
| Load Management Receptacles | Three switchable two-outlet 5-15R load banks |
| High Availability UPS Features | Hot swappable batteries |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Individually Controllable Load Banks | Yes |
| UPS AC Suppression Response Time | Instantaneous |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79V to 147V |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Recommended Electrical Service | 20A 120V |
| DC System Voltage (VDC) | 48 |
| UPS AC Suppression Joule Rating | 480 |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| Internal UPS Replacement Battery Cartridge | RBC54 |
| Relative Humidity | 0 to 95%, non-condensing |
| Power Factor | 0.73 |
| Output Watt Capacity (Watts) | 1,600 |
| Output kVA Capacity (kVA) | 2.2 |
| Input Circuit Breakers | 20A |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Battery Recharge Rate (Included Batteries) | Less than 4 hours from 10% to 90% (typical, full load discharge) |
| Half Load Runtime (min.) | 19 min |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Primary Form Factor | Tower |
| Battery Access | Battery access door |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Maximum Operating Temperature | 104°F |
| Battery Chemistry | Valve Regulated Lead Acid |
| Package Contents | SmartPro SMART2200VS UPS, SMART 2200VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual |
| Status Indicators | Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information |
| Form Factor | Tower |
| Emergency Power OFF | Yes |
| Battery Life | 6 yr |
| Network Management | SNMP Manageable |
| Load Capacity | 2200 VA/1600 W |
| Typical Battery Recharge Time | 4 hr |
| Total Number of Expansion Slots | 1 |
| USB | Yes |
| Alarm | Low Battery, Overload, On Battery |
| Hot Swappable | Yes |
| Package Includes | SMART 2200VS UPS System,;USB and DB9 Serial cabling;User manual |
| Output Capacity (Watts) | 1,600 |
| Output Capacity (VA) | 2,200 |
| Product Compliance | FCC Part 15 Class A (USA) |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Installation Form Factors Supported with Included Accessories | Tower |
| UPS Applications | Large Network |
| Power Rating - Real | 1.6 kW |
| Frequency | 60 Hz |
| Operating Temperature - Minimum | 32 deg F |
| Surge Suppression Rating | 480 J |
| Input Current - Maximum | 16 A |
| Battery Recharge Time | 4 hr |
| Overall Depth | 12 in |
| External Battery Compatible | Not External Battery Pack Compatible |
| Power Cord Length | 8 ft |
| Receptacle Configuration | 5-20R, 5-15R |
| Includes Battery | Battery Included |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Number of Outlets - Surge Only | 9 |
| Audible Alarm Conditions | Low Battery, Overload, Power Outage |
| Manufacturer Warranty | 2 yr, 3 yr (Registration) |
| Operating Temperature - Maximum | 104 deg F |
| Output Ports Included | EPO, RS-232, SNMP, USB |
| Data Line Protection | Includes Data Line Surge Protection |
| Package Quantity | 1 |
