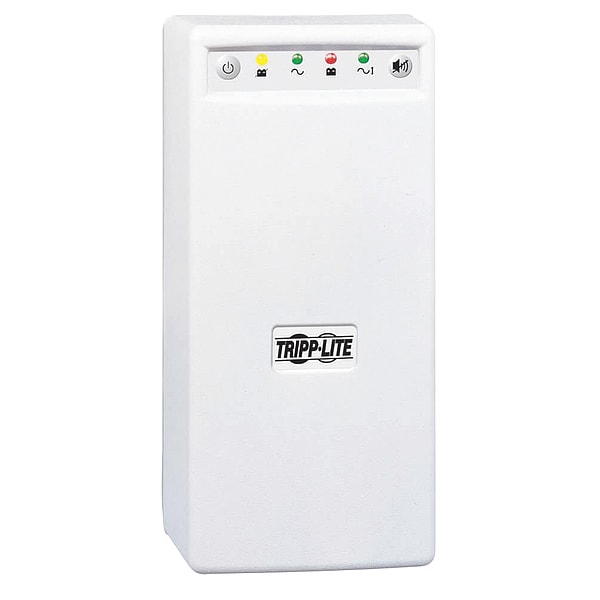

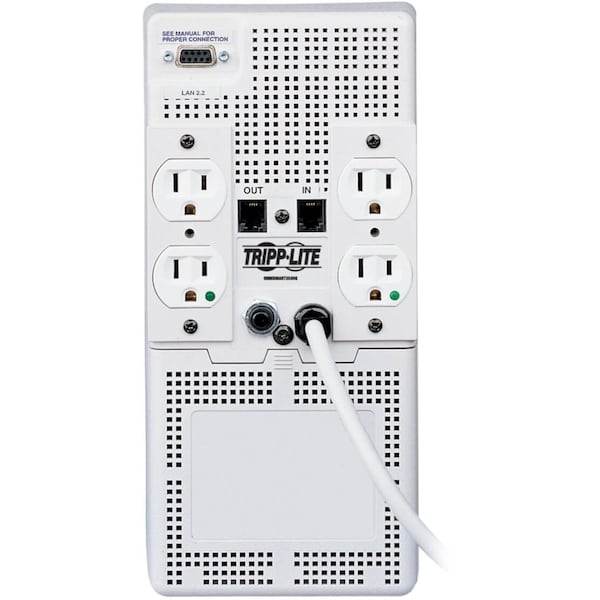

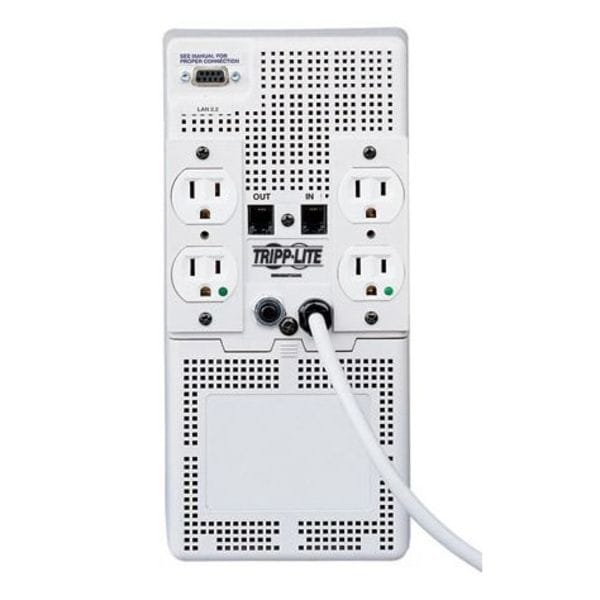

UPS System, 330VA, Line Interactive, Out: 120V AC In: 120V AC
| VA Rating - UPS Systems | 330 VA |
|---|---|
| Item | UPS System |
| UPS Type | Line Interactive |
| Power Rating | 330 VA |
| Mounting | Tower, Wall |
| Wattage | 225 W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 46 min/18 min |
| Outlet Type | UPS/Surge |
| Medical Grade | Yes |
| Number of Outlets | 4 |
| Width | 7 in |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Special Features | Poweralert Software, Voltage Regulation |
| Automatic Volts Regulation | Yes |
| Cord Length | 6 ft |
| Display Type | No Display |
| NEMA Plug Configuration | 5-15P |
| NEMA Receptacle Configuration | 5-15R |
| Fax/Modem Line Protection | Yes |
| Input Current | 2.3 A |
| Height | 11 in |
| Depth | 7 in |
| Phase | Single |
| Includes | Serial Cable for Remote Monitoring, UPS System |
| Ports | DB9 Serial |
| Hz | 60 Hz |
| Transfer Time | 2 to 4 msec |
| Standards | CSA, FCC Part 15 Class B, RoHS, UL 60601-1, UL1778 |
| Footnotes | 3,6,14 |
| Overall Width | 5.2 in |
| Voltage | 120 |
| Capacity - Batteries | 330 VA/225 W |
| Operating Temp. Range | 104°F (40°C) |
| Battery Type | Sealed Lead Acid |
| Input Connection | 6 ft Cord with NEMA 5-15P-HG Plug |
| Housing Material | PVC |
| Output Volt Amp Capacity (VA) | 330 |
| UPS Power Module Dimensions (hwd, in.) | 10.8 x 5.2 x 7.2 |
| Primary UPS Depth (mm) | 183 |
| Output Receptacle Details | Hospital grade output receptacles |
| AC Mode BTU / Hr. (Full Load) | 48.8 |
| UPS Input Cord Length (ft.) | 6 |
| Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% |
| Battery Mode BTU / Hr. (Full Load) | 215.8 |
| Primary Form Factor | Tower |
| Internal UPS Replacement Battery Cartridge | RBC52 (quantity 2) |
| Recommended Electrical Service | 15A 120V |
| UPS Dataline Suppression | 2 line TEL/DSL |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Expandable Runtime | No |
| Primary UPS Height (mm) | 274 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| UPS AC Suppression Response Time | Instantaneous |
| Output Watt Capacity (Watts) | 225 |
| Installation Form Factors Supported with Optional Accessories | Wallmount (UPSWM - tower mounting kit) |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89 |
| DC System Voltage (VDC) | 12 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Communications Cable | DB9 serial cable included |
| High Availability UPS Features | Hot swappable batteries |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Low Voltage Transfer to Battery Power (Setpoint) | 89 |
| Input Phase | Single-Phase |
| Relative Humidity | 0 to 95%, non-condensing |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
| AC Mode Efficiency Rating (100% Load) | 0.94 |
| EMI / RFI AC Noise Suppression | Yes |
| Output Voltage Regulation (Line Mode) | -18% +8% |
| High Voltage Transfer to Battery Power (Setpoint) | 139 |
| Battery Access | Battery access door |
| Half Load Runtime (min.) | 46 min |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| LED Indicators | 4 LEDs indicate line power, battery power, overload and battery low/replace status |
| Communications Interface | DB9 Serial |
| Installation Form Factors Supported with Included Accessories | Tower |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Full Load Runtime (min.) | 18 min |
| Input Circuit Breakers | 3.5A |
| Individually Controllable Load Banks | No |
| Undervoltage Correction | Input voltages between 89 and 107 are boosted by 14% |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI); Tested to UL60601-1 (medical grade) |
| Rated input current (Maximum Load) | 2.3 A |
| Output Isolation Transformer | Hospital grade load isolation transformer |
| Grounding Lug | Grounding lug |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Nominal Output Voltage(s) Supported | 120 V |
| Package Contents | OmniSmart 350HG UPS, OMNI SMART 350HG Hospital Grade UPS System, Serial cable for remote monitoring, Warranty information, Instruction manual |
| Typical Battery Recharge Time | 4 hr |
| Form Factor | Tower |
| Load Capacity | 330 VA/225 W |
| Additional Information | Ideal UPS protection for applications in medical patient-care areas where UL2601-1 listed electrical medical equipment is required, Maintains less than 300 microamps leakage current for UPS and all connected equipment, Line-interactive voltage regulation corrects brownouts as low as 83V without using battery power, Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections, Full line isolation prevents shock potential and operational problems in sensitive electronic equipment, Resistant to electrostatic discharge, Supports loads up to 330VA / 225 watts, 46 minutes half load runtime (with 165VAload), 18 minutes full load runtime (with 330VA load), 4 protected hospital-grade outlets; 6-ft. cord, 1-DB9 serial port for network interface; SNMP compatible, Complete surge protection, line isolation and EMI/RFI noise filtering, 2 phone line surge suppression for modems, fax machines and other phone accessories, 2 year product warranty, Complete remote monitoring cabling included, PowerAlert UPS managment software available via free download, 4 diagnostic LEDs indicate AC present, on battery, voltage correction & battery low/replace, Battery replacement door, Grounding lug |
| Network Management | SNMP Manageable |
| Battery Life | 6 yr |
| Status Indicators | Includes 4 front-panel status indicator LEDs for line power, battery power, voltage regulation and battery low/replace status |
| Alarm | On Battery |
| Maximum Operating Temperature | 104°F |
| Product Compliance | FCC Part 15 Class B (USA) |
| Grounding Details | Grounding lug |
| Package Includes | OMNI SMART 350HG Hospital Grade UPS System;Serial cable for remote monitoring;Warranty information;Instruction manual |
| Product Certifications | CSA (Canada); UL 1778; UL 60601-1 |
| Output Capacity (VA) | 330 |
| UPS Applications | Hospital/Medical |
| Battery Mode Heat Dissipation (BTU/Hr) @ Half Load | 78.3 |
| Output Capacity (Watts) | 225 |
| Visible Indicator Light Conditions | Battery Low, Replace Battery |
| Output Ports Included | DB9 Serial |
| Audible Alarm Conditions | Low Battery |
| External Battery Compatible | Not External Battery Pack Compatible |
| Power Cord Length | 6 ft |
| Power Rating - Real | 225 W |
| Replacement Battery Part Number | RBC52 |
| Operating Temperature - Minimum | 32 deg F |
| Includes Battery | Battery Included |
| Data Line Protection | Includes Data Line Surge Protection |
| Battery Recharge Time | 4 hr 30 min |
| Manufacturer Warranty | 2 yr (Limited) |
| Operating Temperature - Maximum | 104 deg F |
| Input Current - Maximum | 2.3 A |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Package Quantity | 1 |
