UPS System, 350VA, Standby, Out: 110/115/120V AC In: 120V AC
| VA Rating - UPS Systems | 350 VA |
|---|---|
| Item | UPS System |
| UPS Type | Standby |
| Power Rating | 350 VA |
| Mounting | Tower, Desktop |
| Wattage | 210 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 7 min/2 min |
| Outlet Type | (3) Surge; (3) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 6 |
| Footnotes | 4,6 |
| NEMA Receptacle Configuration | 5-15R |
| Depth | 6 in |
| Ports | TEL/DSL, USB |
| Special Features | Cold Start Operation Supported |
| Hz | 60 Hz |
| Cord Length | 6 ft |
| Fax/Modem Line Protection | Yes |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Width | 6 in |
| Automatic Volts Regulation | No |
| Display Type | No Display |
| Includes | UPS with 6 Outlets |
| Phase | Single |
| Height | 3 in |
| Input Current | 12 A |
| NEMA Plug Configuration | 5-15P |
| Transfer Time | 2 to 4 msec |
| Standards | CSA, FCC Part 15 Class A, NOM, RoHS, UL1778 |
| Overall Width | 4.33 in |
| Capacity - Batteries | 350 VA/210 W |
| Input Connection | NEMA 5-15P Plug |
| Housing Material | ABS |
| Battery Type | VRLA |
| UPS Power Module Dimensions (hwd, in.) | 4.13 x 4.33 x 7.28 |
| UPS Input Cord Length (ft.) | 5 |
| UPS AC Suppression Response Time | Instantaneous |
| Input Phase | Single-Phase |
| EMI / RFI AC Noise Suppression | Yes |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Switches | Power switch enables UPS on / off control |
| Primary UPS Depth (mm) | 185 |
| Half Load Runtime (min.) | 7 minutes (105W) |
| UPS Certifications | Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Primary UPS Height (mm) | 105 |
| UPS Certification Details | CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; Meets ISTA 2A Standard |
| Hot-Swap PDU options | PDUB15 (2U / 8 5-15R outlets) |
| Full Load Runtime (min.) | 2 minutes (210W) |
| UPS AC Suppression Joule Rating | 316 |
| Output Voltage Regulation (Battery Mode) | 120V±10% |
| Rated input current (Maximum Load) | 5 A |
| AC Mode BTU / Hr. (Full Load) | 13.07 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Battery Replacement Description | Replaceable internal battery (see manual) |
| Expandable Runtime | No |
| Installation Form Factors Supported with Included Accessories | Tower; Ultra-compact desktop; Wallmount |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Audible Alarm | Alarm reports low-battery, fault, overload and replace battery conditions; Alarm remains silent during battery mode operation until low-battery status occurs; See manual for additional alarm notifications |
| Storage Temperature Range | to +45 degrees Celsius |
| Communications Interface | None |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Output Volt Amp Capacity (VA) | 350 |

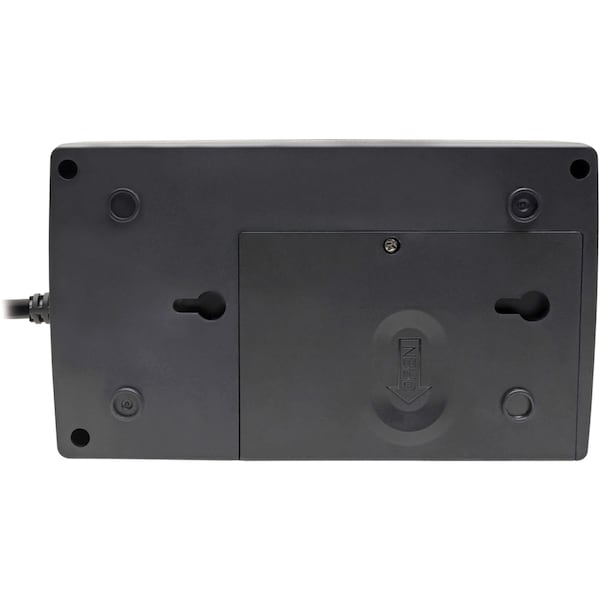

| Battery Access | Includes bottom panel battery access door |
| Relative Humidity | Up to 90%, non-condensing |
| Individually Controllable Load Banks | No |
| Frequency Compatibility Details | Auto-sensing |
| Internal UPS Replacement Battery Cartridge | IMPORTANT BATTERY REPLACEMENT INFORMATION > If your BC350 UPS has no battery access door, please contact a local electronics repair technician to source and install a matching replacement battery; If your BC350 UPS does have a battery replacement door and the original battery inside has a rating of 12V 2.8AH, please contact Tripp Lite for assistance |
| LED Indicators | Single green LED reports Line Power Mode (ON continuous), Battery Backup mode (flashes ON every 10 seconds); See manual for additional LED notifications |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Low Voltage Transfer to Battery Power (Setpoint) | 95 |
| AC Mode Efficiency Rating (100% Load) | >98% |
| Primary Form Factor | Desktop |
| High Voltage Transfer to Battery Power (Setpoint) | 145 |
| Output Voltage Regulation (Line Mode) | 120V±20% |
| Output Watt Capacity (Watts) | 210 |
| DC System Voltage (VDC) | 12 |
| Recommended Electrical Service | 15A 120V |
| Additional Information | Battery Mode: PWM sine wave output 115V +/-5% |
| Typical Battery Recharge Time | 4 hr |
| Form Factor | Desktop |
| Load Capacity | 350 VA/210 W |
| Package Contents | BC Series BC350 350VA Mini Desktop UPS, BC350 UPS System, Instruction manual with warranty information |
| Package Includes | BC350 120V 350VA 210W Standby UPS with 6 Outlets;Owner's manual |
| UPS Applications | Computer/Peripherals; Retail/Point of Sale; Hospitality |
| High Availability UPS Features | Surge/noise protection |
| Product Compliance | FCC Part 15 Class A (USA) |
| Output Capacity (VA) | 350 |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Output Capacity (Watts) | 210 |
| Audible Alarm Conditions | Low Battery, Overload, Replace Battery |
| Power Rating - Real | 210 W |
| Replacement Battery Part Number | BC350 |
| Input Current - Maximum | 5 A |
| Operating Temperature - Maximum | 104 deg F |
| Operating Temperature - Minimum | 32 deg F |
| Output Ports Included | USB |
| Includes Battery | Battery Included |
| External Battery Compatible | Not External Battery Pack Compatible |
| Visible Indicator Light Conditions | Battery Low, Fault, Overload, Replace Battery |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Power Cord Length | 5 ft |
| Surge Suppression Rating | 316 J |
| Manufacturer Warranty | 2 yr (Limited) |
| Data Line Protection | No Data Line Surge Protection |
| Package Quantity | 1 |
