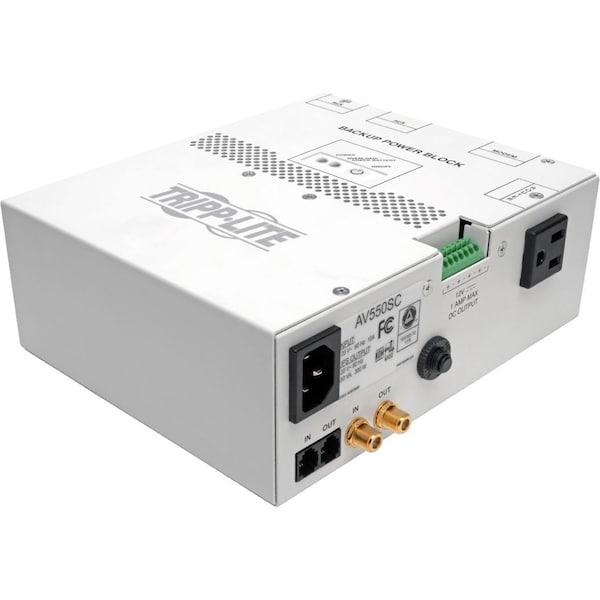

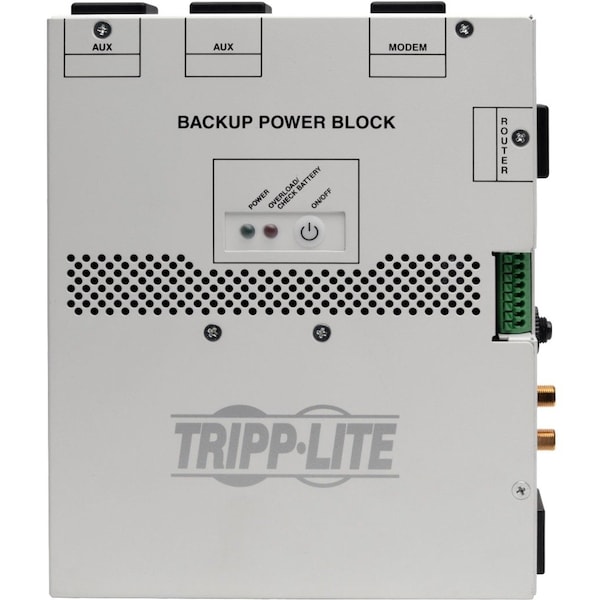

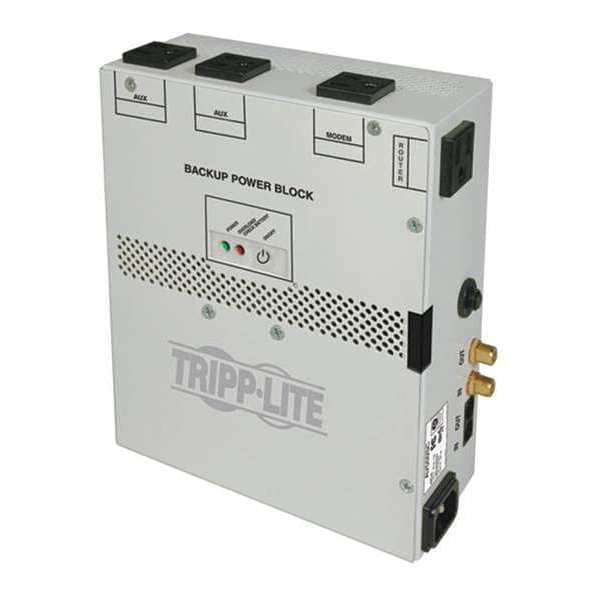

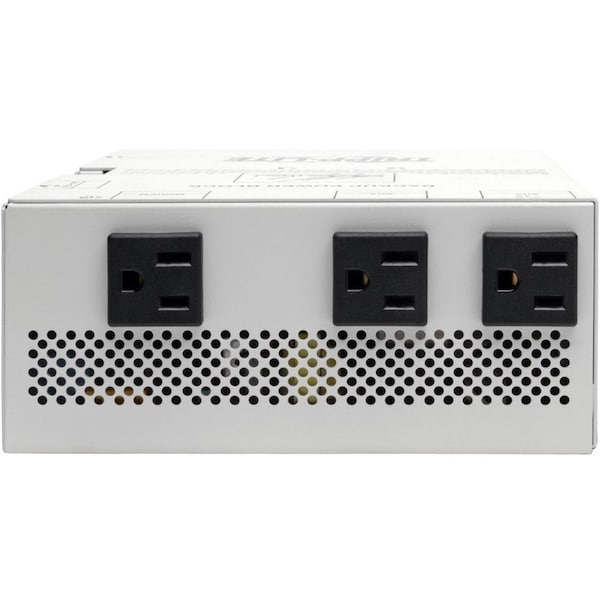

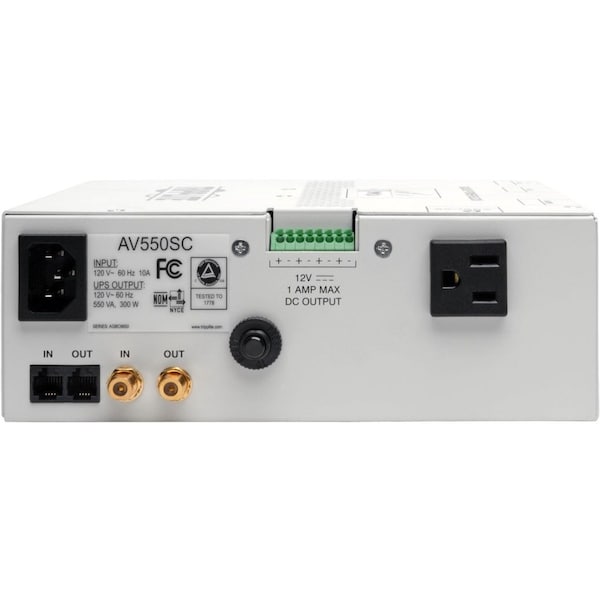

UPS System, 550VA, Standby, Out: 110/115/120V In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Standby |
| Power Rating | 550 VA |
| Mounting | Wall |
| Wattage | 300 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V |
| Backup Time (Half/Full Load) | 9.7 min/3.1 min |
| Number of Outlets | 4 |
| Hz | 60 Hz |
| Depth | 3 in |
| NEMA Plug Configuration | 5-15P |
| Width | 3 in |
| Standards | UL1778, FCC Part 15 Category B (EMI) |
| Height | 8.4 in |
| Transfer Time | 4 milliseconds |
| NEMA Receptacle Configuration | 5-15R |
| Housing Material | Sheet metal |
| Battery Type | VRLA |
| Telephone/DSL Protection | Yes |
| Rated input current (Maximum Load) | 10 A |
| AC Mode Efficiency Rating (100% Load) | 0.97 |
| Relative Humidity | 0 to 95%, non-condensing |
| Primary UPS Depth (mm) | 76 |
| LED Indicators | 2 LEDs indicate power status and overload/low battery status |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| UPS Power Module Dimensions (hwd, in.) | 8.3 x 6.8 x 3 |
| Primary Form Factor | Desktop |
| Input Phase | Single-Phase |
| AC Mode BTU / Hr. (Full Load) | 31 |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); Meets FCC Part 68 / Industrie Canada (telecommunications) |
| UPS Input Cord Length (ft.) | 0.5 |
| DC System Voltage (VDC) | 12 |
| Output Watt Capacity (Watts) | 300 |
| Low Voltage Transfer to Battery Power (Setpoint) | 99V |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Output Volt Amp Capacity (VA) | 550 |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); Coax jacks (1 set) |
| UPS Dataline Suppression Details | HD-compatible 2.2GHz coaxial protection |
| Battery Recharge Rate (Included Batteries) | Less than 9 hours from 10% to 90% |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Primary UPS Height (mm) | 211 |
| Expandable Runtime | No |
| UPS Input Connection Description | 5-15P input cable is detachable via C14 inlet on UPS |
| Half Load Runtime (min.) | 9 min 42 sec |
| Individually Controllable Load Banks | No |
| Switches | Includes 1 on/off push button (also acts as recycle/reset button) |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Installation Form Factors Supported with Included Accessories | Wallmount |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| EMI / RFI AC Noise Suppression | Yes |
| Full Load Runtime (min.) | 3 min 6 sec |
| Output Receptacle Details | One receptacle has a 60 second power-up delay |
| AC Suppression Joule Rating | 1,038 |
| Cable (Coax) Protection | Yes |
| Input Circuit Breakers | 10A |
| High Voltage Transfer to Battery Power (Setpoint) | 139V |
| Recommended Electrical Service | 15A 120V |
| Communications Interface | None |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Typical Battery Recharge Time | 9 hr |
| Form Factor | Tower |
| Package Contents | AV550SC 550VA Tower UPS, Detachable 6" IEC 60320 C14 Power Cord, Owner's Manual with Warranty Information |
| Load Capacity | 550 VA/300 W |
| Output Capacity Details | 4.6A @ 120V |
| Product Certifications | CSA (Canada); CAN/CSA-C22.2 No. 107.3 (Canada); NOM (Mexico); UL 1778 |
| High Availability UPS Features | Surge/noise protection |
| UPS Applications | Computer/Peripherals; Retail/Point of Sale; Hospitality |
| Product Compliance | FCC Part 68; FCC Part 15 Class B (USA) |
| Network (Ethernet) Protection | No |
| Output Capacity (VA) | 550 |
| Right-Angle Plug | No |
| Package Includes | AV550SC backup power block;Detachable 6 in. NEMA 5-15P power cord;Owner's manual with warranty information |
| Voltage Regulation Description | Input voltage range of 99 to 139 |
| Output Capacity (Watts) | 300 |
| Operating Elevation (ft.) | 6561 ft. (2000 m) above sea level |
| Package Quantity | 1 |
