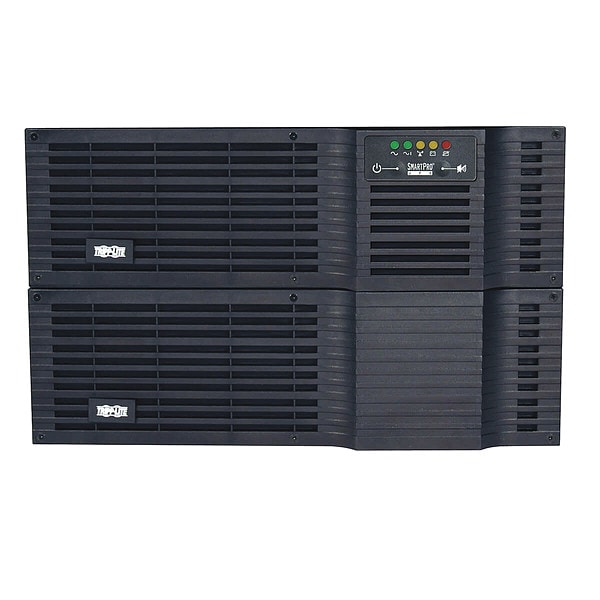

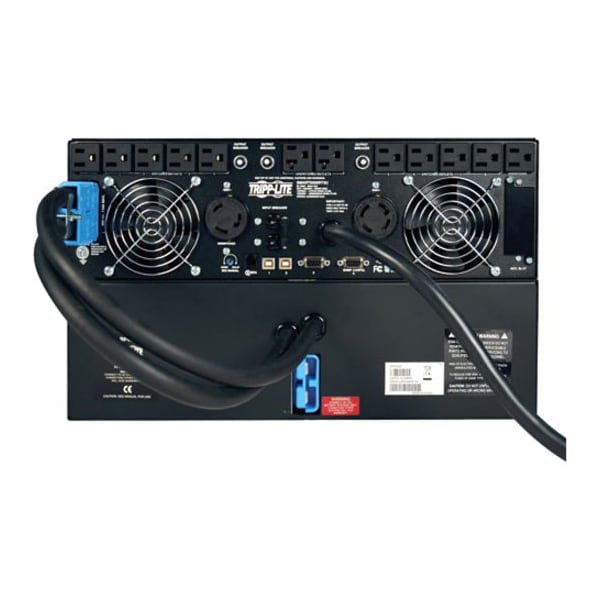

UPS System, 5kVA, Line Interactive, Out: 110/115/120/208V AC In: 208V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 5 kVA |
| Mounting | Rack |
| Wattage | 4 kW |
| Input Voltage | 208V AC |
| Output Voltage | 110/115/120/208V AC |
| Backup Time (Half/Full Load) | 38 min/16 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 14 |
| Display Type | LED |
| Phase | Single |
| Fax/Modem Line Protection | No |
| Height | 5 in |
| Depth | 23 in |
| Standards | CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, Trade Agreements Act (TAA), UL1778 |
| Special Features | Hot Swappable Batteries |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Cord Length | 10 ft |
| Input Current | 30 A |
| Hz | 60 Hz |
| Includes | BP48V60RT3U Battery Pack, Mounting Hardware, SM5000RT3UTAA UPS System, USB, DB9 and EPO Cabling |
| Transfer Time | 2 to 4 msec |
| NEMA Plug Configuration | L6-30P |
| Automatic Volts Regulation | Yes |
| Width | 23 in |
| Ports | DB9 Serial, EPO, USB |
| VA Rating - UPS Systems | 5 kVA |
| NEMA Receptacle Configuration | L6-30R, L14-30R, 5-15R; 5-15/20R |
| Green Certification or Other Recognition | UL1778FCC Part 15 Category A (EMI)TAA CompliantNAFTA, RoHS |
| Overall Width | 17-1/2 in |
| Overall Height | 5.2 in |
| Capacity - Batteries | 5000 VA/4000 W |
| Battery Type | Lead Acid |
| Housing Material | Steel |
| Low Voltage Transfer to Battery Power (Setpoint) | 151 |
| Expandable Runtime | Yes |
| Primary UPS Depth (mm) | 572 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Primary UPS Height (mm) | 132 |
| Undervoltage Correction | Input voltages between 180V and 199 are boosted by 12% |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| UPS Power Module Dimensions (hwd, in.) | 5.2 x 17.5 x 22.5 |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| UPS AC Suppression Joule Rating | 1,020 |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| Communications Cable | USB and DB9 cabling included |
| Load Management Receptacles | Eight switchable single-outlet 5-15R load banks |
| Output Watt Capacity (Watts) | 4,000 |
| Output Capacity Details | Maximum output increases to 4800W when hardwire or user supplied 50A rated input plug is used |
| Primary Form Factor | Rackmount |
| Half Load Runtime (min.) | 38 min |
| External Battery Pack Compatibility | BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible) |
| AC Mode Efficiency Rating (100% Load) | 0.94 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| UPS AC Suppression Response Time | Instantaneous |
| Frequency Compatibility | 60 Hz |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Relative Humidity | 0 to 95%, non-condensing |
| Individually Controllable Load Banks | Yes |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND ) |
| Power Factor | 0.8 |
| Overvoltage Correction | Input voltages between 240V and 282 are reduced by 12% |
| UPS Dimensions Details | Includes 3U UPS/power module and 3U external battery pack |
| Input Phase | Single-Phase |
| Communications Interface | Contact closure; DB9 Serial; Slot for SNMP/Web interface; USB |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Grounding Lug | Back panel grounding lug |
| Cooling Method | Fan |
| Output Volt Amp Capacity (VA) | 5,000 |
| Output kW Capacity (kW) | 4 |
| Output kVA Capacity (kVA) | 5 |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282 |
| Audible Noise | 45 dBA maximum, front side 1m |
| Nominal Input Voltage(s) Supported | 208 V AC |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Input Circuit Breakers | 30A double-pole |
| Output Circuit Breakers | 15A branch rated (x3) - 2 breakers support 5 5-15R outlets each, one breaker supports 2 5-20R outlets, L6-30R and L14-30R outlets are unbreakered |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V, 208 V |
| Battery Recharge Rate (Included Batteries) | 3 hours |
| Full Load Runtime (min.) | 16 min |
| Recommended Electrical Service | 30A 208V |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); TAA Compliant |
| UPS Input Cord Length (ft.) | 10 |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| DC System Voltage (VDC) | 48 |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Battery Mode BTU / Hr. (Full Load) | 1,518 |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Rack Height | 6 U |
| Output Voltage Regulation (Line Mode) | 120V, 208 |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD |
| High Voltage Transfer to Battery Power (Setpoint) | 282 |
| High Availability UPS Features | Hot swappable batteries |
| Minimum Required Rack Depth with External Battery Pack (in.) | 29.5 |
| Severe Undervoltage Correction | Input voltages between 151V and 179 are boosted by 24% |
| EMI / RFI AC Noise Suppression | Yes |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total) |
| Minimum Required Rack Depth without External Battery Pack (in.) | 28.25 |
| USB | Yes |
| Load Capacity | 5000 VA/4000 W |
| Emergency Power OFF | Yes |
| Certifications & Standards | UL1778, FCC Part 15 Category A (EMI), TAA Compliant, NAFTA |
| Software Included | PowerAlert Software |
| Serial Port | Yes |
| TAA Compliant | Yes |
| Typical Battery Recharge Time | 4 hr |
| Package Contents | SmartPro SM5000RT3UTAA 5000VA Tower/Rack Mountable UPS, BP48V60RT3U Battery Pack, PowerAlert Software CD, USB Cable, Serial Cable, Mounting Hardware, Instruction Manual with Warranty Information |
| Hot Swappable | Yes |
| Form Factor | Tower, Rack |
| Network Management | SNMP Manageable |
| Grounding Details | Back panel grounding lug |
| Package Includes | SM5000RT3UTAA UPS System;BP48V60RT3U battery pack;USB, DB9 and EPO Cabling;Mounting hardware;Instruction manual with warranty information |
| Output Capacity (VA) | 5,000 |
| Unit Dimensions (hwd / in.) | 5.2 x 17.53 x 22.52 |
| Battery Mode Heat Dissipation (BTU/Hr) @ Full Load | 1,518 |
| Product Compliance | FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Output Capacity (Watts) | 4,000 |
| UPS Applications | Large Network |
| Unit Dimension Details | Includes 3U UPS/power module and 3U external battery pack |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Minimum Required Rack Depth (inches) | 3 |
| Run Time - Half Load | 38 min |
| Transfer Time - Maximum | 4 msec |
| Receptacle Configuration | 5-20R, 5-15R, L14-30R, L6-30R |
| Audible Alarm Conditions | Low Battery, Overload, Power Outage |
| Battery Chemistry | Valve Regulated Lead Acid |
| External Battery Pack Part Number | BP48V24-2U, BP48V27-2US, BP48V60RT-3U |
| Data Line Protection | Includes Data Line Surge Protection |
| Operating Temperature - Maximum | 104 deg F |
| Surge Suppression Rating | 1,020 J |
| Plug Configuration | L6-30P |
| Includes Battery | Battery Included |
| Transfer Time - Minimum | 2 msec |
| Power Cord Length | 10 ft |
| Overall Depth | 22-1/2 in |
| Operating Temperature - Minimum | 32 deg F |
| Manufacturer Warranty | 2 yr |
| Frequency | 60 Hz |
| Battery Recharge Time | 3 hr |
| Number of Outlets - UPS | 14 |
| Power Rating - Apparent | 5 kVA |
| Run Time - Full Load | 16 min |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| External Battery Compatible | External Battery Pack Compatible |
| Input Current - Maximum | 30 A |
| Number of Outlets - Surge Only | 14 |
| Output Ports Included | Contact Closure, DB9 Serial, USB |
| Power Rating - Real | 4 kW |
| Package Quantity | 1 |
