UPS System, 600VA, Standby, Out: 110/115/120V AC In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Standby |
| Power Rating | 600 VA |
| Mounting | Tower, Desktop |
| Wattage | 325 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 4.5 min/1 min |
| Outlet Type | (4) Surge; (4) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 8 |
| Depth | 11 in |
| Fax/Modem Line Protection | Yes |
| Special Features | Cold Start Operation Supported |
| Input Current | 10 A |
| Height | 3 in |
| Hz | 60 Hz |
| Ports | TEL/DSL, USB |
| VA Rating - UPS Systems | 600 VA |
| Includes | USB Cables |
| Automatic Volts Regulation | No |
| NEMA Receptacle Configuration | 5-15R |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Standards | CSA, FCC Part 15 Class B, NOM, RoHS, UL1778 |
| Phase | Single |
| Display Type | No Display |
| Width | 11 in |
| Transfer Time | 2 to 4 msec |
| NEMA Plug Configuration | 5-15P |
| Footnotes | USB and TEL/DSL |
| Cord Length | 6 ft |
| Overall Width | 4.33 in |
| Capacity - Batteries | 600 VA/300 W |
| Input Connection | NEMA 5-15P Plug |
| Battery Type | VRLA |
| Housing Material | ABS |
| Primary UPS Depth (mm) | 185 |
| Input Circuit Breakers | 7A |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Audible Alarm | Alarm reports low-battery, fault, overload and replace battery conditions |
| High Voltage Transfer to Battery Power (Setpoint) | 145 |
| Output Watt Capacity (Watts) | 325 |
| Low Voltage Transfer to Battery Power (Setpoint) | 95 |
| Operating Elevation (ft.) | Up to 10,000 ft. |
| UPS AC Suppression Joule Rating | 316 |
| UPS AC Suppression Response Time | Instantaneous |
| Output Volt Amp Capacity (VA) | 600 |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Battery Replacement Description | Replaceable internal batteries (see manual) |
| Rated input current (Maximum Load) | 6 A |
| Battery Recharge Rate (Included Batteries) | 6.5 hours (10% to 90%) |

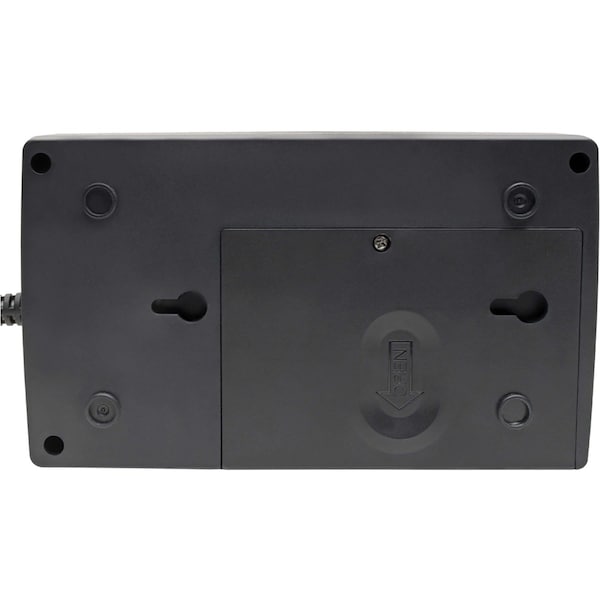

| Included Mounting Accessory Description | Wallmount installation supported using keyhole mounting tabs |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Communications Cable | USB interface cable included |
| Relative Humidity | 0 to 90%, non-condensing |
| Nominal Input Voltage(s) Supported | 120 V AC |
| DC System Voltage (VDC) | 12 |
| Primary Form Factor | Desktop |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Switches | Switch controls power off/on status |
| UPS Certification Details | UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS B; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia) |
| UPS Certifications | Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Half Load Runtime (min.) | 4 min 30 sec |
| Battery Access | Battery access door |
| LED Indicators | 1 Status LED reports operating mode and fault status |
| Operating Elevation (m) | Up to 3000m |
| EMI / RFI AC Noise Suppression | Yes |
| Full Load Runtime (min.) | 1 min |
| Storage Temperature Range | to +45 degrees Celsius |
| UPS Dataline Suppression | 1 line TEL/DSL or Ethernet |
| AC Mode BTU / Hr. (Full Load) | 13.1 |
| Expandable Runtime | No |
| Output Voltage Regulation (Line Mode) | 120V |
| Recommended Electrical Service | 15A 120V |
| UPS Power Module Dimensions (hwd, in.) | 4.13 x 4.33 x 7.28 |
| Output Voltage Regulation (Battery Mode) | 120V (±10%) |
| Primary UPS Height (mm) | 105 |
| UPS Input Cord Length (ft.) | 5 |
| Installation Form Factors Supported with Included Accessories | Tower; Ultra-compact desktop; Wallmount |
| AC Mode Efficiency Rating (100% Load) | >98% |
| Communications Interface | USB (HID enabled) |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| High Availability UPS Features | Battery Independent Restart |
| Input Phase | Single-Phase |
| Individually Controllable Load Banks | No |
| Software Included | PowerAlert UPS Monitoring Software |
| Protection Type | Brownout, Surge, Black Out |
| Load Capacity | 600 VA/300 W |
| Surge Energy Rating | 316 J |
| USB | Yes |
| Typical Battery Recharge Time | 4 hr |
| Form Factor | Desktop |
| Additional Information | Appearance: Attractive black ultra-compact housingOutput voltage regulation: Line Mode: Passes sine wave line voltage from 100-141V to connected equipment unchanged, Battery Mode: PWM sine wave output 115V +/-5%Output frequency regulation: Line Mode: Passes line frequency of 60Hz +/-10%, Battery Mode: Inverter output regulated to 60zHz +/-0.5Hz |
| Package Contents | Internet Office INTERNET600U 600VA Mini Desktop UPS, INTERNET600U standby UPS system, USB cable for use with PowerAlert UPS monitoring software, Instruction manual and warranty information |
| Dataline Protection | RJ-11 |
| Output Capacity (Watts) | 325 |
| Product Certifications | RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778 |
| Product Compliance | FCC Part 15 Class B (USA) |
| Output Capacity (VA) | 600 |
| Internal UPS Replacement Battery Cartridge | IMPORTANT BATTERY REPLACEMENT INFORMATION > If your INTERNET600U has no battery access door, please contact a local electronics repair technician to source and install a matching replacement battery; If your INTERNET600U UPS does have a battery replacement door and the original battery inside has a rating of 12V 3.6AH, please order Tripp Lite RBC36H replacement battery. |
| UPS Applications | Computer/Peripherals; Retail/Point of Sale; Hospitality |
| Package Includes | INTERNET600U 600VA 325W 120V Standby UPS with 10 Outlets;USB cable;Owner's manual |
| Audible Alarm Conditions | Low Battery, Overload, Replace Battery |
| Operating Temperature - Maximum | 104 deg F |
| Visible Indicator Light Conditions | Fault |
| External Battery Compatible | Not External Battery Pack Compatible |
| Replacement Battery Part Number | RBC36H |
| Output Ports Included | USB |
| Manufacturer Warranty | 3 yr (Limited) |
| Includes Battery | Battery Included |
| Power Cord Length | 5 ft |
| Input Current - Maximum | 6 A |
| Battery Recharge Time | 6 hr 30 min |
| Surge Suppression Rating | 316 J |
| Operating Temperature - Minimum | 32 deg F |
| Data Line Protection | Includes Data Line Surge Protection |
| Power Rating - Real | 300 W |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Package Quantity | 1 |
