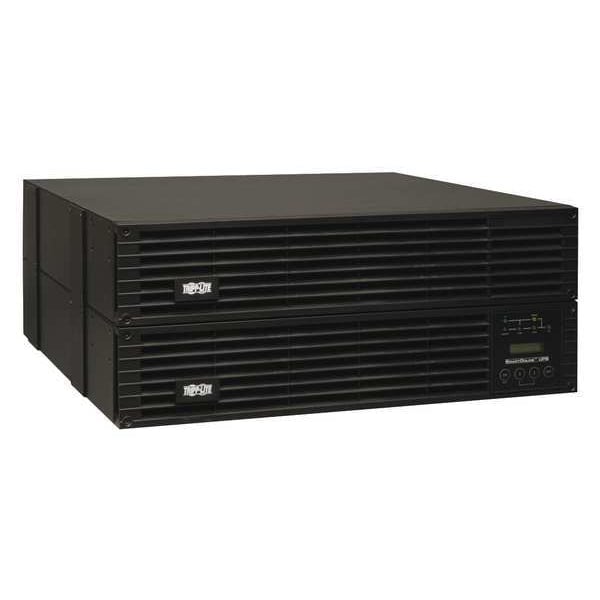

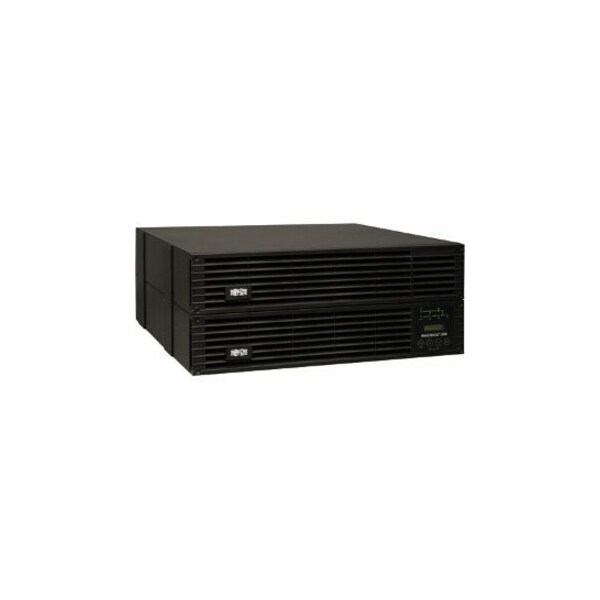

UPS System, 6kVA, Online/Double Conversion, Out: 200/208/220/230/240V AC In: 200/208/220/230/240V AC
| Item | UPS System |
|---|---|
| VA Rating - UPS Systems | 6 kVA |
| UPS Type | Online, Double Conversion |
| Power Rating | 6 kVA |
| Mounting | Tower, Rack |
| Wattage | 5.4 kW |
| Input Voltage | 200/208/220/230/240V AC |
| Output Voltage | 200/208/220/230/240V AC |
| Backup Time (Half/Full Load) | 8.5 min/2 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| Includes | (4) Post Rackmount Hardware, 6 ft DB9 Cable, 6 ft USB Cables, SUPDMB6KHW Detachable PDU with Maintenance Bypass Switch |
| Depth | 21 in |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Transfer Time | 0 msec |
| Automatic Volts Regulation | No |
| Display Type | LCD |
| Input Current | 31.9 A |
| Height | 7 in |
| Width | 21 in |
| Cord Length | No Cord |
| Footnotes | Slot for SNMPWEBCARD |
| Hz | 50/60 Hz |
| Ports | Slot for SNMPWEBCARD |
| Fax/Modem Line Protection | No |
| Phase | Single |
| NEMA Receptacle Configuration | No Configuration |
| Standards | CE (Europe), CSA (Canada), FCC Part 15 Class a (USA), IEC 61000, RoHS, UL1778 |
| Special Features | and PDU, Automatic Inverter Bypass, Cold Start Operation Supported, High Efficiency Economy Mode Operation, Hot Swappable Batteries, Manual Bypass Switch, Schedulable Daily Hours of Economy Mode Operation, UPS |
| NEMA Plug Configuration | 5-15P |
| Overall Width | 17.52 in |
| Capacity - Batteries | 6000 VA/5400 W |
| Input Connection | NEMA 5-15P Plug |
| Battery Type | VRLA |
| Housing Material | Steel |
| Audible Noise | 60 dBA at front side 1 meter |
| UPS Input Connection Description | Supports North American 208/240V input (L1,L2,G) or International 230/220/240V (L,N,PE) input wiring |
| Expandable Battery Runtime | Runtime is expandable with external battery packs |
| Primary Form Factor | Rackmount |
| Half Load Runtime (min.) | 8 min 30 sec |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); CE; Meets FCC Part 15 Category A (EMI) |
| Output kVA Capacity (kVA) | 6 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Output Voltage Regulation (Economy Line Mode) | +/- 10% |
| UPS Power Module Dimensions (hwd, in.) | 6.85 x 17.5 x 20.67 |
| AC Economy Mode Efficiency Rating (100% Load) | 0.96 |
| Low Voltage Transfer to Battery Power (Setpoint) | 156V (full load) / 100V (50% load or less, derates linearly) |
| Operating Elevation (m) | 0-3000 m |
| Alarm Cancel Operation | Alarm cancel switch |
| AC Mode BTU / Hr. (Full Load) | 1,767 |
| Minimum Required Rack Depth with External Battery Pack (in.) | 28.67 |
| WatchDog Compatibility | Yes |
| Switches | Includes main power off/on switch, plus 2 switches to set and execute scrollable LCD functions. A manual bypass switch featured on the detachable PDU allows for complete removal of the UPS during routine maintenance without disrupting power to connected loads |
| Recommended Electrical Service | 30A, 40A |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD, RELAYIOCARD, MODBUSCARD |
| Full Load Runtime (min.) | 2 minutes (5400 watts) |
| Minimum Required Rack Depth without External Battery Pack (in.) | 20.67 |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Frequency Compatibility Details | Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating) |
| Audible Alarm | Unique audible alarms for all major UPS, environmental and power conditions (see manual) |
| Battery Recharge Rate (Included Batteries) | 6 hours from 10% to 90% (typical, full load discharge) |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Internal UPS Replacement Battery Cartridge | RBC5-192 |
| EMI / RFI AC Noise Suppression | Yes |
| AC Economy Mode BTU / Hr. (Full Load) | 768 |
| High Availability UPS Features | Automatic inverter bypass; Battery Independent Restart; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch |
| Output Volt Amp Capacity (VA) | 6,000 |
| Battery Access | Front panel battery access door |
| Included Mounting Accessory Description | 4 post rackmount installation accessories included |
| Maximum Device Depth (in.) | 20.7 |
| Primary UPS Depth (mm) | 525 |
| External Battery Pack Compatibility | BP192V1037C-1PH ; BP192V12-3U ; BP192V1407C-1PH ; BP192V557C-1PH ; BP192V787C-1PH ; BP192V5RT2U (limit 1) |
| Nominal Output Voltage(s) Supported | 200 V, 208 V, 220 V, 230 V, 240 V |
| Output Watt Capacity (Watts) | 5,400 |
| Operating Elevation (ft.) | 0-3000m (0 to 10,000 ft.) |
| Expandable Runtime | Yes |
| Undervoltage Correction | Corrects undervoltages as low as 100 (<50% load) and 155V (full load); derates linearly |
| AC Mode Efficiency Rating (100% Load) | 0.9 |
| Primary UPS Height (mm) | 174 |
| Individually Controllable Load Banks | No |
| Rack Height | 4 U |
| Input Phase | Single-Phase |
| Crest Factor | 0.125694444444444 |
| UPS AC Suppression Joule Rating | 2,595 |
| Rated input current (Maximum Load) | 31.9A (200V), 30.6A (208V), 29A (220V), 27.7A (230V), 26.6A (240V) |
| Output kW Capacity (kW) | 5.4 |
| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Overvoltage Correction | Corrects overvoltages as high as 300V (<90% load) and 280V (full load) |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Transfer Time (Economy Mode) | 8 ms. typical power failure response in optional economy mode |
| Cooling Method | Fan |
| DC System Voltage (VDC) | 192 |
| Battery Replacement Description | Hot-swappable, user replaceable internal batteries |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Output Capacity Details | Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as the overload is cleared |
| LED Indicators | 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND ) |
| Relative Humidity | 0 to 95%, non-condensing |
| Battery Mode BTU / Hr. (Full Load) | 2,279 |

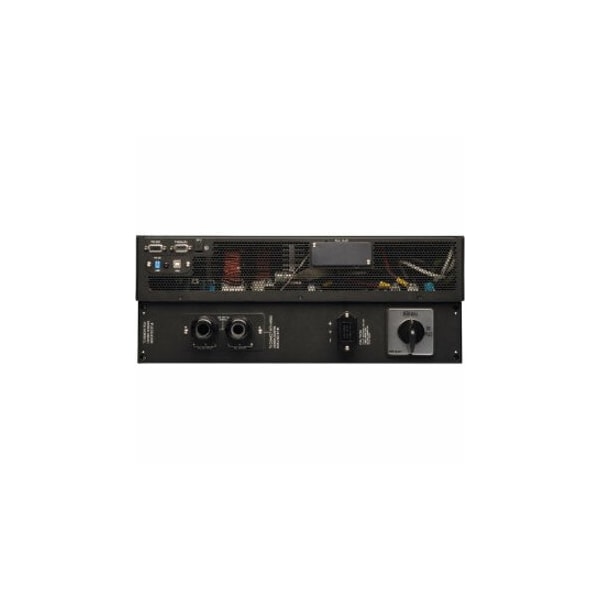

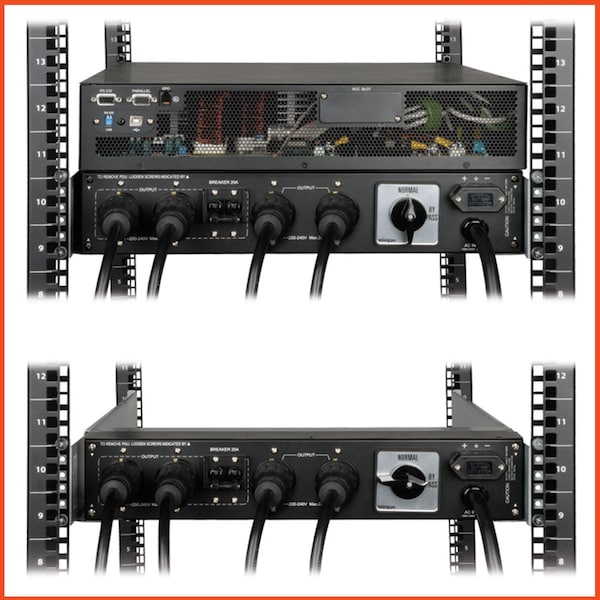

| Output Receptacle Details | Hardwire input and output connections are mounted on a detachable PDU backplate with bypass switch to enable hot-swappable power module replacement |
| Output Voltage Regulation (Battery Mode) | +/- 2% |
| Nominal Input Voltage(s) Supported | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| UPS AC Suppression Response Time | Instantaneous |
| UPS Certification Details | IEC 61000-4-5 1995 B Surge Immunity |
| High Voltage Transfer to Battery Power (Setpoint) | 280V (full load) / 300V (90% load or less) |
| Communications Cable | USB, DB9 serial and EPO cables included |
| Voltage Regulation Description | Online, double-conversion power conditioning |
| Network Monitoring Port Description | Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports |
| Front Panel LCD Display | Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats (see manual) |
| Power Factor | 0, 9 |
| Product Series | EZ |
| Serial Port | Yes |
| Hot Swappable | Yes |
| Load Capacity | 6000 VA/5400 W |
| Form Factor | Tower, Rack |
| Typical Battery Recharge Time | 6 hr |
| Package Contents | SmartOnline EZ SU6000RT4UHVHW 6000 VA Tower/Rack Mountable UPS, PowerAlert Software Suite CD, USB Cable, Serial Cable, EPO Cable, Rail Kit |
| Bypass Switch | Automatic, Manual |
| Network Management | SNMP Manageable |
| Emergency Power OFF | Yes |
| Software Included | PowerAlert Software Suite |
| USB | Yes |
| Output Capacity (Watts) | 5,400 |
| Output Capacity (VA) | 6,000 |
| UPS Applications | Mission Critical Applications |
| Package Includes | SU6000RT4UHVPM Hot-swappable UPS Power Module;SUPDMB6KHW Detachable PDU with Maintenance Bypass Switch;1 x 6-ft. USB Cable;1 x 6-ft. DB9 Cable;4-Post Rackmount Hardware |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA) |
| Product Certifications | IEC 61000; CSA (Canada); UL 1778 |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Unit Dimensions (hwd / in.) | 6.85 x 17.5 x 20.67 |
| Minimum Required Rack Depth (inches) | 24 |
| Online Mode Heat Dissipation (BTU/Hr) @ Full Load | 1,767 |
| Power Cord Length | Not Applicable |
| Manufacturer Warranty | 2 yr |
| External Battery Compatible | External Battery Pack Compatible |
| Input Current - Maximum | 31.9 A |
| Surge Suppression Rating | 2,595 J |
| Input Current - Minimum | 26.6 A |
| Output Ports Included | DB9 Serial, EPO, SNMP, USB |
| Battery Recharge Time | 6 hr |
| Operating Temperature - Maximum | 104 deg F |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| External Battery Pack Part Number | BP192V1037C-1PH, BP192V12-3U, BP192V1407C-1PH, BP192V5RT2U, BP192V787C-1PH |
| Operating Temperature - Minimum | 32 deg F |
| Replacement Battery Part Number | RBC5-192 |
| Power Rating - Real | 5.4 kW |
| Includes Battery | Battery Included |
| Package Quantity | 1 |
