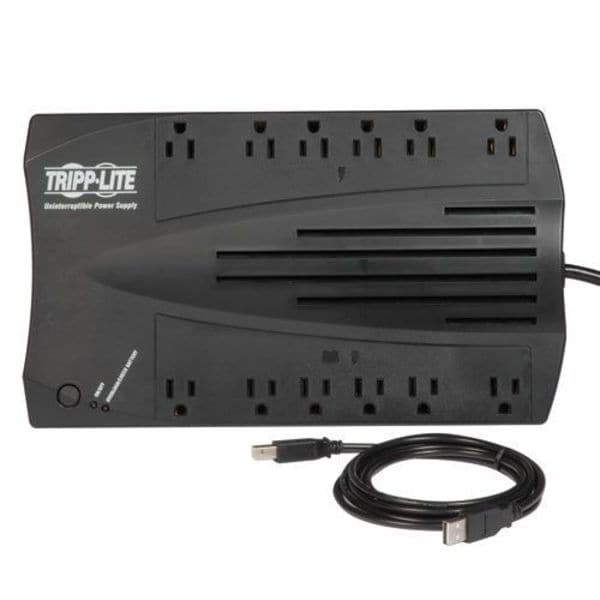

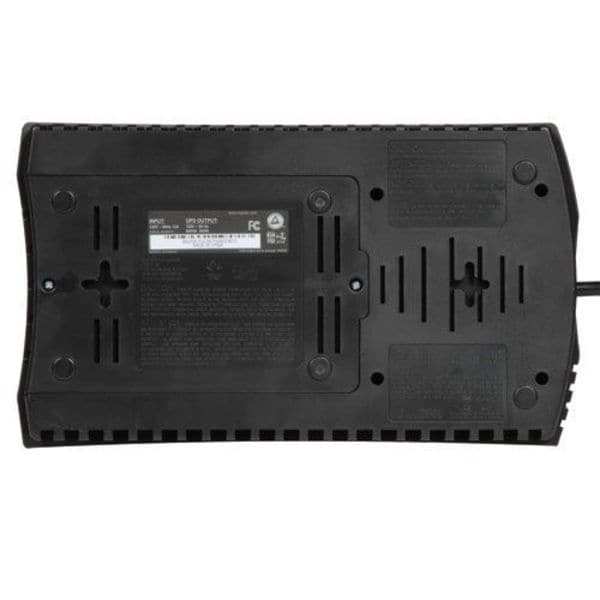

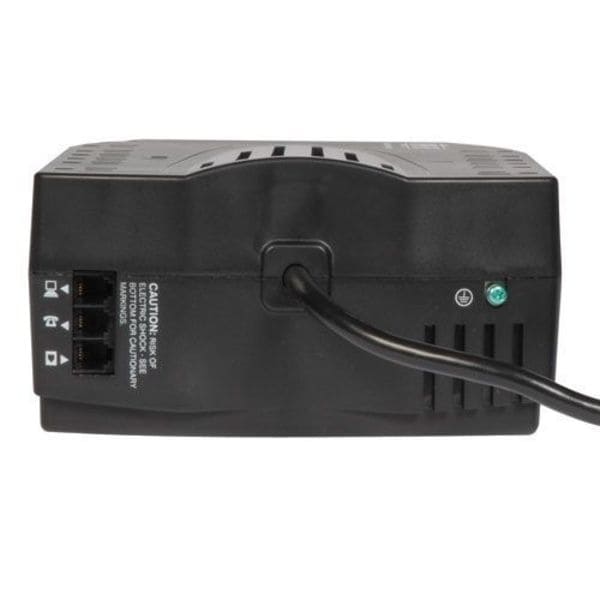

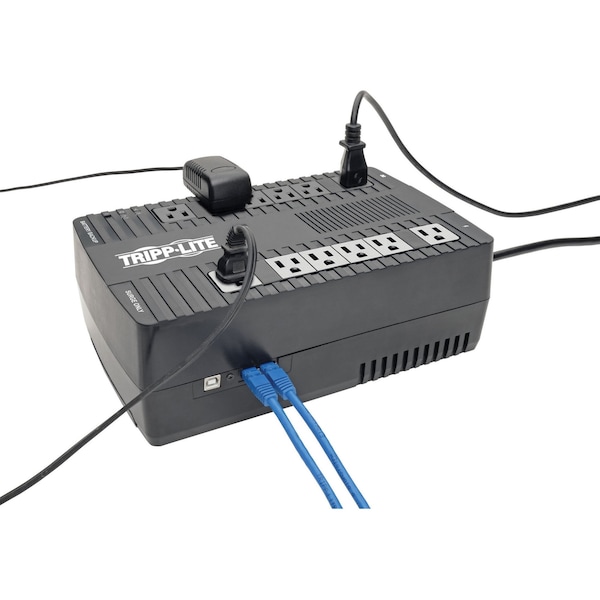

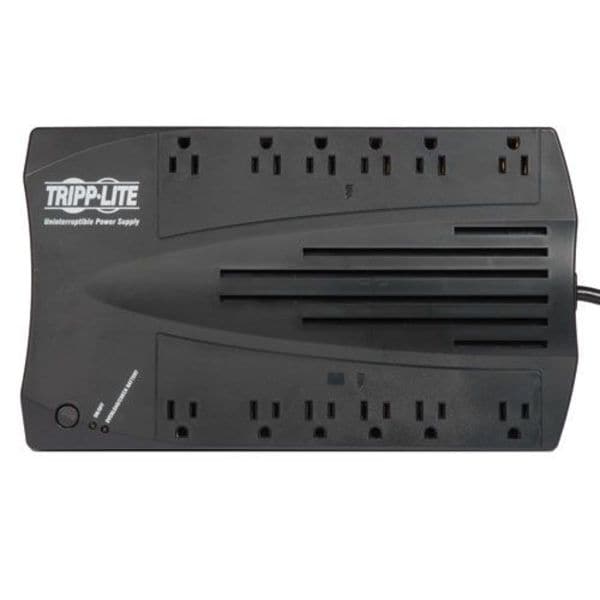

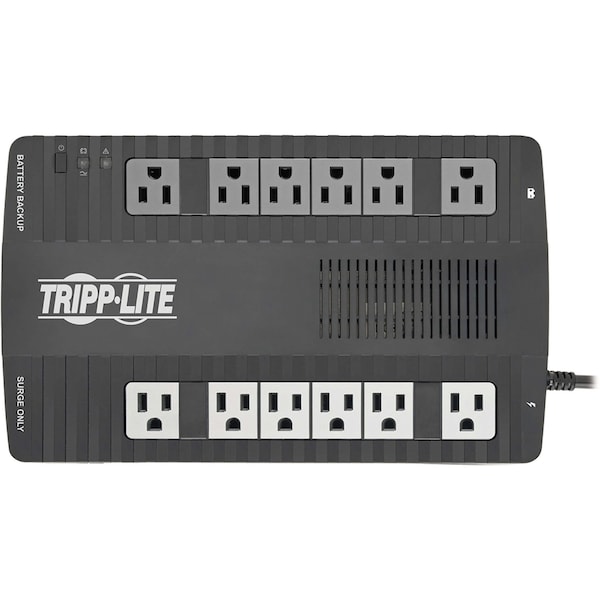

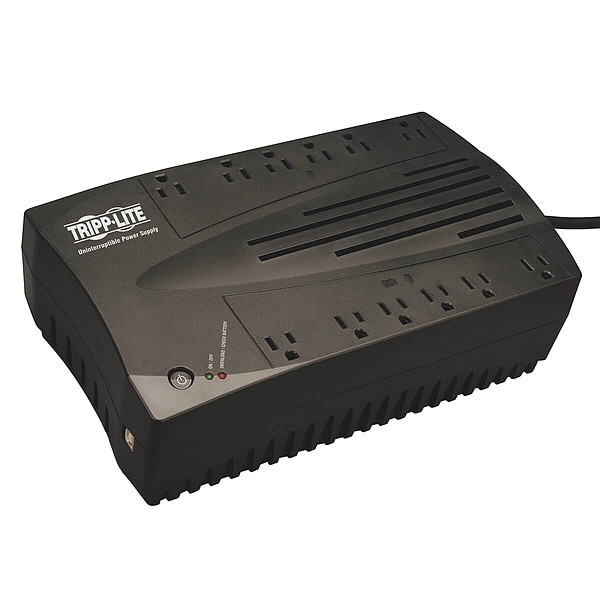

UPS System, 750VA, Line Interactive, Out: 110/115/120V AC In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 750 VA |
| Mounting | Tower, Desktop |
| Wattage | 450 W |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 11 min/3 min |
| Outlet Type | (6) Surge; (6) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 12 |
| Automatic Volts Regulation | No |
| Standards | CSA, FCC Part 15 Class A, NOM, RoHS, UL1778 |
| Display Type | No Display |
| Footnotes | 4 |
| Width | 7 in |
| Height | 4 in |
| Hz | 60 Hz |
| NEMA Receptacle Configuration | 5-15R |
| Special Features | USB Port And Poweralert Software Enables Unattended Shutdown In Case Of Extended Power Failure |
| Ports | USB (HID enabled) |
| Phase | Single |
| Includes | USB Cables |
| Cord Length | 6 ft |
| Depth | 7 in |
| NEMA Plug Configuration | 5-15P |
| VA Rating - UPS Systems | 750 VA |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Input Current | 12 A |
| Fax/Modem Line Protection | No |
| Transfer Time | 2 to 4 msec |
| Overall Height | 4.14 in |
| Overall Width | 7.48 in |
| Input Connection | 6 ft Cord with NEMA 5-15P Plug |
| Housing Color | Black |
| Battery Type | VRLA |
| Housing Material | ABS |
| UPS Power Module Dimensions (hwd, in.) | 4.14 x 7.48 x 12 |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| UPS Input Cord Length (ft.) | 5 |
| Operating Elevation (m) | Up to 3000m |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| High Availability UPS Features | Battery Independent Restart |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Rated input current (Maximum Load) | 10A |
| Output Watt Capacity (Watts) | 450 |
| Battery Recharge Rate (Included Batteries) | 8 hours (10% to 90%) |
| Primary UPS Height (mm) | 105 |
| Overvoltage Correction | Input voltages between 128 and 145 are reduced by 15% |
| Primary Form Factor | Desktop |
| UPS AC Suppression Response Time | Instantaneous |
| Output Voltage Regulation (Battery Mode) | 120V (±10%) |
| Battery Replacement Description | Replaceable internal batteries (see manual) |
| Primary UPS Depth (mm) | 305 |
| Storage Temperature Range | to +45 degrees Celsius |
| Input Phase | Single-Phase |
| Output Voltage Regulation (Line Mode) | 120V |
| UPS Dataline Suppression | 1 line TEL/DSL or Ethernet |
| Input Circuit Breakers | 10A |
| LED Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| Battery Access | Battery access door |
| AC Mode Efficiency Rating (100% Load) | >96% |
| Recommended Electrical Service | 15A 120V |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Relative Humidity | 0 to 90%, non-condensing |
| Half Load Runtime (min.) | 11 min |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Individually Controllable Load Banks | No |
| Internal UPS Replacement Battery Cartridge | RBC51 |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145 |
| AC Mode BTU / Hr. (Full Load) | 41 |
| Output Volt Amp Capacity (VA) | 750 |
| Audible Alarm | UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions |
| UPS AC Suppression Joule Rating | 316 |
| Switches | Power off/on switch |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| High Voltage Transfer to Battery Power (Setpoint) | 145 |
| Full Load Runtime (min.) | 3 min |
| UPS Certifications | Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Installation Form Factors Supported with Included Accessories | Tower; Ultra-compact desktop; Wallmount |
| Operating Elevation (ft.) | Up to 10,000 ft. |
| Low Voltage Transfer to Battery Power (Setpoint) | 89 |
| DC System Voltage (VDC) | 12 |
| EMI / RFI AC Noise Suppression | Yes |
| Communications Cable | USB interface cable included |
| Undervoltage Correction | Input voltages between 89 and 108 are boosted by 18% |
| UPS Certification Details | UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia) |
| Communications Interface | USB (HID enabled) |
| Grounding Lug | Includes |
| Expandable Runtime | No |
| Assembly Required | No |
| Maximum Operating Temperature | 104°F |
| Application/Usage | Printer, Home Theater, Home/Office, Router, TV, Digital Signage, Security System, ATM, Media Center, Computer, Blu-ray Player, Gaming Console |
| AVR | Yes |
| Alarm | Battery Backup, Low Battery, Overload, Replace Battery, Fault |
| Typical Battery Recharge Time | 9 hr |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Surge Energy Rating | 316 J |
| AVR Range | Boost +18% / Buck -15% |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Input Frequency | 60 Hz |
| Product Series | AVR |
| Number of Battery & Surge Outlets | 6 |
| Package Contents | AVR 750VA Desktop UPS, USB cable, Instruction manual |
| Maximum Operating Elevation | 10,000 ft |
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| USB (HID Compliant) Port | Yes |
| EMI/RFI Noise Filter | Yes |
| Storage Temperature | 5 to 113°F |
| USB | Yes |
| Output Frequency | 60 Hz |
| Replaceable Battery | Yes |
| Dataline Protection | RJ-11 |
| Load Capacity | 750 VA/450 W |
| Form Factor | Tower, Desktop, Wall Mount |
| Package Includes | AVR750U 750VA 450W 120V Line-Interactive UPS with 12 Outlets;USB cable;Owner's manual |
| Grounding Details | Includes side panel lug, grounding lug |
| UPS Dataline Suppression Details | Set of two 8 position RJ connectors protect either a single 10BaseT connection (pins 1,2,3 & 6; 7.5V clamping) or a single TEL/DSL connection (pins 4-5; 260V clamping) |
| Product Certifications | RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778 |
| Product Compliance | FCC Part 15 Class A (USA) |
| Output Capacity (Watts) | 450 |
| Output Capacity (VA) | 750 |
| UPS Applications | Home/Office Desktop; Audio/Video; Retail/Point of Sale; Hospitality |
| Power Rating - Real | 450 W |
| Data Line Protection | Includes Data Line Surge Protection |
| Replacement Battery Part Number | RBC51 |
| External Battery Compatible | Not External Battery Pack Compatible |
| Number of Outlets - Surge Only | 6 |
| Battery Chemistry | Valve Regulated Lead Acid |
| Input Current - Maximum | 10 A |
| Operating Temperature - Minimum | 32 deg F |
| Frequency | 50/60 Hz |
| Surge Suppression Rating | 316 J |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Manufacturer Warranty | 3 yr (Limited) |
| Battery Recharge Time | 8 hr |
| Overall Depth | 12 in |
| Power Cord Length | 5 ft |
| Operating Temperature - Maximum | 104 deg F |
| Receptacle Configuration | 5-15R |
| Audible Alarm Conditions | Low Battery, Overload |
| Visible Indicator Light Conditions | Battery Low, Fault, Overload, Power Status, Replace Battery |
| Includes Battery | Battery Included |
| Output Ports Included | USB |
| Package Quantity | 1 |
