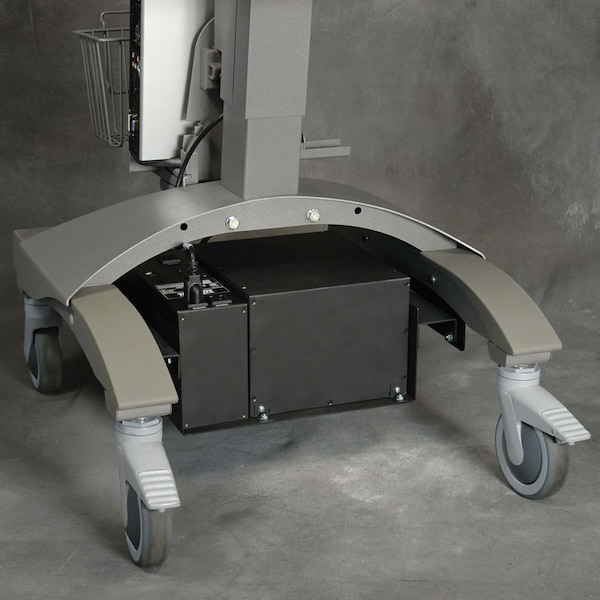

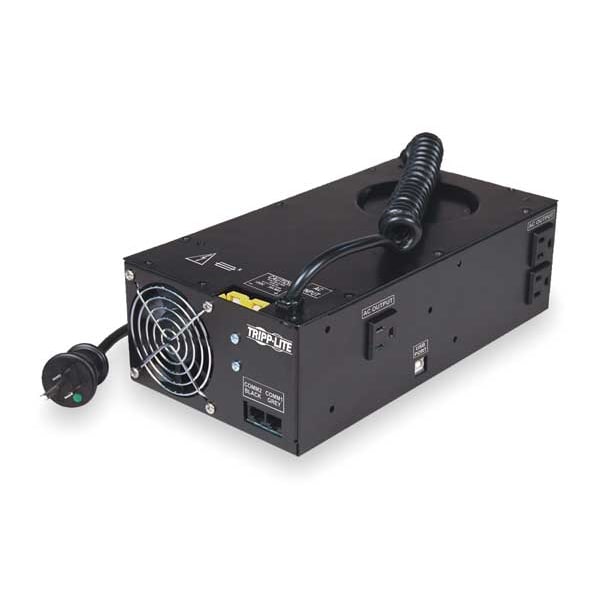

UPS System, 750VA, Line Interactive, Out: 120V AC In: 120V AC
| VA Rating - UPS Systems | 750 VA |
|---|---|
| Item | UPS System |
| UPS Type | Line Interactive |
| Power Rating | 750 VA |
| Mounting | Tower, Desktop |
| Wattage | 300 W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | Up to 12 hr |
| Outlet Type | Surge |
| Medical Grade | Yes |
| Number of Outlets | 3 |
| Includes | 90 Amp-Hour User-Replaceable Battery Module and Cabling, Medical Grade Mobile Power Supply, PowerAlert Software CD and USB Cable, Remote User Interface (RUI) and Cabling |
| Ports | USB |
| Height | 6 in |
| Hz | 60 Hz |
| Phase | Single |
| Footnotes | 4,14,18 |
| Fax/Modem Line Protection | No |
| Automatic Volts Regulation | No |
| Input Current | 90 A |
| Transfer Time | 0 msec |
| Cord Length | 10 ft |
| Display Type | No Display |
| Standards | CSA-C22.2 No. 601.1, IEC 60601-1, RoHS, UL1778 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Width | 3-1/2 in |
| NEMA Plug Configuration | 5-15P |
| Special Features | Poweralert Data-Saving Software |
| NEMA Receptacle Configuration | 5-15R |
| Depth | 3-1/2 in |
| Overall Width | 11-1/2 in |
| Voltage | 120 |
| Input Connection | 10 ft Cord with NEMA 5-15P-HG Plug |
| Housing Material | Metal |
| Battery Type | VRLA |
| Voltage Compatibility (VAC) | 120 |
| Voltage Compatibility (VDC) | 12 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Peak Output Capacity (Watts) | 750 |
| Form Factors Supported | Retrofits most standard medical cart configurations |
| Battery Charge | Equal to discharge time. Includes advanced 3-stage (10A) battery charger |
| Material of Construction | Power Supply and Battery Module: metal |
| Switches | On Remote User Interface (RUI): On/Off Switch and Alarm-Mute Switch |
| DC System Voltage (VDC) | 12 |
| Recommended Electrical Service | 15A 120V |
| Cooling Method | Fan |
| EMI / RFI AC Noise Suppression | Yes |
| Input Cord Length (ft.) | 10 |
| Input Connection Type | NEMA 5-15P-HG Hospital-Grade |
| Audible Alarm | Low Battery Alarm |
| Full Load Runtime (min.) | Up to 12 hours typical runtime in standard configuration. Runtime varies depending on battery condition and load |
| Output (Watts) | 300 |
| Nominal Output Voltage(s) Supported | 120 V |
| Network Monitoring Port | USB |
| Front Panel LEDs | On Remote User Interface (RUI): Output AC Power, Battery Charge Level and Battery Charging Status |
| Continuous Output Capacity (Watts) | 300 |
| Compatibility | AFC, Anthro, Datalux, GCX, Hergo, Human scale, Jaco, Knurr, Stinger |

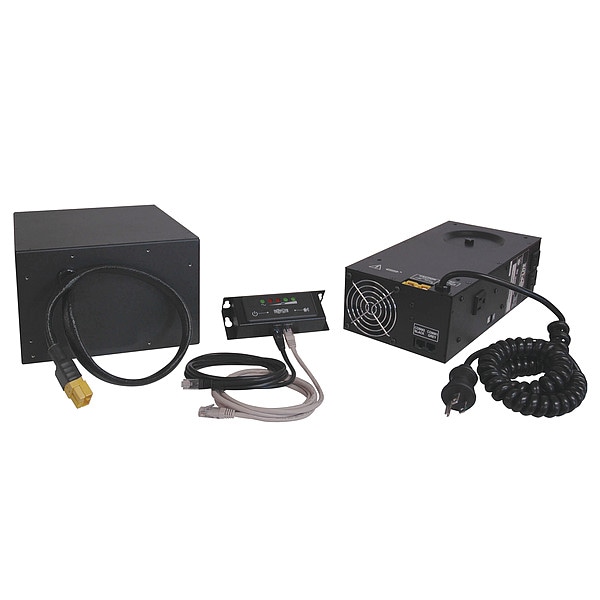

| Package Contents | Medical-Grade Mobile Power Retrofit Kit, Medical-Grade Mobile Power Supply, 90 amp-hour User-Replaceable Battery Module and cabling, PowerAlert Data-Saving Software CD and USB cable, Remote User Interface (RUI) and cabling, Mounting Hardware Kit and owner's ma |
| Product Certifications | IEC 60601-1; CAN/CSA-C22.2 No. 601.1; UL 1778 |
| Package Includes | Medical-Grade Mobile Power Supply;90 amp-hour User-Replaceable Battery Module and cabling;PowerAlert Software CD and USB cable;Remote User Interface (RUI) and cabling;Mounting Hardware Kit and owner's manual with warranty information |
| Pure Sine Wave Output | No |
| Unit Dimensions (hwd / in.) | 3.5 x 11.5 x 6 |
| External Battery Compatible | Not External Battery Pack Compatible |
| Includes Battery | Battery Included |
| Power Cord Length | 10 ft |
| Audible Alarm Conditions | Low Battery |
| Output Ports Included | USB |
| Manufacturer Warranty | 3 yr (Limited) |
| Data Line Protection | No Data Line Surge Protection |
| Power Rating - Real | 300 W |
| Surge Suppression Rating | 316 J |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Visible Indicator Light Conditions | No Indicator Lights |
| Input Current - Maximum | 90 A |
| Package Quantity | 1 |
