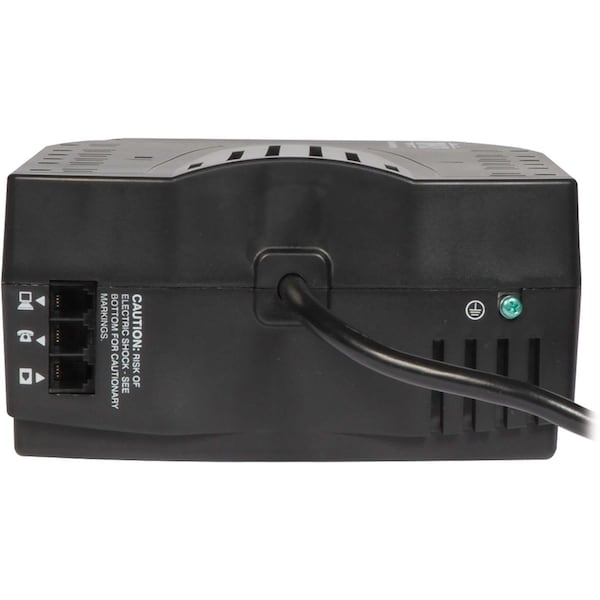

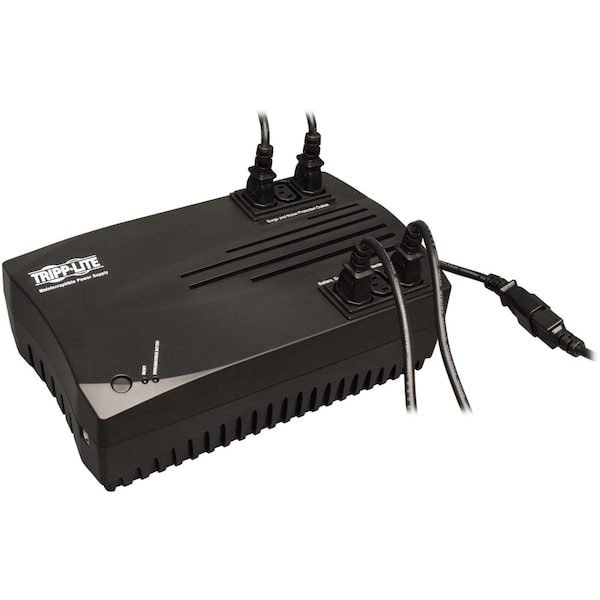

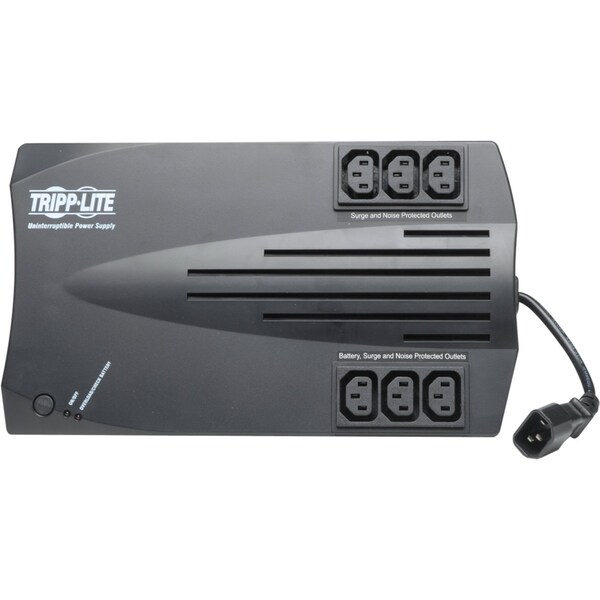

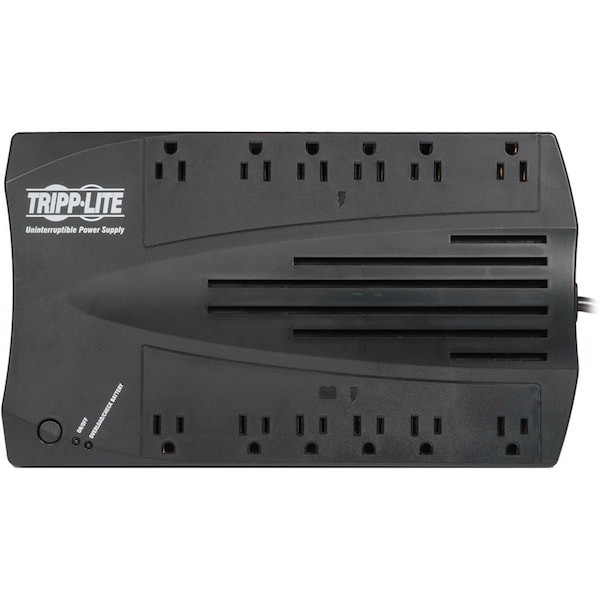

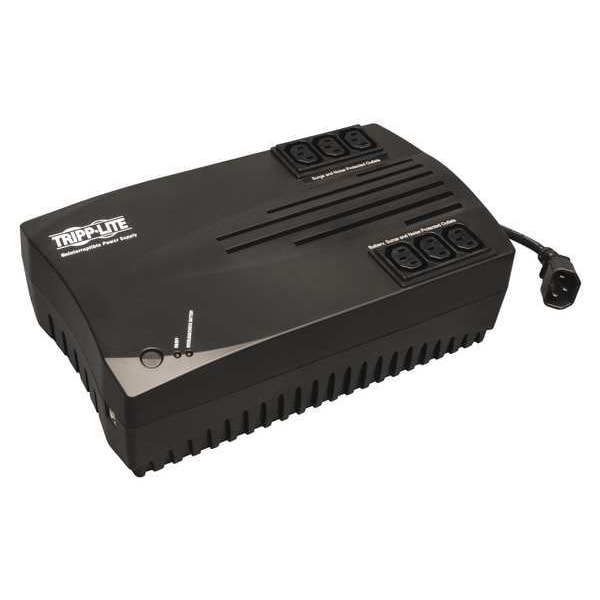

UPS System, 750VA, Line Interactive, Out: 220/230/240V AC In: 230V AC
| Item | UPS System |
|---|---|
| VA Rating - UPS Systems | 750 VA |
| UPS Type | Line Interactive |
| Power Rating | 750 VA |
| Mounting | Tower, Desktop |
| Wattage | 450 W |
| Input Voltage | 230V AC |
| Output Voltage | 220/230/240V AC |
| Backup Time (Half/Full Load) | 8.6 min/2.4 min |
| Outlet Type | (3) Surge; (3) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 6 |
| Footnotes | USB and TEL/DSL |
| NEMA Receptacle Configuration | C13 |
| Height | 4 in |
| Cord Length | 0.5 ft |
| Input Current | 10 A |
| Depth | 7 in |
| NEMA Plug Configuration | 5-15P |
| Display Type | No Display |
| Special Features | Hot Swappable Batteries |
| Standards | CE, FCC Part 15 Class B, RoHS |
| Automatic Volts Regulation | Yes |
| Ports | TEL/DSL, USB |
| Includes | (2) C13 to C14 Power Cables, USB Cables |
| Transfer Time | 2 to 4 msec |
| Phase | Single |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Fax/Modem Line Protection | Yes |
| Hz | 50/60 Hz |
| Width | 7 in |
| Overall Width | 12 in |
| Capacity - Batteries | 750 VA/450 W |
| Battery Type | Sealed Lead Acid |
| Housing Color | Black |
| Input Connection | NEMA 5-15P Plug |
| Housing Material | ABS |
| Full Load Runtime (min.) | 2 min 24 sec |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| AC Mode Efficiency Rating (100% Load) | 0.98 |
| Undervoltage Correction | Input voltages between 159 and 205 are boosted by 14% |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Expandable Runtime | No |
| UPS AC Suppression Joule Rating | 320 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Communications Interface | USB (HID enabled) |
| EMI / RFI AC Noise Suppression | Yes |
| Hot-Swap PDU options | PDUBHV10 (2U / 8 C13 outlets) |
| Output Volt Amp Capacity (VA) | 750 |
| Individually Controllable Load Banks | No |
| Audible Alarm | Audible alarm indicates power-failure and overload status |
| Internal UPS Replacement Battery Cartridge | RBC51 |
| Nominal Output Voltage(s) Supported | 220 V, 230 V, 240 V |
| Included Output Power Cables | Includes 2 C13 to C14 output power cables |
| UPS Input Connection Description | Attached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country specific plug. |
| Output Voltage Regulation (Line Mode) | +8%, -21% |
| Half Load Runtime (min.) | 8 min 36 sec |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| High Voltage Transfer to Battery Power (Setpoint) | 282 |
| Rated input current (Maximum Load) | 10 A |
| Low Voltage Transfer to Battery Power (Setpoint) | 159 |
| Output Watt Capacity (Watts) | 450 |
| Network UPS Tools Compatibility | NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
| Battery Mode BTU / Hr. (Full Load) | 459 |
| Communications Cable | USB interface cable included |
| Battery Access | Battery access door |
| UPS AC Suppression Response Time | Instantaneous |
| LED Indicators | 2 LEDs indicate power status and overload/check battery status |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| AC Mode BTU / Hr. (Full Load) | 20 |
| Frequency Compatibility Details | Automatic frequency selection |
| UPS Power Module Dimensions (hwd, in.) | 4 x 12 x 7 |
| UPS Input Cord Length (ft.) | 0.5 |
| Overvoltage Correction | Input voltages between 245 and 282 are reduced by 12% |
| Switches | Combination switch controls on/off power status and self-test operation |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out) |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| High Availability UPS Features | Hot swappable batteries |
| Nominal Input Voltage(s) Supported | 230 V AC |
| Relative Humidity | 0 to 95%, non-condensing |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Primary UPS Height (mm) | 102 |
| Installation Form Factors Supported with Included Accessories | Tower; Ultra-compact desktop; Wallmount |
| DC System Voltage (VDC) | 12 |
| Primary UPS Depth (mm) | 178 |
| Primary Form Factor | Desktop |
| UPS Certifications | CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Meets FCC Part 15 Category B (EMI) |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 159 to 282VAC |
| Input Phase | Single-Phase |
| Load Capacity | 750 VA/450 W |
| Battery Characteristics | Maintenance-free |
| Package Contents | AVRX750AVR Line Interactive UPS, USB and phone cable, Owner's manual with warranty information |
| Hot Swappable | Yes |
| Number of Batteries | 1 |
| Surge Energy Rating | 320 J |
| Additional Information | AVRX750AVR line interactive UPS offers complete protection from blackouts, brownouts and surges on AC and tel/DSL dataline connections, Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages back to nominal levels without using battery power, 6 built-in C13 outlets, Provides battery derived AC output during blackouts and brownouts, 750VA / 450 watt power handling ability supports a variety of PCs, workstations and other sensitive electronics, Supports entry-level PC systems up to 35 minutes during blackout conditions, Single line tel/DSL line surge suppression with line splitter protects two directly-connected modems, fax machines or cordless phones sharing a single phone line connection, USB port, FREE PowerAlert Software and cabling provide monitoring of site power conditions, Compatible with Tripp Lite's WatchDog System Service Monitoring/Rebooting Software (part# WATCHDOGSW), Hot swappable battery replacement supported via battery access door, Space saving, ultra-compact housing, 2 year manufacturer's product warranty |
| Grounding Details | Yes |
| Output Capacity (Watts) | 450 |
| UPS Applications | Home/Office Desktop; Audio/Video; Retail/Point of Sale; Hospitality |
| Package Includes | AVRX750U UPS System;USB cable;Two C13 to C14 power cables;Instruction manual |
| Output Capacity (VA) | 750 |
| Product Compliance | SASO (Saudi Arabia); CE (Europe); FCC Part 15 Class B (USA) |
| Product Certifications | GOST (Russia) |
| Power Rating - Real | 450 W |
| Includes Battery | Battery Included |
| Operating Temperature - Minimum | 32 deg F |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Audible Alarm Conditions | Low Battery, Overload, Replace Battery |
| Visible Indicator Light Conditions | Overload, Power Status |
| Power Cord Length | 6 in |
| Manufacturer Warranty | 2 yr (Limited) |
| Data Line Protection | Includes Data Line Surge Protection |
| Output Ports Included | USB |
| Operating Temperature - Maximum | 104 deg F |
| Replacement Battery Part Number | RBC51 |
| Input Current - Maximum | 10 A |
| External Battery Compatible | Not External Battery Pack Compatible |
| Package Quantity | 1 |
